WEINUANXIN Fuel Injection Nozzle User Manual

Introduction

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your WEINUANXIN Fuel Injection Nozzles, model INP-059. These nozzles are designed for specific Mitsubishi vehicle models, ensuring precise fuel delivery for optimal engine performance.

Please read this manual thoroughly before installation and operation to ensure proper function and safety.

Safety Information

Always observe the following safety precautions:

• Ensure the vehicle's engine is off and cool before beginning any work.
• Disconnect the vehicle's battery to prevent accidental electrical discharge.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Fuel systems are under pressure. Relieve fuel pressure according to your vehicle's service manual before disconnecting any fuel lines.
• Handle fuel with extreme care. It is highly flammable. Work in a well-ventilated area away from open flames or sparks.
• If you are unsure about any step, consult a qualified automotive technician.

Product Overview

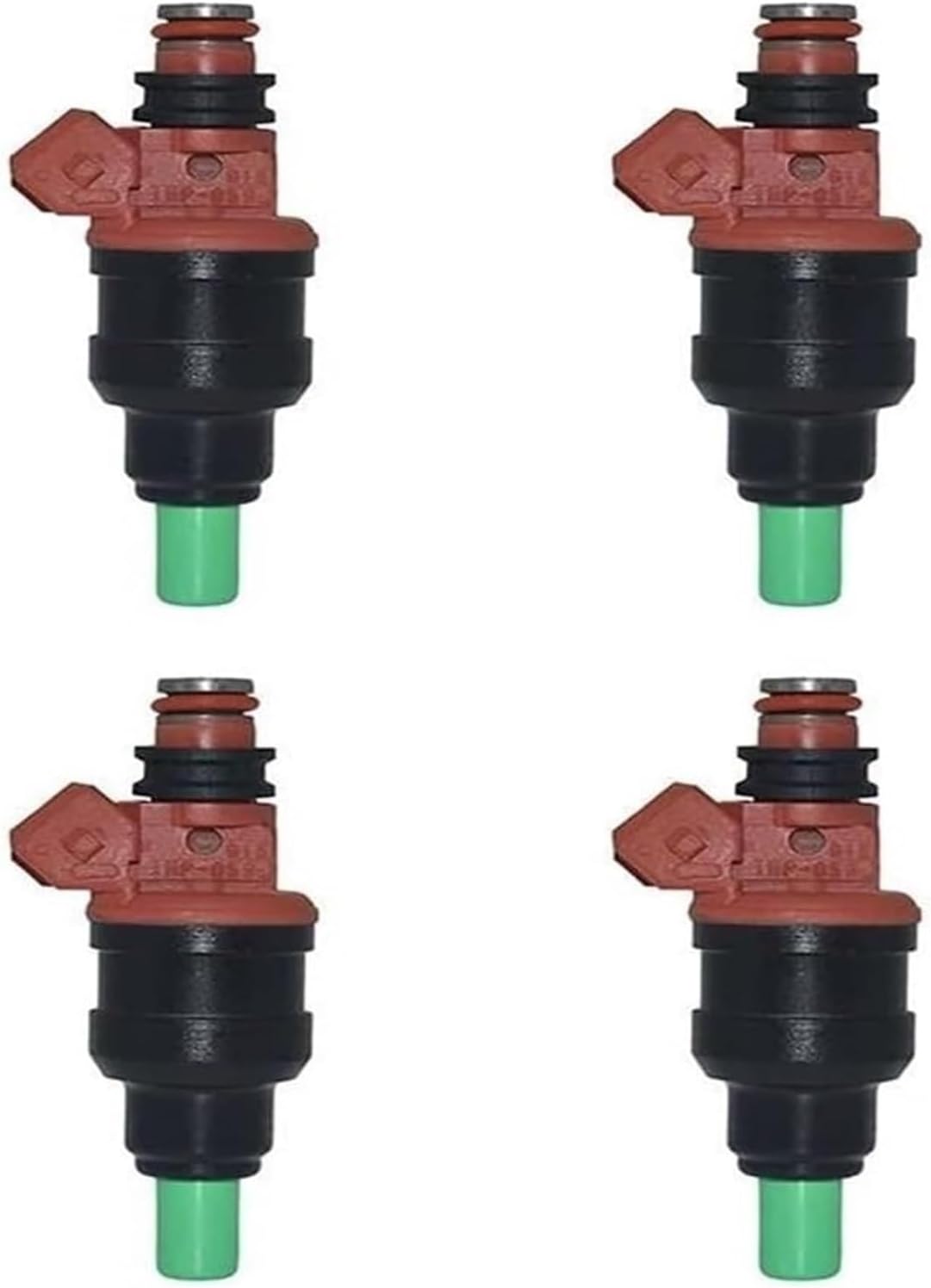

Image: Four WEINUANXIN Fuel Injection Nozzles, model INP-059. Each nozzle features a reddish-brown top section, a black cylindrical body, and a light green tip. They are designed for precise fuel delivery in compatible Mitsubishi vehicles.

The WEINUANXIN Fuel Injection Nozzle (INP-059) is a critical component of your vehicle's fuel system, responsible for atomizing and injecting fuel into the engine's combustion chambers. Proper functioning of these nozzles is essential for engine efficiency, power, and emissions control.

This package includes four (4) fuel injection nozzles, suitable for replacing all injectors in a 4-cylinder engine or as spares.

Setup and Installation

The installation of fuel injectors requires mechanical aptitude and specific tools. Refer to your vehicle's official service manual for detailed, model-specific instructions.

Compatibility:

• For Mitsubishi Eclipse: 1991-1994
• For Mitsubishi Galant: 1991-1992

General Installation Steps (Consult Vehicle Manual for Specifics):

1. Preparation: Park the vehicle on a level surface, engage the parking brake, and ensure the engine is cool. Disconnect the negative terminal of the battery.
2. Relieve Fuel Pressure: Locate the fuel pressure relief valve or fuse/relay for the fuel pump and follow the vehicle manual's procedure to safely relieve fuel system pressure.
3. Access Injectors: Remove any components obstructing access to the fuel rail and injectors (e.g., intake manifold, wiring harnesses). Label all disconnected hoses and wires for correct reassembly.
4. Remove Old Injectors: Disconnect electrical connectors from the old injectors. Carefully unbolt the fuel rail and gently pull the old injectors out of their ports. Be prepared for residual fuel leakage.
5. Install New Injectors: Lightly lubricate the O-rings of the new WEINUANXIN INP-059 injectors with clean engine oil to aid installation and prevent damage. Carefully push the new injectors into their ports until seated. Reinstall the fuel rail, ensuring all injectors are properly aligned and seated.
6. Reconnect: Reconnect all electrical connectors, hoses, and wires. Reinstall any removed components.
7. Final Checks: Reconnect the battery. Turn the ignition to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Check for any fuel leaks. Repeat this priming step a few times.
8. Start Engine: Start the engine and carefully inspect for any fuel leaks or unusual noises. Allow the engine to run for a few minutes to ensure proper operation.

Operating Principles

Fuel injection nozzles are electromechanical devices. When the engine control unit (ECU) sends an electrical signal, a solenoid inside the injector opens a valve, allowing pressurized fuel to spray into the engine's intake manifold or directly into the combustion chamber. The duration of this opening, known as pulse width, determines the amount of fuel delivered, which is precisely controlled by the ECU based on various engine parameters (e.g., engine speed, load, temperature).

The INP-059 nozzles are designed to provide the correct spray pattern and fuel flow rate for the specified Mitsubishi engines, contributing to efficient combustion and optimal engine performance.

Maintenance

Fuel injectors are generally designed to be maintenance-free for their lifespan. However, their longevity and performance can be affected by fuel quality and engine conditions.

• Fuel Quality: Use high-quality, clean fuel to prevent deposits from forming on the injector tips, which can impede spray patterns and fuel flow.
• Fuel System Cleaners: Periodically using a reputable fuel system cleaner (added to the fuel tank) can help prevent and remove minor deposits from injectors. Follow the cleaner manufacturer's instructions.
• Professional Cleaning: If significant performance issues arise due to clogged injectors, professional ultrasonic cleaning or replacement may be necessary.
• Regular Vehicle Maintenance: Adhere to your vehicle's recommended maintenance schedule, including fuel filter replacement, to ensure the fuel system remains clean and free of contaminants.

Troubleshooting

Common symptoms of faulty fuel injectors include:

• Engine misfires or rough idling
• Reduced fuel economy
• Check Engine Light (CEL) illuminated with fuel system-related codes (e.g., P030x for misfires, P0171/P0174 for lean conditions)
• Difficulty starting the engine
• Strong fuel odor (indicating a leak)

Troubleshooting Steps:

1. Check for Leaks: Visually inspect the injectors and fuel rail for any signs of fuel leakage. Address any leaks immediately.
2. Scan for Codes: Use an OBD-II scanner to retrieve any diagnostic trouble codes (DTCs). These codes can pinpoint specific issues or cylinders.
3. Inspect Electrical Connections: Ensure all electrical connectors to the injectors are clean, secure, and free from corrosion.
4. Fuel Pressure Test: A fuel pressure gauge can confirm if the fuel system is delivering adequate pressure to the injectors. Low pressure can mimic injector issues.
5. Injector Resistance Test: Using a multimeter, check the electrical resistance of each injector. Compare readings to manufacturer specifications (typically found in the vehicle's service manual). Inconsistent readings may indicate a faulty injector coil.
6. Professional Diagnosis: If issues persist, it is recommended to seek diagnosis from a qualified automotive technician who can perform advanced tests like injector balance tests or flow tests.

Specifications

Warranty Information

WEINUANXIN products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the product packaging or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Customer Support

If you encounter any issues or have questions regarding your WEINUANXIN Fuel Injection Nozzles, please contact your retailer or the manufacturer's customer support. Provide your product model number (INP-059) and purchase details when seeking assistance.

For general automotive repair advice, consult a certified mechanic or refer to your vehicle's official service manual.
