Piececool 3D Metal Puzzle Sagrada Familia Model Kit Instruction Manual

Introduction

Welcome to the instruction manual for your Piececool 3D Metal Puzzle Sagrada Familia Model Kit. This kit offers a unique and challenging building experience, allowing you to construct a detailed replica of the iconic Sagrada Familia. Designed for enthusiasts aged 16 and above, the assembly process requires focus and patience, typically taking 4 to 8 hours to complete. Upon completion, you will have a stunning metal craft piece.

Safety Information

This model kit contains small parts and may have sharp edges. Handle all components with care to avoid injury. This product is not suitable for children under 3 years due to potential choking hazards. Adult supervision is recommended for builders under the age of 16. Assembly tools are not included in this package. For optimal assembly and ease of use, it is highly recommended to acquire specialized Piececool tool kits designed for bending and twisting the metal tabs.

Package Contents

Your Piececool 3D Metal Puzzle Sagrada Familia Model Kit includes:

• High-quality stainless steel sheets with pre-cut puzzle pieces.
• Detailed graphical assembly instructions.

Image: The Piececool Sagrada Familia 3D Metal Puzzle Kit box, showing the product packaging.

Setup

Before you begin the assembly process, ensure your workspace is prepared:

• Clean and Well-Lit Area: Choose a flat, stable surface with good lighting to prevent eye strain and ensure small parts are not lost.
• Required Tools (Not Included):
  • Needle-nose pliers or specialized model-building pliers (highly recommended for precise bending).
  • Tweezers (optional, for handling very small or delicate parts).
  • Small cutting tool or hobby knife (optional, for carefully detaching pieces from the metal sheets).

Assembly Instructions (Operating)

The Piececool 3D Metal Puzzle does not require glue or soldering. All components are designed to interlock using tabs and slots. Follow these general steps, referring to your specific instruction manual for detailed diagrams and sequences:

1. Review Instructions: Before detaching any pieces, carefully read through the entire instruction manual. Familiarize yourself with the diagrams, symbols, and the overall assembly sequence.
2. Identify Parts: Each metal sheet is typically numbered, and individual parts are labeled. Identify the parts required for the current step as indicated in the manual.
3. Detach Pieces: Gently twist or use a small cutting tool to detach the pieces from the metal sheets. Be careful not to bend or damage the pieces during this process.
4. Bend Tabs: Use your pliers to carefully bend the connection tabs according to the diagrams in the instructions. Ensure bends are precise (e.g., 90-degree angles) for a secure and flush fit.
5. Connect Parts: Align the bent tabs with their corresponding slots and gently push them through. Once through, twist or fold the tabs to secure the connection.
6. Follow Sequence: Assemble the model step-by-step, strictly adhering to the sequence provided in the instructions. Do not force parts together.
7. Patience is Key: This is a challenging model that requires precision and patience. Take your time, maintain focus, and enjoy the intricate building process. If you encounter difficulties, re-examine the instructions and diagrams.

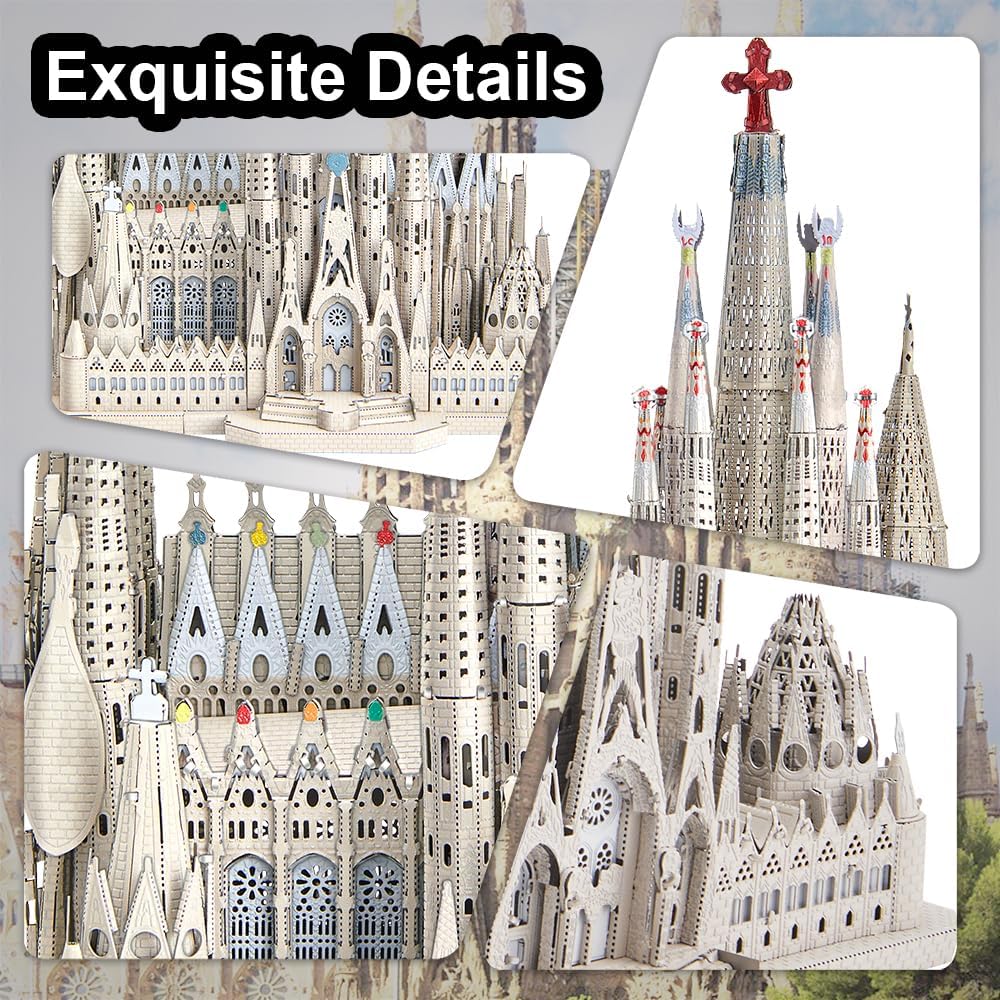

Image: Close-up view highlighting the intricate details and construction of the Sagrada Familia model.

Maintenance

Once assembled, your Piececool 3D Metal Puzzle Sagrada Familia model requires minimal maintenance to preserve its appearance:

• Cleaning: Gently dust the model with a soft, dry cloth or a soft brush. Avoid using water, abrasive cleaners, or chemical solutions, as these can damage the metal finish.
• Storage: Display or store the model in a stable location away from direct sunlight, high humidity, or extreme temperatures. These conditions can cause discoloration or potential damage to the metal.

Troubleshooting

If you encounter any issues during assembly, consider the following:

• Parts Not Fitting: Double-check that you are using the correct parts for the current step. Ensure that the tabs are bent precisely to the correct angle and are not over-bent or under-bent.
• Bent or Damaged Piece: Handle all pieces with care. If a piece is slightly bent, gently straighten it with your pliers. If a piece is severely damaged, refer to the warranty and support section for assistance.
• Difficulty with Small Connections: For very small tabs and slots, using fine-tip tweezers can provide better control and precision.
• Missing Parts: Carefully check all packaging and metal sheets to ensure no parts were overlooked. If parts are genuinely missing, please contact Piececool customer support.

Specifications

Image: The assembled Sagrada Familia model on a desk, illustrating its approximate dimensions (16.5cm length, 13cm width, 18cm height).

Warranty and Support

For any questions regarding the assembly process, missing parts, or general product support, please contact Piececool customer service. Refer to the product packaging or the official Piececool website for the most current contact information. Please note that assembly tools are not included with the product.
