ModernLuxe Double Murphy Bed Frame User Manual

1. Introduction

Thank you for choosing the ModernLuxe Double Murphy Bed Frame. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This innovative bed frame is designed to maximize your living space, offering a comfortable double bed that neatly folds away into a stylish cabinet. It also features integrated storage drawers and foldable side shelves for added convenience.

2. Safety Information

Your safety is paramount. Please adhere to the following safety guidelines:

• Adult Assembly Required: This product requires assembly by at least two adults.
• Secure Wall Attachment: The bed frame must be securely anchored to a sturdy wall to prevent tipping. Use appropriate hardware for your wall type.
• Weight Capacity: Do not exceed the maximum weight capacity of 200 kg (approximately 440 lbs).
• Pinch Points: Be aware of potential pinch points during the folding and unfolding process. Keep hands and fingers clear of moving parts.
• Clearance: Ensure adequate clearance around the bed when folding and unfolding.
• Regular Inspection: Periodically check all bolts and fasteners to ensure they are tight. Retighten as necessary.
• No Jumping: Do not jump on the bed frame.
• Children and Pets: Keep children and pets away from the bed during assembly and transformation.
• Mattress Compatibility: Use a mattress that fits the specified dimensions (135x190cm) and weight requirements for proper operation.

Refer to the assembly manual for detailed safety instructions specific to each step.

3. Setup and Assembly

The ModernLuxe Double Murphy Bed Frame is designed for straightforward assembly. All necessary tools and detailed instructions are included with your purchase. It is highly recommended to have two adults for assembly.

3.1. Before You Begin

• Unpack all components and verify against the parts list provided in the separate assembly guide.
• Ensure you have sufficient space for assembly.
• Gather any additional tools that may be helpful (e.g., Phillips head screwdriver, level, stud finder for wall mounting).

3.2. Assembly Steps Overview

Follow the step-by-step instructions in the dedicated assembly manual provided in the packaging. Key stages include:

1. Assembling the main cabinet structure.
2. Attaching the bed frame mechanism to the cabinet.
3. Installing the wooden slats for mattress support.
4. Assembling and inserting the storage drawers.
5. Attaching the foldable side shelves.
6. Crucially, securely anchoring the assembled unit to a wall.

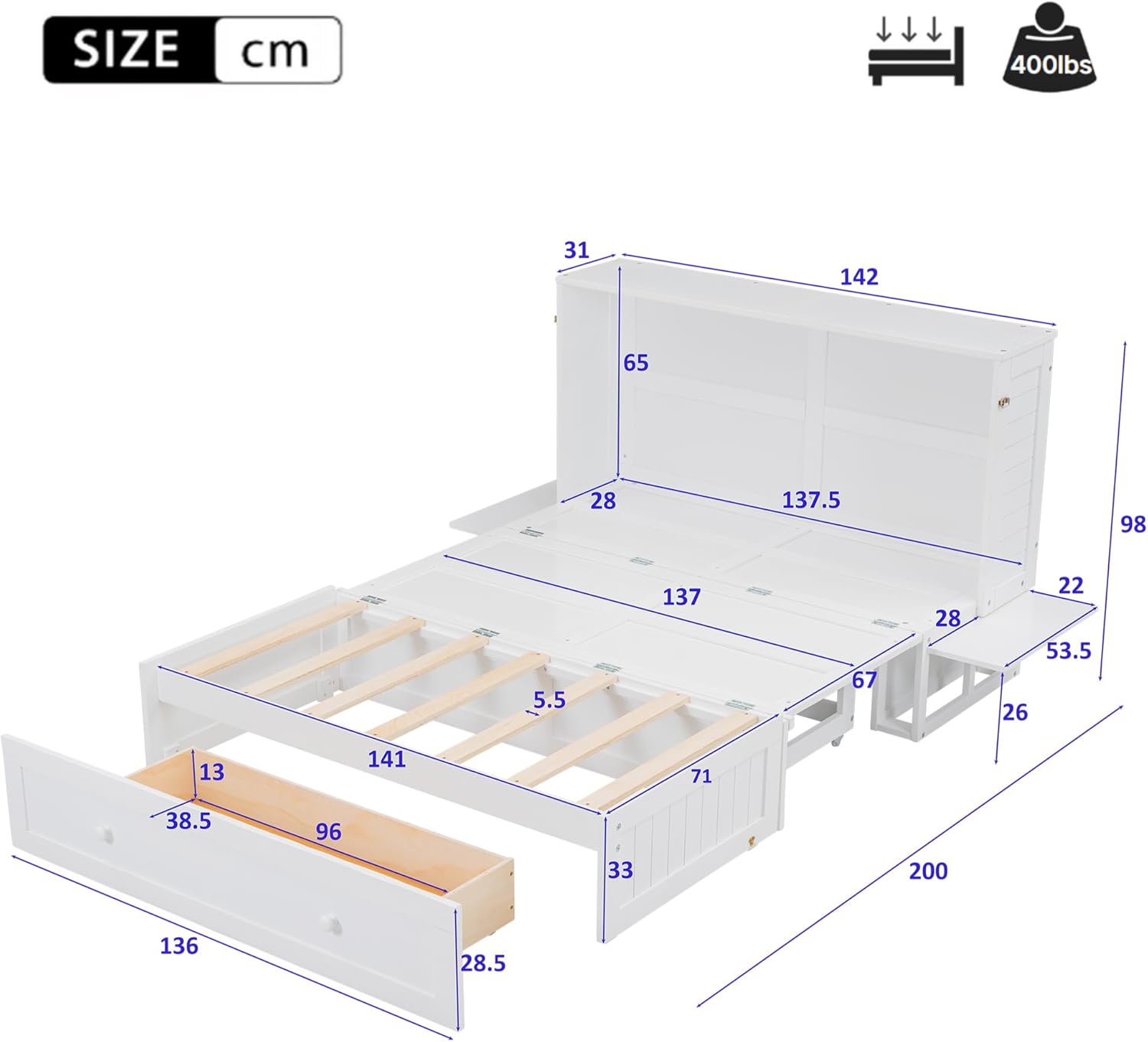

Figure 3.2.1: Detailed dimensions of the bed frame, showing measurements in centimeters for various components including the main frame, headboard, and drawer.

Figure 3.2.2: View of the bed frame's internal structure, highlighting the sturdy wooden slats that support the mattress and the integrated storage drawer at the foot of the bed.

4. Operating Instructions

4.1. Unfolding the Bed

1. Ensure the area in front of the cabinet is clear of obstructions.
2. Unlock any latches or safety mechanisms securing the bed in its folded position (if applicable, refer to assembly guide).
3. Gently pull the bed frame downwards from the top of the cabinet. The mechanism is designed for smooth, controlled descent.
4. Once fully extended, ensure the support legs are properly engaged and stable.
5. If desired, unfold the side shelves by pulling them outwards from the cabinet sides.

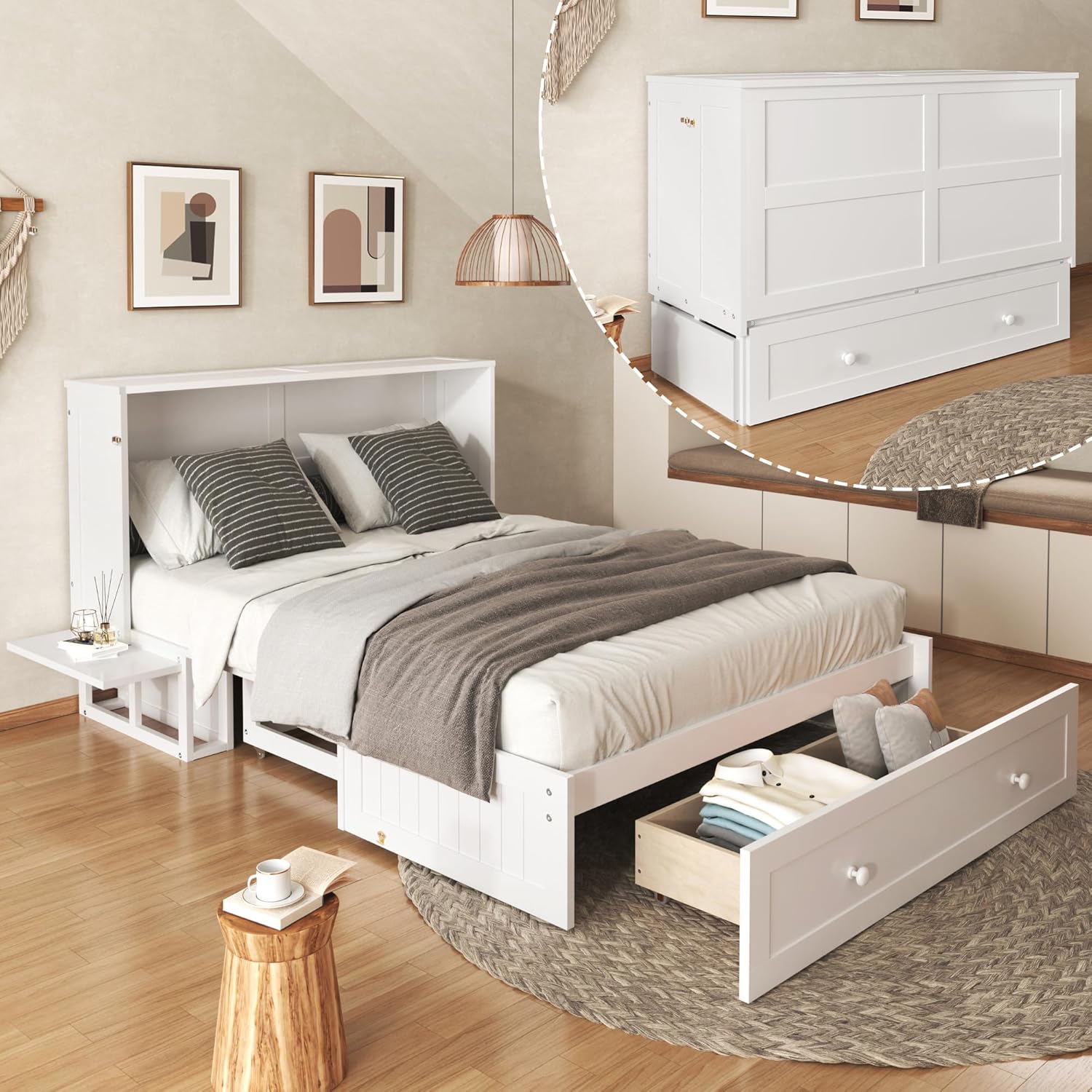

Figure 4.1.1: The ModernLuxe Double Murphy Bed Frame in its unfolded state, ready for use. It shows the bed with a mattress, pillows, and blankets, along with the open storage drawer at the foot and the extended foldable side shelf.

4.2. Folding the Bed

1. Remove all bedding, pillows, and mattress from the bed frame. The bed is designed to fold without a mattress.
2. Fold the side shelves back into the cabinet.
3. Lift the bed frame upwards, guiding it smoothly back into the cabinet. The mechanism will assist in the lifting motion.
4. Ensure the bed frame is fully retracted and flush with the cabinet.
5. Engage any latches or safety mechanisms to secure the bed in its folded position.

Figure 4.2.1: The ModernLuxe Double Murphy Bed Frame in its folded cabinet configuration. The image shows the front of the cabinet with one of the storage drawers pulled out, demonstrating its discreet storage capability when the bed is not in use.

4.3. Using Storage Drawers and Foldable Shelves

• Storage Drawers: The integrated drawers at the foot of the bed can be pulled out for convenient storage of bedding, books, or other items. Ensure items are not overfilled to allow smooth operation.
• Foldable Shelves: The shelves on either side of the bed can be extended to serve as bedside tables for lamps, drinks, or personal items. Fold them back when not needed to maintain the compact form.

Figure 4.3.1: An illustrative image detailing the storage features of the bed. It highlights the spacious storage drawers at the foot of the bed, suitable for clothes or linens, and the foldable shelves on both sides, perfect for small items or a bedside lamp.

5. Maintenance

Proper maintenance will ensure the longevity and safe operation of your ModernLuxe Murphy Bed Frame.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all screws, bolts, and fasteners. Tighten any loose hardware to maintain structural integrity.
• Mechanism Lubrication: If the folding mechanism becomes stiff or noisy, apply a small amount of silicone-based lubricant to the moving parts. Do not use oil-based lubricants as they can attract dust.
• Drawer Slides: Keep drawer slides free of dust and debris to ensure smooth operation.
• Wall Anchors: Regularly check the wall anchors for any signs of loosening or damage. Re-secure if necessary.

6. Troubleshooting

If you encounter issues not listed here, or if solutions do not resolve the problem, please contact ModernLuxe customer support.

7. Specifications

8. Warranty and Support

ModernLuxe is committed to providing high-quality products. For information regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your purchase or visit the official ModernLuxe website.

Contact Information:

• Brand Store: Visit the ModernLuxe Store on Amazon
• For direct support, please refer to the contact details provided in your product packaging or on the ModernLuxe official website.
