Banfluxion 30-Piece Vertical Manual Dough Dividing Machine User Manual

1. Introduction

This manual provides instructions for the safe and efficient operation, maintenance, and troubleshooting of your Banfluxion 30-Piece Vertical Manual Dough Dividing Machine. This machine is designed for commercial food preparation, specifically for dividing large quantities of dough into uniform pieces without the need for electricity.

The machine can divide a large dough into 30 equal pieces, with each piece weighing between 36g and 192g. It features food-grade stainless steel components for contact with dough, ensuring hygiene and durability.

2. Safety Instructions

• Always ensure the machine is placed on a stable, level surface before operation.
• Keep hands and loose clothing away from moving parts during operation.
• Do not attempt to operate the machine if any parts are damaged or missing.
• Clean the machine thoroughly after each use to maintain hygiene and prevent dough residue buildup.
• This machine is for dough dividing only. Do not use it for other purposes.
• Ensure proper ventilation in the work area.

3. Product Components

The Banfluxion Manual Dough Dividing Machine consists of several key components designed for efficient dough processing.

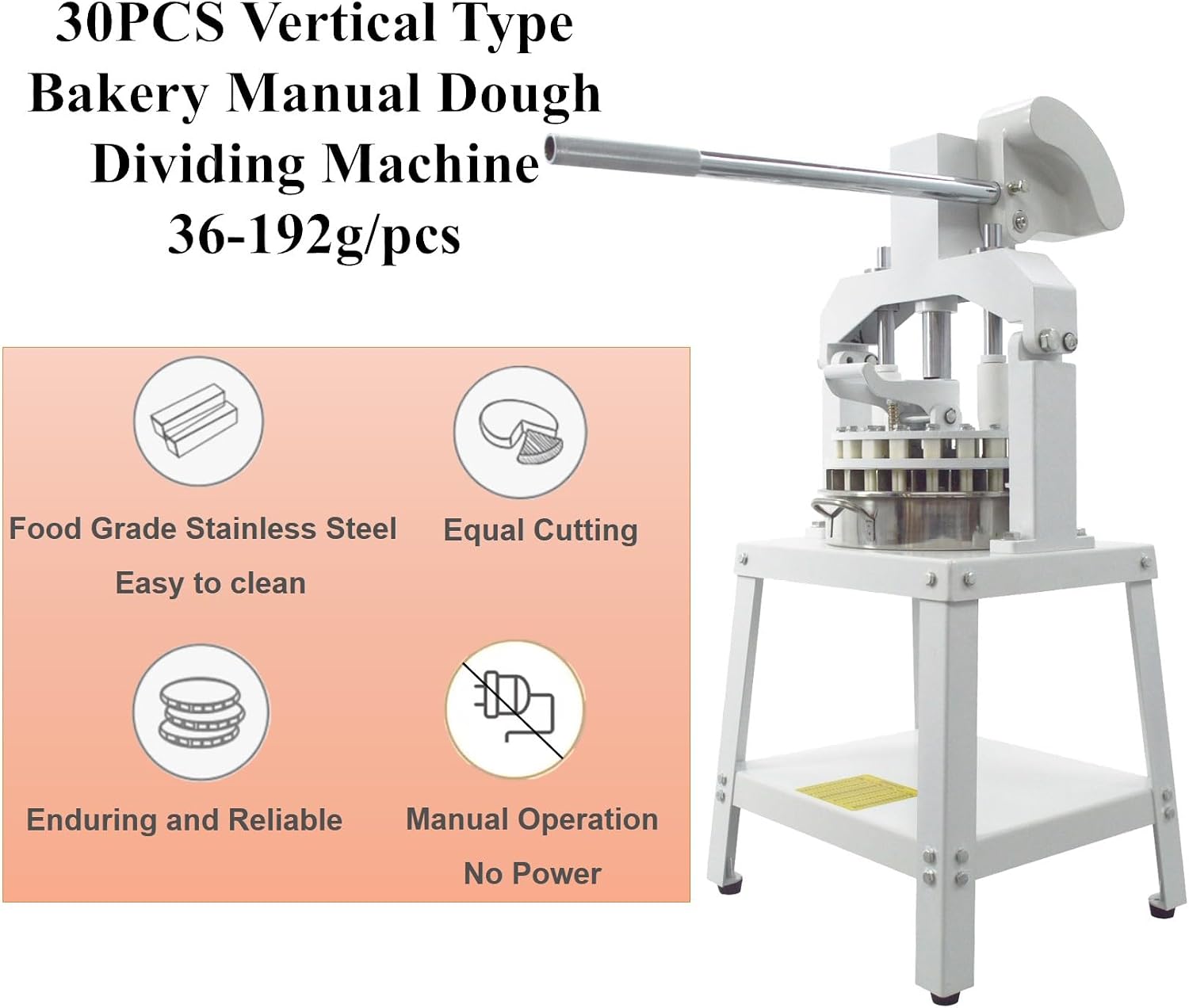

Image: Overview of the Banfluxion Manual Dough Dividing Machine, illustrating its primary features such as food-grade stainless steel construction, ease of cleaning, ability for equal cutting, reliability, and manual operation without electricity.

Key Features and Parts:

• Main Body: Constructed from cast iron and steel for durability.
• Dough Contact Parts: Made from food-grade stainless steel.
• Press Lever: Lengthened design for reduced effort during operation.
• Dough Dividing Blades: 30 individual blades for precise division.
• Trays: Two 304 stainless steel trays included, with handles for easy removal. Inner diameter: 12.4" (31.5cm), Height: 2.95" (7.5cm).
• Support Pads: Four rubber support pads at the base for anti-slip stability.
• Limit Block: Used to fix and position the stainless steel dough basin.
• Limit Device: Prevents machine movement during operation.

Image: Detailed view of the machine's support pads for stability, the extended press lever designed for ergonomic use, and the limit block mechanism for securing the dough basin.

Image: Close-up demonstrating the food-grade stainless steel construction of the dough divider for hygiene and durability, and the limit device which ensures the machine remains stationary during use.

4. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
2. Placement: Position the machine on a sturdy, level, and non-slip surface. Ensure adequate space around the machine for safe operation and cleaning.
3. Stabilization: Verify that the four rubber support pads are securely in place at the base of the machine to prevent movement during use.
4. Initial Cleaning: Before first use, clean all parts that will come into contact with dough using warm water and a mild detergent. Rinse thoroughly and dry completely.

5. Operating Instructions

Follow these steps for effective dough dividing:

1. Prepare Dough: The dough must be fully fermented and kneaded to a soft, pliable consistency. Failure to use properly fermented dough may result in unsuccessful dividing.
2. Place Dough: Place the prepared dough into one of the provided stainless steel trays. Ensure the dough is centered and evenly distributed within the tray.
3. Position Tray: Carefully slide the tray with the dough into the machine's dividing mechanism. Use the limit block to ensure the tray is correctly fixed and positioned.
4. Engage Divider: Lower the dividing head onto the dough.
5. Divide Dough: Firmly and steadily press down on the lengthened hand lever. This action will push the dividing blades through the dough, separating it into 30 equal pieces.
6. Release Lever: Once the dough is fully divided, slowly release the hand lever.
7. Remove Divided Dough: Carefully remove the tray containing the 30 divided dough pieces. The handles on the trays facilitate easy removal.
8. Repeat: Repeat the process for additional batches of dough.

Image: An example of dough properly divided into uniform pieces within a tray, alongside an assortment of baked goods, demonstrating the machine's intended use and the quality of its output. It emphasizes that dough should be fully fermented and pliable for successful division.

6. Maintenance and Cleaning

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your dough dividing machine.

Cleaning Procedure:

1. After Each Use: Immediately after each use, remove any remaining dough residue from the dividing blades, trays, and all surfaces that contacted dough.
2. Disassembly: The stainless steel trays are removable for easy cleaning.
3. Washing: Wash all food-contact parts (trays, dividing blades) with warm water and a mild, food-safe detergent. The trays are dishwasher safe.
4. Rinsing: Rinse all parts thoroughly with clean water to remove all soap residue.
5. Drying: Dry all components completely before reassembly or storage to prevent water spots and corrosion.
6. Exterior Cleaning: Wipe down the exterior of the machine with a damp cloth. Avoid using abrasive cleaners or scouring pads that could damage the finish.

Storage:

Store the machine in a clean, dry environment when not in use.

7. Troubleshooting

• Dough not dividing cleanly:
  • Ensure the dough is fully fermented and pliable. Stiff or under-fermented dough will not divide properly.
  • Check if the dividing blades are clean and free of dried dough residue.
  • Apply firm, even pressure to the lever during division.
• Machine unstable during operation:
  • Verify that the machine is placed on a level and stable surface.
  • Check that all four rubber support pads are intact and making full contact with the surface.
  • Ensure the limit device is engaged to prevent movement.
• Difficulty removing divided dough:
  • Ensure the dough is not overly sticky. Lightly flouring the tray or dough surface can help.
  • Remove the tray slowly and carefully after division.

8. Specifications

Image: Dimensional drawing of the dough dividing machine, indicating key measurements such as overall height (42.5" / 108cm), lever length (24.4" / 62cm), and base dimensions (20.9" x 17.9" / 53cm x 45.5cm).

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Banfluxion website. Keep your purchase receipt as proof of purchase.
