ENM46086 Modulation Assembly User Manual

Product Overview

The ENM46086 Modulation Assembly is a critical component designed for use in MARKEM IMAJE Continuous Inkjet (CIJ) Coding Printers. This part, also known by part number A46086, is essential for the proper functioning of the printer's ink modulation system, ensuring precise and consistent ink droplet formation for high-quality coding and marking applications.

It is compatible with various MARKEM IMAJE printer models, including 9018, 9028, 9029, 9020, 9030, and 9010. This assembly is sold as a single unit and is available as a compatible replacement part, with original options also potentially available.

What's in the Box

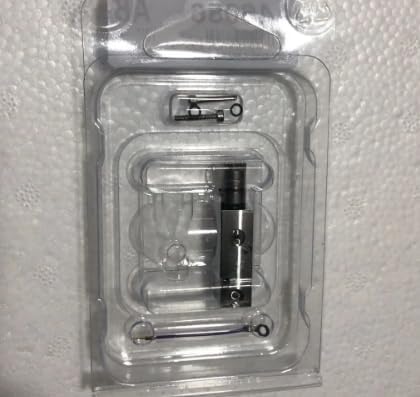

Image: The ENM46086 Modulation Assembly components, including the main metallic assembly and smaller pins/o-rings, neatly packaged in a clear plastic blister pack. This image provides a visual representation of the product as received.

Upon receiving your ENM46086 Modulation Assembly, please verify that the package contains the following:

• One (1) ENM46086 Modulation Assembly unit.
• Any associated small components (e.g., pins, O-rings) as part of the assembly kit.

While the product description mentions "steel" as part of what's in the box, this refers to the primary material of the assembly. The image provides a more accurate visual representation of the included components.

Setup and Installation

The ENM46086 Modulation Assembly is a replacement part for specific MARKEM IMAJE Inkjet Coding Printers. Installation should only be performed by qualified personnel with experience in maintaining continuous inkjet printing systems. Incorrect installation can lead to printer malfunction or damage.

General Installation Guidelines:

1. Safety First: Always power off and unplug the printer before beginning any installation or maintenance procedures. Refer to your printer's specific safety guidelines.
2. Consult Printer Manual: Refer to the official service manual for your specific MARKEM IMAJE 9018, 9028, 9029, 9020, 9030, or 9010 printer model for detailed, step-by-step instructions on replacing the modulation assembly.
3. Handle with Care: The modulation assembly contains precision components. Handle the part carefully to avoid damage.
4. Proper Seating: Ensure the new assembly is correctly seated and secured according to the printer's specifications.
5. System Calibration: After installation, it may be necessary to perform system calibration or adjustments as outlined in your printer's service manual to ensure optimal performance.

Note: This manual provides general guidance. Always prioritize the specific instructions provided in your printer's official documentation.

Operating Considerations

As a component part, the ENM46086 Modulation Assembly does not have standalone operating instructions. Its function is integrated into the overall operation of the MARKEM IMAJE Inkjet Coding Printer. Once correctly installed, the assembly contributes to the printer's ability to generate and direct ink droplets for printing.

Proper operation of the printer, including ink management, printhead cleaning, and environmental conditions, will directly impact the longevity and performance of the modulation assembly.

Maintenance

The ENM46086 Modulation Assembly itself typically requires minimal direct user maintenance beyond proper installation and ensuring the printer's overall cleanliness and operational integrity. However, its performance is directly linked to the maintenance of the entire printer system.

Recommended Printer Maintenance Practices (affecting modulation assembly):

• Regular Cleaning: Keep the printer's printhead and surrounding areas clean from ink buildup and debris.
• Ink and Solvent Quality: Use only genuine or approved ink and solvent for your MARKEM IMAJE printer. Contaminated or incorrect fluids can damage internal components, including the modulation assembly.
• Environmental Control: Operate the printer within the recommended temperature and humidity ranges to prevent condensation or excessive evaporation, which can affect ink system components.
• Scheduled Servicing: Adhere to the manufacturer's recommended service intervals for your printer model. Professional servicing can identify and address potential issues before they impact critical components like the modulation assembly.

Troubleshooting

If you experience issues with your MARKEM IMAJE printer after installing the ENM46086 Modulation Assembly, consider the following general troubleshooting steps. Note that specific error codes and diagnostics will be found in your printer's service manual.

Common Issues and Potential Causes:

• Poor Print Quality / Missing Dots:
  • Possible Cause: Incorrect installation of the modulation assembly.
  • Possible Cause: Air bubbles in the ink system.
  • Possible Cause: Clogged printhead or nozzle.
  • Possible Cause: Incorrect ink or solvent.
• Printer Error Codes Related to Ink System:
  • Possible Cause: Loose connections to the modulation assembly.
  • Possible Cause: Faulty new part (rare, but possible).
  • Possible Cause: Issues with other interconnected printer components.

Troubleshooting Steps:

1. Re-check Installation: Power off the printer and carefully re-examine the installation of the modulation assembly to ensure all connections are secure and the part is correctly seated.
2. Perform Printer Diagnostics: Utilize the diagnostic tools available on your MARKEM IMAJE printer to identify specific error codes or system warnings.
3. Clean Printhead: Follow your printer's manual for printhead cleaning procedures.
4. Verify Consumables: Ensure you are using the correct and fresh ink and solvent.
5. Contact Support: If issues persist, contact the seller or a certified MARKEM IMAJE service technician for further assistance.

Specifications

Warranty and Support

Information regarding the warranty for the ENM46086 Modulation Assembly is typically provided by the seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for details on warranty coverage, terms, and conditions.

For technical support related to the installation or performance of this part within your MARKEM IMAJE printer, it is recommended to:

• Consult the official service manual for your specific MARKEM IMAJE printer model.
• Contact the seller from whom you purchased the assembly.
• Reach out to a certified MARKEM IMAJE service provider for professional assistance.
