1. Introduction
Thank you for choosing the Godrej 8 Kg 5 Star AI Powered Front Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the washing machine and retain it for future reference.
2. Safety Information
To prevent injury to yourself and others, or damage to the appliance, please observe the following safety precautions:
- Ensure the washing machine is properly grounded to avoid electrical shock.
- Do not allow children to play with or operate the appliance. Keep packaging materials out of reach of children.
- Do not install the appliance in a damp place or where it may be exposed to rain.
- Always unplug the washing machine before cleaning, performing maintenance, or if it will be unused for an extended period.
- Do not wash items that are soiled with flammable substances (e.g., gasoline, oil) as this may cause fire or explosion.
- Ensure water inlet and drain hoses are securely connected to prevent leaks.
3. Product Overview and Features
Your Godrej Front Load Washing Machine is equipped with advanced features designed for optimal wash quality and efficiency.
Key Features:
- AI Powered i-Sense Technology: Automatically senses cloth load, redistributes unbalanced loads, sets temperature, adjusts spin RPM, detects and stops foam overflow, and auto-resumes wash after power outages.
- 8 Kg Capacity: Suitable for large families.
- 5 Star Energy Rating: Ensures best-in-class energy efficiency.
- 1200 RPM Spin Speed: Facilitates faster water extraction for quicker drying.
- Inbuilt Heater: Provides hot water for effective stain removal and hygienic washing.
- FabriSafe Drum: Features multiple coin-sized grooves for gentle scrubbing, preserving fabric quality.
- Eco Wash: Optimizes temperature and spin speed for energy and water savings.
- Stain Wash: Designed to tackle over 100 types of tough stains.
- Advanced Digital Display: Shows remaining program time and provides user-friendly access to features.
- 12 Wash Programs: Including Cotton, Sports shoes, Woollen, Baby care, Bulky, Rinse+spin, Quick 15, Mix fabric, Whites, Eco wash, Refresh, Gentle wash.
- Additional Features: Child Lock, Delay Start (up to 24 hours), Drum Clean, Prewash, Extra Rinse, Delicates, Woolen safe, Refresh cycle, Rinse hold.
Product Images:
Figure 3.1: Front view of the Godrej 8 Kg Front Load Washing Machine.
Figure 3.2: The Godrej Eon Cresta washing machine highlighting its AI-powered capabilities for fresh clothes.
Figure 3.3: The washing machine's ability to fight over 100 types of stains, including common Indian stains like pickle and mehendi.
Figure 3.4: Close-up of the control panel, indicating features for up to 30 minutes faster drying and 60% water saving.
Figure 3.5: Control panel detail showing dedicated programs like Sports shoe wash, Eco wash, and the Automatic Tub Clean Reminder.
Figure 3.6: Interior view of the FabriSafe Drum, designed with coin-sized grooves for gentle yet effective cleaning.
Figure 3.7: The energy label indicating 5-star rating and 0.07 kWh/kg/cycle energy consumption.
Figure 3.8: The washing machine positioned with handloom fabrics, emphasizing its suitability for delicate textiles.

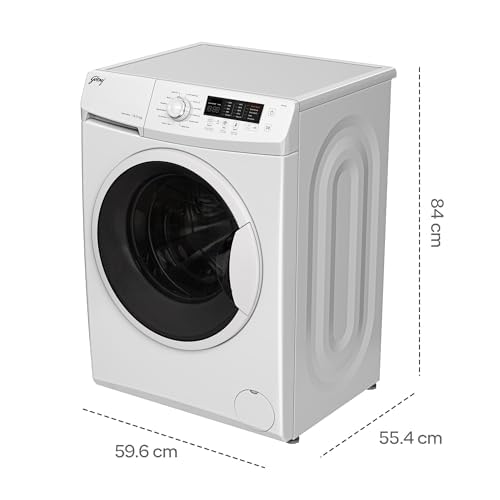

Figure 3.9: Dimensional view of the washing machine, showing height (84 cm), width (59.6 cm), and depth (55.4 cm).
Product Videos:
Video 3.1: An overview of the Godrej Front Load Washing Machine's features and design.
Video 3.2: Demonstration of key washing cycles and machine operation.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your washing machine. It is highly recommended to have the appliance installed by a qualified technician.
4.1 Unpacking
- Carefully remove all packaging materials.
- Remove the transit bolts from the rear of the machine. Keep them for future transport.
- Ensure all included components are present: 1 Washing Machine, Drain Hose, Intake Hose, Safety Cover, User Manual.
4.2 Location Requirements
- Place the machine on a firm, level surface to minimize vibration and noise.
- Ensure adequate space around the machine for ventilation and maintenance.
- Locate near a water supply (cold and hot, if applicable) and a drain point.
4.3 Water Connection
- Connect the intake hose to the water supply tap and the corresponding inlet valve on the machine.
- Securely attach the drain hose to a suitable drain pipe or sink, ensuring it is not kinked or blocked.
4.4 Electrical Connection
- Plug the power cord into a grounded electrical outlet (230 Volts).
- Do not use extension cords or adapters.
5. Operating Instructions
Follow these steps for a typical wash cycle:
5.1 Loading Laundry
- Open the door and load clothes loosely into the drum. Do not overload.
- Close the door firmly until it clicks.
5.2 Adding Detergent and Additives
- Pull out the detergent dispenser drawer.
- Add appropriate amounts of detergent, fabric softener, and pre-wash agents to their respective compartments.
- Push the drawer back in completely.
5.3 Selecting a Wash Program
- Turn the program selector knob or use the touch controls to choose one of the 12 available wash programs (e.g., Cotton, Eco Wash, Baby Care, Sports Shoes).
- The AI Powered i-Sense technology will assist in optimizing settings based on the selected program and load.
5.4 Adjusting Settings (Optional)
- Use the touch control panel to adjust temperature, spin speed, or select additional functions like Prewash, Extra Rinse, or Delay Start.
- The Inbuilt Heater will activate automatically for programs requiring higher temperatures.
5.5 Starting the Wash Cycle
- Press the Start/Pause button to begin the cycle.
- The digital display will show the remaining time.
5.6 Child Lock Function
- To activate Child Lock, press and hold the designated buttons (refer to the control panel diagram in the physical manual) for a few seconds. This prevents accidental changes to settings.
6. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
6.1 Cleaning the FabriSafe Drum
- Use the dedicated 'Drum Clean' program periodically (e.g., once a month) to remove detergent residue and bacteria. This program typically uses hot water (90°C) for thorough cleaning.
6.2 Cleaning the Detergent Dispenser
- Remove the dispenser drawer and rinse it under running water to clear any accumulated detergent or softener residue.
6.3 Cleaning the Drain Filter
- Locate the drain filter at the bottom front of the machine.
- Carefully open the cover, drain any residual water, and remove the filter.
- Clean the filter of lint and debris, then reinsert it securely.
6.4 Exterior Cleaning
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
7. Troubleshooting
If you encounter issues with your washing machine, refer to the following common problems and solutions before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed, program not selected. | Check power connection, ensure door is latched, select a program and press Start. |
| No water filling | Water tap closed, water inlet hose kinked, water pressure too low. | Open water tap, straighten hose, check household water pressure. |
| Water not draining | Drain hose kinked or blocked, drain filter clogged. | Check and clear drain hose, clean the drain filter. |
| Excessive vibration/noise | Machine not level, transit bolts not removed, unbalanced load. | Adjust leveling feet, ensure transit bolts are removed, redistribute laundry inside the drum. |
| Error codes on display | Specific malfunction detected by the AI system. | Note the error code and refer to the detailed troubleshooting section in the full user manual or contact customer service. |
For more detailed troubleshooting or if the problem persists, please contact Godrej customer support.
8. Specifications
Detailed technical specifications for your Godrej Front Load Washing Machine.
| Feature | Specification |
|---|---|
| Brand | Godrej |
| Model | WFEON CRS 8012 5.0 FKEDM |
| Capacity | 8 Kilograms |
| Energy Rating | 5 Star |
| Annual Energy Consumption | 0.07 Kilowatt Hours Per Year |
| Maximum Rotational Speed | 1200 RPM |
| Installation Type | Freestanding |
| Form Factor | Front_Loading |
| Special Features | AI Tech, Inbuilt Heater, FabriSafe Drum, Eco Wash, Unbalanced Load Sensor, Stain Wash |
| Colour | Glacial White |
| Control Console | Touch |
| Number of Option Cycles | 12 |
| Access Location | Front Load |
| Voltage | 230 Volts |
| Connector Type | Water inlet & Drain |
| Certification | Energy Star |
| Included Components | 1 Washing Machine, Drain Hose, Intake Hose, Safety Cover, User Manual |
| Item Weight | 62 kg 200 g |
| Item Dimensions (LxWxH) | 55.4 x 59.6 x 84 Centimeters |
| Country of Origin | India |
9. Warranty and Support
Your Godrej Washing Machine comes with a comprehensive warranty and dedicated customer support.
9.1 Warranty Information
- Product Warranty: 2 years on the entire product.
- Wash Motor Warranty: 10 years on the wash motor.
- To avail warranty services, please retain your purchase invoice. The user manual can also be accessed from the brand's official website.
9.2 Customer Support
For any queries, service requests, or technical assistance, please contact Godrej customer care:
- Telephone: 080-67436743 / 022-67965656
- WhatsApp: Send 'Hi' to 9321665511
- Email: smartcare@godrej.com
- Manufacturer Address: Godrej & Boyce Mfg. Co. Ltd., Pirojshanagar, Vikhroli (W), Mumbai - 400 079, India.
