1. Introduction
This instruction manual provides essential information for the safe and effective use of Generic 10W T8 UV Replacement Bulbs. These bulbs are designed for compatibility with most 20W electric bug zappers, offering an efficient solution for insect control. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.
2. Safety Information
- Electrical Safety: Always disconnect power to the bug zapper before attempting to install, remove, or clean the bulbs. Failure to do so may result in electric shock.
- UV Light Exposure: Avoid direct and prolonged exposure to the UV light emitted by these bulbs. While designed for insect attraction, direct viewing can be harmful to eyes.
- Handling: Handle glass bulbs with care. If a bulb breaks, clean up glass fragments immediately and dispose of them safely. Do not touch the glass part of the bulb with bare hands during installation; use a clean cloth or gloves to avoid leaving oil residues that can shorten bulb life.
- Compatibility: Ensure these 10W T8 bulbs are compatible with your specific 20W bug zapper model. Check the original bulb's size (13.62 inches length, 0.98 inches diameter) and pin type (G13 base) before replacement.
- Indoor Use: These bulbs are primarily intended for indoor use within a bug zapper.
3. Product Overview
The Generic 10W T8 UV Replacement Bulbs are designed to attract mosquitoes and other flying insects to your bug zapper. Each bulb operates at 10 watts and emits a professional 365nm peak wavelength, which is highly effective for insect luring. They feature a 360-degree light spread and a G13 base for easy installation. The bulbs are constructed with premium copper electric inserting needles for enhanced conductivity and a lifespan of up to 4000 hours.
Image 3.1: Two Generic 10W T8 UV replacement bulbs, showing their tubular shape and pin bases.
Image 3.2: A diagram illustrating the dimensions of the 10W T8 UV bulb, measuring approximately 13.62 inches (346mm) in total length and 0.98 inches (25mm) in diameter.
Image 3.3: Visual representation of key bulb features, including a close-up of the high-quality copper conductive pin for better electrical connection and an illustration of the 360-degree all-around insect luring capability.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Generic |
| Model Name | 10WTUBE |
| Light Type | Fluorescent (UV) |
| Wattage | 10 Watts per bulb |
| Bulb Shape Size | T8 |
| Bulb Base | G13 |
| Special Feature | 365nm wavelength light |
| Lifespan | Up to 4000 hours |
| Product Dimensions (L x W) | 13.62 x 0.98 inches (346 x 25 mm) |
| Voltage | 110 Volts (compatible with 100-120V, 60Hz systems) |
| Material | Glass |
| Unit Count | 2.0 Count |
5. Setup and Installation
Follow these steps to safely replace the UV bulbs in your compatible 20W electric bug zapper:
- Disconnect Power: Ensure the bug zapper is unplugged from the electrical outlet before proceeding.
- Access Bulbs: Depending on your bug zapper model, you may need to remove a protective outer grill or cover to access the bulbs. Refer to your bug zapper's manual for specific instructions on accessing the bulb compartment.
Image 5.1: A hand carefully lifting the protective metal grill of a bug zapper to gain access to the internal components, including the UV bulbs.
- Remove Old Bulbs: Gently twist the old bulb(s) to disengage them from their sockets, then carefully pull them out. Dispose of old bulbs according to local regulations.

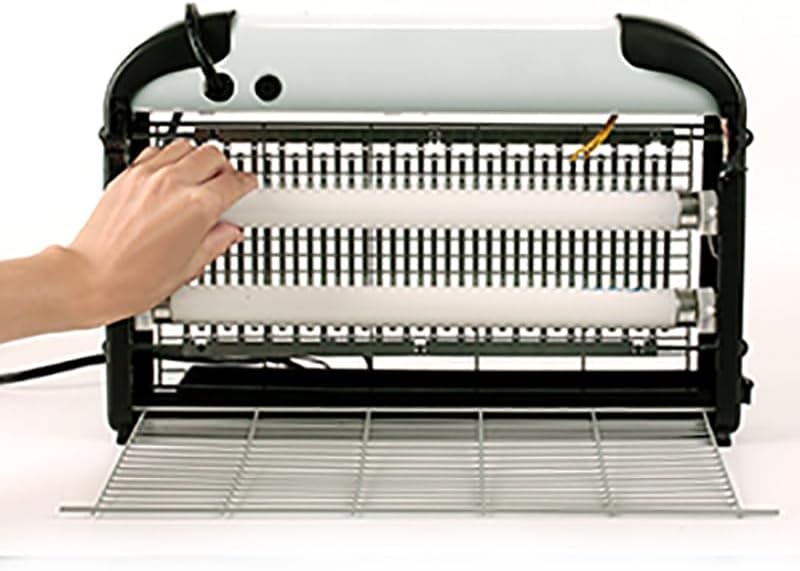

Image 5.2: A hand carefully removing an old UV bulb from its socket within the bug zapper, demonstrating the gentle twisting and pulling motion required.
- Install New Bulbs: Holding the new bulb by its ends (preferably with a clean cloth or gloves), align the pins with the slots in the socket. Gently push and twist the bulb until it is securely seated. Ensure both pins are fully inserted into the socket.
Image 5.3: A hand carefully inserting a new UV bulb into its designated socket within the bug zapper, ensuring proper alignment of the pins.
- Reassemble: Replace any protective grills or covers that were removed.
- Test: Plug the bug zapper back into the electrical outlet. The new bulbs should illuminate.
6. Operating Instructions
Once the bulbs are installed and the bug zapper is powered on, the UV light will begin attracting flying insects. For optimal performance:
- Placement: Position the bug zapper in an area where insect activity is high, but away from competing light sources. For indoor use, place it in a central location within the room.
- Coverage: Each 10W bulb contributes to an effective coverage area of approximately 40-50 square meters (430-538 square feet) when used in a 20W bug zapper.
- Continuous Operation: For best results, operate the bug zapper continuously during periods of high insect activity.
7. Maintenance
- Cleaning: Regularly clean the bug zapper's collection tray and grid to remove dead insects. Always unplug the device before cleaning.
- Bulb Replacement: The bulbs have a lifespan of up to 4000 hours. While they may still emit light after this period, their UV output (and thus insect-attracting effectiveness) will diminish. It is recommended to replace the bulbs annually or after approximately 4000 hours of use for continued optimal performance.
- Storage: If storing the bug zapper for an extended period, ensure it is clean and dry. Store bulbs in their original packaging or a protective container to prevent damage.
8. Troubleshooting
- Bulbs Not Lighting:
- Ensure the bug zapper is securely plugged into a working electrical outlet.
- Verify that the bulbs are correctly seated in their sockets. Disconnect power, remove, and reinsert the bulbs firmly.
- Check the bug zapper's fuse or circuit breaker, if applicable.
- If only one bulb is not lighting, try swapping it with a working bulb to determine if the issue is with the bulb or the zapper's socket.
- Reduced Effectiveness:
- UV bulb effectiveness diminishes over time. If bulbs have been in use for over 4000 hours or for more than a year, consider replacing them.
- Relocate the bug zapper to a darker area or closer to insect entry points.
- Ensure the zapper's grid is clean and free of debris.
9. Warranty and Support
For warranty information or technical support regarding your Generic 10W T8 UV Replacement Bulbs, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
