Generic Sonoma Oak Bed Frame 150 x 200 cm (Model 832032) User Manual

Introduction

This manual provides essential instructions for the assembly, use, and maintenance of your Generic Sonoma Oak Bed Frame, model 832032. Please read this manual thoroughly before assembly and retain it for future reference. This bed frame is designed to provide a stable and comfortable foundation for your mattress, enhancing your sleep experience.

Safety Information

• Always assemble the bed frame on a soft, clean surface to prevent damage to the product or your floor.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the recommended weight capacity (refer to specifications).
• Keep small parts away from children during assembly to prevent choking hazards.
• Two people are recommended for assembly to ensure safety and ease of installation.
• Avoid standing or jumping on the bed frame.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. Refer to the parts list provided in your product packaging. If any parts are missing or damaged, contact customer support immediately.

Figure 1: Exploded view showing all components of the bed frame, including side rails, end rails, support legs, and plywood slats. This image helps identify all parts before assembly.

Setup and Assembly

Follow these steps carefully for proper assembly. Two people are recommended for this process.

1. Step 1: Assemble the Side Rails

   Connect the long side rails to the head and foot end rails using the provided hardware. Ensure the connections are secure but do not fully tighten all bolts until the frame is fully assembled.



   Figure 2: Illustration of connecting the side rails to the end rails, forming the rectangular perimeter of the bed frame.

2. Step 2: Attach Support Legs

   Attach the central support legs to the designated points on the side rails. These legs provide additional stability and weight distribution for the mattress.



   Figure 3: Diagram showing the attachment of the central support legs to the bed frame structure.

3. Step 3: Install Plywood Slats

   Place the plywood slats across the bed frame, ensuring they are evenly spaced and securely seated in their designated positions. The slats provide support for your mattress.



   Figure 4: Image demonstrating the placement of plywood slats onto the assembled bed frame.

4. Step 4: Final Tightening and Leg Attachment

   Once all components are in place, fully tighten all bolts and screws. Attach the outer support legs to the corners of the bed frame. Ensure the frame is stable and level.

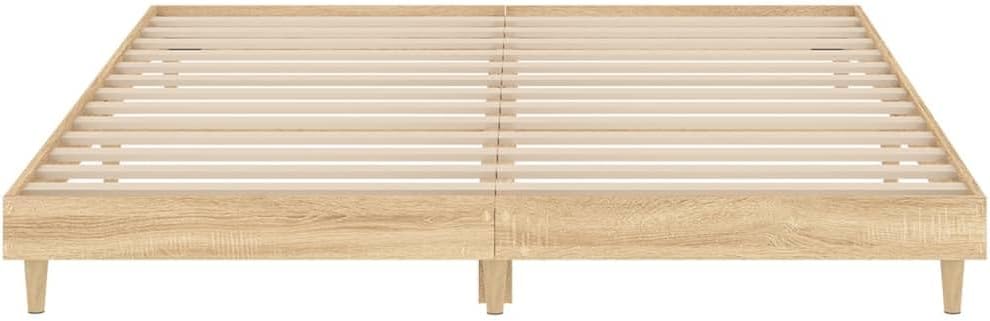

   Figure 5: Visual guide for the final tightening of fasteners and attachment of the remaining support legs.

5. Step 5: Complete Assembly

   The bed frame is now fully assembled. Place your mattress on top of the slats. The image shows the completed frame without a mattress, ready for use.



   Figure 6: The fully assembled bed frame, viewed from an angle, showcasing the Sonoma oak finish and sturdy construction.

Operating (Usage)

Once assembled, the bed frame is ready for use. Simply place your mattress directly onto the plywood slats. The slats are designed to provide even weight distribution and allow for proper mattress ventilation.

• Ensure the mattress fits within the frame dimensions (150 x 200 cm).
• Avoid placing excessive weight on any single point of the frame.
• Periodically check the stability of the frame and re-tighten any loose fasteners.

Figure 7: The Sonoma Oak Bed Frame in a bedroom setting, complete with a mattress and bedding, demonstrating its intended use.

Maintenance

Proper care will extend the life of your bed frame.

• Cleaning: Wipe the frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish.
• Inspection: Regularly inspect all connections and fasteners. Re-tighten any loose screws to maintain stability.
• Moisture: Protect the frame from excessive moisture and direct sunlight to prevent warping or fading.

Figure 8: A detailed view of the Sonoma oak wood grain finish, highlighting the texture and color of the material.

Troubleshooting

Specifications

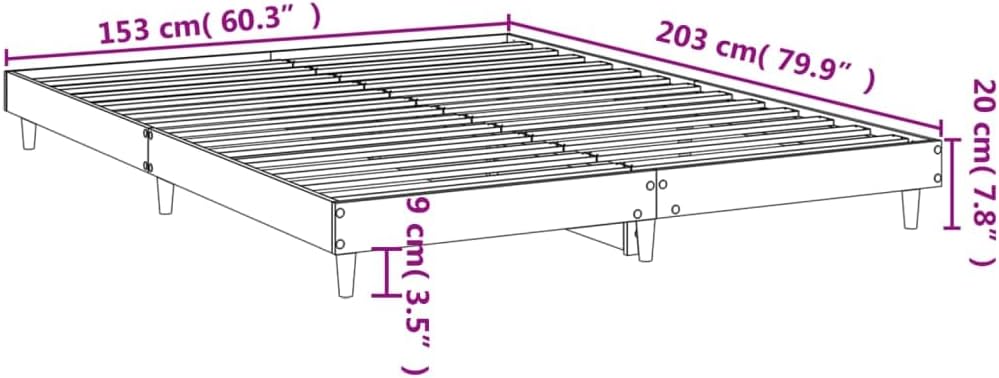

Figure 9: Technical drawing illustrating the precise dimensions of the bed frame, including length, width, height, and leg height.

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for any warranty claims.
