Instruction Manual: Engine Overhaul Rebuild Kit

1. Introduction

This instruction manual provides essential information for the HOMISIA Overhaul Rebuild Kit, designed for specific Yanmar engine models. This kit contains critical components necessary for a comprehensive engine rebuild, aiming to restore engine performance and extend its operational life. Proper installation and adherence to manufacturer specifications are crucial for optimal results.

2. Product Overview and Components

The HOMISIA Overhaul Rebuild Kit (Model US400XD-P) includes a comprehensive set of parts for a complete engine overhaul. The components are manufactured to meet or exceed original equipment specifications, ensuring reliable performance.

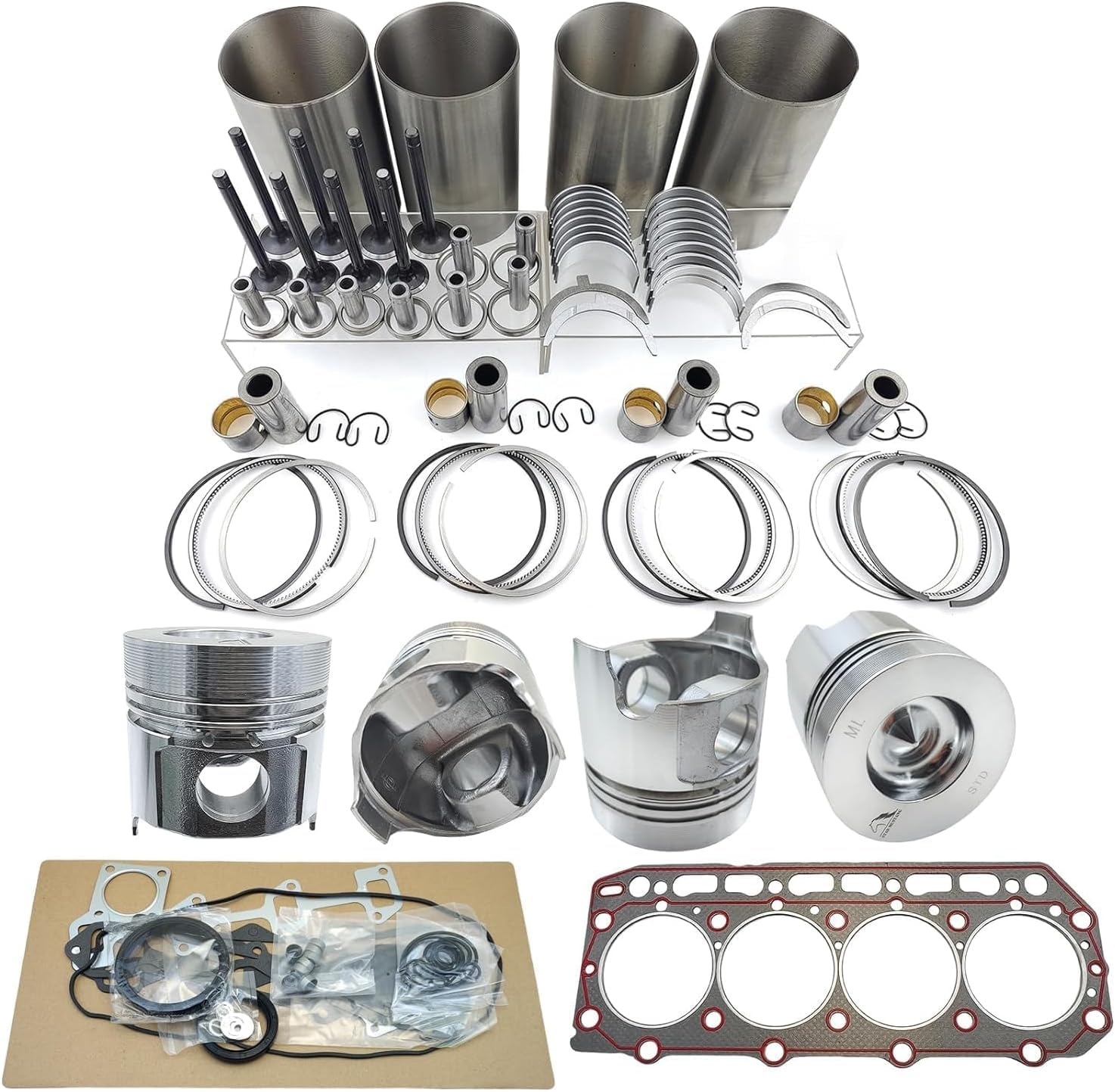

Image: A complete set of engine rebuild components, including four cylinder liners, multiple engine valves, various main and connecting rod bearings, four sets of piston rings, four pistons, and a full engine gasket kit with a head gasket.

Kit Contents (Typical):

• Pistons and Piston Pins
• Piston Rings (for all cylinders)
• Cylinder Liners
• Main Bearings
• Connecting Rod Bearings
• Thrust Washers
• Engine Valves (Intake and Exhaust)
• Valve Guides
• Valve Seats
• Full Gasket Kit (including Head Gasket, Oil Pan Gasket, Valve Cover Gasket, etc.)
• Oil Seals (Crankshaft Front & Rear, Valve Stem Seals)

3. Application and Compatibility

This overhaul rebuild kit is specifically designed for the following Yanmar engine and tractor models:

• Yanmar Engines: 4TN84, 4TN84TE, 4TN84TL
• Tractor Models: US45, F395D, US39, US400XD-P

Verify your engine model and part number (US400XD-P) to ensure compatibility before installation. Consult your vehicle's service manual for specific engine details.

4. Setup and Installation Guidelines

Engine rebuilding is a complex procedure that requires specialized tools, technical knowledge, and experience. It is highly recommended that installation be performed by a certified professional mechanic or an experienced engine technician.

General Steps (Consult Service Manual for Details):

1. Engine Disassembly: Carefully disassemble the engine, documenting the removal of all components.
2. Inspection and Cleaning: Thoroughly clean all engine components. Inspect the engine block, crankshaft, camshaft, cylinder head, and other parts for wear, cracks, or damage. Machine shop services may be required for cylinder boring, head resurfacing, or crankshaft grinding.
3. Component Installation: Install new components from the kit according to the engine manufacturer's specifications. This includes:
   • Installing cylinder liners with proper interference fit.
   • Assembling pistons with new rings and pins.
   • Installing main and connecting rod bearings with correct clearances.
   • Installing valves, valve guides, and valve seals in the cylinder head.
   • Using new gaskets and seals throughout the assembly process.
4. Torque Specifications: Adhere strictly to all torque specifications provided in the engine service manual for fasteners, especially for cylinder head bolts, main bearing caps, and connecting rod caps.
5. Timing: Ensure correct engine timing (camshaft and crankshaft alignment) during reassembly.
6. Fluid Filling: After reassembly, fill the engine with the correct type and amount of engine oil and coolant.
7. Initial Start-up and Break-in: Follow the engine manufacturer's recommended break-in procedure for a newly rebuilt engine.

Warning: Incorrect installation can lead to severe engine damage and void any potential warranty. Always refer to the official Yanmar service manual for detailed, model-specific instructions.

5. Maintenance Considerations

After a successful engine rebuild, proper maintenance is crucial to ensure the longevity and performance of your engine.

• Regular Oil Changes: Adhere to the manufacturer's recommended oil change intervals and use the specified engine oil type.
• Filter Replacement: Regularly replace oil, fuel, and air filters to prevent contaminants from damaging engine components.
• Coolant System Maintenance: Check coolant levels and condition regularly. Flush and replace coolant as per manufacturer guidelines.
• Monitor Engine Performance: Pay attention to any unusual noises, vibrations, or changes in engine temperature or power output.
• Periodic Inspections: Conduct visual inspections for leaks, loose connections, or signs of wear.

6. Troubleshooting Common Issues

While this kit provides high-quality components, issues can arise from improper installation or other engine-related factors. This section offers general troubleshooting advice.

Symptoms and Potential Causes:

• Low Compression: Could indicate improperly seated piston rings, damaged valves, or an incorrectly installed head gasket.
• Excessive Oil Consumption: Often due to worn piston rings, valve stem seals, or improper cylinder liner installation.
• Engine Overheating: May be caused by an improperly installed head gasket, cooling system issues, or incorrect engine timing.
• Unusual Engine Noises (Knocking/Tapping): Can point to incorrect bearing clearances, piston slap, or valve train issues.
• Oil Leaks: Typically due to improperly installed or damaged gaskets and seals.

If you encounter any of these issues, it is recommended to consult a qualified mechanic for diagnosis and repair. Do not continue operating the engine if severe symptoms are present.

7. Specifications

Key specifications for the HOMISIA Overhaul Rebuild Kit (Model US400XD-P):

8. Warranty Information

Specific warranty details for this product are typically provided at the point of purchase or by the seller. Please retain your proof of purchase for any warranty claims. Generally, warranties cover manufacturing defects but do not cover damage resulting from improper installation, misuse, or normal wear and tear.

9. Customer Support

For technical assistance, questions regarding compatibility, or support with your HOMISIA Overhaul Rebuild Kit, please contact the seller or manufacturer directly through the platform where the purchase was made. Provide your order details and the product model number (US400XD-P) for faster service.

Always refer to the official Yanmar engine service manual for detailed technical specifications and procedures related to your specific engine model.
