Instruction Manual for CMZST080/CMZST0803 Replacement Spools

Introduction

This manual provides essential information for the installation, operation, and maintenance of your VineHii CMZST080/CMZST0803 Replacement Spools. These spools are designed to provide efficient and durable performance for compatible string trimmers. Please read this manual thoroughly before use to ensure proper handling and to maximize the lifespan of the product.

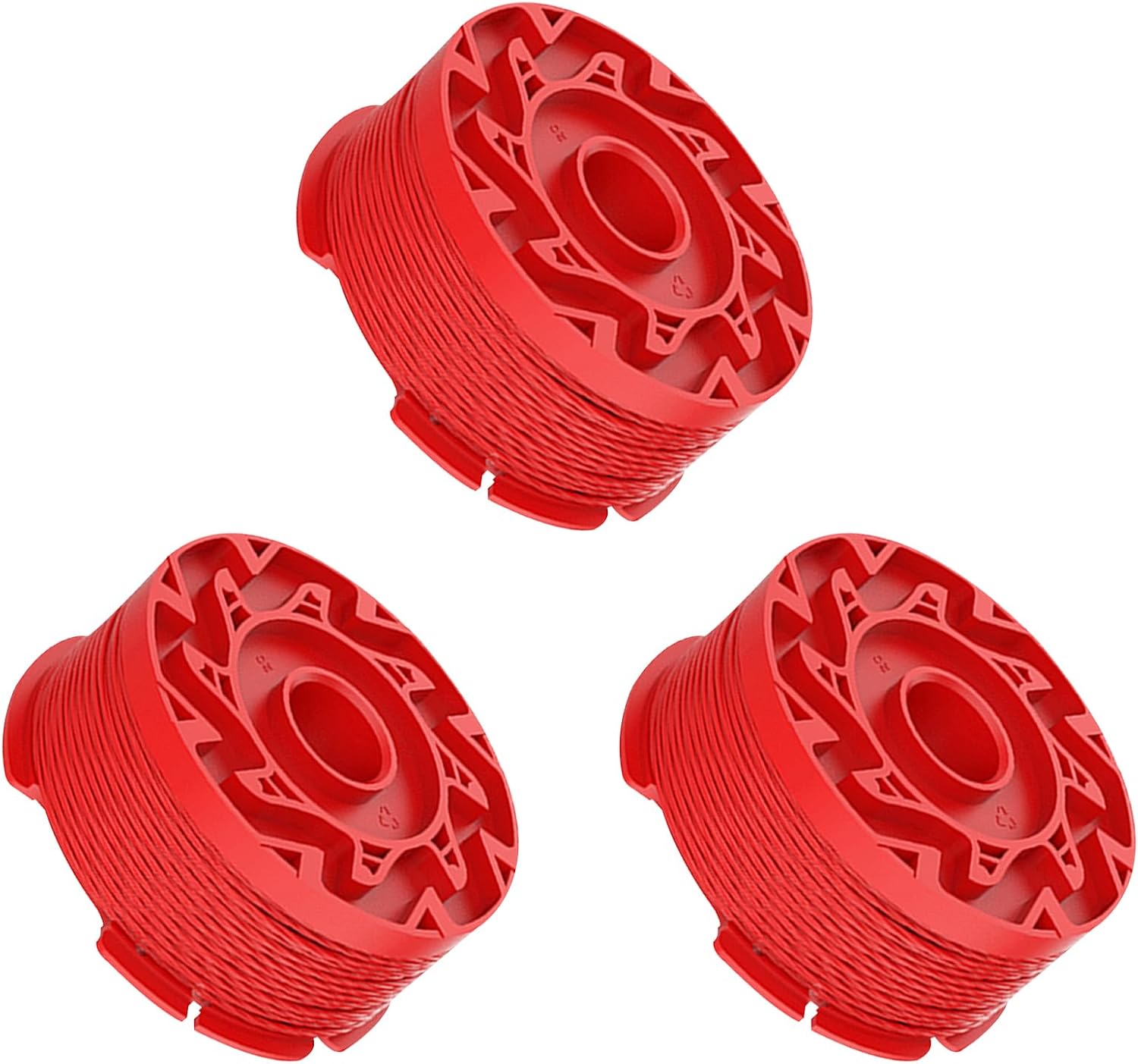

Image: Three red replacement spools, pre-wound with trimmer line, ready for installation.

Compatibility

The VineHii CMZST080 and CMZST0803 replacement spools are specifically designed for compatibility with the following Craftsman string trimmer models:

• CMCST930P1
• CMCST910B
• CMCST910M
• CMCST910M1
• CMCST910 Series Craftsman weedwacker String Trimmers

Image: Visual representation of compatible Craftsman string trimmer models, along with identification of the CMZST120SC spool cap and CMZST080/CMZST0803 spool models.

Product Specifications

Image: Detailed view of a CMZST080 replacement spool, highlighting its 0.080-inch diameter and 20-foot line length, made from high-quality ABS and nylon polyamide line.

Image: Illustrates the difference in material quality, emphasizing the premium ABS used for the spool and high-quality nylon for the string, ensuring durability.

Setup and Installation

Follow these steps to replace the spool in your compatible Craftsman string trimmer:

1. Safety First: Ensure the string trimmer is unplugged or the battery is removed before attempting any installation or maintenance.
2. Remove Old Spool: Locate the spool cap on the trimmer head. Press the tabs or twist the cap to remove it. Carefully pull out the old spool and any remaining line.
3. Clean Trimmer Head: Remove any debris, grass, or tangled line from the trimmer head area.
4. Install New Spool: Take a new VineHii replacement spool. Locate the small eyelets on the trimmer head. Thread the end of the line from the new spool through one of these eyelets.
5. Align and Insert: Align the new spool with the housing, ensuring the line is properly fed through the eyelet. Push the spool firmly into place until it seats correctly.
6. Replace Spool Cap: Reattach the spool cap, ensuring it clicks securely into place. Gently pull on the line to ensure it feeds freely.

Image: Depicts a string trimmer in use, alongside a detailed view of the replacement spool and its cap, illustrating the components involved in the installation process.

Operating Principles

The VineHii replacement spools are designed to work seamlessly with your trimmer's automatic feeding mechanism. This system utilizes centrifugal force and aerodynamics to feed the line as it wears down, reducing resistance and promoting more efficient cutting.

• Automatic Line Feed: As the trimmer operates, the line automatically extends when needed, maintaining an optimal cutting diameter.
• Optimized Performance: The twist line design and high-quality materials contribute to excellent aerodynamics, leading to improved cutting efficiency and reduced wear on the trimmer.
• Durability: The upgraded spool line offers higher durability and tensile strength, extending the time between replacements.

Image: Illustrates the benefits of the high-quality spool line, including excellent aerodynamics for efficient cutting, high tensile strength, and increased durability.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your replacement spools and trimmer:

• Storage: Store unused spools in a cool, dry place away from direct sunlight to prevent the line from becoming brittle.
• Clean Trimmer Head: Regularly clean the trimmer head and spool area to remove grass clippings, dirt, and debris that can impede line feeding.
• Inspect Line: Before each use, inspect the line for any signs of wear, fraying, or damage. Replace the spool if the line appears compromised.
• Avoid Over-Winding: Do not attempt to manually re-wind the spools with different line types or diameters, as this can affect the automatic feeding mechanism.

Troubleshooting

If you encounter issues with your replacement spools, consider the following:

Quality Assurance & Service

VineHii stands behind the quality of its products. We are committed to providing high-quality replacement parts that meet your expectations. If you encounter any issues or have questions regarding your purchase, please do not hesitate to contact our customer service team. We aim to provide a satisfactory solution within 24 hours.

For support, please refer to the contact information provided with your product packaging or visit the VineHii official website.
