Ohuhu Mini Greenhouse with 5-Tier Shelves (Model GGH-15) Instruction Manual

1. Setup and Assembly

The Ohuhu Mini Greenhouse is designed for tool-free assembly. A rubber mallet may be helpful to ensure all connections are securely seated.

1.1 Unpacking Components

Carefully unpack all components and verify against the parts list (not provided in this manual, refer to product packaging for full list). Ensure all poles, connectors, shelves, and the PVC cover are present and undamaged.

1.2 Assembling the Shelves

1. Place a plastic connector piece on a flat surface. Insert three metal shelf rods into the designated holes.
2. Align another plastic connector piece on the opposite end of the rods, ensuring the rods enter the holes. Gently tap the plastic pieces with a rubber mallet until the rods are fully seated. Avoid excessive force to prevent damage.
3. Repeat this process for all five shelves.

1.3 Constructing the Frame

1. Place one assembled shelf on the ground. Insert four vertical metal rods into the corner holes of this base shelf.
2. Carefully lower a second assembled shelf onto the top of these vertical rods, aligning the holes. Tap gently with a rubber mallet until secure.
3. Continue stacking the remaining shelves and vertical rods in this manner until all five shelves are installed.
4. For the top section, insert four shorter vertical rods into the top shelf's corner holes. Attach the curved top pieces to these rods, connecting them with a straight rod to form the arched roof structure. Tap into place.

Image: Detailed diagram illustrating the dimensions of the greenhouse, including the 74-inch height and 26.7-inch width. Insets highlight the built-in straps for securing the cover, the robust zipper, and rings for ground stakes (stakes not included).

1.4 Installing Wire Shelves and Clips

Place the wire shelves onto the assembled frame. Secure each wire shelf with the provided clips. Each shelf typically uses two clips, one at the front and one at the back, to enhance stability and prevent movement.

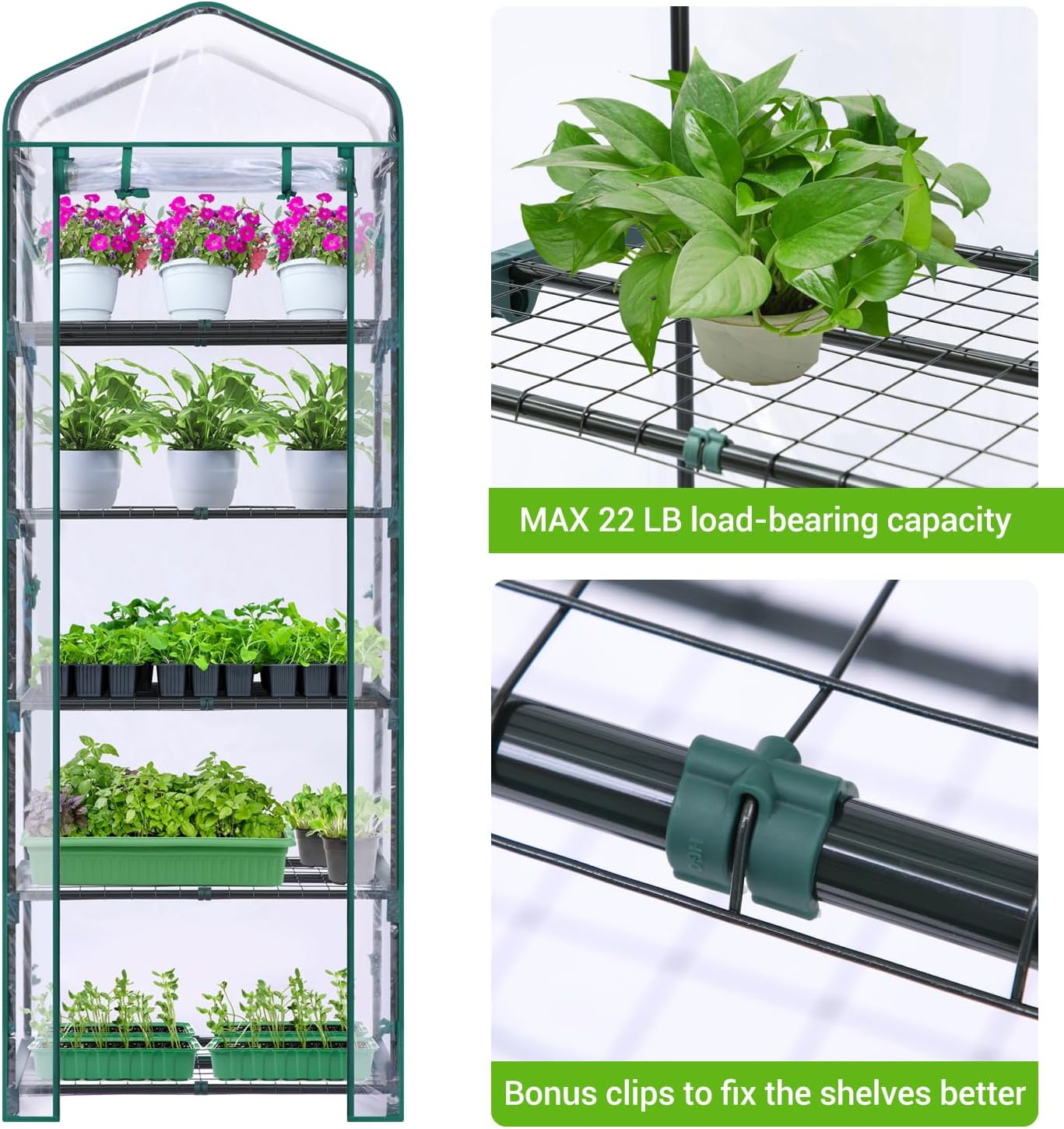

Image: A close-up view of a greenhouse shelf supporting a potted plant. A green clip is clearly visible, demonstrating how it secures the wire shelf to the metal frame for added stability.

1.5 Attaching the PVC Cover

Unzip the PVC cover partially (e.g., a couple of feet) to make it easier to slide over the assembled frame. Carefully pull the cover down over the entire structure. Once in place, fully zip down the front door. Use the built-in straps to tie the cover securely to the frame, especially at the top and sides, to prevent it from shifting.

For outdoor use, utilize the rings at the bottom of the cover to secure the greenhouse with ground stakes (not included) or by placing heavy objects in the bottom pockets to prevent wind displacement.

2. Operation and Usage

The Ohuhu Mini Greenhouse is designed to create an optimal environment for plant growth, suitable for various settings.

2.1 Placement Considerations

This portable greenhouse can be used both indoors and outdoors. Ideal locations include patios, decks, enclosed porches, balconies, or within a garden. Choose a location that provides adequate sunlight for your plants.

Image: A comparison showing the greenhouse used indoors. The left image displays the greenhouse with its transparent cover, housing various plants. The right image shows the same structure without the cover, functioning as a multi-tiered plant stand.

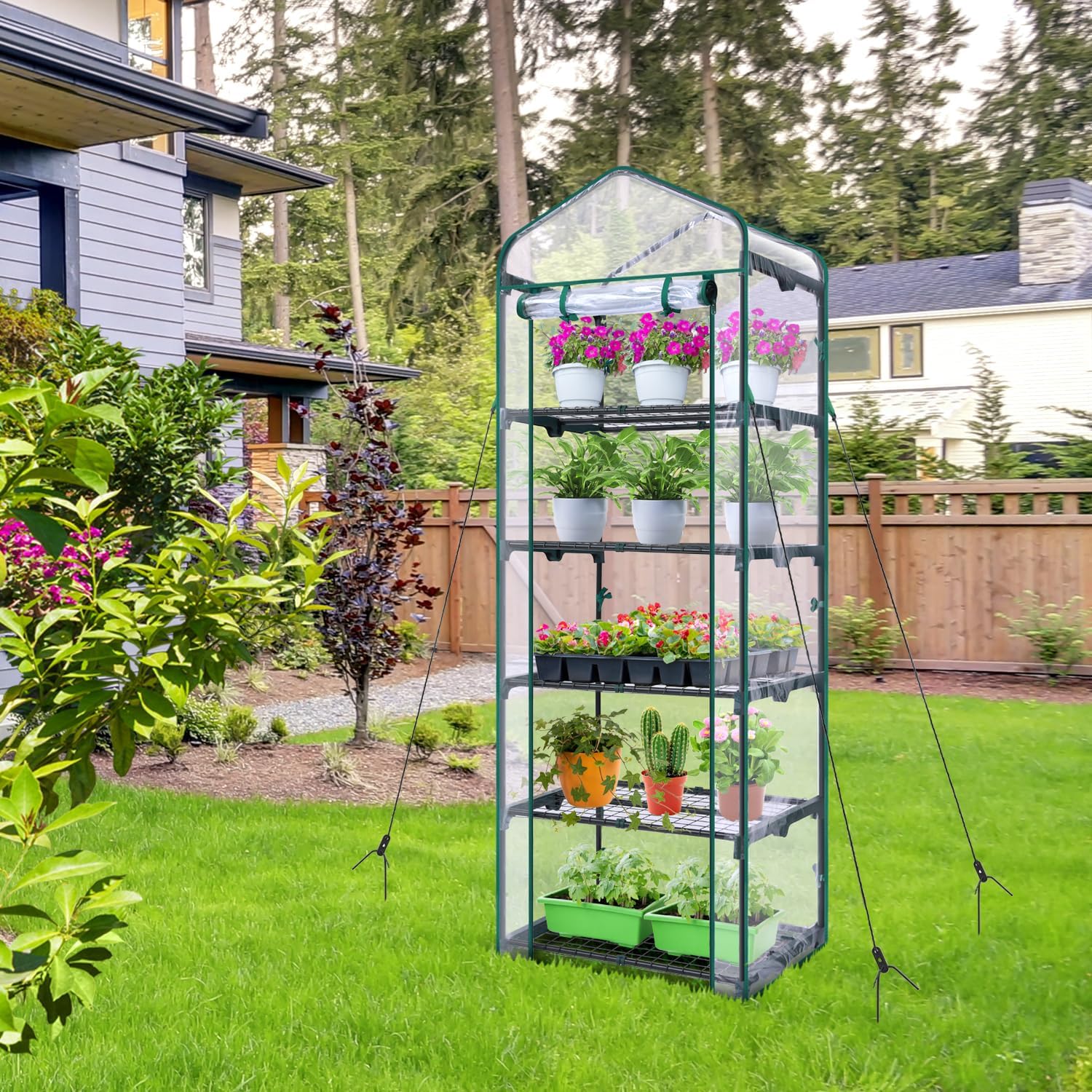

Image: The Ohuhu Mini Greenhouse positioned in a lush backyard, demonstrating its outdoor application. It is filled with a variety of potted plants, showcasing its capacity and utility in an outdoor environment.

2.2 Extending Growing Season

The transparent PVC cover provides a protective environment, helping to extend the growing season for seedlings, flowers, herbs, and vegetables by retaining warmth and humidity.

Image: A detailed view of the greenhouse cover, illustrating its UV protection capabilities against sunlight and its waterproof design against rain, ensuring plant safety and growth.

2.3 Airflow and Access

The roll-up zipper door allows for easy access to your plants and provides adjustable ventilation. Opening the door helps optimize airflow and regulate temperature and humidity levels inside the greenhouse. The screened ventilation also assists in deterring pests while maintaining necessary humidity.

2.4 Adjustable Shelving

The shelves can be removed to accommodate taller plants, offering flexibility in plant arrangement and growth space. The greenhouse can also be used as a multi-tiered plant stand without the cover.

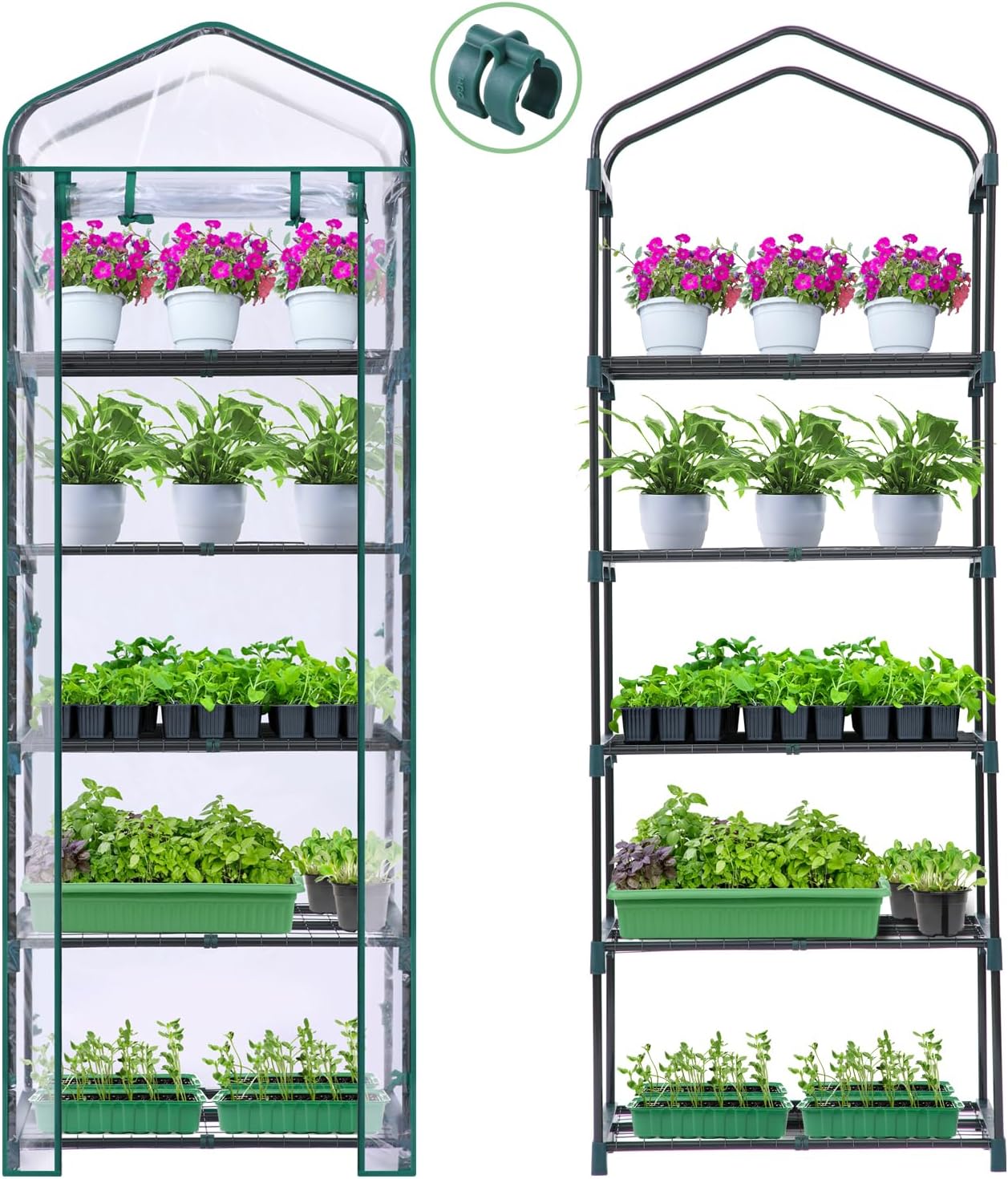

Image: A visual comparison demonstrating the versatility of the product. The left image shows the greenhouse fully enclosed with its transparent cover, while the right image displays the frame used as an open plant stand, allowing for taller plants or different display options.

3. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Ohuhu Mini Greenhouse.

3.1 Cleaning the Cover

The PVC cover can be wiped clean with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the material. Ensure the cover is dry before storing to prevent mold or mildew.

3.2 Frame Inspection

Periodically inspect the electrophoretic coated poles for any signs of rust or damage. The coating is designed to be rust-resistant, but extreme conditions or physical damage can compromise it. Ensure all connections remain tight and secure.

3.3 Zipper Care

Keep the zipper clean and free of debris to ensure smooth operation. If the zipper becomes stiff, a small amount of zipper lubricant or wax can be applied. Avoid forcing the zipper if it snags.

3.4 Stability and Wind Protection

For outdoor use, especially in windy conditions, it is crucial to secure the greenhouse. Utilize the bottom pockets for weights (e.g., stones, sandbags) and the tie-down rings with ropes and ground stakes (not included) to anchor the structure firmly. Regularly check the stability, particularly after strong winds.

4. Troubleshooting

This section addresses common issues you might encounter with your mini greenhouse.

4.1 Greenhouse is Unstable

• Issue: The greenhouse feels wobbly or unstable.
• Solution: Ensure all pole connections are fully seated. Use a rubber mallet to gently tap connections if they feel loose. For outdoor use, fill the bottom pockets of the cover with heavy objects (e.g., rocks, sand) and use ground stakes and ropes (not included) to anchor the greenhouse.

4.2 Zipper is Sticking or Damaged

• Issue: The roll-up zipper door is difficult to open or close.
• Solution: Clean any dirt or debris from the zipper teeth. Apply a small amount of zipper lubricant or wax. If the zipper is damaged (e.g., teeth misaligned, pull tab broken), contact customer support for possible replacement parts or solutions.

4.3 Cover Damage (Tears, Cracks)

• Issue: The PVC cover has developed tears or cracks.
• Solution: Small tears can sometimes be repaired with a strong, clear adhesive patch designed for plastics. For significant damage, a replacement cover may be necessary. Contact Ohuhu customer support for assistance. Note that prolonged exposure to harsh weather conditions can degrade plastic over time.

4.4 Insufficient Plant Growth

• Issue: Plants are not thriving as expected within the greenhouse.
• Solution: Check for adequate sunlight exposure. Ensure proper ventilation by adjusting the roll-up door to prevent overheating or excessive humidity. Monitor soil moisture and plant nutrition. The greenhouse provides environmental control, but proper plant care practices are still essential.

5. Product Specifications

6. Warranty and Customer Support

For warranty information, replacement parts, or any questions regarding your Ohuhu Mini Greenhouse, please contact Ohuhu customer support directly.

You can typically find contact details on the product packaging or by visiting the official Ohuhu website or their store page on Amazon:

Ohuhu Amazon Store: Ohuhu Store

Please have your model number (GGH-15) and purchase information ready when contacting support.
