1. Introduction
This instruction manual provides essential information for the safe and effective use of your HIMOTOR Pressure Washer 1/4 Quick Connect Fittings. These fittings are designed to enhance the versatility and operational efficiency of your pressure washer by allowing rapid and secure conversion from an M22 threaded connection to a standard 1/4" quick coupling. Please read this manual thoroughly before installation and operation.
Image 1.1: HIMOTOR 1/4 Quick Connect Fittings Kit.
2. Package Contents
Verify that all components are present in your package:
- 2 x M22-14mm male threaded adapters (brass)
- 2 x 1/4" quick-connect fittings (black sleeve with brass core)
Important Notice:
The M22 swivel joint in this kit features a 14mm inner diameter. It is crucial to verify your pressure washer's required size before ordering or installation. Using this adapter with a 15mm M22 fitting may result in leaks or damage.
3. Product Specifications
The HIMOTOR Pressure Washer 1/4 Quick Connect Fittings are engineered for robust performance:
- Material: High-grade stainless steel and brass
- Maximum Working Pressure: 5,000 PSI
- Maximum Temperature: 300°F (149°C)
- Connection Type: M22-14mm male thread to 1/4" quick connect plug, and 1/4" quick connect coupler to M22-14mm male thread.
- Dimensions (approximate):
- Male M22-14mm to 1/4" Quick Connect Plug: 1.6 inches (length) x 0.9 inches (width)
- Female 1/4" Quick Connect Coupler: 2.1 inches (length) x 1.4 inches (width)

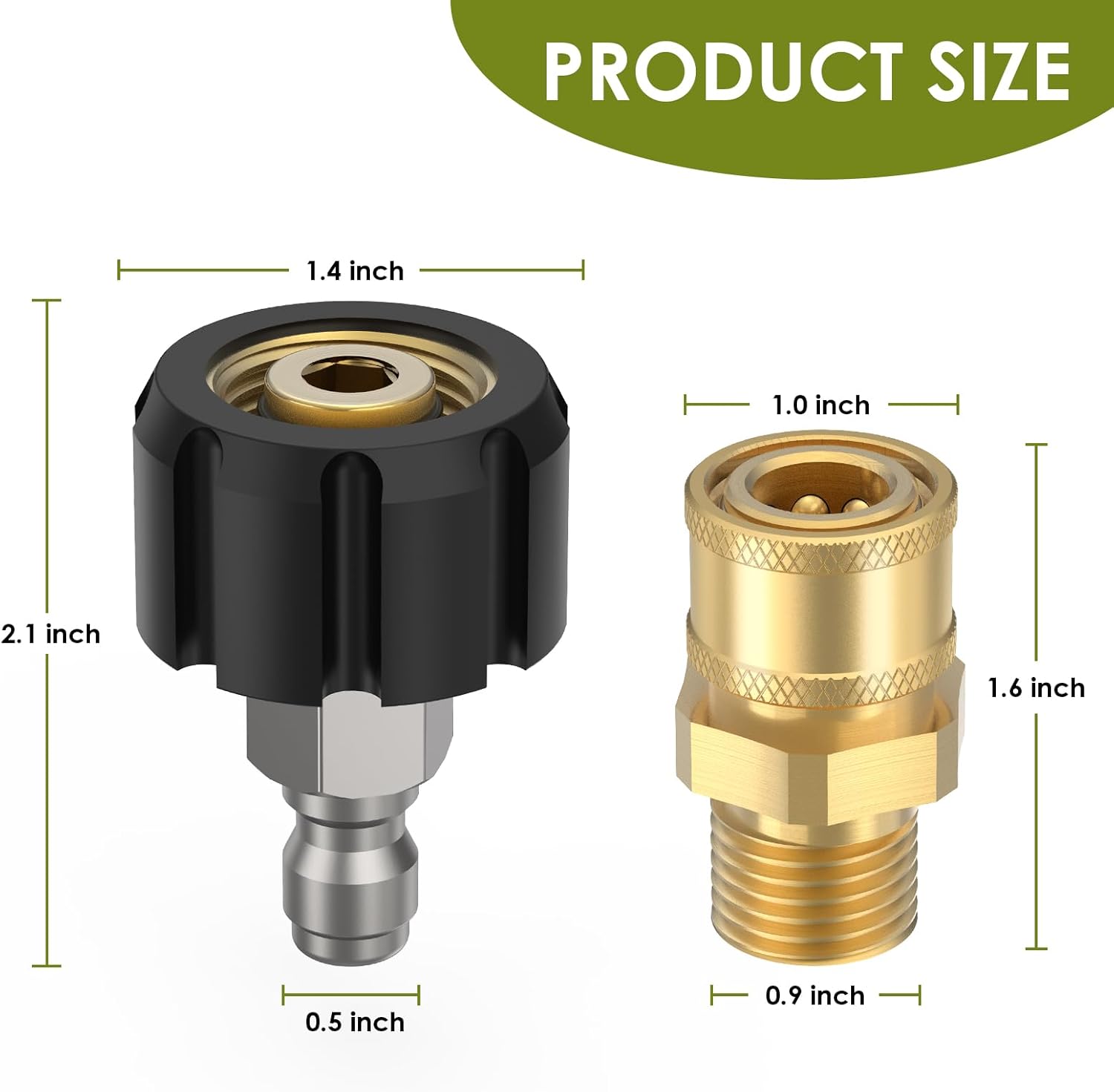

Image 3.1: Product dimensions for the quick connect fittings.
4. Safety Information
Always observe the following safety precautions when using pressure washer equipment and accessories:
- Wear appropriate personal protective equipment, including eye protection.
- Ensure all connections are tight and secure before operating the pressure washer.
- Never point the pressure washer nozzle at people, animals, or electrical components.
- Verify that the pressure and temperature ratings of these fittings are compatible with your pressure washer unit.
- Do not attempt to modify the fittings.
- Relieve system pressure before disconnecting any fittings or hoses.
5. Setup and Installation
The quick-connect system simplifies the attachment and detachment of pressure washer components. Follow these steps for proper installation:
5.1 Identifying Components
- The M22-14mm male threaded adapter (brass part) connects to your pressure washer's M22-14mm outlet or hose.
- The 1/4" quick-connect fitting (black sleeve with brass core) connects to your pressure washer gun, wand, or other 1/4" quick-connect accessories.
5.2 Connection Steps
- Prepare Threads: For M22 threaded connections, it is recommended to apply PTFE (Teflon) tape to the threads to ensure a watertight seal and prevent leaks.
- Connect M22 Adapter: Screw the M22-14mm male threaded adapter onto the M22-14mm outlet of your pressure washer or the M22-14mm end of your pressure washer hose. Tighten securely by hand, then use a wrench for a final snug turn, being careful not to overtighten.
- Connect 1/4" Quick Connect Coupler: Screw the 1/4" quick-connect fitting (the black-sleeved part) onto the M22-14mm inlet of your pressure washer gun or wand. Again, use PTFE tape and tighten securely.
- Assemble Quick Connect: To connect the two quick-connect parts, pull back the black collar on the 1/4" quick-connect coupler. Insert the 1/4" quick-connect plug (from the M22 adapter) into the coupler. Release the collar to lock the connection. Tug gently to ensure it is securely fastened.
Image 5.1: Pressure Washer Connecting Map.
Image 5.2: Detailed installation method for quick connect fittings.
Image 5.3: Illustration of the 1/4 inch quick connect mechanism.
6. Operating Instructions
Once the fittings are securely installed, operating your pressure washer becomes more efficient:
- Quick Attachment: To attach a pressure washer gun, wand, or nozzle, simply pull back the collar on the quick-connect coupler, insert the accessory's plug, and release the collar.
- Quick Detachment: To detach, ensure the pressure washer is off and system pressure is relieved. Pull back the collar on the quick-connect coupler and pull out the accessory.
- This system allows for rapid switching between various attachments, such as different spray nozzles or surface cleaners, without the need for twisting hoses or tools.
Image 6.1: Pressure washer connected and in operation.
7. Maintenance
Proper maintenance ensures the longevity and reliable performance of your quick connect fittings:
- Inspection: Regularly inspect fittings for signs of wear, corrosion, or damage. Check O-rings for cracks or flattening.
- Cleaning: Clean fittings after each use to remove dirt, debris, or chemical residues. Rinse with clean water.
- Lubrication: Periodically apply a small amount of silicone grease to the O-rings to maintain flexibility and prevent sticking.
- Storage: Store fittings in a clean, dry place away from direct sunlight and extreme temperatures when not in use.
8. Troubleshooting
If you encounter issues with your quick connect fittings, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Leaks at M22 connection | Incorrect M22 size (15mm instead of 14mm), worn O-ring, insufficient PTFE tape, loose connection. | Verify M22-14mm compatibility. Replace O-ring. Reapply PTFE tape. Tighten connection securely. |
| Leaks at quick connect joint | Worn O-ring inside coupler, debris in coupler, improper connection. | Inspect and replace O-ring. Clean coupler thoroughly. Ensure plug is fully inserted and collar is released. |
| Difficulty connecting/disconnecting | System pressure not relieved, dirt/corrosion, lack of lubrication, damaged components. | Always relieve pressure before connecting/disconnecting. Clean and lubricate fittings. Inspect for damage and replace if necessary. |
9. Warranty and Support
For warranty information or technical support regarding your HIMOTOR Pressure Washer 1/4 Quick Connect Fittings, please refer to the documentation included with your original purchase or contact HIMOTOR customer service directly. Contact details can typically be found on the manufacturer's official website or through your retailer.
