Goplus Engine Stand User Manual

Introduction

This manual provides essential information for the safe and effective use of your Goplus Engine Stand. Designed for robust engine maintenance, this heavy-duty stand securely holds engines up to 750 lbs, offering complete 360-degree access and easy mobility. Please read this manual thoroughly before assembly and operation to ensure proper usage and longevity of the product.

Image: The Goplus Engine Stand highlighted as heavy-duty, capable of supporting up to 750 lbs, and designed to be deformation resistant.

Safety Information

Always prioritize safety when working with heavy machinery. Failure to follow these safety guidelines may result in serious injury or property damage.

• Read Instructions: Read and understand all instructions and warnings in this manual before assembly or operation.
• Weight Capacity: Do not exceed the maximum load capacity of 750 lbs (3/8 Ton). Overloading can cause structural failure.
• Stable Surface: Always use the engine stand on a flat, level, and stable surface.
• Secure Engine: Ensure the engine is securely mounted to the stand using all four adjustable mounting arms and appropriate hardware. Verify all bolts are tightened before rotating or moving the stand.
• Personal Protective Equipment (PPE): Wear appropriate safety gear, including safety glasses, gloves, and steel-toed boots.
• Clear Area: Keep the work area clean, well-lit, and free of obstructions.
• Children and Bystanders: Keep children and unauthorized persons away from the work area.
• Inspect Before Use: Before each use, inspect the engine stand for any signs of damage, wear, or loose components. Do not use if damaged.
• Moving the Stand: When moving the stand with an engine mounted, do so slowly and carefully, ensuring the path is clear.

What's in the Box

Upon unpacking, please verify that all components are present and undamaged:

• 1 x Engine Stand (main frame, head assembly, arms, wheels)
• 1 x User Guide (this manual)
• Necessary assembly hardware (bolts, nuts, washers)

If any parts are missing or damaged, please contact Goplus customer support immediately.

Setup and Assembly

Assembly of the Goplus Engine Stand is straightforward. Follow these steps carefully:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Attach Wheels: Securely attach the universal front caster wheels and the two directional rear casters to the base frame using the provided hardware. Ensure all wheels are firmly attached for stable mobility.
3. Assemble Main Frame: Connect the vertical support column to the horizontal base frame. Ensure all connections are tightened securely with the provided bolts and nuts. The tightened screw connection enhances stability.
4. Install Rotating Head: Mount the 360-degree rotating head assembly onto the top of the vertical support column. Ensure the safety latch mechanism is functional and engages properly with the locating holes.
5. Attach Mounting Arms: Install the four adjustable mounting arms onto the rotating head. These arms are designed to swivel 360 degrees and adjust up to 3 inches to fit various engine configurations. Use the 1.2-inch long hex head bolts to ensure a tight, secure grip on the engine.
6. Final Check: Before first use, double-check all bolts, nuts, and connections to ensure they are fully tightened. Verify the stability of the stand.

Image: The Goplus Engine Stand fully assembled, showcasing its red frame, black rotating head, and four wheels for mobility.

Image: Close-up view highlighting the universal front caster, tightened screw connection for stability, and the non-slip handle for easy rotation.

Operating Instructions

Follow these steps for safe and effective operation of your engine stand:

1. Prepare Engine: Ensure the engine is clean and free of excessive fluids. Identify the mounting points on the engine block.
2. Position Stand: Place the engine stand on a stable, level surface in your work area.
3. Mount Engine: Using appropriate lifting equipment (e.g., engine hoist), carefully lower the engine onto the mounting arms of the stand. Align the engine's mounting points with the adjustable arms.
4. Secure Engine: Adjust the four mounting arms to fit the engine's bolt pattern. Insert the hex head bolts through the arms and into the engine block, tightening them securely. Ensure the engine is balanced and stable on the stand.
5. Rotate Engine: To rotate the engine for access, disengage the safety latch on the rotating head. Use the non-slip handle to smoothly rotate the engine to the desired position. The 360-degree rotation with 6 locating holes allows for precise adjustments. Once in position, re-engage the safety latch to lock the head in place.
6. Move Stand: If necessary, use the universal front caster and directional rear casters to carefully maneuver the stand with the engine mounted. Move slowly and avoid sudden stops or turns.
7. Dismount Engine: When work is complete, reverse the mounting process. Use lifting equipment to safely remove the engine from the stand.

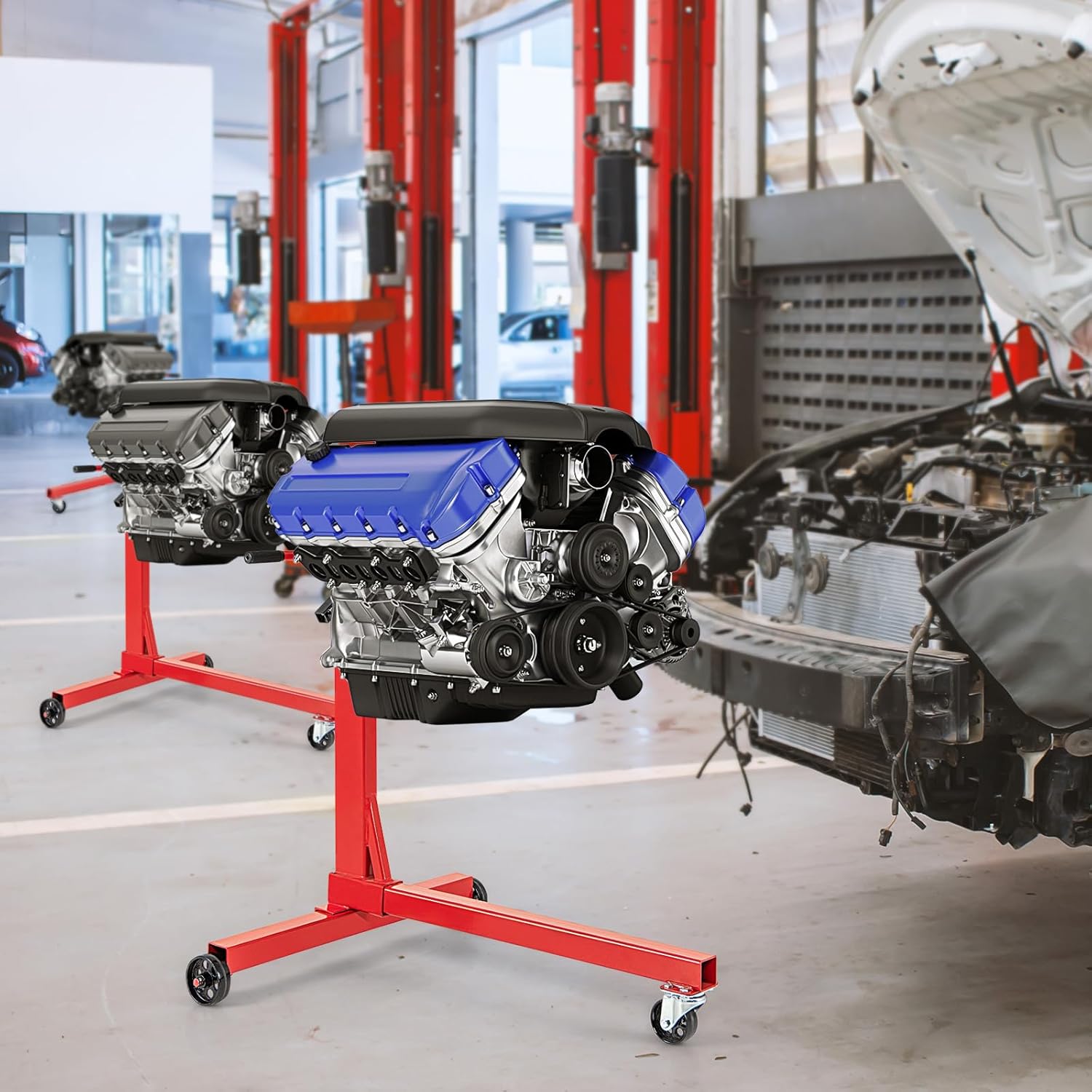

Image: An engine securely mounted on the Goplus Engine Stand within a professional garage setting, demonstrating its practical application.

Image: A detailed view of the engine stand's head, illustrating the 360-degree rotation capability and the safety latch with its 6 built-in locating holes for precise positioning.

Image: Close-up of the four flexible mounting arms, showing their adjustability and dimensions, designed to fit a wide range of engine types.

Maintenance

Regular maintenance will ensure the longevity and safe operation of your Goplus Engine Stand:

• Cleaning: After each use, wipe down the stand to remove oil, grease, and dirt. Use a mild detergent if necessary.
• Lubrication: Periodically apply a light coat of grease or oil to moving parts, such as the rotating head mechanism and wheel axles, to ensure smooth operation.
• Hardware Check: Regularly inspect all bolts, nuts, and pins for tightness. Re-tighten any loose fasteners.
• Structural Integrity: Check the metal frame for any signs of bending, cracks, or deformation. Do not use the stand if structural damage is present.
• Wheel Condition: Inspect the wheels for wear or damage. Ensure they roll freely and the casters swivel without obstruction.
• Storage: Store the engine stand in a dry, clean area when not in use to prevent rust and corrosion.

Troubleshooting

If you encounter issues with your Goplus Engine Stand, refer to the following common problems and solutions:

Specifications

Image: A diagram illustrating the key dimensions of the Goplus Engine Stand, including overall length, width, height, and head measurements.

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the warranty card included with your purchase or visit the official Goplus website. You can also find contact information for customer service on the Goplus brand store page on Amazon.

Goplus Brand Store: Visit Goplus Store on Amazon
