Truskore Bicycle Wall Mount System

1. Introduction and Safety Information

Thank you for choosing the Truskore Bicycle Wall Mount System. This manual provides essential instructions for the safe and correct installation and use of your new bicycle storage solution. Please read this manual thoroughly before installation and retain it for future reference.

1.1 Intended Use

This product is designed for securely storing one bicycle on a suitable wall surface. It is intended for indoor use in environments such as garages, sheds, or homes. Do not use this product for purposes other than its intended use.

1.2 Safety Warnings

• Weight Limit: Do not exceed the maximum load capacity of 15.0 kg (33 lbs). Exceeding this limit can result in product failure, property damage, or injury.
• Wall Type: Ensure the wall surface is structurally sound and capable of supporting the weight of the mount and the bicycle. Consult a professional if unsure about wall suitability.
• Installation: Follow all installation steps carefully. Improper installation can lead to the mount detaching from the wall.
• Children and Pets: Keep children and pets away from the installation area during setup. Ensure the mounted bicycle is stable and out of reach of small children.
• Regular Inspection: Periodically check all fasteners and the mount for tightness and signs of wear or damage.

2. Package Contents

Please verify that all components are present before beginning installation:

• Truskore Bicycle Wall Mount Bracket
• Mounting Hardware (screws, wall plugs - quantity may vary based on model)

3. Setup and Installation

Proper installation is crucial for the safety and stability of your bicycle. Please follow these steps carefully.

3.1 Tools Required (Not Included)

• Drill
• Drill bit appropriate for wall plugs and screws
• Pencil
• Measuring tape
• Level
• Screwdriver or wrench

3.2 Installation Steps

1. Choose Location: Select a suitable wall location that is structurally sound and free from electrical wires or plumbing. Ensure there is enough space for the bicycle to hang without obstruction.
2. Mark Drilling Points: Hold the wall mount against the chosen wall location. Use a level to ensure it is perfectly horizontal. Mark the positions of the mounting holes with a pencil.
3. Drill Holes: Using the appropriate drill bit for your wall type and the provided wall plugs/screws, drill holes at the marked positions. The depth and diameter of the holes should match the wall plugs.
4. Insert Wall Plugs: If using wall plugs, insert them into the drilled holes until they are flush with the wall surface.
5. Mount the Bracket: Align the wall mount with the drilled holes. Insert the screws through the mount's holes and into the wall plugs/wall.
6. Secure the Bracket: Tighten all screws firmly until the mount is securely fastened to the wall. Do not overtighten, as this may damage the wall or the mount.

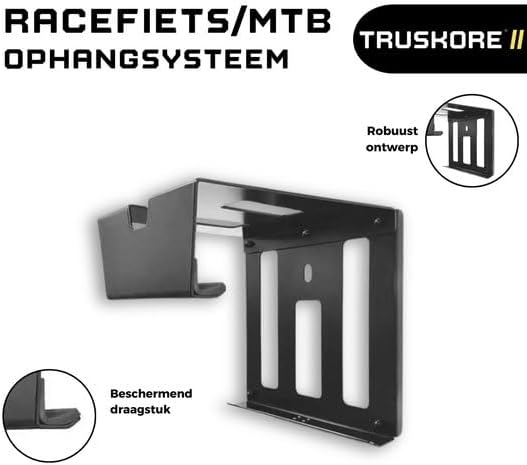

Image: The Truskore Bicycle Wall Mount, highlighting its robust design and the protective support feature. This image illustrates the sturdy construction of the bracket, designed for secure bicycle storage.

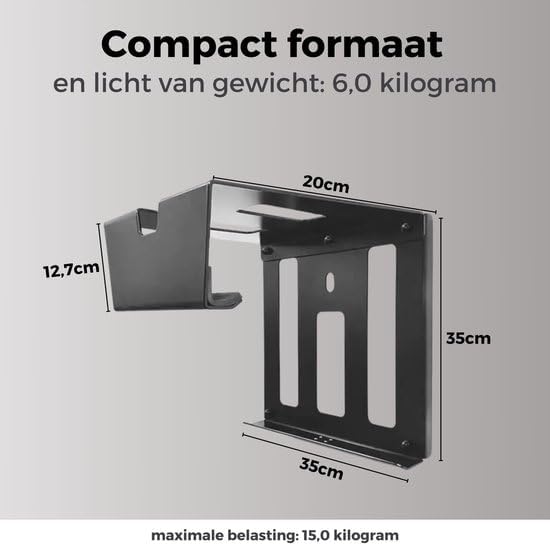

Image: Detailed dimensions of the Truskore Bicycle Wall Mount. The image shows the bracket with measurements: 20cm width, 35cm height, and 12.7cm depth for the bike support arm. It also indicates a maximum load capacity of 15.0 kilograms.

4. Operating Instructions

Once installed, using the Truskore Bicycle Wall Mount is straightforward.

4.1 Hanging Your Bicycle

1. Grasp your bicycle firmly by the frame.
2. Lift the bicycle and align the top tube of the frame with the support arms of the wall mount.
3. Gently lower the bicycle onto the support arms, ensuring it rests securely and is balanced. The protective support on the arms helps prevent scratches to your bike frame.
4. Verify that the bicycle is stable and does not wobble before releasing it.

4.2 Removing Your Bicycle

1. Grasp your bicycle firmly by the frame.
2. Lift the bicycle straight up off the support arms.
3. Carefully move the bicycle away from the wall mount.

Image: A blue bicycle securely mounted on the Truskore Bicycle Wall Mount System. The image demonstrates how the bicycle rests on the support arms, with additional space above for a helmet and shoes, showcasing the integrated storage design.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Truskore Bicycle Wall Mount.

• Cleaning: Wipe the mount with a soft, damp cloth to remove dust and dirt. Avoid abrasive cleaners or solvents that could damage the finish.
• Fastener Check: Periodically (e.g., monthly) check all mounting screws to ensure they remain tight. Retighten if necessary.
• Protective Parts: Inspect the protective material on the support arms for any signs of wear, tears, or damage. If damaged, contact Truskore support for replacement options to prevent scratching your bicycle frame.
• Structural Integrity: Visually inspect the mount for any signs of bending, cracks, or other structural damage. If damage is observed, discontinue use immediately and replace the unit.

6. Troubleshooting

If you encounter issues with your Truskore Bicycle Wall Mount, refer to the following common problems and solutions.

• Problem: The bicycle feels unstable or wobbly when mounted.
  Solution:
  1. Ensure all mounting screws are securely tightened.
  2. Verify that the bicycle's weight does not exceed the 15.0 kg (33 lbs) maximum load capacity.
  3. Check that the bicycle's top tube is resting evenly and fully on both support arms.
  4. Re-evaluate the wall's structural integrity. If the wall itself is weak, the mount may not be stable.
• Problem: The mount appears to be pulling away from the wall.
  Solution:
  1. Immediately remove the bicycle from the mount.
  2. Inspect the mounting screws and wall plugs for damage. Replace if necessary.
  3. Ensure the wall type is appropriate for the mounting hardware used. You may need different wall anchors for plasterboard, brick, or concrete.
  4. If the wall itself is damaged, professional repair may be required before re-installation.

7. Specifications

8. Warranty Information

Warranty information for the Truskore Bicycle Wall Mount System is not provided within this instruction manual. Please refer to the product packaging or the retailer's website for details regarding warranty coverage and terms.

9. Customer Support

Contact information for Truskore customer support is not provided within this instruction manual. For assistance, please refer to the retailer's website or the original point of purchase for support options.
