DistinQ DQTR-06BK

DistinQ Waterproof Bicycle Phone Holder XL (6-7 inch)

Model: DQTR-06BK

Introduction

Thank you for choosing the DistinQ Waterproof Bicycle Phone Holder. This manual provides essential information for the safe and effective use of your new phone holder. Please read these instructions carefully before installation and operation, and retain them for future reference.

The DistinQ Waterproof Bicycle Phone Holder is designed to securely hold your smartphone (6 to 7 inches) on your bicycle, scooter, or motorcycle handlebars. Its robust, waterproof design and quick-lock function ensure your device is protected and easily accessible during your rides, allowing you to use navigation or control music safely.

Package Contents

Please check the package for the following items:

  • 1x DistinQ Waterproof Phone Holder (Model DQTR-06BK)
  • 1x User Manual (Dutch and English)

Setup and Installation

Follow these steps to install your DistinQ phone holder:

  1. Attach the Mount to Handlebars: Securely fasten the mounting clamp to your bicycle, scooter, or motorcycle handlebars. Ensure it is tightened sufficiently to prevent movement during use.
  2. Connect the Phone Holder: Align the phone holder with the mounting base and slide it into place until you hear a click, indicating it is securely locked. The quick-lock function allows for easy attachment and detachment.
  3. Insert Your Smartphone: Open the phone holder case. Carefully place your 6 to 7-inch smartphone inside, ensuring it fits snugly. Close the case firmly to ensure a waterproof seal.

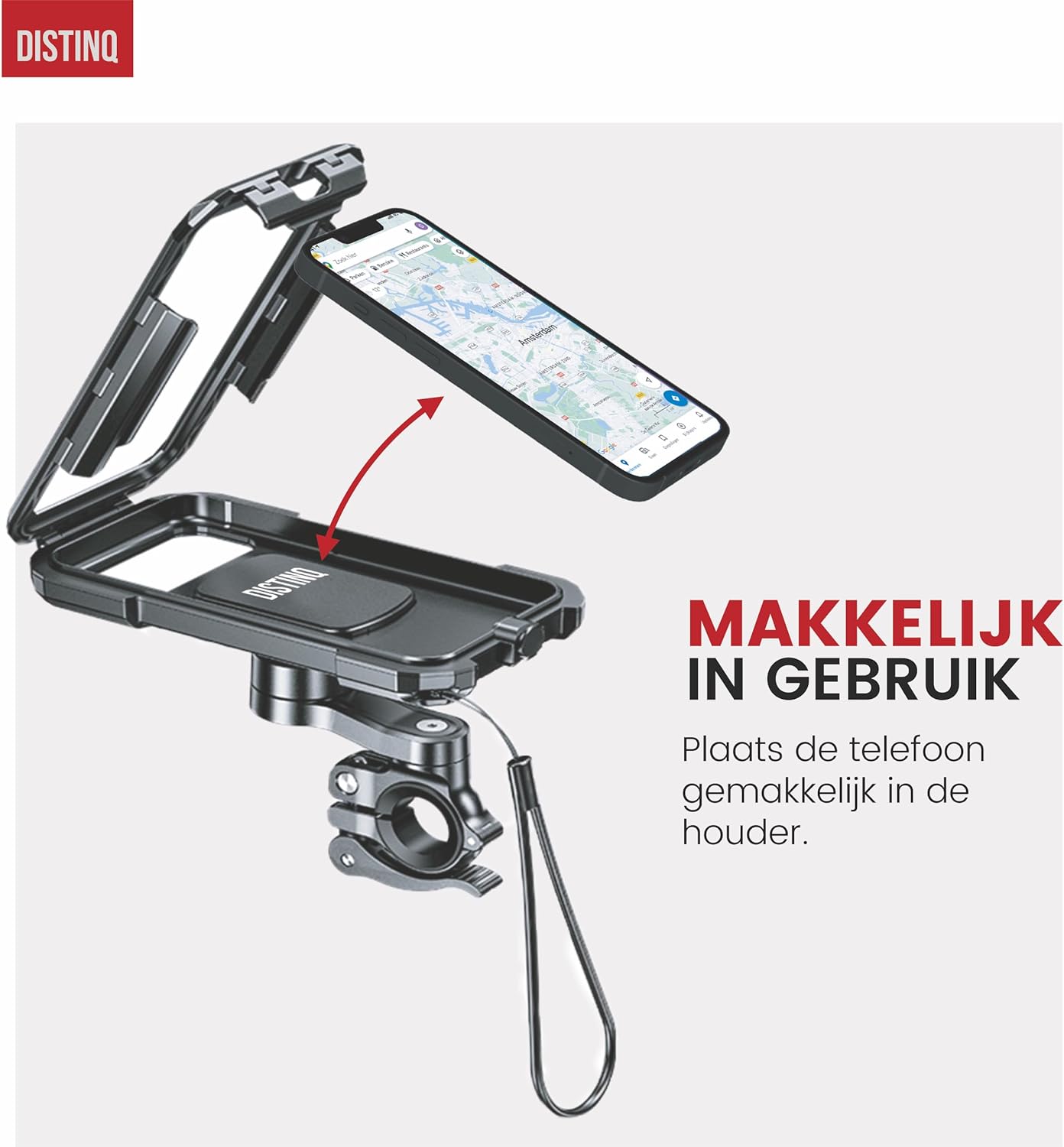

Image showing a smartphone being placed into the DistinQ waterproof phone holder.
Figure 1: Placing the smartphone into the holder. Ensure the case is closed firmly for a waterproof seal.
Image showing the DistinQ waterproof phone holder mounted on a motorcycle handlebar in rainy conditions.
Figure 2: The phone holder securely mounted on handlebars, demonstrating its waterproof design.

Operating Instructions

The DistinQ phone holder offers several features for convenient use:

  • Touchscreen Access: The transparent front cover allows full access to your smartphone's touchscreen functions, enabling you to use navigation apps, control music, or answer calls without removing your phone from the holder.
  • 360-Degree Rotation: The holder can be rotated 360 degrees, allowing you to adjust your phone to the optimal viewing angle (portrait or landscape) for navigation or video recording.
  • Charging Port Access: A dedicated charging port allows you to connect a charging cable to your phone while it is secured in the holder, ensuring your battery stays full during long rides.
  • Camera Functionality: The design accommodates camera use, making it suitable for recording videos of your journey.
Image showing a finger interacting with a smartphone touchscreen inside the DistinQ phone holder.
Figure 3: Full touchscreen access through the transparent cover.
Image showing a smartphone being charged while inside the DistinQ phone holder, with a charging cable connected.
Figure 4: Charging port access for on-the-go power.

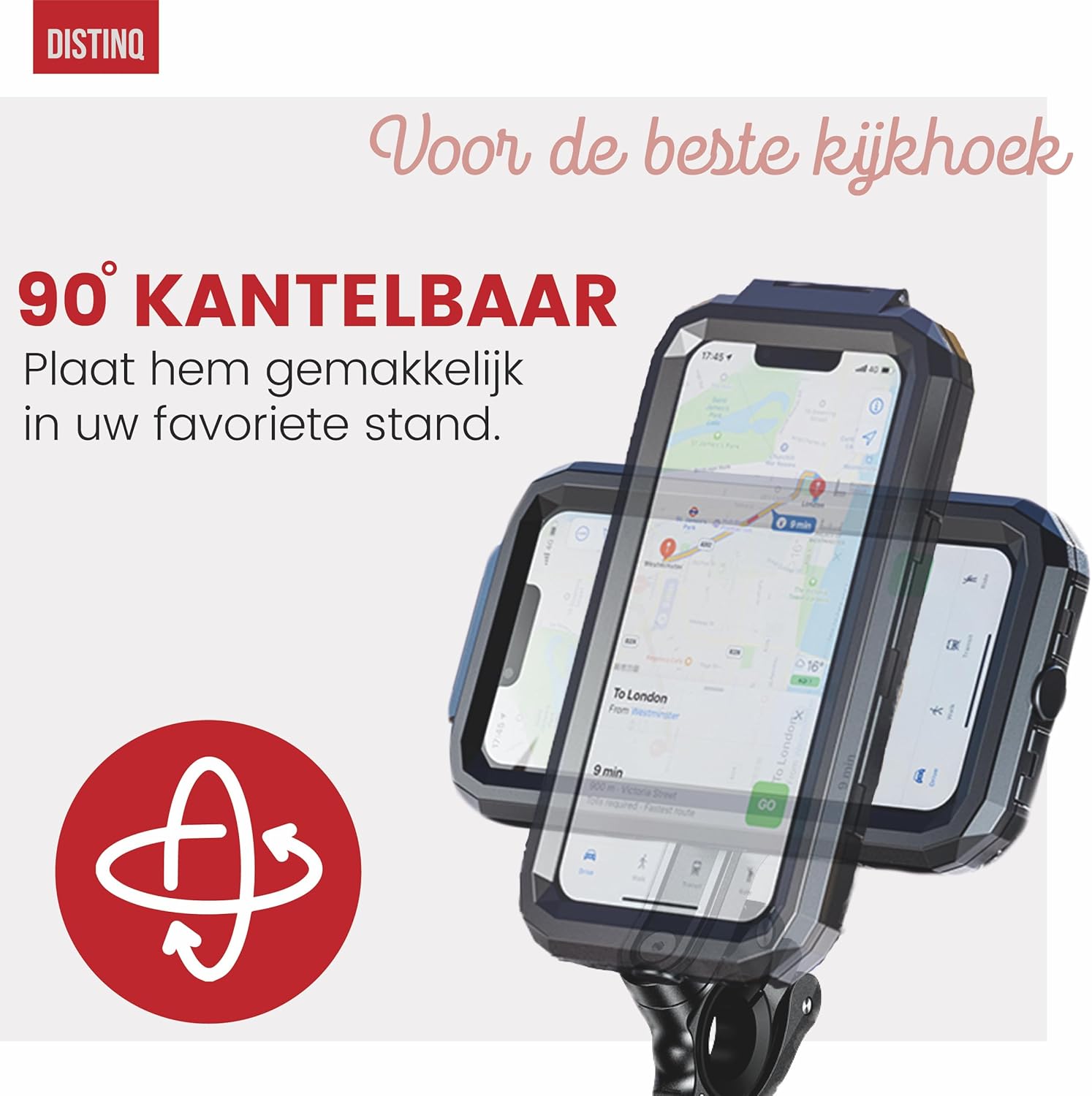

Image illustrating the 90-degree tilt and 360-degree rotation capability of the phone holder.
Figure 5: The holder supports 360-degree rotation for optimal viewing.
Image showing a smartphone in the holder displaying a camera interface, indicating camera functionality.
Figure 6: Camera functionality is maintained while the phone is in the holder.

Maintenance

To ensure the longevity and optimal performance of your DistinQ phone holder, follow these maintenance guidelines:

  • Cleaning: Wipe the holder with a soft, damp cloth to remove dust and dirt. Avoid using abrasive cleaners or solvents, as these can damage the material and waterproof seal.
  • Inspection: Periodically check the mounting clamp and quick-lock mechanism for any signs of wear or damage. Ensure all parts are securely fastened before each use.
  • Waterproof Seal: Always ensure the case is properly closed and sealed before exposing it to water to maintain its IP67 waterproof rating.

Troubleshooting

If you encounter any issues with your DistinQ phone holder, please refer to the following common solutions:

  • Holder feels loose: Ensure the handlebar clamp is tightened securely. Check that the phone holder is fully engaged with the quick-lock mechanism on the mount.
  • Touchscreen not responding: Verify that your phone is properly positioned within the holder and that the transparent cover is clean and free from debris. Some screen protectors might affect touch sensitivity.
  • Water leakage: Double-check that the phone holder case is completely closed and sealed around your phone. Ensure no foreign objects are obstructing the seal.
  • Difficulty inserting/removing phone: Ensure your phone size is within the 6 to 7-inch compatibility range. Do not force the phone into the holder.

Specifications

Model NumberDQTR-06BK
Compatible Phone Size6 to 7 inches
Dimensions (Product)22 x 10 x 6.5 cm
Weight331 grams
Waterproof RatingIP67
Mounting TypeHandlebar Mount
MaterialHigh-quality plastic
Special Features360-degree rotation, Touchscreen compatible, Charging port access, Camera functionality

Warranty and Support

DistinQ is committed to 100% customer satisfaction. If you have any questions, comments, or concerns regarding your product, please do not hesitate to contact us. We will work with you to find a suitable solution.

For support, please refer to the contact information provided with your purchase or visit the official DistinQ website.

© 2024 DistinQ. All rights reserved.
