Yabano Vertical Garment Steamer

1. Introduction

Thank you for choosing the Yabano HY-288 Vertical Garment Steamer. This powerful 1950W steamer is designed to quickly and effectively remove wrinkles from various fabrics, offering 11 steam functions and a large 1.35L water tank for extended use. Please read this manual carefully before operation to ensure safe and optimal performance of your appliance.

Figure 1: Yabano HY-288 Vertical Garment Steamer with its main unit, adjustable pole, and steam nozzle.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before using the appliance.
• Use the appliance only for its intended use.
• To avoid the risk of electric shock, do not immerse the appliance in water or other liquids.
• Never pull the cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. Let the appliance cool completely before putting away.
• Always disconnect the appliance from the electrical outlet when filling with water or emptying, and when not in use.
• Do not operate the appliance with a damaged cord or if the appliance has been dropped or damaged.
• Close supervision is necessary for any appliance being used by or near children.
• Burns can occur from touching hot metal parts, hot water, or steam. Use caution when handling.
• Use only distilled or de-mineralized water to prevent mineral buildup and extend the life of the steamer.

3. Components Overview

Familiarize yourself with the parts of your Yabano Garment Steamer:

• Main Unit: Contains the heating element, water tank, and control panel. Equipped with easy-roll wheels for portability.
• Water Tank: Transparent, removable 1.35L capacity water tank.
• Adjustable Pole: Telescopic pole for height adjustment.
• Hanger Attachment: Provides a convenient place to hang garments during steaming.
• Steam Hose: Flexible hose connecting the main unit to the steam nozzle.
• Steam Nozzle/Head: Emits steam for wrinkle removal.
• Control Knob: Dial for selecting steam levels based on fabric type.

Figure 2: The Yabano garment steamer shown at three different adjustable heights, illustrating its adjustable pole and hanger attachment.

4. Setup

Follow these steps for initial setup of your garment steamer:

1. Unpack: Carefully remove all components from the packaging.
2. Assemble the Pole: Insert the adjustable pole into the designated slot on the main unit. Ensure it clicks securely into place.
3. Attach the Hanger: Place the hanger attachment onto the top of the adjustable pole.
4. Connect the Hose: Securely attach the steam hose to the steam outlet on the main unit. Ensure it is tightly fastened to prevent leaks.
5. Fill the Water Tank: Remove the 1.35L transparent water tank from the main unit. Open the cap and fill it with distilled or de-mineralized water. Do not exceed the maximum fill line. Close the cap securely and place the water tank back into the main unit.
6. Position: Place the steamer on a flat, stable surface. Ensure the power cord is not obstructed.

Figure 3: Illustration of key features including the 1.35L water tank and fast preheating, relevant for setup.

5. Operating Instructions

Operating your Yabano Garment Steamer is straightforward:

1. Power On: Plug the power cord into a suitable electrical outlet.
2. Select Steam Level: Turn the control knob to select the desired steam level based on your fabric type. The steamer offers 11 different settings for various textiles, including Silk, Fibroid, Woolen Cloth, Felt, Sackscloth, and Cotton.
3. Preheating: The steamer will begin to preheat. It takes approximately 10 seconds to reach operating temperature.
4. Begin Steaming: Once steam is consistently emitted from the nozzle, hang your garment on the hanger attachment. Hold the steam nozzle a few inches away from the fabric and move it slowly up and down the garment. For stubborn wrinkles, gently press the nozzle against the fabric.
5. Continuous Use: The 1.35L water tank allows for up to 45 minutes of continuous steaming.
6. Power Off: When finished, turn the control knob to the "OFF" position and unplug the steamer from the outlet.

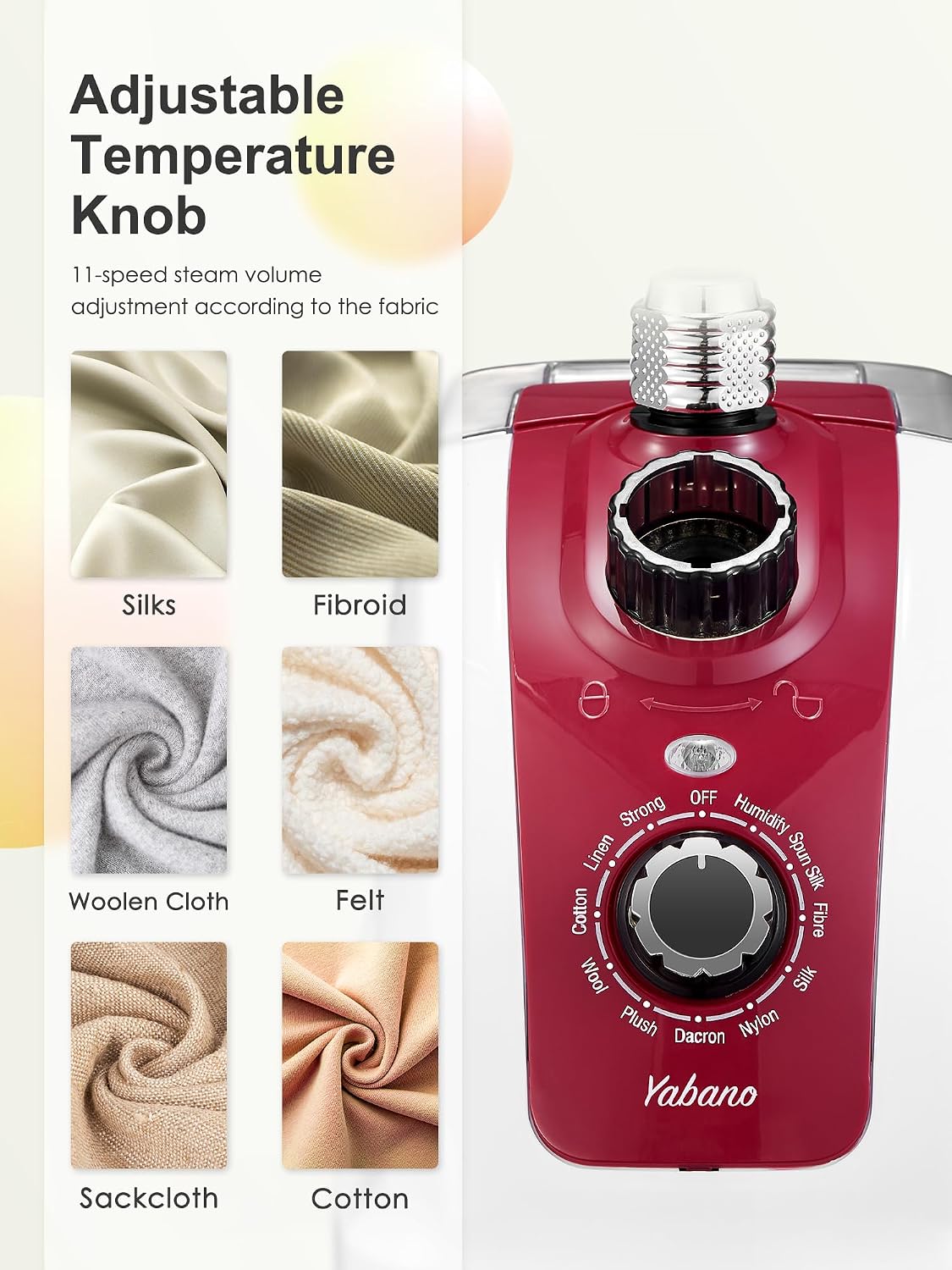

Figure 4: Close-up of the adjustable temperature knob with fabric type indicators.

Figure 5: Demonstrating the steamer's effectiveness on a wrinkled shirt.

6. Maintenance

Proper maintenance ensures the longevity and performance of your steamer:

• Empty Water Tank: After each use, or when the steamer has cooled, remove the water tank and empty any remaining water.
• Cleaning: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners.
• Descaling: Over time, mineral deposits may build up, especially if tap water is used. To descale, mix equal parts white vinegar and distilled water in the tank. Run the steamer until half the solution is used, then turn off and let it sit for 30 minutes. Repeat until the tank is empty. Rinse thoroughly with clean water. Perform this monthly or as needed.
• Storage: Store the steamer in a cool, dry place. Ensure the water tank is empty and the hose is not kinked. The adjustable pole can be collapsed for compact storage.

7. Troubleshooting

If you encounter issues with your steamer, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

Specific warranty information for the Yabano HY-288 Vertical Garment Steamer is not provided in this manual. Please refer to the product packaging, the retailer's website, or the official Yabano website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance beyond what is covered in this manual, or inquiries about replacement parts, please contact Yabano customer service through their official channels. Contact information can typically be found on the product's packaging or the manufacturer's website.
