CROWNFURN Electric Standing Desk Frame User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your CROWNFURN Electric Standing Desk Frame. Please read this manual thoroughly before use to ensure proper function and safety.

Image: The CROWNFURN Electric Standing Desk Frame, highlighting its sturdy construction and the included control panel.

Important Safety Information

WARNING:

• Do not raise or lower the desk while sitting or standing near it.
• Ensure the desk is level before use.
• Do not place heavy or unstable objects on the desk.
• Keep children and pets away from the desk's operating area.

Product Features

• Ergonomic Height Adjustment: Seamless transitions between sitting and standing positions with adjustable heights from 72 cm (28.3") to 120 cm (47.2").
• Wide Compatibility: Accommodates tabletops from 100 cm (39.4") to 160 cm (63") in length and 61 cm (24") to 76 cm (30") in depth. The frame itself extends from 93 cm (36.6") to 133 cm (52.4").
• Intuitive Control Panel: Features a digital display and 3 memory presets for personalized height settings.
• Robust Construction: Built from solid, heavy-duty steel, capable of supporting up to 99.79 kg (220 lbs).
• Quiet Operation: Motor operates with less than 45 dB noise.
• Anti-Collision Technology: Prevents damage to the desk or surrounding furniture during operation.

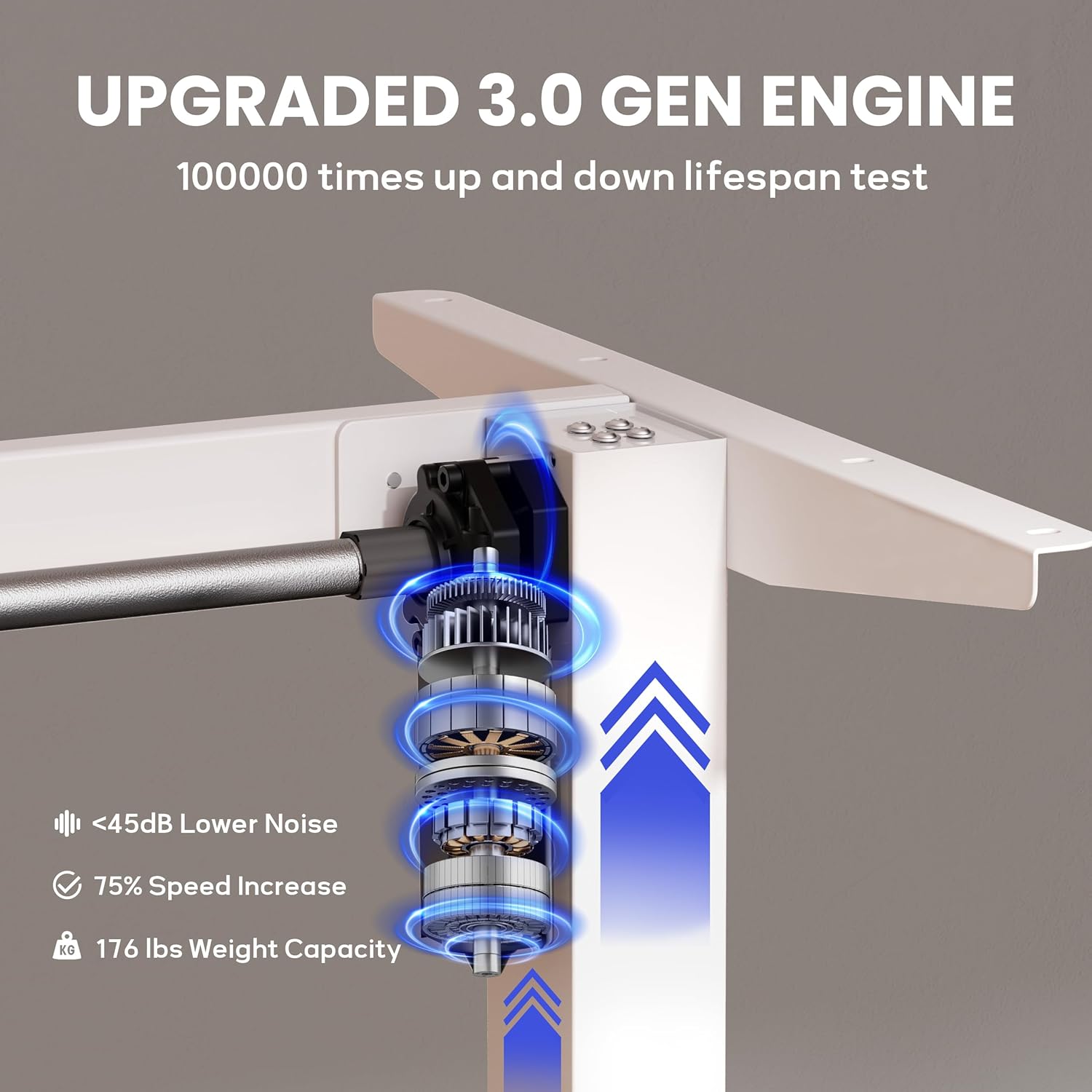

Image: Internal view of the desk frame's motor system, emphasizing its quiet and powerful operation.

Setup and Assembly

The CROWNFURN Electric Standing Desk Frame is designed for straightforward assembly. Detailed instructions and labeled hardware are included in the packaging.

1. Unpack Components: Carefully remove all parts from the packaging. Verify all components are present against the included parts list.
2. Assemble Frame: Follow the step-by-step instructions provided in the assembly guide to connect the legs, crossbars, and motor components.
3. Attach Tabletop (Not Included): Secure your compatible tabletop to the assembled frame using the provided screws. Ensure the tabletop dimensions are within the recommended range (100-160 cm length, 61-76 cm depth).
4. Connect Power: Plug the power cord into a suitable 100V-240V outlet.
5. Initial Calibration: Refer to the assembly guide for initial calibration steps, if required, to ensure smooth operation.

A professional support team is available to assist with any questions or concerns during installation.

Image: Visual guide for compatible tabletop sizes, indicating the adjustable length of the frame.

Operating Instructions

The desk frame features an intuitive control panel for easy height adjustments and memory settings.

Image: The control panel, detailing its functions: Up/Down Movement, Digital Display, Memory Presets (1, 2, 3), and Security Lock.

• Adjusting Height: Use the ▲ (Up) and ▼ (Down) buttons to raise or lower the desk to your desired height. The current height will be displayed on the LED screen.
• Setting Memory Presets:
  1. Adjust the desk to your preferred height.
  2. Press the "S" (Set) button.
  3. Within 3 seconds, press one of the memory buttons (1, 2, or 3) to save the current height.
• Recalling Memory Presets: Simply press the corresponding memory button (1, 2, or 3) to automatically move the desk to the saved height.
• Security Lock: The control panel may feature a security lock function. Consult your specific assembly guide for instructions on how to activate and deactivate this feature to prevent accidental adjustments.

Image: Demonstration of the desk frame's ability to store and recall three distinct height settings for user convenience.

Maintenance

To ensure the longevity and optimal performance of your CROWNFURN Electric Standing Desk Frame, follow these simple maintenance guidelines:

• Cleaning: Wipe the frame with a damp cloth to remove dust and dirt. Avoid using abrasive cleaners or solvents that could damage the finish.
• Regular Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
• Cable Management: Ensure power cables and control cables are not pinched or tangled, which could affect operation.

Troubleshooting

If you encounter any issues with your desk frame, please refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact CROWNFURN customer support for further assistance.

Specifications

Warranty and Support

For warranty information or technical support, please contact CROWNFURN customer service. Keep your purchase receipt and model number (Q-DDS-KJS-WT) handy for faster service.

You can often find support contact details on the manufacturer's official website or through your point of purchase.
