Toobop Carburetor Kit Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Toobop Carburetor Kit. This kit is designed as a replacement fuel system component for Husqvarna YTA24V48 and YTA22V46 riding lawn tractors. Please read these instructions thoroughly before attempting any installation or maintenance to ensure proper function and safety.

2. Product Overview

The Toobop Carburetor Kit includes the following components:

• Carburetor
• Fuel Pump
• Air Filter
• Oil Filter
• Fuel line, clamps, and gaskets
• Spark Plugs

Figure 2.1: Overview of the complete Toobop Carburetor Kit, showing all included components such as the carburetor, fuel pump, air filter, oil filter, spark plugs, fuel line, clamps, and gaskets.

2.1. Carburetor

The carburetor is responsible for mixing air and fuel in the correct ratio for combustion in the engine. This replacement carburetor is designed to meet the specifications of your Husqvarna tractor model.

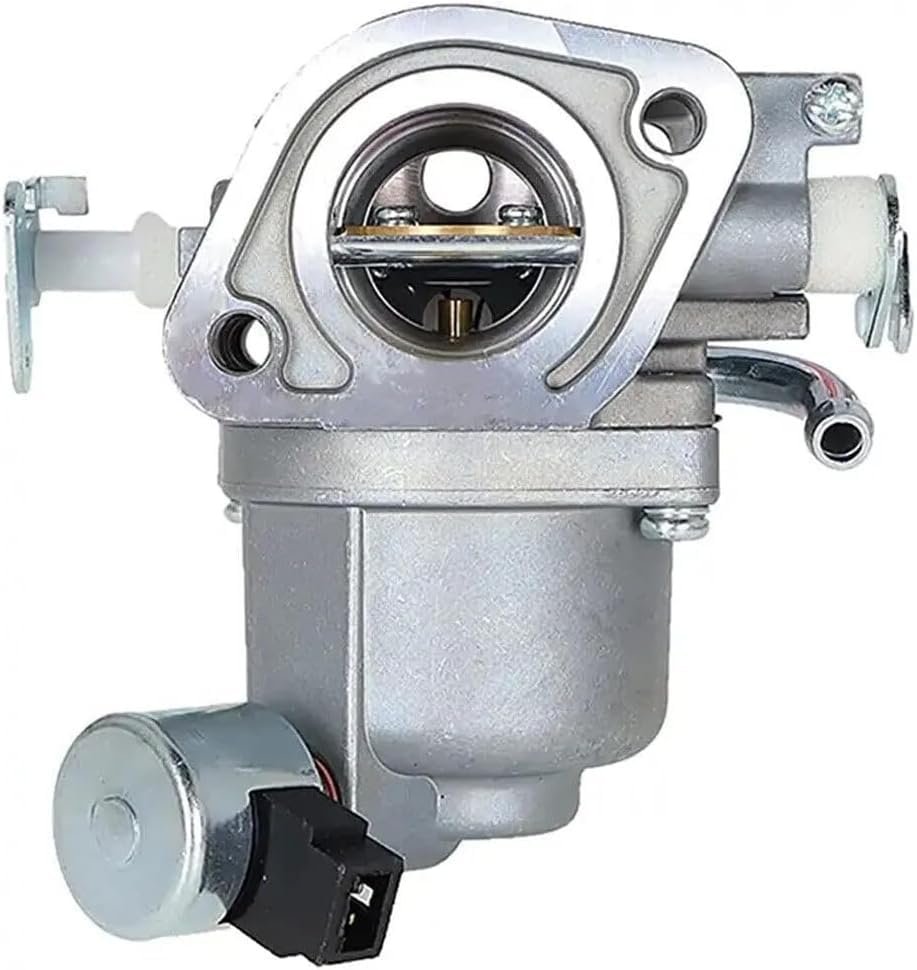

Figure 2.2: A detailed view of the carburetor, highlighting its main body and connection points.

2.2. Air Filter

The air filter prevents dust and debris from entering the engine, protecting internal components and ensuring efficient operation.

Figure 2.3: The air filter, consisting of a main filter element and a foam pre-filter, designed to capture airborne particles.

2.3. Fuel Pump

The fuel pump delivers fuel from the tank to the carburetor, maintaining consistent fuel pressure for optimal engine performance.

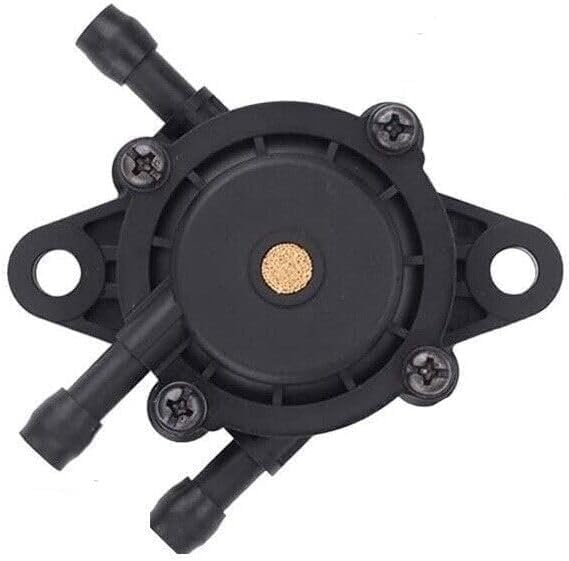

Figure 2.4: The fuel pump, showing its inlet and outlet ports for fuel lines.

3. Setup and Installation

Important Safety Notice: Before beginning any installation, ensure the tractor engine is off, cool, and the spark plug wire is disconnected to prevent accidental starting. Always wear appropriate personal protective equipment (PPE). If you are unsure about any step, consult a qualified service technician or your tractor's official service manual.

1. Preparation: Gather all necessary tools. Ensure you have a clean workspace.
2. Fuel System Drainage: Safely drain the fuel tank and carburetor bowl to prevent spills.
3. Component Removal: Carefully disconnect and remove the old carburetor, fuel pump, air filter, oil filter, and spark plugs. Pay attention to the routing of fuel lines and electrical connections.
4. Gasket Installation: Install new gaskets for the carburetor and other components as required. Ensure surfaces are clean and free of debris.
5. Carburetor Installation: Mount the new carburetor, ensuring all linkages and connections are properly secured.
6. Fuel Pump Installation: Install the new fuel pump and connect the fuel lines securely with the provided clamps.
7. Filter Installation: Install the new air filter and oil filter. Ensure the air filter is properly seated in its housing.
8. Spark Plug Installation: Install the new spark plugs, ensuring they are tightened to the manufacturer's specifications.
9. Reconnection and Refill: Reconnect the spark plug wire. Refill the fuel tank with the appropriate fuel type.
10. Leak Check: Before starting the engine, visually inspect all connections for leaks.

For detailed visual guidance, please refer to the following instructional videos:

4. Operating Considerations

After successful installation, ensure all connections are secure and there are no fuel leaks. Start the engine and allow it to warm up. Monitor engine performance for smooth idling, proper acceleration, and consistent power output. If any issues arise, refer to the troubleshooting section or consult a professional.

5. Maintenance

Regular maintenance of your tractor's fuel system components is crucial for longevity and optimal performance. Follow your tractor manufacturer's recommended service intervals.

• Air Filter: Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions. A clogged air filter can reduce engine power and fuel efficiency.
• Oil Filter: Replace the oil filter according to your tractor's maintenance schedule, typically during oil changes.
• Fuel Filter: Inspect and replace the inline fuel filter periodically to ensure clean fuel delivery to the carburetor.
• Carburetor: While designed for durability, periodic inspection for debris or blockages is recommended. If performance issues persist, professional cleaning or adjustment may be necessary.

6. Troubleshooting

If your tractor experiences issues after installing the kit, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Check fuel supply and ensure the fuel valve is open.
  • Verify spark plug connection and condition.
  • Ensure the carburetor is receiving fuel and not flooded.
• Rough Idling or Stalling:
  • Inspect for air leaks around the carburetor gaskets.
  • Check fuel lines for kinks or blockages.
  • Ensure the air filter is clean and properly installed.
• Loss of Power:
  • Check the air filter for excessive dirt.
  • Verify fuel flow and fuel filter condition.
  • Ensure the carburetor is properly adjusted (if applicable, consult a professional).

For persistent problems, it is advisable to consult your tractor's service manual or a certified mechanic.

7. Specifications

8. Warranty and Support

Toobop is committed to providing high-quality and durable products. For any questions regarding installation, operation, or potential defects, please contact Toobop customer support. Refer to your purchase documentation for specific warranty terms and contact information.
