ViaGasaFamido MS500-4T-2.2G
ViaGasaFamido Three-Phase Vector Inverter User Manual
Model: MS500-4T-2.2G
1. Product Overview
The ViaGasaFamido MS500-4T-2.2G Three-Phase Vector Inverter is an advanced industrial control device designed for efficient and precise control of three-phase motors. It features a state-of-the-art motherboard, intelligent and efficient operation, and robust protection capabilities. Its comprehensive functionality and complete SMD design ensure high stability and reliability in various industrial applications.
Constructed with industrial flame-retardant PC material, this inverter offers high impact resistance, excellent heat resistance, and strong flame retardancy, contributing to its overall superior performance. The user-friendly keyboard and digital display simplify operation, making it accessible for various users.
Image 1.1: Angled view of the ViaGasaFamido Three-Phase Vector Inverter, showcasing its compact design and control panel.
2. Safety Information
WARNING: Read the user manual thoroughly before operation. Risk of electrical shock. Wait at least 10 minutes after removing power before servicing to allow capacitors to discharge. Do not connect AC power to output terminals U/T1, V/T2, or W/T3.
- Ensure proper grounding of the inverter and connected equipment.
- All wiring must be performed by qualified personnel in accordance with local electrical codes and regulations.
- Do not operate the inverter with damaged cables or if the casing is open.
- Protect the inverter from moisture, dust, and direct sunlight.
- Always disconnect power before performing any maintenance or wiring changes.

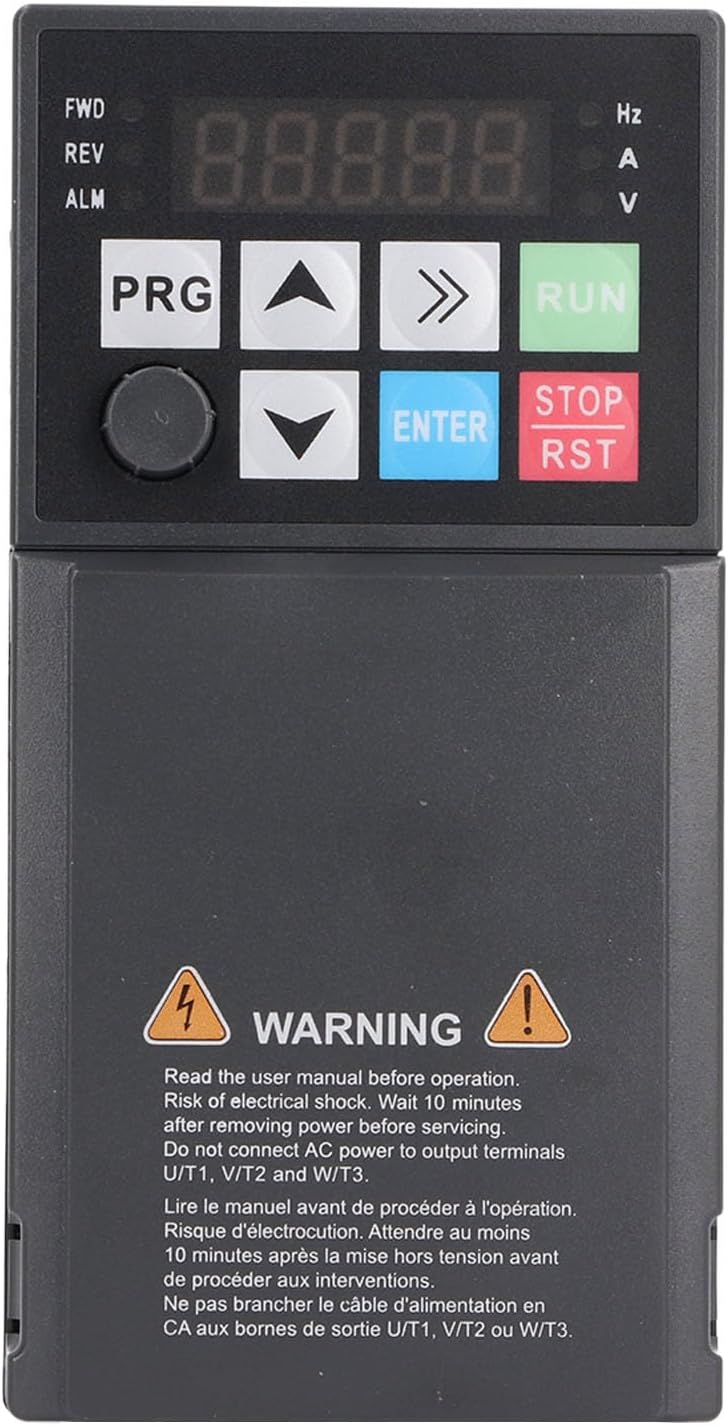

Image 2.1: Front view of the inverter, clearly showing the warning label regarding electrical safety and operation.
3. Specifications
| Feature | Description |
|---|---|
| Shell Material | ABS |
| Input Voltage | Three-Phase AC 380V (50/60Hz) 5.8A |
| Output Voltage | Three-Phase AC 380V 5.5A |
| Output Frequency Range | 0-320Hz |
| Applicable Motor Power | 0.75kW, 1.5kW, 2.2kW (Optional) |
| Control Method | Vector Control |
| Product Model Number | MS500-4T-2.2G |
| Product Dimensions | 17 x 11 x 19 cm |
| Product Weight | 845 g |
4. Setup and Installation
4.1 Physical Installation
The inverter should be mounted vertically in a well-ventilated area, away from direct sunlight, excessive dust, moisture, and corrosive gases. Ensure sufficient clearance around the unit for proper heat dissipation. The large heat sink with a small fan ensures efficient cooling and low noise operation.
Image 4.1: Side view of the inverter, highlighting the ventilation grilles for heat dissipation.
4.2 Wiring Connections
Refer to the wiring diagram provided in the full manual for detailed connection instructions. Ensure all connections are secure and correctly polarized. Use appropriate wire gauges for input and output power lines to prevent overheating.
- Input Power (R, S, T): Connect the three-phase AC 380V power supply to these terminals.
- Output Power (U/T1, V/T2, W/T3): Connect these terminals to the three-phase motor.
- Ground (PE): Connect the ground terminal to a reliable earth ground.
- Control Terminals: Connect external control signals (e.g., start/stop, frequency reference) to the designated control terminals.
Image 4.2: Angled view of the inverter, showing the input and output terminal blocks for electrical connections.
5. Operating Instructions
5.1 Control Panel Overview
The inverter features a humanized keyboard design with a digital display for easy operation. The control panel includes buttons for programming (PRG), up/down arrows for value adjustment, a fast-forward button, ENTER, RUN, and STOP/RST.
Image 5.1: Close-up of the inverter's control panel, showing the digital display and various control buttons for intuitive operation.
5.2 Basic Operation
- Power On: After ensuring all connections are correct, apply power to the inverter. The digital display will light up.
- Start Motor: Press the RUN button to start the motor.
- Stop Motor: Press the STOP/RST button to stop the motor.
- Adjust Frequency: Use the Up and Down arrow buttons to adjust the output frequency, thereby controlling the motor speed.
- Enter/Confirm: Use the ENTER button to confirm parameter settings.
5.3 Parameter Programming
The inverter allows for various parameter adjustments to optimize performance for specific applications. Press the PRG button to enter programming mode. Navigate through parameters using the arrow keys and adjust values. Refer to the detailed parameter list in the complete user manual for specific settings such as acceleration/deceleration times, maximum frequency, and motor parameters.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your inverter. Always disconnect power before performing any maintenance.
- Cleaning: Periodically clean the exterior of the inverter with a soft, dry cloth. Ensure ventilation openings are free from dust and debris. Do not use liquid cleaners.
- Inspection: Regularly inspect all wiring connections for tightness and signs of wear or damage. Check for any unusual noises or odors during operation.
- Fan Check: Ensure the cooling fan operates freely and is not obstructed. A small fan is integrated for efficient heat dissipation and low noise.
7. Troubleshooting
This section provides guidance for common issues. For complex problems, contact technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Inverter does not power on | No input power; loose wiring; internal fault | Check power supply; verify all connections; contact support if fault persists |
| Motor does not run | Incorrect wiring; parameter settings incorrect; motor fault | Check motor wiring; review parameter settings; test motor independently |
| Overcurrent/Overload error | Motor overloaded; short circuit; incorrect motor parameters | Reduce load; check for short circuits; verify motor parameters |
| Overheating error | Insufficient ventilation; fan malfunction; ambient temperature too high | Ensure proper ventilation; clean fan/vents; reduce ambient temperature |
8. Applications
The ViaGasaFamido Three-Phase Vector Inverter is suitable for a wide range of industrial applications requiring precise motor control. Its robust design and versatile functionality make it ideal for:
- General industrial motors and fans
- Horizontal machines and ball mills
- Conveyor systems
- Numerical control machines
- Carving machines and mixers
- Stamping machines and edge banding machines
- Other equipment requiring variable speed drive for three-phase motors
Image 8.1: Visual representation of various industrial machines and systems where the inverter can be effectively utilized.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please contact ViaGasaFamido customer service. Ensure you have your product model number (MS500-4T-2.2G) and purchase details available when contacting support.
You can find more information and contact details on the official ViaGasaFamido store page: ViaGasaFamido Store.
