KEENSTAR Nugget Ice Maker User Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KEENSTAR Nugget Ice Maker. Please read it thoroughly before first use and retain it for future reference.

Figure 1: KEENSTAR Nugget Ice Maker (Red Color) with ice bucket and a beverage.

Safety Instructions

To reduce the risk of fire, electric shock, or injury, basic safety precautions should be followed, including:

• Read all instructions before using the appliance.
• Do not touch the evaporator with your hands while the appliance is operating.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Ensure the appliance is placed on a stable, level surface.
• Keep the appliance away from heat sources and direct sunlight.
• Unplug the appliance before cleaning or when not in use for extended periods.
• Do not operate the appliance with a damaged cord or plug.
• This appliance is for household use only.

Product Features

The KEENSTAR Nugget Ice Maker is designed to produce soft, chewable nugget ice efficiently. Key features include:

• Chewable Nugget Ice: Produces soft, crunchy, and slow-melting pellet ice.
• High Daily Output: Capable of producing up to 40 lbs of ice per day.
• User-Friendly Control Panel: Features an intelligent touch screen for easy operation.
• Compact Design: Portable and suitable for various settings like home, office, or parties.
• Automatic Self-Cleaning: Simplifies maintenance with a dedicated self-clean function.
• Low Noise Operation: Operates at approximately 40dB, ensuring minimal disturbance.

Figure 2: Comparison of Nugget Ice with other ice types, highlighting its chewable nature.

Figure 3: Illustration of the ice maker's ultra-quiet performance at 40dB.

Setup

1. Unpacking: Carefully remove the ice maker from its packaging. Retain packaging materials for future transport if needed.
2. Placement: Place the ice maker on a flat, stable, and level surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides). Avoid placing it near heat sources or in direct sunlight.
3. Initial Cleaning: Before first use, clean the interior of the ice maker as described in the "Maintenance" section.
4. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (120 Volts).

Figure 4: Compact design of the ice maker, illustrating its dimensions suitable for countertop placement.

Operating Instructions

Follow these steps to operate your KEENSTAR Nugget Ice Maker:

1. Fill Water Reservoir: Open the top lid and fill the water reservoir with clean, potable water. Do not exceed the maximum fill line.
2. Power On: Press the ON/OFF Button on the touch screen control panel to turn on the unit.
3. Start Ice Making: Press the Start Button (often integrated with the ON/OFF button or a separate ice-making icon) to begin the ice production cycle.
4. Monitor Indicators:
   • "Add Water" Indicator: Illuminates when the water reservoir needs refilling.
   • "Ice Full" Indicator: Illuminates when the ice basket is full, and ice production will pause automatically.
5. Collect Ice: Once ice is produced, pull out the ice basket to collect the nugget ice. The ice maker comes with a removable ice basket for easy transfer.
6. Automatic Restart: For maximum water efficiency, unused ice will slowly melt back into the reservoir, and ice production will restart automatically once the ice level drops or water is added.

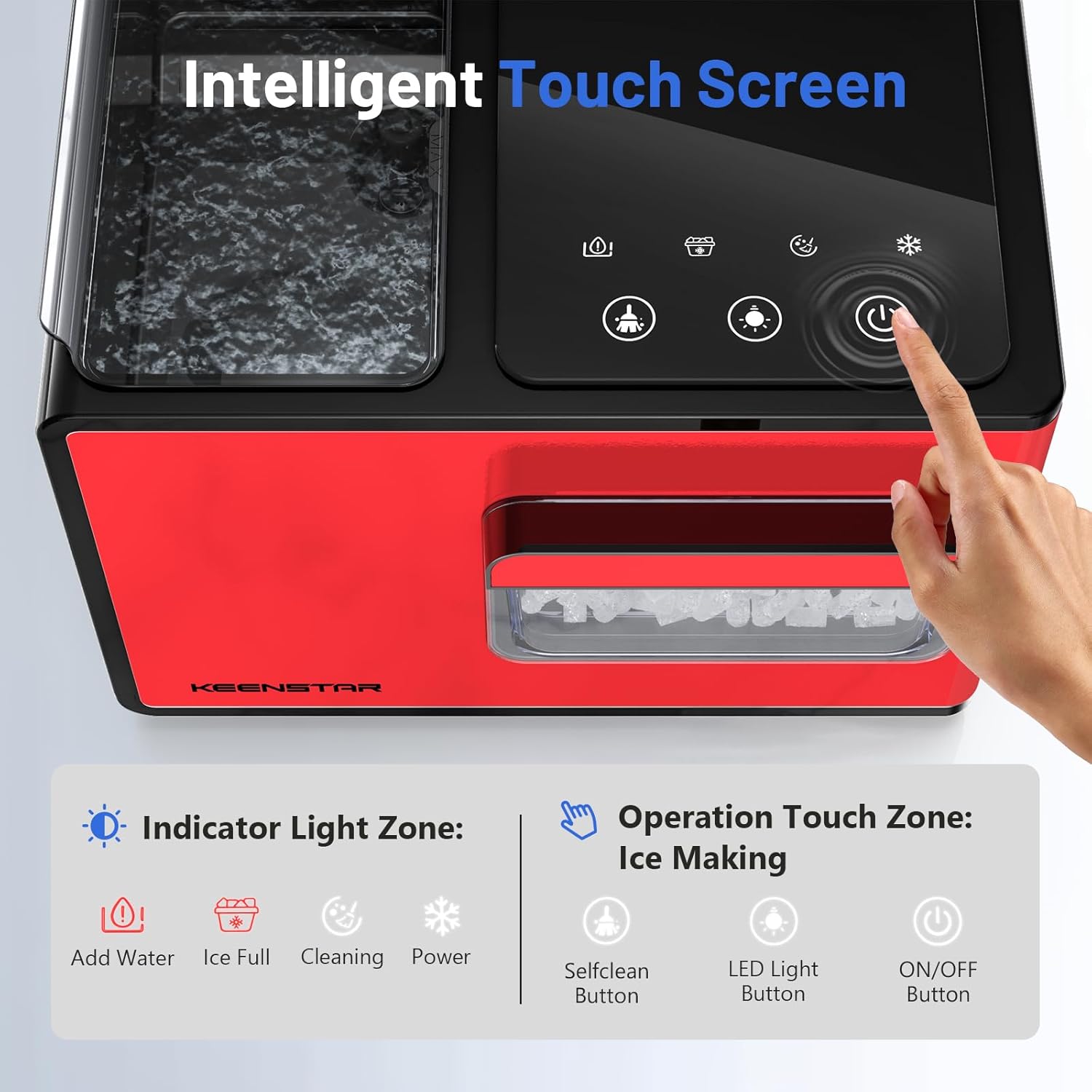

Figure 5: Intelligent Touch Screen Control Panel with indicator lights and operation buttons.

Figure 6: Convenient ice transfer using the removable ice basket and included scoop.

Maintenance

Automatic Self-Cleaning Function

The KEENSTAR Nugget Ice Maker features an automatic self-cleaning function to ensure hygiene and prolong the appliance's lifespan.

1. Ensure the water reservoir is filled with clean water.
2. Press and hold the 'SELFCLEAN' button for more than 3 seconds.
3. The self-cleaning cycle will begin and typically takes approximately 7 minutes to complete.
4. Once the cycle is finished, drain any remaining water from the reservoir.

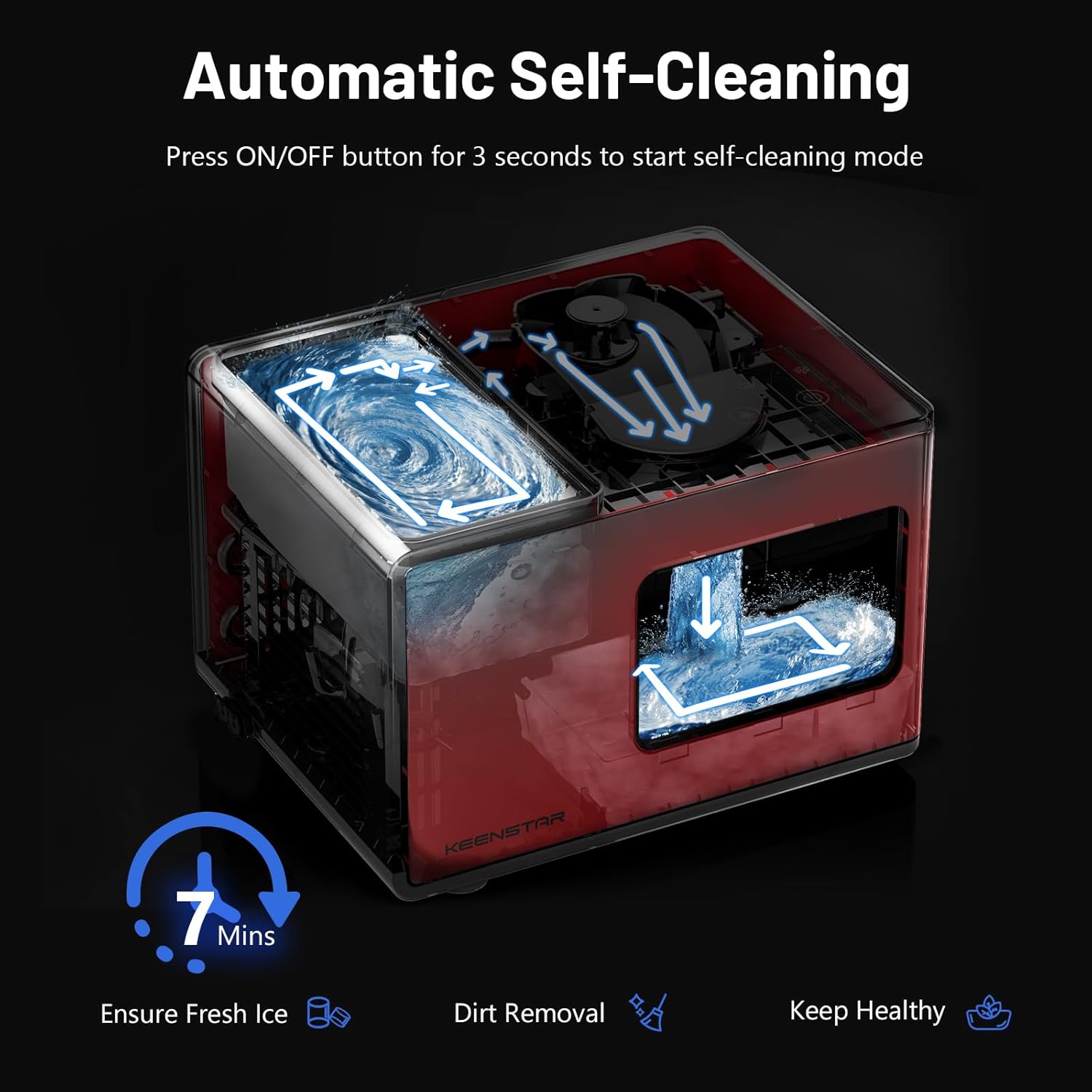

Figure 7: Automatic self-cleaning process, illustrating water circulation for dirt removal.

General Cleaning

• Always unplug the appliance before cleaning.
• Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Regularly clean the interior components, including the water reservoir and ice basket, with a mild detergent and warm water. Rinse thoroughly.
• Ensure all parts are completely dry before reassembling and operating the unit.

Troubleshooting

If you encounter issues with your ice maker, refer to the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Figure 8: Illustration of the ice maker's 40 lbs daily ice production capacity.

Warranty & Support

KEENSTAR offers comprehensive support for your ice maker:

• 30-Day Money-Back Guarantee: If you are not satisfied, you may return the product within 30 days of purchase.
• 1-Year Free Replacement: The product is eligible for a free replacement within 1 year from the date of purchase for any manufacturing defects.
• Lifetime After-Customer Service: KEENSTAR provides lifetime customer support for the product.

For any defective machine or support inquiries, please contact KEENSTAR customer service immediately. Refer to the product packaging or official website for contact details.
