Introduction
Thank you for choosing the Akozon Aluminum Alloy Bike Brake Caliper. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new brake caliper. Please read this manual thoroughly before use and retain it for future reference.
Product Overview

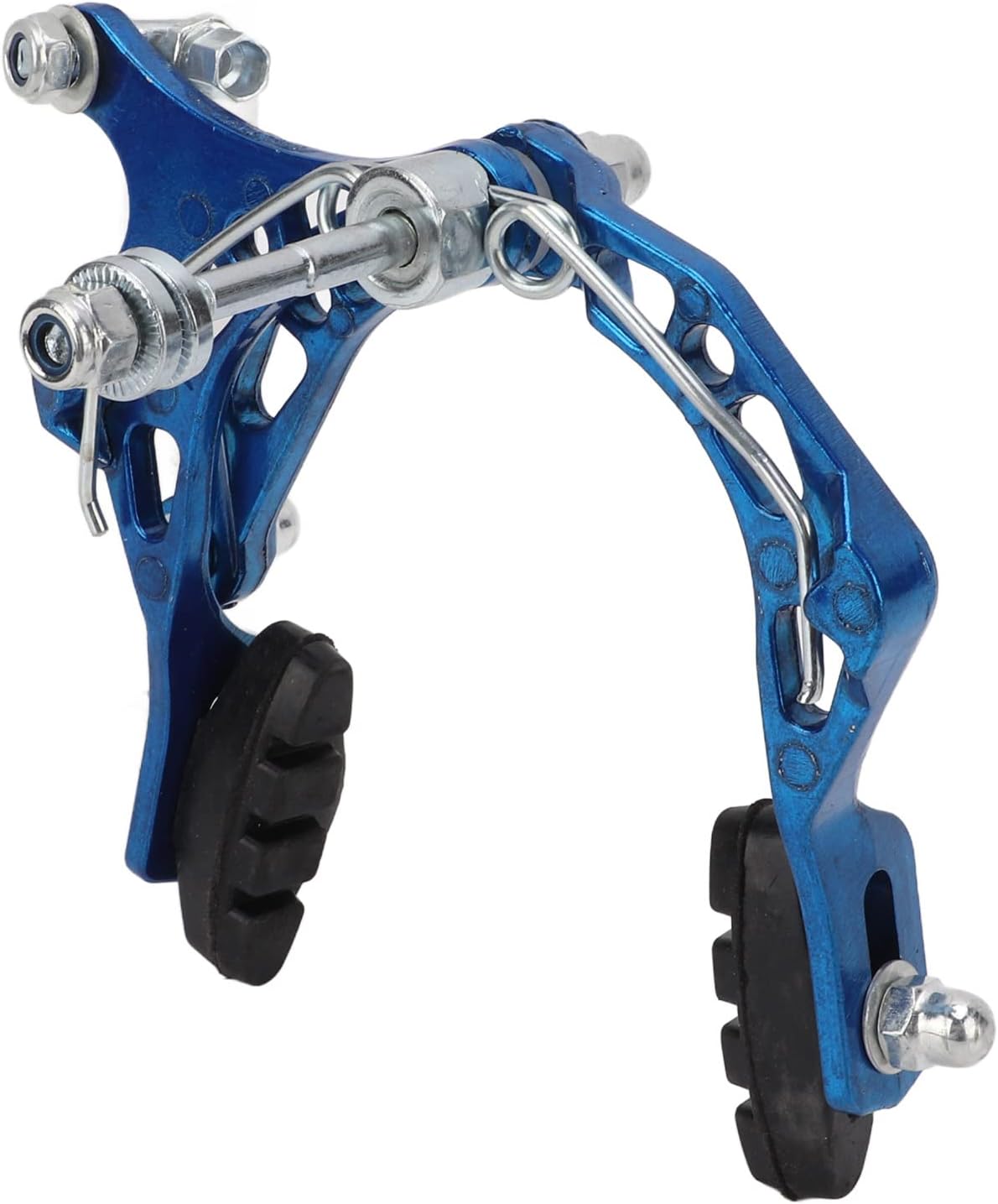

The Akozon Aluminum Alloy Bike Brake Caliper is a high-strength cycling accessory designed for reliable braking performance. It is suitable for various bicycles, including mountain bikes and motorcycles with appropriate tire sizes.
- Durable Construction: Constructed from high-quality aluminum alloy, ensuring longevity and resistance to wear for reliable cycling performance.
- Versatile Application: Designed for straightforward installation and compatible with motorcycles, mountain bikes, and other bicycles featuring smaller tire sizes.
- Consistent Braking: Manufactured for high strength and stability, the caliper provides consistent and effective braking performance.
- Reliable Performance: Crafted from sturdy materials, this brake caliper offers reliable and resilient performance, contributing to a secure riding experience.
- Enhanced Safety: Designed for safety, the brake caliper provides efficient and controlled braking, enhancing overall riding security.
Safety Information
Always prioritize safety when installing and using bicycle components. Failure to follow these instructions could result in serious injury or damage to your bicycle.
- Ensure all components are securely fastened before riding.
- Regularly inspect brake pads for wear and replace them as necessary.
- Test brakes at low speed in a safe area before riding at higher speeds or in traffic.
- If you are unsure about any installation step, consult a professional bicycle mechanic.
- Keep small parts away from children.
Package Contents
Verify that all items are present and undamaged upon opening the package:
- 1 x Akozon Aluminum Alloy Bike Brake Caliper (Blue)
- Necessary mounting hardware (bolts, washers, nuts)
Setup and Installation
This section outlines the general steps for installing the Akozon Bike Brake Caliper. Specific installation procedures may vary depending on your bicycle frame and fork design. Professional installation is recommended if you are unfamiliar with bicycle brake systems.
- Prepare the Mounting Area: Ensure the brake mounting points on your bicycle frame (for rear brake) or fork (for front brake) are clean and free of debris.
- Attach the Caliper: Position the brake caliper onto the designated mounting bolt. Secure it loosely with the provided nut and washer.
- Install Brake Pads: Ensure the brake pads are correctly oriented and securely attached to the caliper arms. The pads should align with the rim's braking surface.
- Connect Brake Cable: Route the brake cable through the caliper's cable guide and secure it with the cable anchor bolt. Ensure there is appropriate tension in the cable.
- Center the Caliper: Squeeze the brake lever several times to seat the pads. Adjust the caliper's position so that both brake pads are equidistant from the rim and engage simultaneously when the lever is pulled. Tighten the main mounting bolt securely.
- Adjust Brake Pad Clearance: Ensure there is a small, even gap between the brake pads and the rim when the brake lever is released. Adjust cable tension as needed.
- Final Check: Verify all bolts are tightened to the manufacturer's specifications (if available for your bike). Test the brake lever for firm and responsive action.
Operating Instructions
To operate the Akozon Bike Brake Caliper, simply squeeze the corresponding brake lever on your handlebars. The brake caliper will engage the brake pads against the wheel rim, slowing or stopping the bicycle.
- Front Brake (Left Lever): Provides strong stopping power. Use with caution, especially at high speeds, to avoid locking the front wheel.
- Rear Brake (Right Lever): Offers more controlled deceleration and stability.
- Combined Braking: For optimal stopping power and control, apply both front and rear brakes simultaneously, with slightly more pressure on the rear brake initially.
- Modulation: Practice modulating brake pressure to achieve smooth and controlled stops without skidding.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your brake caliper.
- Cleanliness: Keep the brake caliper, pads, and wheel rims clean. Dirt and grime can reduce braking effectiveness and accelerate wear.
- Brake Pad Inspection: Regularly check brake pads for wear indicators. Replace pads when they are worn down to the minimum thickness line or if they become hardened or contaminated.
- Cable Inspection: Inspect brake cables and housing for fraying, kinks, or corrosion. Replace damaged cables promptly.
- Pivot Points: Apply a small amount of light lubricant to the caliper's pivot points periodically to ensure smooth operation.
- Bolt Tightness: Periodically check all mounting bolts and cable anchor bolts to ensure they are securely tightened.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak braking power | Worn brake pads, loose cable, contaminated pads/rims | Replace pads, tighten cable, clean pads/rims with appropriate cleaner |
| Squealing noise during braking | Contaminated pads/rims, misaligned pads, loose caliper | Clean pads/rims, adjust pad angle, tighten caliper mounting bolt |
| Brake lever feels spongy | Stretched cable, worn cable housing | Adjust cable tension, replace cable and housing if necessary |
| Brake pads rub on rim constantly | Caliper off-center, cable too tight, bent rim | Center caliper, loosen cable, true wheel rim |
Specifications
| Feature | Detail |
|---|---|
| Item Type | Bike Brake Caliper |
| Material | Aluminum Alloy |
| Brand Name | Akozon |
| Model Name | Akozonps9f25qk3n-11 |
| Color | Blue |
| Item Weight | 180 Grams |
| Package Weight | 180 Grams |
| Package Dimensions (L x W x H) | 5.12 x 4.72 x 3.94 inches |
| ASIN | B0D4VPFF1H |
| Date First Available | February 18, 2025 |
Warranty and Support
This product is covered by a standard return policy, typically allowing returns within 30 days of purchase for refund or replacement, subject to retailer terms and conditions. For specific warranty details or technical support, please refer to the official Akozon website or contact your point of purchase. Always retain your proof of purchase for warranty claims.
For further assistance, you may visit the Akozon Store on Amazon.
