Roll-Up Wrench Storage Pouch with Handle

1. Introduction

This manual provides instructions for the proper use and care of your Mozeat Lens Roll-Up Wrench Storage Pouch. This durable tool organizer is designed to keep your hand tools, wrenches, and pliers neatly arranged and protected. Constructed from high-quality Oxford material, it offers robustness, wear resistance, and waterproof properties.

Figure 1: The Mozeat Lens Roll-Up Wrench Pouch in both its unrolled state, showing the marked pockets for wrenches from 8mm to 24mm, and its compact rolled-up form.

2. Product Features

• Durable Construction: Made from high-quality Oxford fabric, ensuring robustness, wear resistance, and waterproof capabilities to protect your tools.
• Ample Storage: Features 15 individual pockets, each clearly marked with sizes ranging from 8 mm to 24 mm, designed to hold up to 15 combination wrenches.
• Optimized Pocket Dimensions: Pocket widths vary from 2.2 cm (0.87 inches) to 5 cm (1.97 inches), and depths from 10 cm (3.94 inches) to 21 cm (8.27 inches), accommodating various tool sizes.
• Convenient Roll-Up Design: Allows for easy opening and quick securing of the pouch. Unrolled dimensions are approximately 56 cm x 35.6 cm (22.05 x 14.02 inches).
• Compact Storage: When rolled, the pouch measures approximately 35.6 cm x 6 cm (14.02 x 2.36 inches), making it easy to store.
• Easy Portability: Equipped with two adjustable buckles and a sturdy handle for comfortable and secure transport.
• Clear Identification: Large, clear printing of metric sizes (No. 8-24) on each pocket for quick tool organization and retrieval.
• Hanging Design: Includes eyelets for hanging the pouch, providing convenient access to tools.

Figure 2: Detailed view of the pouch's features, including the Velcro enclosure, 15 pockets, heavy-duty canvas, and hanging design.

3. Setup and Tool Placement

1. Unroll the Pouch: Lay the pouch flat on a clean, stable surface. The unrolled dimensions are approximately 56 cm x 35.6 cm (22.05 x 14.02 inches).
2. Identify Pockets: Observe the clearly marked metric sizes (8 mm to 24 mm) printed above each of the 15 pockets.
3. Insert Tools: Place your wrenches, one per pocket, matching the tool size to the corresponding pocket marking. Ensure tools are fully seated within the pockets.
4. Secure Tools: The pockets are designed to hold tools securely. For additional security, ensure the Velcro enclosure flap is properly closed over the tools before rolling.

Figure 3: The pouch in use, demonstrating the clear size markings for easy tool identification.

4. Operating Instructions

4.1. Organizing Tools

Utilize the 15 individually sized pockets to systematically arrange your wrenches. The clear size labels (8mm to 24mm) facilitate quick selection and return of tools, improving efficiency in your work.

4.2. Rolling and Securing the Pouch

1. Once all tools are placed and the Velcro flap is closed, begin rolling the pouch tightly from one end to the other.
2. After rolling, secure the pouch using the two adjustable buckles. Fasten the buckles and tighten the straps to ensure the pouch remains compact and tools are held firmly in place.

4.3. Carrying and Storage

The integrated handle allows for easy carrying of the rolled pouch. For storage, the compact rolled size (approximately 35.6 cm x 6 cm) fits well in toolboxes, drawers, or can be hung using the reinforced eyelets.

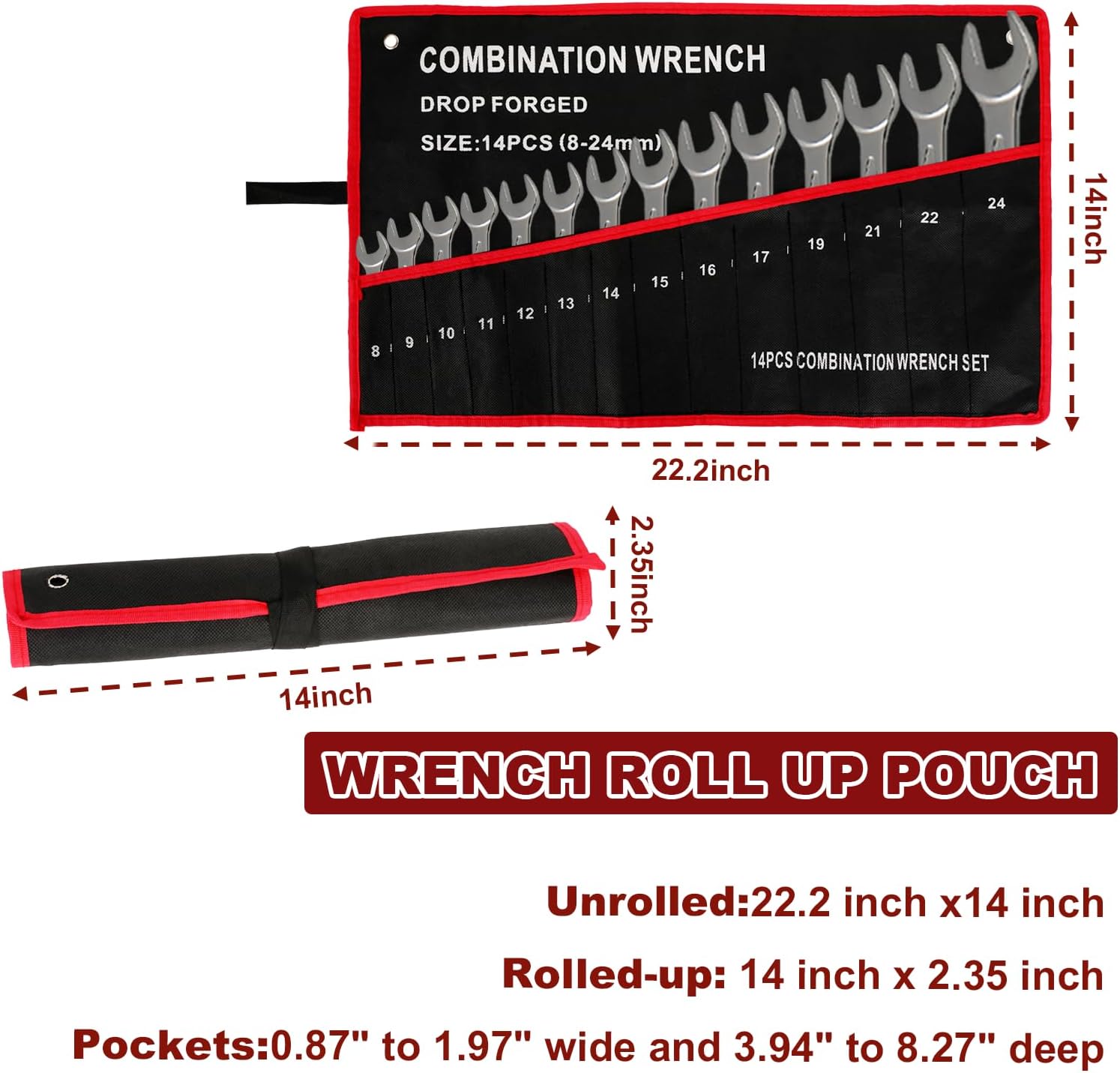

Figure 4: Dimensions of the pouch when unrolled and rolled, illustrating its compact nature for transport and storage.

Figure 5: Examples of the pouch's versatility in different work environments, including mechanical, carpentry, and home use.

5. Maintenance

5.1. Cleaning

To clean the pouch, wipe it with a damp cloth. For stubborn dirt, a mild soap solution can be used. Avoid harsh chemicals or abrasive cleaners, as these may damage the Oxford fabric.

5.2. Drying

Allow the pouch to air dry completely before storing tools inside, especially if it has been exposed to moisture. This prevents rust on tools and mildew formation on the fabric.

5.3. Storage

Store the pouch in a dry environment away from direct sunlight to preserve the integrity of the fabric and prevent fading.

Figure 6: The pouch's waterproof design, which aids in protecting tools from moisture and simplifies cleaning.

6. Troubleshooting

6.1. Tools Do Not Fit

If a tool does not fit into a designated pocket, verify that you are attempting to place it in the correct size pocket. The pouch is designed for wrenches from 8mm to 24mm. Tools outside this range or with unusual shapes may not fit optimally. Refer to the pocket dimensions in the 'Product Features' section.

6.2. Pouch Does Not Roll Compactly

Ensure that all tools are fully inserted into their pockets and that no tools are protruding excessively. Roll the pouch tightly and evenly from one end to the other. Adjust the buckles to secure the roll firmly.

7. Specifications

8. What's in the Box

Your package should contain the following item:

• 1 x Roll-Up Wrench Storage Pouch

9. Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For any product support or inquiries, please refer to the retailer or manufacturer's customer service channels.
