Introduction

Thank you for choosing the EUYBIKE F6 Pro Folding Electric Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride and keep it for future reference.

Safety Guidelines

• Always wear a helmet that meets safety standards when riding.
• Familiarize yourself with local traffic laws and regulations before riding.
• Perform a pre-ride inspection before each use, checking brakes, tires, battery, and all connections.
• Do not ride in adverse weather conditions such as heavy rain, snow, or strong winds.
• Ensure the battery is securely locked in place before riding.
• Do not exceed the maximum payload capacity of 300 lbs (136 kg).
• Keep both hands on the handlebars while riding.
• Avoid riding under the influence of alcohol or drugs.

Setup and Assembly

Your EUYBIKE F6 Pro comes partially assembled. Follow these steps to complete the assembly and prepare for your first ride.

Unboxing and Initial Inspection

Carefully remove all components from the packaging. Inspect for any damage during transit. Ensure all parts listed in the packing list are present.

Handlebar Installation

Insert the handlebar stem into the fork tube. Ensure it is aligned correctly and tighten the quick-release lever or bolts securely. Adjust the height to a comfortable riding position.

Fender Installation

Attach the front fender to the fork using the provided screws and tools. Ensure it is centered over the wheel and does not interfere with tire rotation.

Headlight Installation

Mount the LED headlight to the designated bracket on the front fork. Connect the wiring securely. Ensure the light is aimed correctly for optimal visibility.

Front Wheel Installation

Carefully align the front wheel with the fork dropouts, ensuring the brake rotor slides into the caliper. Secure the wheel using the axle nuts and tighten them firmly with a wrench.

Rear Rack and Taillight Installation

Attach the rear rack to the designated mounting points on the bike frame. Secure the taillight to the rear rack and connect its wiring. Ensure all bolts are tightened.

Battery Installation

Slide the 48V 20Ah removable battery into its housing on the bike frame. Use the provided key to lock the battery securely in place. Ensure the battery is fully charged before your first ride.

Pedal Installation

Screw the pedals into the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.

Seat Adjustment

Adjust the seat post height to ensure a comfortable and safe riding position. The quick-release lever allows for easy adjustment. Ensure the seat post is inserted past the minimum insertion line.

Image: Close-up of the adjustable bike seat, designed with springs for enhanced comfort during rides.

Operating Your Electric Bike

Power On/Off and LCD Display

To power on the bike, press and hold the power button on the LCD display. The display will show speed, battery level, total mileage, and power assist level. Press and hold again to power off.

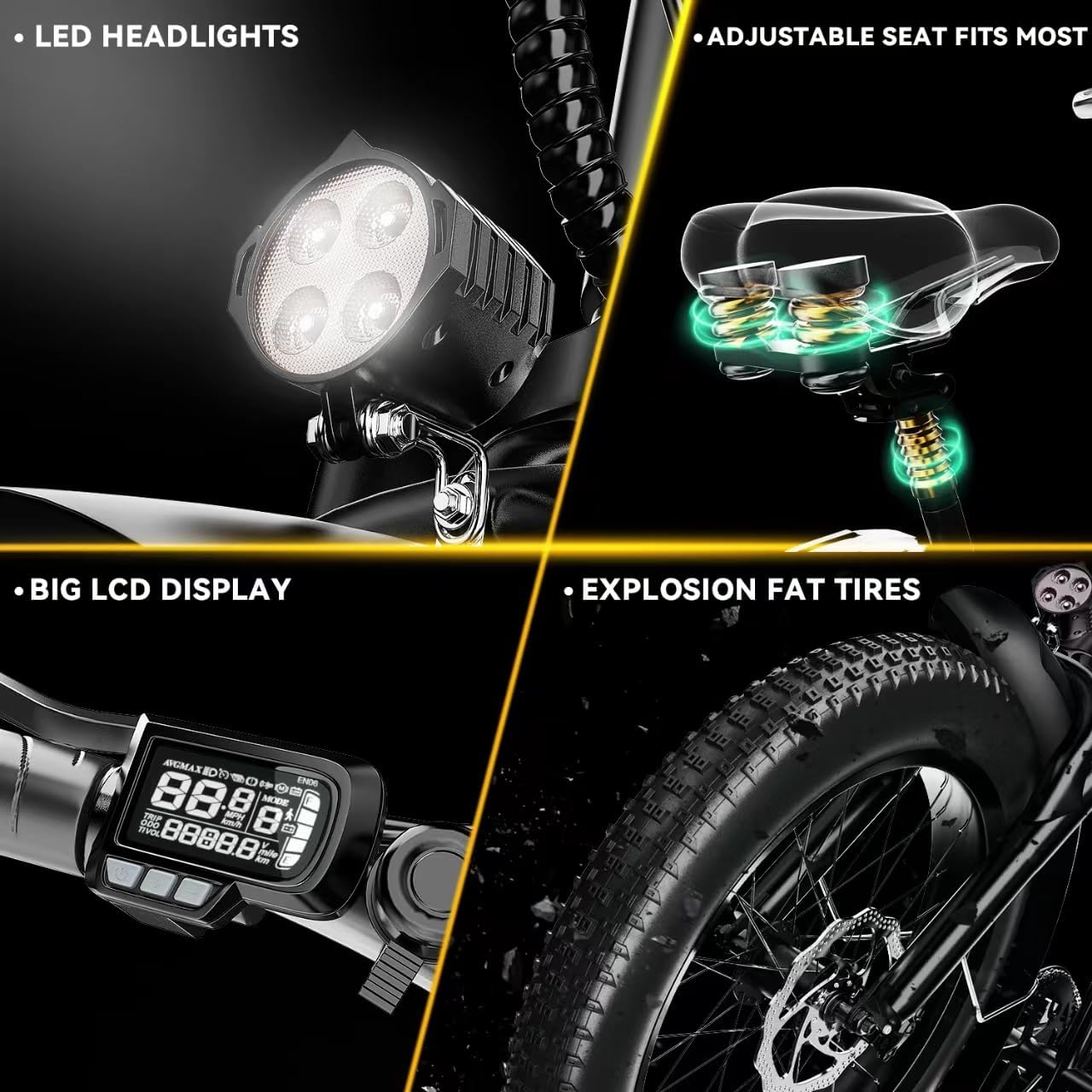

Image: The bike's large LCD display, providing real-time information such as current speed, battery charge, and pedal assist level.

Riding Modes

The F6 Pro offers three riding modes: Electric Bike Mode (throttle only), Assist Bike Mode (pedal-assist with motor support), and Normal Bike Mode (pedaling without motor assistance). Select the desired mode using the controls on the handlebar.

Image: Illustration of the three available riding modes: Normal (pedaling only), Assisted (pedal-assist with motor), and Throttle (motor-only operation).

Gear Shifting

The bike is equipped with a 7-speed Shimano transmission. Use the gear shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.

Image: View of the rear wheel, showcasing the 7-speed Shimano gears and the integrated motor for electric assistance.

Braking System

The F6 Pro is equipped with mechanical disc brakes on both the front and rear wheels for reliable stopping power. Regularly check brake lever tension and pad wear. Apply both brakes simultaneously for effective and controlled stopping.

Image: Close-up of the front disc brake system, highlighting the caliper and rotor for efficient braking.

Headlight and Taillight Operation

The integrated LED headlight and taillight provide visibility for night riding. Activate them via the controls on the handlebar. Ensure they are functioning before riding in low-light conditions.

Image: The powerful LED headlight, providing ample illumination for safe night riding.

Folding and Unfolding

The F6 Pro features a folding frame for easy storage and transport. To fold, release the frame latch and fold the bike in half. Secure the folded position. Reverse the process to unfold, ensuring all latches are securely engaged before riding.

Image: A visual guide demonstrating the three-step process to fold the electric bike for compact storage.

Image: A comparison highlighting the bike's easy two-step rotating folding design against more complex multi-step folding mechanisms.

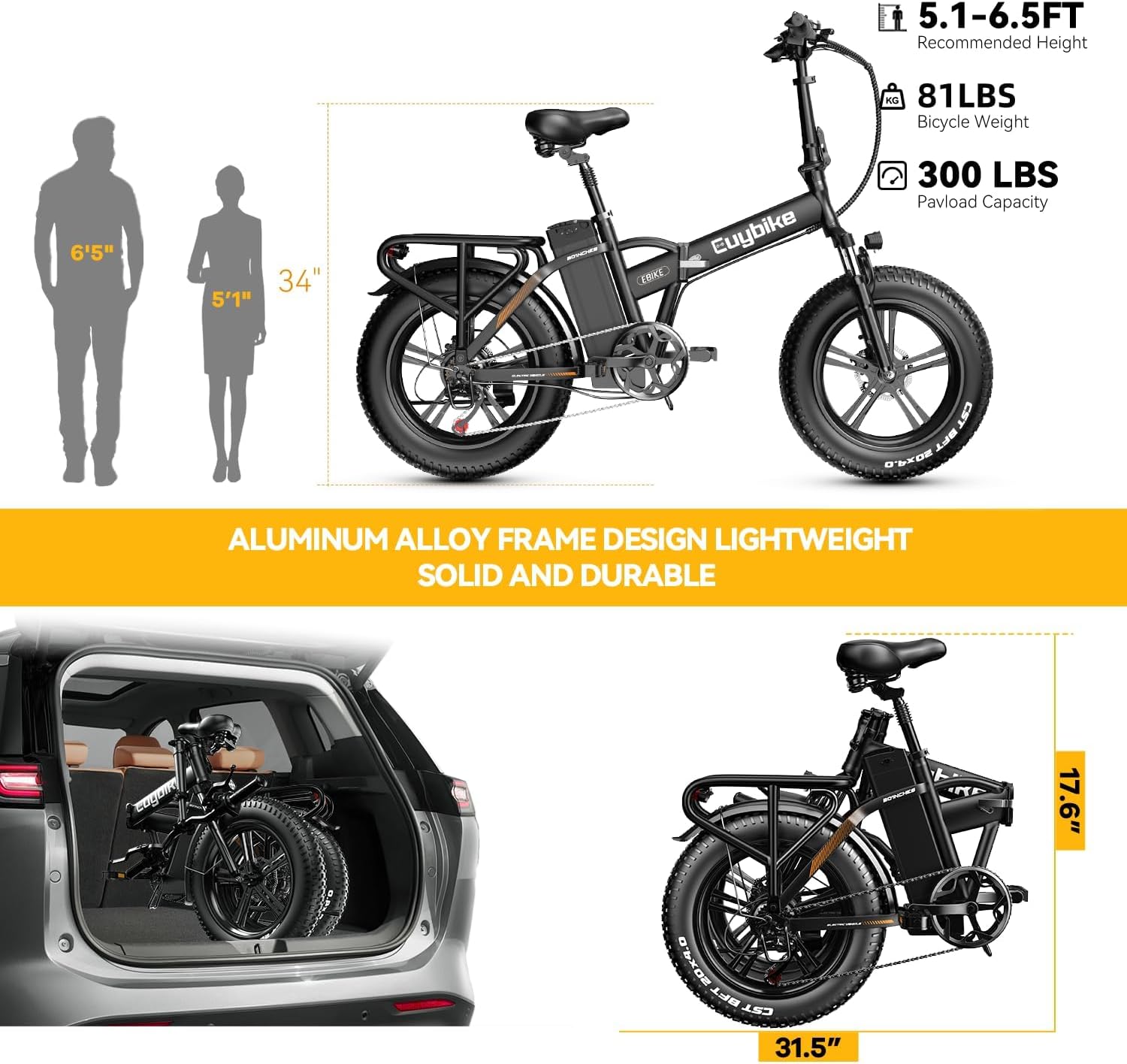

Image: The folded dimensions of the electric bike, illustrating its compact size for convenient storage in a car trunk or small spaces.

Maintenance

Regular maintenance ensures the longevity and safe operation of your EUYBIKE F6 Pro.

Battery Care

Charge the 48V 20Ah lithium-ion battery using the provided charger. Avoid fully discharging the battery regularly. Store the battery in a cool, dry place and charge it periodically if not in use for extended periods (e.g., every 1-2 months) to maintain its health. The battery is waterproof, but avoid submerging it.

Image: The 48V 20Ah automotive-grade lithium-ion battery, highlighting its built-in waterproof design, detachability, and BMS protection.

Tire Maintenance

Maintain tire pressure within the recommended range (typically indicated on the tire sidewall) for optimal performance and safety. Regularly inspect the 20x3 inch fat tires for wear, punctures, or damage. The puncture-resistant design helps prevent flats, but sharp objects can still cause damage.

Image: The 20x4.0 inch fat tires, designed with 4-layer shock absorption to handle diverse terrains including snow, mountain, sand, and city roads.

Brake System Maintenance

Check brake pads for wear and replace them when necessary. Ensure brake cables are free from fraying and properly adjusted for responsive braking. Lubricate brake pivot points periodically.

General Cleaning and Lubrication

Clean the bike regularly with a damp cloth and mild soap. Avoid high-pressure washing directly on electrical components. Lubricate the chain and other moving parts with appropriate bicycle lubricant to ensure smooth operation and prevent rust.

Troubleshooting

This section addresses common issues you might encounter with your electric bike.

• Bike not powering on: Check if the battery is fully charged and properly installed. Ensure the battery key is turned to the 'on' position.
• Motor not assisting: Verify that the pedal assist level is not set to '0'. Check all electrical connections for looseness. Ensure the brake levers are not partially engaged.
• Brakes not effective: Inspect brake pads for wear and replace if needed. Check brake cable tension and adjust if too loose. Ensure brake rotors are clean and free of oil.
• Unusual noises: Identify the source of the noise. It could be loose components, dry chain, or rubbing brake pads. Tighten loose parts, lubricate the chain, or adjust brakes as necessary.
• Display not working: Check battery charge. Ensure all display cables are securely connected. If the issue persists, contact customer support.
