1. Introduction and Overview
This manual provides essential instructions for the installation, operation, and maintenance of the Carburionix RY906500S Carburetor Kit. This kit is designed as a replacement part to ensure the optimal performance of compatible generators. The carburetor is a critical engine component responsible for mixing air and fuel in precise ratios for combustion.
Image 1.1: Carburionix RY906500S Carburetor Kit alongside a Ryobi generator.
2. Compatibility
The Carburionix RY906500S Carburetor Kit is specifically engineered to fit the following Ryobi generator models:
- Ryobi 6500 Watts Generators
- Ryobi 8125 Watts Generators
Before installation, please verify your generator's model number and compare it with the specifications of this kit to ensure proper fitment. If you are uncertain about compatibility, consult your generator's original manual or contact Carburionix customer support.
3. Package Contents
Upon opening the package, ensure all the following components are present:
- 1x Carburetor (RY906500S)
- Gaskets (various shapes for proper sealing)
- 1x Spark Plug
- Fuel Hose
- Fuel Filter

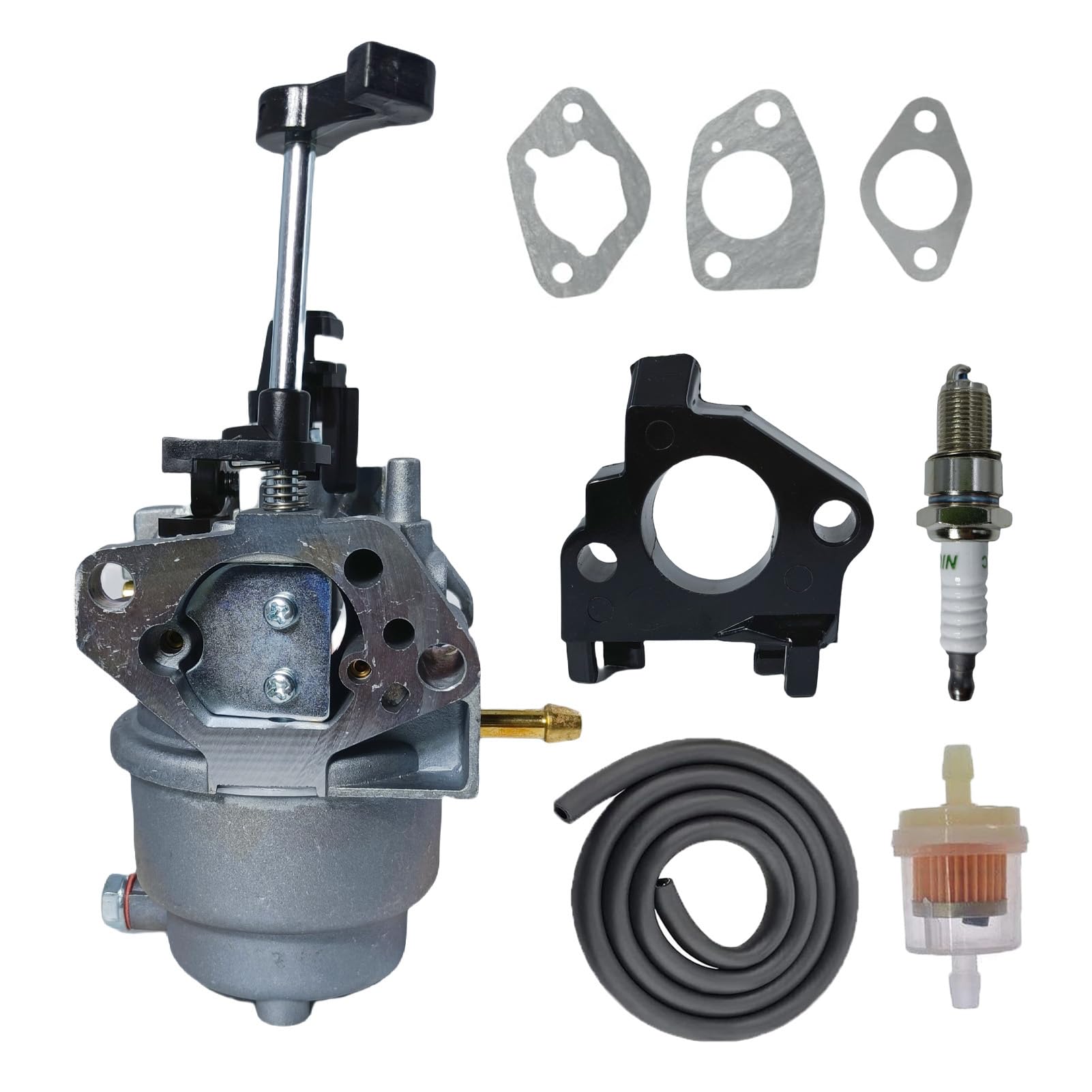

Image 3.1: Complete contents of the Carburionix RY906500S Carburetor Kit.
4. Safety Information
Always prioritize safety when working with fuel-powered equipment. Failure to follow these safety guidelines may result in serious injury or property damage.
- Disconnect Spark Plug: Before performing any service or maintenance, always disconnect the spark plug wire to prevent accidental engine starting.
- Ventilation: Work in a well-ventilated area to avoid inhaling fuel fumes.
- Cool Engine: Ensure the engine is completely cool before beginning any work to prevent burns.
- Fuel Handling: Handle gasoline with extreme care. It is highly flammable. Store fuel in approved containers away from ignition sources.
- Eye Protection: Wear appropriate eye protection to shield against splashes or debris.
- Gloves: Wear protective gloves to prevent skin contact with fuel and other fluids.
- Tools: Use the correct tools for each task to avoid damage to components or injury.
5. Setup and Installation
This section outlines the general steps for replacing the carburetor. Refer to your specific Ryobi generator's service manual for detailed instructions and diagrams.
- Preparation:
- Ensure the generator is turned off and the engine is cool.
- Disconnect the spark plug wire.
- Place the generator on a stable, level surface.
- Gather necessary tools (wrenches, screwdrivers, pliers, fuel-safe container).
- Drain Fuel: Turn off the fuel valve (if present) and drain any remaining fuel from the fuel tank and fuel lines into an approved container.
- Remove Air Filter Assembly: Locate and carefully remove the air filter housing and air filter element. This usually involves unfastening clips or screws.
- Disconnect Linkages and Fuel Lines:
- Carefully note or photograph the connections of the throttle linkage, choke linkage, and any other hoses or wires attached to the carburetor.
- Disconnect the fuel line from the carburetor. Be prepared for residual fuel to leak out.
- Remove Old Carburetor: Unbolt the old carburetor from the engine. There are typically two or three mounting bolts. Remove any old gaskets.
- Install New Carburetor:
- Place new gaskets in their correct positions between the engine, carburetor, and air filter base. Ensure they are properly aligned to prevent vacuum leaks.
- Mount the new Carburionix RY906500S carburetor onto the engine, securing it with the mounting bolts. Do not overtighten.
Image 5.1: Front view of the new carburetor.
Image 5.2: Rear view of the new carburetor.
- Reconnect Linkages and Fuel Lines: Reattach the throttle and choke linkages, ensuring they move freely and operate correctly. Connect the new fuel hose and fuel filter, securing them with clamps if necessary.
- Reinstall Air Filter Assembly: Reassemble the air filter element and housing.
- Refill Fuel and Check for Leaks: Refill the fuel tank with fresh, appropriate fuel. Open the fuel valve and check all fuel connections for leaks. Address any leaks immediately.
- Reconnect Spark Plug: Reconnect the spark plug wire.
6. Operating
After successful installation of the Carburionix RY906500S Carburetor Kit, refer to your Ryobi generator's original operating manual for specific starting and running procedures. Ensure proper fuel levels and engine oil levels are maintained before attempting to start the generator.
7. Maintenance
Regular maintenance helps prolong the life of your carburetor and generator. While the carburetor itself requires minimal maintenance, consider the following:
- Fuel Quality: Always use fresh, clean gasoline. Stale or contaminated fuel is a common cause of carburetor issues.
- Fuel Filter: Regularly inspect and replace the fuel filter as part of your generator's maintenance schedule to prevent debris from reaching the carburetor.
- Air Filter: Keep the air filter clean and replace it when dirty to ensure proper air intake and prevent dirt from entering the carburetor.
- Fuel Lines: Periodically check fuel lines for cracks, leaks, or deterioration and replace them as needed.
- Storage: If storing the generator for an extended period (over 30 days), drain the fuel system completely or use a high-quality fuel stabilizer to prevent gum and varnish buildup in the carburetor.
8. Troubleshooting
If your generator experiences issues after carburetor replacement, consider these common troubleshooting steps:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel filter, spark plug issue, incorrect choke position, vacuum leak. | Check fuel level, replace fuel filter, inspect/replace spark plug, adjust choke, check carburetor mounting and gaskets for leaks. |
| Engine runs rough or surges | Dirty carburetor jets, stale fuel, air leak, incorrect idle adjustment. | Clean carburetor, use fresh fuel, check gaskets, adjust idle screw (if applicable). |
| Fuel leaks from carburetor | Damaged gaskets, loose fuel line connections, faulty float or needle valve. | Inspect and replace gaskets, tighten fuel line clamps, inspect float and needle valve for proper operation. |
| Loss of power | Clogged air filter, restricted fuel flow, carburetor not tuned correctly. | Clean/replace air filter, check fuel lines and filter, ensure carburetor is clean and properly installed. |
9. Specifications
- Brand: Carburionix
- Model Number: RY906500S
- Manufacturer Part Number: RY906500S
- Material: High-Quality Plastic & Metal
- Approximate Dimensions (Front View):
- Height: Approximately 3.07 inches
- Width (base): Approximately 2.05 inches
Image 9.1: Carburetor front view with key dimensions.
- Approximate Dimensions (Side View):
- Depth (base): Approximately 1.06 inches
Image 9.2: Carburetor side view with key dimensions.
10. Warranty and Support
For specific warranty details, technical assistance, or to inquire about replacement parts, please contact Carburionix customer service. You can find more information and contact options on the official Carburionix store page: Carburionix Store.
