Daytime Running Light Wiring Harness User Manual

1. Product Overview

This document provides essential information for the installation, operation, and maintenance of the PartCatalog Daytime Running Light Wiring Harness, model PC-2755384. This OE replacement part is designed to fit and function like the original equipment, ensuring an exact fit and smooth operation for your vehicle's daytime running lights.

2. Product Features

• Direct Replacement: Meticulously designed for specific vehicle makes and models, ensuring a direct fit and seamless replacement process.
• OE Specifications: Manufactured to meet or exceed the performance and quality standards of original equipment.
• Enhanced Compatibility: Designed for optimal performance with compatible vehicles.

3. Compatibility and Fitment

Before installation, it is crucial to verify that your vehicle is compatible with this wiring harness. Please refer to the fitment chart below to confirm your vehicle's make, model, and year.

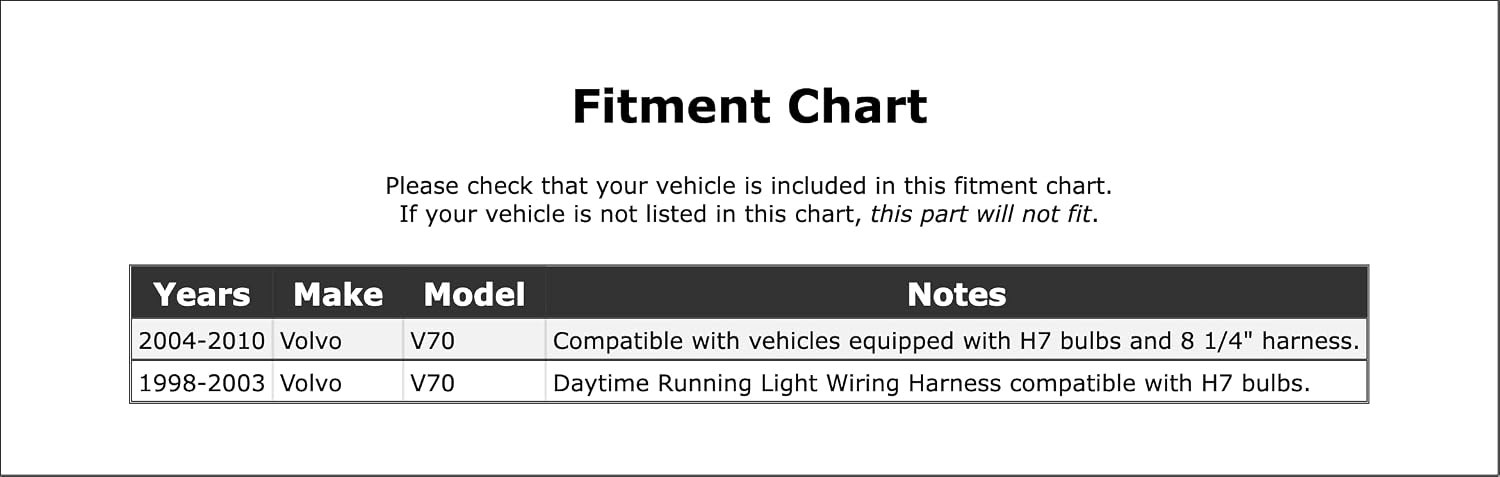

Image 3.1: Fitment Chart. This chart details the compatible Volvo V70 models and years, along with specific notes regarding H7 bulbs and harness length.

Important: If your vehicle is not explicitly listed in this chart, this part will not fit correctly.

4. Installation Guide

This wiring harness is designed for direct replacement. While professional installation is recommended, the following general steps outline the process. Always consult your vehicle's service manual for specific instructions and safety precautions.

1. Safety First: Disconnect the vehicle's battery before beginning any electrical work to prevent short circuits or electrical shock.
2. Locate Existing Harness: Identify the current daytime running light wiring harness in your vehicle. It is typically located near the headlight assembly.
3. Disconnect Old Harness: Carefully disconnect the old wiring harness from both the light bulb and the vehicle's electrical system. Note the orientation of the connectors.
4. Inspect New Harness: Examine the new PartCatalog wiring harness for any visible damage.


Image 4.1: The PartCatalog Daytime Running Light Wiring Harness. This image shows the full length of the blue braided cable with a black connector on one end and a blue connector on the other.

5. Connect New Harness:
   • Connect the black connector end of the new harness to the appropriate terminal on your vehicle's electrical system.


     Image 4.2: Black Connector. This close-up shows the two flat metal prongs of the black connector, designed for secure electrical connection.

   • Connect the blue connector end to the daytime running light bulb. Ensure a firm and secure connection.


     Image 4.3: Blue Connector. This close-up shows the internal terminals of the blue connector, designed to interface with the light bulb.
6. Secure Wiring: Route and secure the new harness to prevent it from interfering with moving parts or being exposed to excessive heat or abrasion. Use zip ties or clips if necessary.
7. Reconnect Battery: Once all connections are secure, reconnect the vehicle's battery.
8. Test Functionality: Turn on your vehicle and verify that the daytime running lights function correctly.

5. Operation

The PartCatalog Daytime Running Light Wiring Harness facilitates the proper electrical connection for your vehicle's daytime running lights (DRLs). Once correctly installed, the DRLs will operate according to your vehicle's factory specifications, typically activating automatically when the engine is running and the vehicle is in drive, or as per your vehicle's specific DRL control settings.

No user intervention is required for the operation of the harness itself; its function is to provide a reliable electrical pathway for the DRL system.

6. Maintenance

The wiring harness is designed for long-term durability and typically requires minimal maintenance. However, periodic inspection can help ensure its continued performance:

• Visual Inspection: Periodically check the harness for any signs of wear, fraying, cuts, or damage to the insulation.
• Connection Integrity: Ensure that both the black and blue connectors remain securely attached and free from corrosion.
• Routing: Verify that the harness remains properly routed and secured, away from hot engine components or moving parts.
• Cleaning: If necessary, gently clean the harness and connectors with a dry, lint-free cloth. Avoid using harsh chemicals or abrasive materials.

7. Troubleshooting

If you experience issues with your daytime running lights after installing the new harness, consider the following troubleshooting steps:

• No Lights:
  • Check all connections: Ensure the harness is firmly seated at both the vehicle and the bulb ends.
  • Verify bulb functionality: Test the DRL bulb itself. A faulty bulb will prevent the light from illuminating, even with a working harness.
  • Check vehicle fuses: Consult your vehicle's manual for the location and status of the DRL fuse. Replace if blown.
  • Confirm compatibility: Double-check the fitment chart (Section 3) to ensure the harness is correct for your specific vehicle model and year.
• Intermittent Lights:
  • Inspect for loose connections: Wiggle the connectors gently to see if the light flickers, indicating a loose or poor connection.
  • Check for damaged wiring: Look for any nicks, cuts, or exposed wires along the harness that could cause intermittent contact.
• Other Electrical Issues: If other electrical components are affected, disconnect the harness and re-evaluate the vehicle's electrical system. This harness is designed specifically for DRLs and should not impact other systems if correctly installed.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified automotive technician.

8. Product Specifications

9. Warranty Information

Specific warranty details for this product are not provided in the available product data. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact PartCatalog directly through their official channels.

10. Customer Support

For technical assistance, installation queries, or any other support needs related to your PartCatalog Daytime Running Light Wiring Harness, please contact the manufacturer, PartCatalog. Contact information may be available on the product packaging or their official website.
