1. Introduction
Thank you for choosing the DAMINY 20-inch Black Flush Mount Bladeless Ceiling Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Safety Information
- Always disconnect power at the circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances.
- If you are unsure about wiring, consult a qualified electrician.
- Do not use water or detergents to clean the fan or fan blades; a slightly damp cloth is suitable for cleaning.
Introductory Video
Text Description: This video provides an introductory overview of the Daminy LED ceiling fan with light, showcasing its features and design.
2. Product Overview
The DAMINY 20-inch Flush Mount Bladeless Ceiling Fan combines modern aesthetics with advanced functionality. It features a low-profile design, integrated LED lighting with 6 CCT options and 10%-100% dimming, and a convenient remote control for independent fan and light operation. The fan offers 6 adjustable speeds, a sleep timer, and a reversible airflow function for year-round comfort.
Key Features:
- Remote Control: Intelligent control system for light brightness, color temperature, and wind speed.
- 6CCT & 10%-100% Dimmable: Six color temperature modes (3000K-6000K) and adjustable brightness to suit various environmental needs.
- 6 Wind Speeds & Timer: Powerful airflow with 6 adjustable speeds and an 8-hour sleep timer for enhanced comfort.
- Reverse and Memory Function: Two airflow modes (downdraft for summer, updraft for winter) and memory for last-used light settings.
- Bladeless Design: Flush mount design with acrylic diamond rings for a stylish and elegant appearance.

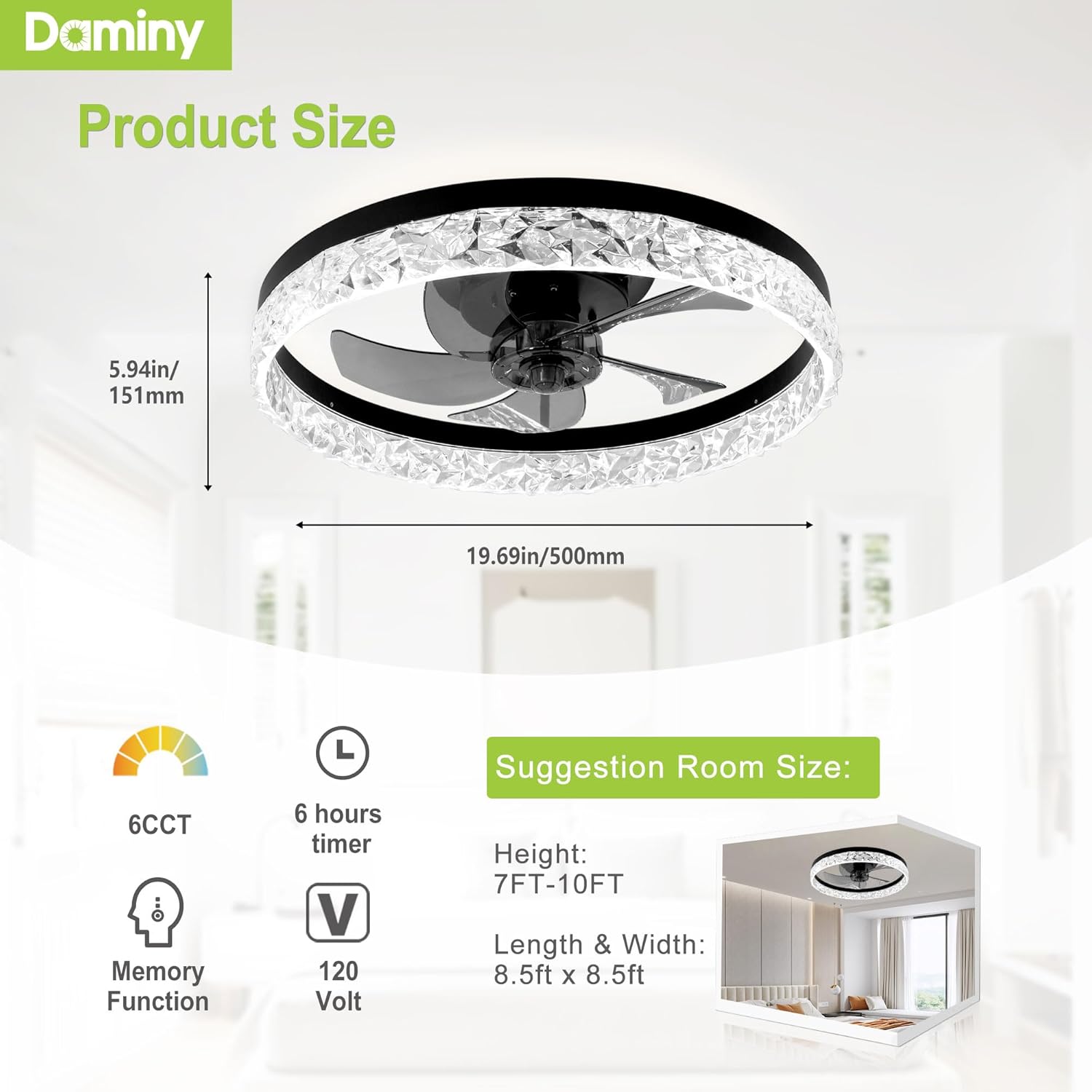

Product Dimensions:
Text Description: An image showing the dimensions of the Daminy 20-inch ceiling fan. The fan has a diameter of 19.7 inches (500mm) and a height of 5.94 inches (151mm). Suggested room size is 7-10ft height and 8.5ft x 8.5ft length & width.
Room Size Recommendation Video
Text Description: This video from Daminy provides guidance on choosing the appropriate size fan light for your room, ensuring optimal performance and aesthetics.
3. Specifications
| Specification | Value |
|---|---|
| Brand | DAMINY |
| Model Name | FN1005A |
| Color | Black |
| Electric Fan Design | Ceiling Fan |
| Power Source | AC Input DC Motor (noiseless) |
| Style | Flush Mount |
| Product Dimensions | 19.7"D x 19.7"W x 5.94"H |
| Room Type | Bedroom, Dining Room, Living Room, Office |
| Recommended Uses | Indoor |
| Wattage | 20 watts |
| Finish Type | Brushed |
| Number of Blades | 5 |
| Voltage | 120 Volts |
| Item Weight | 6.17 pounds |
| Included Components | Fan Blade included |
| Indoor/Outdoor Usage | Indoor |
| Control Method | Remote |
| Efficiency | 130 lumens per watt |
| Number of Power Levels | 6 |
| Installation Type | Flush Mount |
| Assembly Required | Yes |
| Batteries Required | No |
| Mounting Type | Ceiling Mount |
4. Setup and Installation
The DAMINY ceiling fan is designed for convenient installation, with most materials pre-installed. Detailed instructions and installation videos are provided to assist you in completing the setup quickly and easily.
Unpacking the Product
Text Description: This video from Daminy demonstrates the unpacking process of the LED ceiling fan with light, showing how components are organized within the packaging.
Simplified Installation Overview
Text Description: An image illustrating the simplified installation process of the Daminy ceiling fan, highlighting its complete crystal ring, quick assembly, and industrial-grade metal bracket compared to other designs.
Installation Video
Text Description: This video from Daminy provides a step-by-step guide for installing the 20-inch ceiling fan with light.
5. Operating Instructions
Your DAMINY ceiling fan is equipped with an intelligent control system, allowing you to manage its functions via remote control or a dedicated mobile application.
Remote Control Functions
Text Description: An image detailing the functions of the Daminy ceiling fan remote control, including 6CCT, dimmable, night light, reversible, 1-6H timing, and 6 speeds.
- Power On/Off: Turn the fan and light on or off.
- Fan Speed: Select from 6 adjustable wind speeds (1-6).
- Light Control: Adjust light brightness (10%-100%) and cycle through 6 color temperatures (3000K-6000K).
- Night Light Mode: Activates a low brightness (7%) 3000K light setting.
- Timer: Set the fan to turn off automatically after 1, 2, 4, or 8 hours.
- Reverse Function: Switch between downdraft (summer mode) and updraft (winter mode) airflow.
- Memory Function: The fan remembers the last color temperature and brightness settings before shutdown.
App Control
Text Description: An image showing the Daminy ceiling fan's app control interface and a QR code for downloading the app. Instructions for app pairing are provided: Turn on phone's Bluetooth. Within 5 seconds after turning the mains power on, touch the "PairCode" button, hear a "Di" sound, and the code is successfully matched. Link to app privacy agreement: http://lamp-privacy-agreement.iotworkshop.com/zhikong/
Color Temperature Options
Text Description: An image displaying the six color temperature options (3000K, 3500K, 4000K, 5000K, 5500K, 6000K) and examples of their use in different rooms like living room, dining room, and bedroom.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your DAMINY ceiling fan.
- Cleaning: Use a soft, damp cloth to clean the fan and light fixture. Avoid abrasive cleaners or solvents that may damage the finish.
- Inspection: Periodically check all connections and mounting hardware to ensure they are secure.
- LED Lifespan: The integrated LED lights are designed for long-term use (up to 10 years) and are not user-replaceable.
7. Troubleshooting
If you encounter any issues with your DAMINY ceiling fan, please refer to the following common problems and solutions:
- Fan does not operate: Check power supply, ensure remote batteries are functional, and verify all wiring connections are secure.
- Light does not turn on: Check power supply, ensure remote batteries are functional, and verify wiring connections.
- Remote control not working: Replace remote batteries. If issues persist, re-pair the remote with the fan (refer to app control instructions for pairing process).
- Fan wobbles: Ensure all mounting screws are tightened securely.
- Insufficient airflow: Verify fan speed setting. Ensure the reverse function is set to the appropriate season (downdraft for cooling, updraft for air circulation).
8. Warranty and Support
The DAMINY 20-inch Black Flush Mount Bladeless Ceiling Fan comes with a 2-year warranty. For any missing parts, broken components, or technical support, please contact Daminy directly. You can reach them via email at support@daminylighting.com or call them at +1 (888) 861-8556 (Monday - Friday, 9:00 AM - 5:00 PM PST).
If you encounter any problems, please contact us at the provided contact information. We will send the corresponding accessories to solve your problem. The time limit will be faster than applying to Amazon for replacement. We will do our best to minimize the occurrence of missing/broken parts problems.
