Miuara Tall Toilet 19 Inch - User Manual

1. Introduction

The Miuara 19-inch Tall Elongated ADA High Toilet is designed to provide enhanced comfort and accessibility, particularly for seniors, tall individuals, and those with mobility challenges. Its thoughtful design integrates water-saving features, powerful flushing, and durable materials to ensure a long-lasting and efficient bathroom solution.

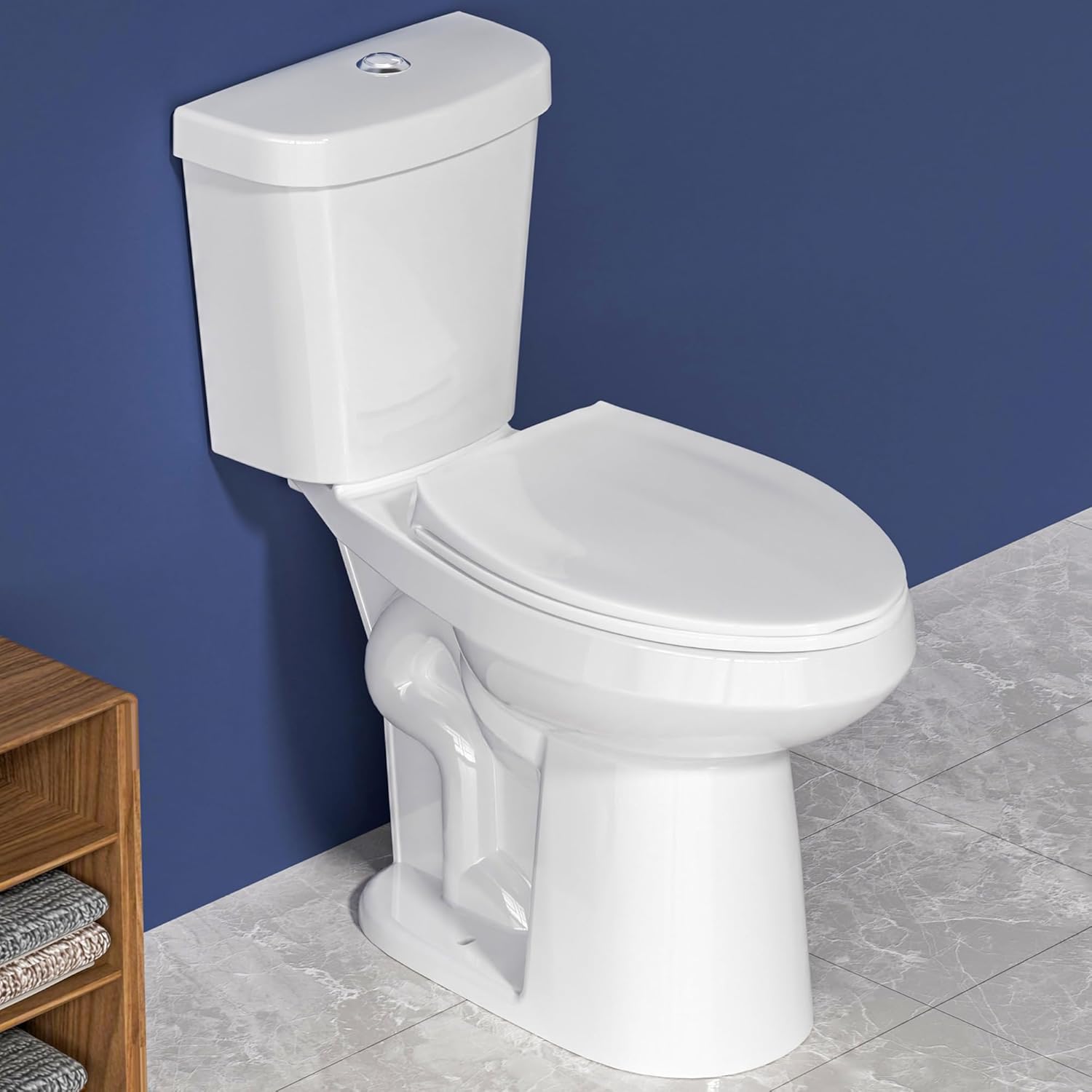

Figure 1.1: Overview of the Miuara Tall Toilet.

2. Product Features

• 19-inch Bowl Height: Offers increased comfort and accessibility, reducing strain for users.
• Dual Flush System: Conserves water with 1.1 GPF (half flush) and 1.6 GPF (full flush) options.
• 360° Jet Siphon Powerful Flushing: Ensures efficient waste removal and thorough bowl cleaning.
• Soft-Close Seat: Prevents slamming, reducing noise and wear.
• Stain Resistant Vitreous China: Non-porous surface resists stains and odors, making cleaning easy.
• High Durability: Constructed from high-quality Vitreous China and glazed with enamel for long-lasting performance.

Figure 2.1: Visual representation of key product features including bowl height, flushing, and water conservation.

Figure 2.2: Detailed feature overview of the Miuara Elongated Tall Toilet.

3. Ergonomic Design and Comfort Height

The 19-inch bowl height of the Miuara toilet is specifically designed to enhance user comfort and accessibility. This 'comfort height' makes sitting down and standing up significantly easier, reducing strain on knees and back. It is particularly beneficial for seniors, individuals with mobility issues, and taller users, providing greater stability and support.

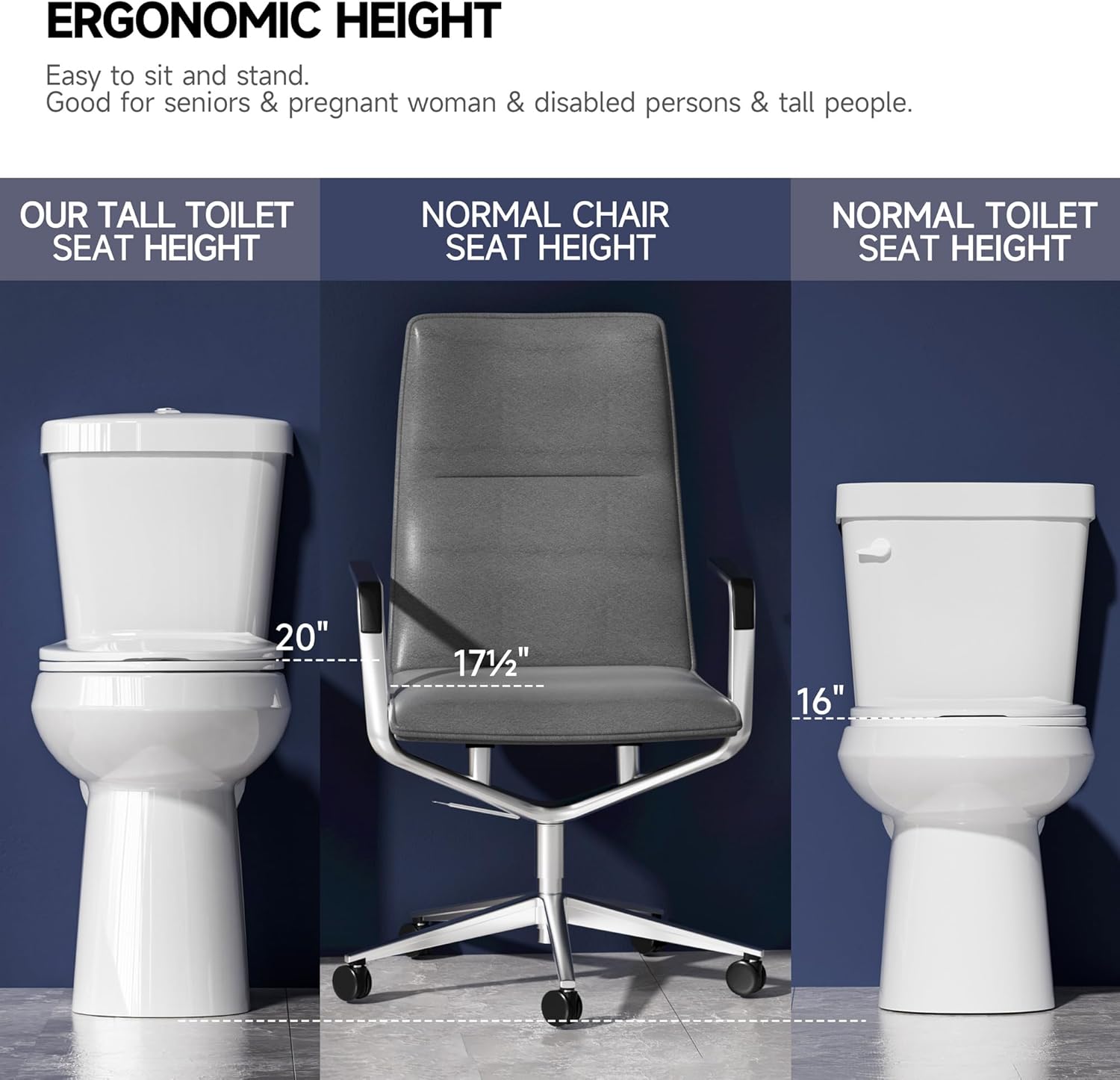

Figure 3.1: Height comparison illustrating the ergonomic advantage of the Miuara Tall Toilet.

Figure 3.2: Visualizing the comfort benefits for seniors, disabled persons, pregnant women, and tall individuals.

4. Water-Saving Dual Flush System

The Miuara toilet features a highly efficient dual flush system, allowing users to choose between a 1.1 GPF (gallons per flush) for liquid waste and a 1.6 GPF for solid waste. This system, combined with the 360° jet siphon powerful flushing, ensures effective waste removal while significantly contributing to water conservation efforts. The fully glazed trap way and large eddy current openings prevent clogging, ensuring smooth operation.

Figure 4.1: Illustration of the dual flush button and water volume options.

Figure 4.2: Diagram showing the 360° jet powerful siphon flush action.

Figure 4.3: In-depth look at the 360° jet and fully glazed flush pipe for optimal performance.

5. Soft-Close Seat

The Miuara toilet is equipped with a soft-close seat, which utilizes a hydraulic or pneumatic mechanism to gently lower the seat and lid. This feature significantly reduces noise in the bathroom, especially during nighttime use, and prevents the seat and lid from slamming shut. This minimizes wear and tear on the toilet and reduces the risk of damage to the seat, lid, and bowl.

Figure 5.1: Demonstration of the soft-close seat feature, highlighting noise reduction.

6. Components (What's in the Box)

Upon unboxing your Miuara Tall Toilet, please verify that all the following components are present and undamaged:

• Water Tank
• Oval Bowl
• Soft Close Seat
• Installation Hardware & User Manual

Figure 6.1: Visual representation of the main components included in the packaging.

7. Dimensions and Specifications

Understanding the dimensions and specifications is crucial for proper installation and fit within your bathroom space. All dimensions are measured manually and may have a slight degree of error. Please refer to the received item for specific measurements.

Figure 7.1: Comprehensive size display with top, side, and front views.

8. Installation Guide

This section provides a general overview of the installation process. It is highly recommended that a qualified professional install this toilet to ensure proper function and adherence to local plumbing codes. The toilet is designed for floor-mounted installation with a standard 12-inch rough-in.

8.1. Pre-Installation Checklist

• Ensure the floor flange is securely mounted and at the correct height.
• Verify the 12-inch rough-in measurement from the finished wall to the center of the drain pipe.
• Confirm all components listed in Section 6 are present and undamaged.
• Have necessary tools ready (e.g., wrench, screwdriver, level, wax ring).

8.2. Installation Steps Overview

1. Bowl Installation: Place the wax ring around the horn of the toilet bowl. Carefully align the bowl with the floor bolts and press down firmly to create a seal. Secure the bowl with washers and nuts, tightening evenly.
2. Tank Installation: Attach the tank to the bowl using the provided bolts, washers, and nuts. Ensure the tank gasket is properly seated between the tank and bowl. Tighten the nuts evenly to prevent leaks, but do not overtighten.
3. Water Supply Connection: Connect the water supply line to the fill valve on the tank. Hand-tighten first, then use a wrench for a final snug turn.
4. Seat Installation: Install the soft-close seat according to the instructions provided with the seat hardware.
5. Test Flush: Turn on the water supply and allow the tank to fill. Perform several test flushes to check for leaks and proper operation.

Figure 8.1: Visual guide to key installation points for the bowl and tank.

Note: For detailed, step-by-step instructions, please refer to the separate installation manual included with your product.

9. Operation

Operating your Miuara Tall Toilet is straightforward, primarily involving the dual flush mechanism.

9.1. Flushing

• Half Flush (1.1 GPF): Press the smaller button on the top of the tank lid for liquid waste. This conserves water.
• Full Flush (1.6 GPF): Press the larger button on the top of the tank lid for solid waste. This utilizes the full power of the 360° jet siphon flush.

The soft-close seat will gently lower itself when released, preventing sudden drops and noise.

10. Maintenance and Cleaning

The Miuara Tall Toilet is designed for easy maintenance due to its non-porous Vitreous China surface and fully glazed trap way.

10.1. Routine Cleaning

• For general cleaning, use a soft cloth or sponge with a mild, non-abrasive bathroom cleaner.
• Wipe down all exterior surfaces, including the tank, bowl, and base.
• Clean the interior of the bowl with a toilet brush and a suitable toilet bowl cleaner.
• Rinse thoroughly after cleaning.

10.2. Stain Prevention

The smooth surface of Vitreous China inherently resists stains. To maintain its pristine condition:

• Avoid using harsh abrasive cleaners, scouring pads, or strong chemical solvents, as these can damage the glaze.
• Address any spills or marks promptly.

11. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, please contact customer support.

11.1. Toilet Not Flushing Properly

• Check Water Level: Ensure the water level in the tank is at the fill line. Adjust the fill valve if necessary.
• Inspect Flapper/Flush Valve: Make sure the flapper or flush valve is sealing correctly and lifting fully when flushed.
• Clear Obstructions: Check for any obstructions in the trap way or siphon jet openings.

11.2. Continuous Running Water

• Check Flapper Seal: Ensure the flapper is sealing tightly against the flush valve opening. Clean any debris from the seal.
• Adjust Fill Valve: The fill valve might be set too high, causing water to overflow into the overflow tube. Adjust the float to lower the water level.

11.3. Leaks

• Check Connections: Inspect all water supply and tank-to-bowl connections for tightness. Do not overtighten.
• Inspect Gaskets/Seals: Worn or improperly seated gaskets (e.g., tank-to-bowl gasket, wax ring) can cause leaks. These may need replacement.

12. Warranty and Support

Miuara is committed to customer satisfaction and product quality.

12.1. Warranty Information

Your Miuara Tall Toilet comes with:

• Lifetime After-Sales Support: Miuara values every customer's shopping experience and provides ongoing support.
• 5-Year Limited Warranty: This warranty covers manufacturing defects and ensures product integrity for five years from the date of purchase.

If the toilet you receive has any defects, Miuara will send a new replacement free of charge.

12.2. Customer Support

For any questions, concerns, or warranty claims regarding your Miuara Tall Toilet, please contact our customer support team. We are dedicated to providing professional solutions within 24 hours.

Please refer to your purchase documentation or the Miuara official website for specific contact details.
