HUAREW 110V Digital Temperature Controller User Manual

1. Product Overview

The HUAREW 110V Digital Temperature Controller is a versatile device designed for precise temperature management in various environments. It features an LCD screen for clear display of settings and current conditions, supporting both heating and cooling operations, as well as advanced timing functions.

Figure 1: HUAREW Digital Temperature Controller with its dimensions. The device measures approximately 121mm (4.76in) in height and 59.1mm (2.32in) in width. The temperature sensor probe cable is 170mm (6.69in) long.

2. Key Features

• LCD Display: A 2.24-inch LCD screen provides clear visibility of temperature and settings. Note: This product does not have a backlight function.
• Wide Temperature Control Range: Operates from -40°C to 120°C (-72°F to 176°F) with an accuracy of ±1%.
• High Output Capacity: Supports a maximum output of 16A/3680W.
• Dual Operation Modes: Configurable for both heating and cooling applications.
• Timing Functions (F01-F04): Includes cycle timer, countdown on, countdown off, and combined on/off countdown modes.
• Temperature Calibration: Allows for precise adjustment of temperature readings within -9.9°C to 9.9°C.
• Memory Function: Retains all settings after power loss.
• Safety Features: Equipped with a safety socket to prevent accidental insertion and constructed with PC flame-retardant material.

3. Component Identification

Familiarize yourself with the main components of the temperature controller:

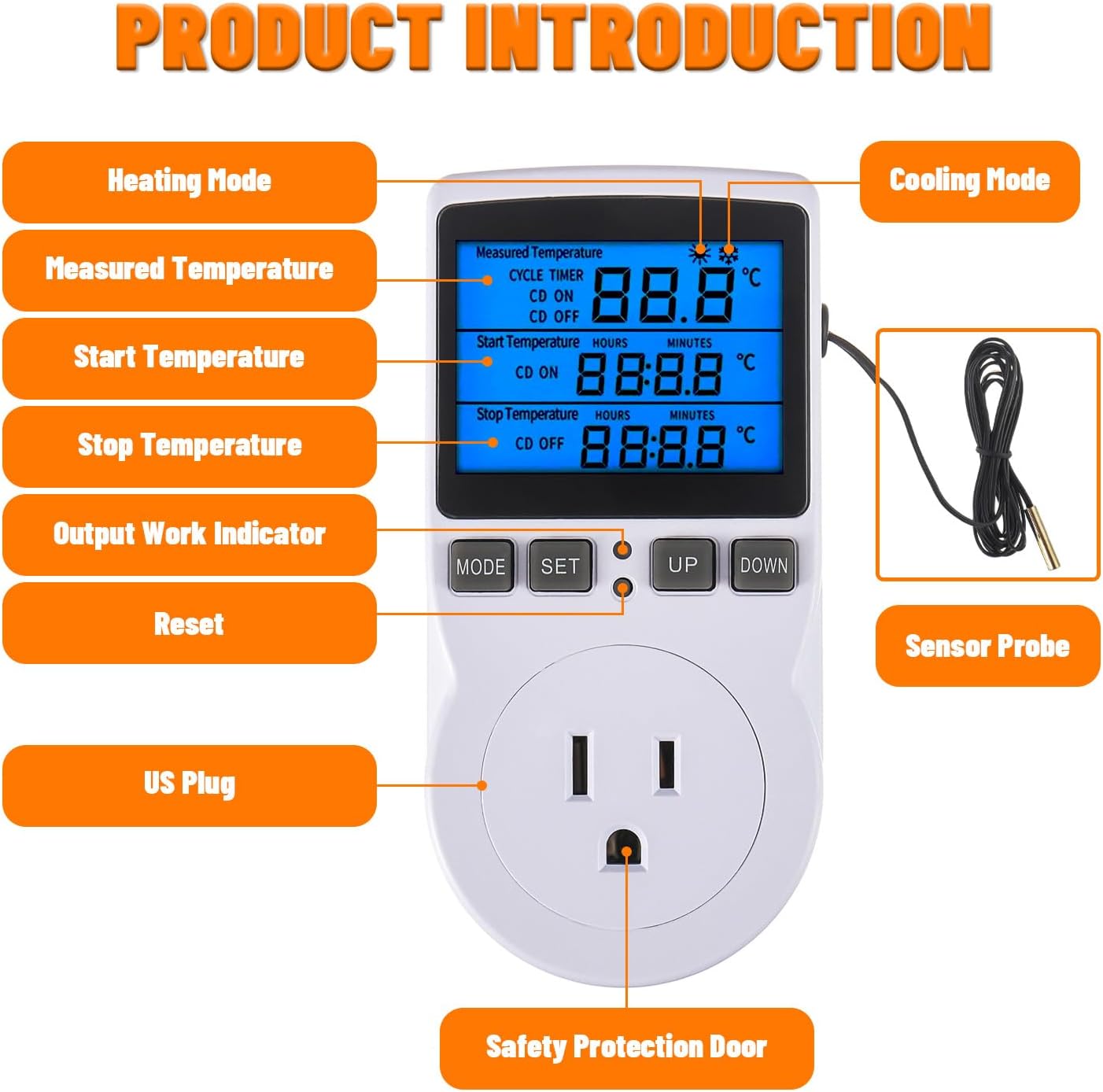

Figure 2: Front view of the controller with labeled components including the LCD display, control buttons (MODE, SET, UP, DOWN), US plug, safety protection door, and the external sensor probe.

• LCD Display: Shows measured temperature, start/stop temperatures, timing settings, and operating mode.
• MODE Button: Used to cycle through different settings and functions.
• SET Button: Used to confirm settings or enter/exit programming mode.
• UP Button: Increases values or navigates menus.
• DOWN Button: Decreases values or navigates menus.
• Sensor Probe: NTC 10K temperature sensor for accurate temperature measurement.
• US Plug: For connecting the controller to a 110V power outlet.
• Safety Protection Door: Covers the outlet for child safety.

4. Setup Instructions

1. Unpack the Controller: Carefully remove the temperature controller and its sensor probe from the packaging.
2. Connect the Sensor: Ensure the temperature sensor probe is securely plugged into the designated port on the controller.
3. Position the Sensor: Place the sensor probe in the environment where temperature needs to be controlled (e.g., incubator, greenhouse, refrigerator). Ensure it is not directly exposed to heating or cooling elements to get an accurate ambient reading.
4. Plug in the Controller: Insert the controller's plug into a standard 110V AC power outlet. The LCD screen will illuminate, displaying the current measured temperature.
5. Connect Appliance: Plug your heating or cooling appliance (e.g., heater, fan, refrigerator) into the controlled outlet on the front of the temperature controller.

5. Operating Instructions

5.1. Setting Temperature (Heating/Cooling Mode)

The controller operates in either heating or cooling mode based on the relationship between the "Start Temperature" and "Stop Temperature" settings.

• Cooling Operation: If the Start Temperature is set higher than the Stop Temperature, the controller will activate the cooling appliance when the measured temperature rises above the Start Temperature and deactivate it when the temperature drops to the Stop Temperature.
• Heating Operation: If the Start Temperature is set lower than the Stop Temperature, the controller will activate the heating appliance when the measured temperature falls below the Start Temperature and deactivate it when the temperature rises to the Stop Temperature.

To set the temperatures:

1. Press the SET button once. The "Start Temperature" will flash.
2. Use the UP or DOWN buttons to adjust the desired Start Temperature.
3. Press the SET button again. The "Stop Temperature" will flash.
4. Use the UP or DOWN buttons to adjust the desired Stop Temperature.
5. Press the SET button a third time to confirm and exit, or wait a few seconds for it to automatically save and exit.

5.2. Timing Functions (F01-F04)

The controller offers four timing modes for various applications. The setting range for timing is 0 to 99 hours and 59 minutes.

Figure 3: Explanation of the F01, F02, F03, and F04 timing modes.

1. F01 - Cycle Timer Mode: The device works for a set "ON" time and then stops for a set "OFF" time, repeating in cycles.
   • Example: Set ON=0:05 (5 minutes), OFF=0:02 (2 minutes). The device will work for 5 minutes, stop for 2 minutes, and then repeat.
2. F02 - Countdown ON Mode: The device starts working after a set countdown time has elapsed.
   • Example: Set CD ON=0:05 (5 minutes). The device will start working after 5 minutes.
3. F03 - Countdown OFF Mode: The device stops working after a set countdown time has elapsed.
   • Example: Set CD OFF=0:05 (5 minutes). The device will work for 5 minutes and then stop indefinitely.
4. F04 - Countdown ON/OFF Mode: The device starts working after a set "CD ON" time and then stops working after a set "CD OFF" time.
   • Example: Set CD ON=0:02 (2 minutes), CD OFF=0:05 (5 minutes). The device will start working after 2 minutes, then stop working after 5 minutes.

To access and set timing functions:

1. Press and hold the MODE button until "F01" (or current timing mode) appears.
2. Use UP or DOWN to select the desired timing mode (F01-F04).
3. Press SET to enter the settings for the selected mode.
4. Use UP or DOWN to adjust the hours and minutes for ON/OFF or countdown times. Press SET to move between hour and minute settings.
5. Press SET again to confirm and exit, or wait for automatic exit.

5.3. Temperature Calibration

If the measured temperature appears inaccurate, you can calibrate the sensor reading.

Figure 4: Instructions for temperature calibration and product information.

1. Press and hold the MODE button.
2. While holding MODE, use the UP or DOWN buttons to adjust the temperature offset in real-time. The calibration range is -9.9°C to 9.9°C.
3. Release the MODE button to save the calibration.
4. To exit without saving changes, press and hold the SET button for 5 seconds.

6. Maintenance

To ensure the longevity and proper functioning of your HUAREW Digital Temperature Controller, follow these simple maintenance guidelines:

• Cleaning: Wipe the exterior of the controller with a clean, damp cloth. Do not use abrasive cleaners or immerse the device in water. Ensure the device is unplugged before cleaning.
• Sensor Care: Keep the temperature sensor probe clean and free from debris. Avoid bending or damaging the sensor cable.
• Storage: When not in use for extended periods, store the controller in a cool, dry place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your temperature controller, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt for warranty claims.

Manufacturer: HUAREW
