1. Introduction and Product Overview
This manual provides comprehensive instructions for the installation, operation, and maintenance of the HOLDWELL 12V Cargo Box Power Lift Actuator Kit. This kit is designed as a replacement for specific John Deere Utility Vehicle Gator models, including 4X2, 6X4, TRAIL, WORKSITE, TH, TS, TX, and M-GATOR (Old Type Single Plug) vehicles, enabling powered lifting and lowering of the cargo box.
The kit replaces OEM part numbers BM23765, BM20701, BM21468, and BM22870. It operates on a 12VDC system and includes all necessary components for a complete installation.
Figure 1.1: Overview of the HOLDWELL 12V Cargo Box Power Lift Actuator Kit, showing the actuator, wiring harness, switch, spacers, and relays.
Figure 1.2: An alternative perspective of the complete kit, showcasing the main components from a different angle.
2. Safety Information
Please read and understand all safety warnings and instructions before installing or operating this product. Failure to do so may result in property damage, serious injury, or death.
- Electrical Hazard: Always disconnect the vehicle's battery before performing any electrical work to prevent short circuits and electrical shock.
- Professional Installation Recommended: If you are not familiar with automotive electrical systems or mechanical installations, seek assistance from a qualified technician.
- Pinch Points: Keep hands, clothing, and tools clear of moving parts during operation. The cargo box lift mechanism can create pinch points.
- Secure Mounting: Ensure all components are securely mounted according to the vehicle's specifications to prevent accidental detachment during operation.
- Voltage Compatibility: This kit is designed for 12VDC systems only. Do not attempt to use it with other voltage systems.
- Component Inspection: Regularly inspect all components for wear, damage, or loose connections. Replace damaged parts immediately.
3. Package Contents
Verify that all components listed below are present and undamaged before beginning installation.
- ✓ 1 x Actuator (AM133408 AM131228)
- ✓ 1 x Wiring Harness (AM118006)
- ✓ 1 x Switch (AM116712)
- ✓ 4 x Spacers
- ✓ 2 x Relays (AT75769)
Figure 3.1: All components included in the HOLDWELL Cargo Box Power Lift Actuator Kit, neatly arranged for inspection.
4. Setup and Installation
This section outlines the general steps for installing the power lift actuator kit. Specific vehicle models may have slight variations. Refer to your John Deere Gator service manual for detailed vehicle-specific instructions.
- Prepare Vehicle: Park the John Deere Gator on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative terminal of the battery to prevent accidental electrical discharge.
- Remove Old Actuator (if applicable): Carefully remove the existing cargo box lift mechanism or actuator. Note the mounting points and wiring connections for reference.
- Mount New Actuator: Position the new HOLDWELL actuator in the designated mounting location. Secure it using appropriate hardware. Ensure the actuator's movement path is clear and unobstructed. Use the provided spacers as needed to ensure proper alignment.
- Connect Wiring Harness: Connect the wiring harness to the actuator. Identify the appropriate connection points on the vehicle's electrical system for power, ground, and switch connections. The harness is designed for an old type single plug system.
- Install Switch and Relays: Install the provided switch in a convenient and accessible location within the vehicle's cabin. Connect the relays into the wiring harness as indicated by the wiring diagram (not provided in this manual, refer to vehicle's wiring schematics or professional guidance).
- Secure Wiring: Route and secure all wiring to prevent chafing, pinching, or interference with moving parts. Use zip ties or cable clamps as necessary.
- Reconnect Battery: Once all connections are secure and verified, reconnect the negative terminal of the vehicle's battery.
Figure 4.1: A side view of the actuator and accompanying components, illustrating the general form factor for installation.

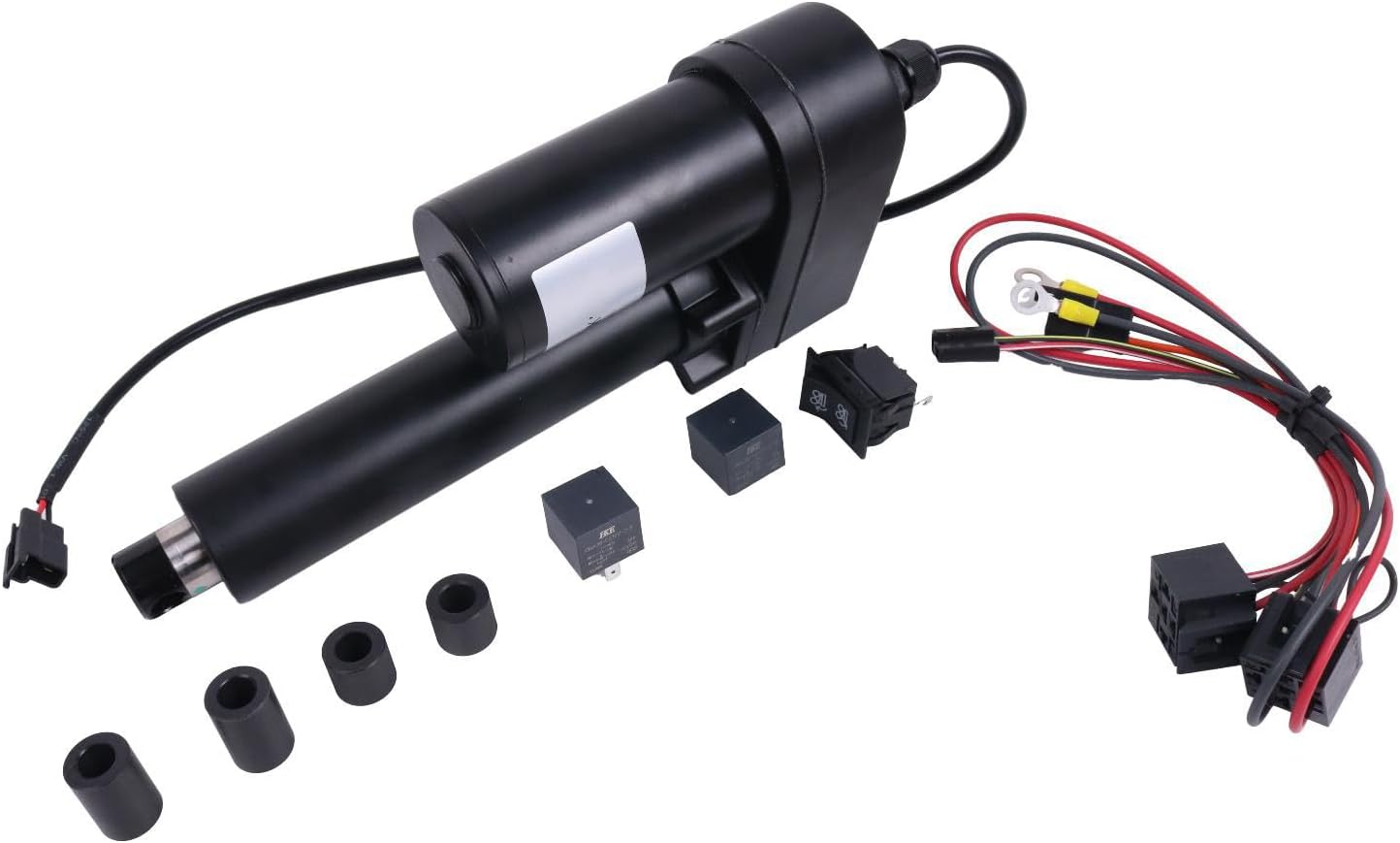

Figure 4.2: An angled view of the complete kit, showing the actuator, wiring, relays, switch, and spacers.
Figure 4.3: Detailed view of the wiring harness connectors, highlighting the single plug design for compatibility with older systems.

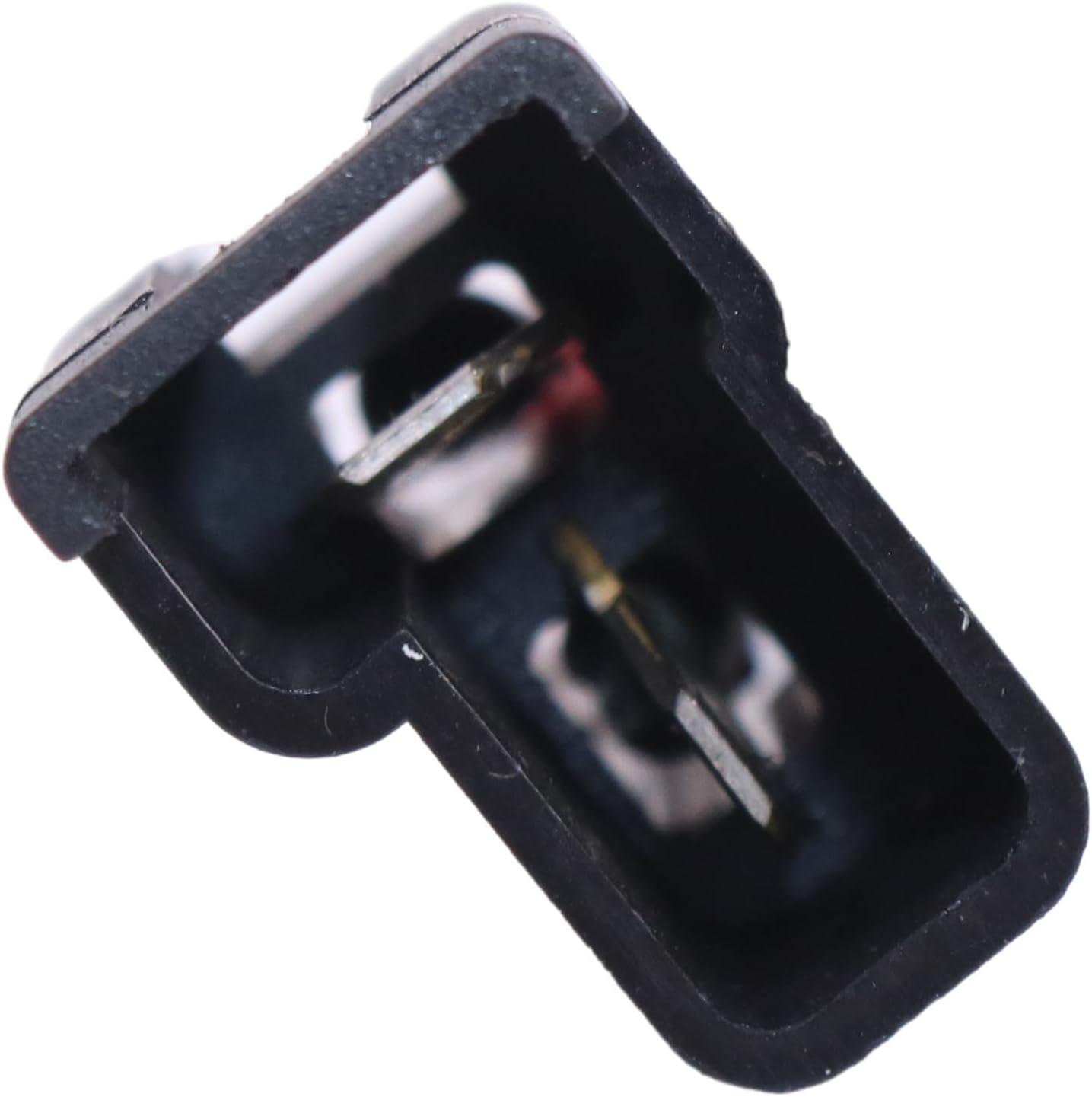

Figure 4.4: A close-up view of a single plug connector, emphasizing the specific connection type for this kit.
5. Operating Instructions
Once the HOLDWELL Cargo Box Power Lift Actuator Kit is correctly installed, operating the cargo box lift function is straightforward.
- Power On: Ensure the vehicle's ignition is on or the vehicle is running, providing power to the electrical system.
- Activate Lift: Locate the installed power lift switch. Typically, this is a rocker switch. Press one side of the switch to activate the actuator and lift the cargo box.
- Activate Lower: Press the other side of the switch to activate the actuator and lower the cargo box.
- Stop Operation: Release the switch to stop the actuator at any desired position.
Always ensure the area around the cargo box is clear of obstructions, people, and animals before operating the lift mechanism.
6. Maintenance
Regular maintenance helps ensure the longevity and reliable operation of your HOLDWELL power lift actuator kit.
- Visual Inspection: Periodically inspect the actuator, wiring harness, and connections for any signs of wear, corrosion, fraying, or damage.
- Cleanliness: Keep the actuator and surrounding area clean from dirt, debris, and excessive moisture. Use a damp cloth to wipe down surfaces. Avoid high-pressure washing directly on the actuator.
- Lubrication: While linear actuators are generally self-lubricating, inspect the moving shaft for smooth operation. If any binding or excessive friction is noted, consult a professional.
- Connection Check: Ensure all electrical connections remain tight and free from corrosion.
- Mounting Hardware: Verify that all mounting bolts and fasteners are secure. Tighten if necessary.
7. Troubleshooting
If you encounter issues with your power lift actuator kit, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Actuator does not move. | No power to the actuator; Blown fuse; Faulty switch; Loose wiring connection; Faulty relay. | Check vehicle's battery voltage; Inspect vehicle's fuse box for blown fuses and replace if necessary; Test the switch for continuity; Verify all wiring connections are secure; Test or replace relays. |
| Actuator moves slowly or weakly. | Low voltage; Excessive load; Internal actuator issue. | Check battery voltage and charging system; Reduce load on cargo box; If problem persists, actuator may need replacement. |
| Actuator makes unusual noises. | Lack of lubrication; Internal damage; Obstruction. | Inspect for obstructions; If noise persists, the actuator may have internal damage and require replacement. |
| Cargo box does not fully lift or lower. | Actuator stroke limit reached; Obstruction; Mechanical binding. | Ensure no obstructions are preventing full travel; Check for mechanical binding in the cargo box hinges or linkage; Verify correct actuator model for required stroke length. |
If troubleshooting steps do not resolve the issue, contact HOLDWELL customer support or a qualified technician.
8. Specifications
Key technical specifications for the HOLDWELL 12V Cargo Box Power Lift Actuator Kit:
- Model Number: BM22870
- OEM Part Numbers Replaced: BM23765, BM20701, BM21468, BM22870
- Voltage: 12VDC
- Material: Alloy Steel
- Item Weight: Approximately 13 pounds (5.9 kg)
- Package Dimensions: Approximately 18 x 8 x 6 inches (45.7 x 20.3 x 15.2 cm)
- Application: John Deere Utility Vehicle GATOR 4X2, 6X4, TRAIL, WORKSITE, TH, TS, TX, M-GATOR (Old Type Single Plug)
9. Warranty and Support
Specific warranty details for this product are not provided within this manual. For information regarding warranty coverage, returns, or technical support, please refer to the HOLDWELL official website or contact your point of purchase. Ensure you have your product model number (BM22870) and purchase details available when contacting support.
