CHERY INDUSTRIAL 8x12FT Outdoor Storage Shed User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your CHERY INDUSTRIAL 8x12FT Outdoor Storage Shed. Designed for versatile outdoor storage, this shed offers a robust solution for organizing garden tools, bicycles, lawn equipment, and can even serve as a pet house or playhouse. Its durable galvanized steel construction ensures weather resistance and longevity.

Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and to maximize the lifespan of your product.

Figure 1: The 8x12FT Outdoor Storage Shed in a typical backyard environment, showcasing its spacious interior and double doors.

2. Important Safety Information

Adhering to these safety guidelines is crucial for preventing injury and ensuring the structural integrity of the shed.

• Wear Protective Gear: Always wear gloves during installation to protect your hands from sharp edges and potential pinches.
• Team Assembly: A minimum of 2-3 people are required to assist with the installation. This product involves large and heavy components that require multiple hands for safe handling and assembly.
• Part Verification: Carefully check the number and condition of all parts against the packing list before beginning installation. Report any missing or damaged parts immediately.
• Stable Foundation: Ensure the installation surface is level and stable. The shed comes with a foundation kit, but a solid, level base (not included) is essential for optimal stability and alignment.
• Secure Installation: Properly anchor the shed to the ground according to local building codes and manufacturer recommendations to prevent wind damage.

Figure 2: Visual reminder of key safety tips for shed installation.

3. Product Specifications

The following table details the key specifications of the 8x12FT Outdoor Storage Shed:

Figure 3: Detailed product dimensions and storage capacity.

4. Setup and Assembly

This section outlines the general steps for assembling your storage shed. Refer to the separate detailed assembly instructions provided with your product for step-by-step diagrams and specific hardware requirements.

4.1 Site Preparation

• Choose a level and well-drained area for the shed installation.
• Clear the area of any debris, rocks, or vegetation.
• Prepare a solid, level base (e.g., concrete slab, gravel pad, or treated timber frame) that is slightly larger than the shed's footprint. While a foundation kit is included, a proper base is crucial for long-term stability and to prevent moisture issues.

4.2 Foundation Kit Assembly

The shed includes a galvanized steel foundation kit designed to protect your items from moisture and ensure stability. This kit forms the perimeter and internal supports for your shed's floor (floor planks are not included).

1. Assemble the galvanized steel frame components of the foundation kit according to the provided assembly manual.
2. Ensure the foundation frame is square and level before proceeding.
3. Once the foundation kit is assembled, you can lay down your chosen floor material (e.g., wood planks, metal planks) on top of the foundation frame to create the shed floor.

Figure 4: The included galvanized steel foundation kit, ready for floor installation.

4.3 Wall and Roof Assembly

Follow the step-by-step instructions in the separate assembly manual for attaching the wall panels, roof panels, and structural beams. Pay close attention to the orientation of panels and the secure fastening of all screws and bolts.

• The shed features sturdy beams for long service life and durability.
• The roof is designed with a slope to prevent rainwater accumulation.
• Ensure all panels are properly aligned and sealed to maintain waterproof integrity.

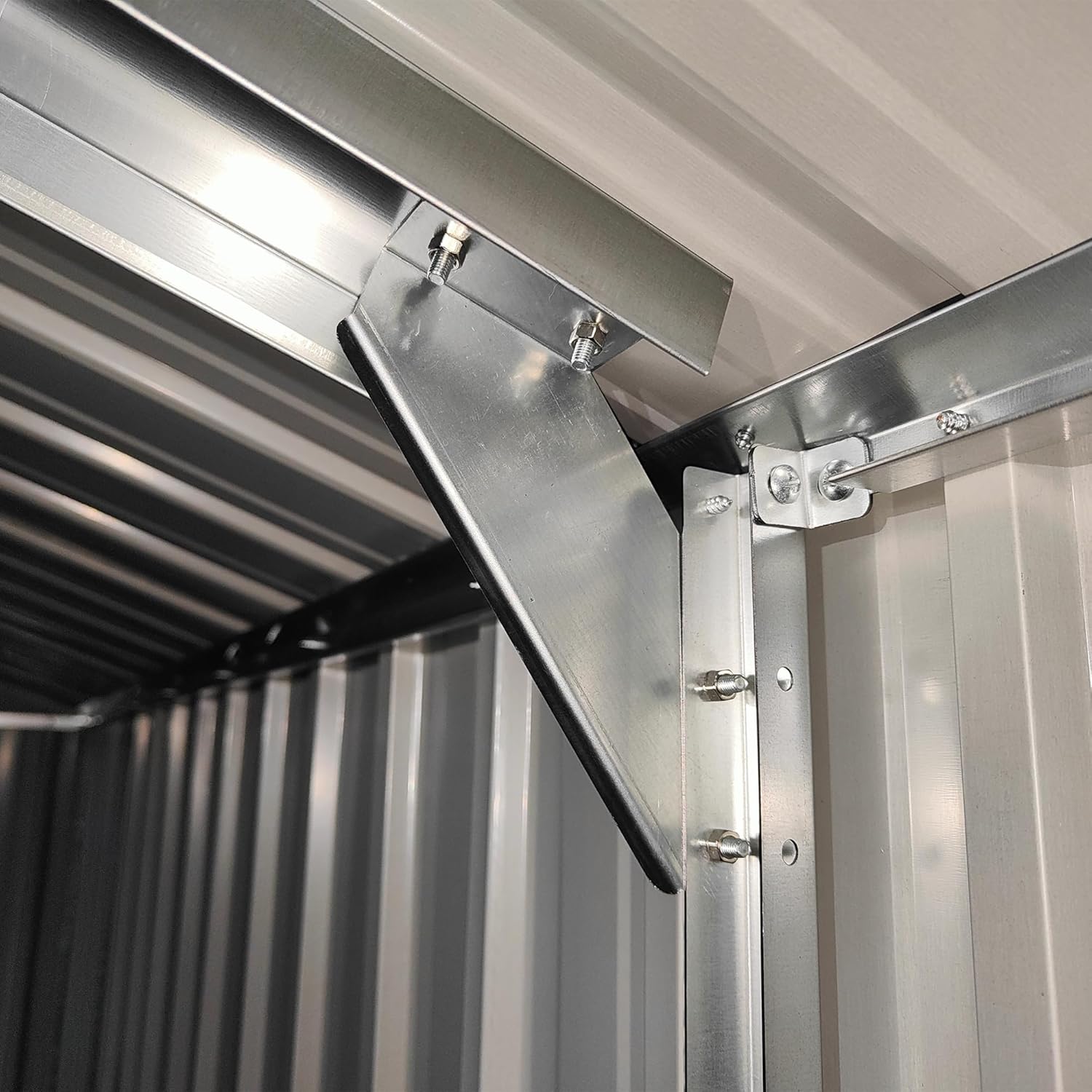

Figure 5: Internal view of the shed's reinforced roof structure.

4.4 Door and Window Installation

Install the double hinged doors and the front window according to the assembly manual. The doors feature ergonomic handles for easy opening and closing, and the window allows natural light into the shed.

• The double hinged door design enhances stability and longevity.
• The front window is designed to allow natural light and improve brightness inside.
• The shed is equipped with a 2-door lockset and 2 keys for securing your belongings.

Figure 6: Key features including the ergonomic door handle and front window.

Figure 7: The secure double door lockset for enhanced security.

4.5 Ventilation System

The shed is designed with air vents to ensure proper air circulation and keep the interior fresh. Install these vents as per the instructions to maintain optimal airflow and prevent moisture buildup.

Figure 8: The strategically placed vents designed to ensure air circulation.

5. Operating Your Storage Shed

Your CHERY INDUSTRIAL storage shed is a versatile outdoor structure designed to meet various needs. Its spacious interior and durable construction make it suitable for a range of uses.

5.1 Storage Applications

The primary function of this shed is to provide secure and organized storage for your outdoor items. Its large capacity (628 cu.Ft) can accommodate:

• Garden tools and equipment (shovels, rakes, lawnmowers, weed trimmers)
• Bicycles and other sporting equipment
• Seasonal decorations and outdoor furniture cushions
• Workshop tools and supplies

Figure 9: Examples of how the shed can be utilized for storage and other purposes.

5.2 Alternative Uses

Beyond traditional storage, the shed's design allows for other functional uses:

• Pet House: With proper insulation and ventilation, it can serve as a spacious and secure shelter for pets.
• Playhouse: Provides a dedicated outdoor space for children's activities.
• Chicken Coop: Can be adapted to house poultry, offering protection from elements and predators.

Note: When using for pets or animals, ensure adequate ventilation, insulation, and access to water and food. Consult local regulations for animal housing.

6. Maintenance and Care

Regular maintenance will ensure the longevity and optimal performance of your CHERY INDUSTRIAL storage shed.

6.1 Cleaning

• Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized steel finish.
• Rinse thoroughly with clean water.
• Keep the roof clear of leaves, snow, and other debris to ensure proper drainage and prevent excessive weight.

6.2 Structural Integrity

• Periodically inspect all bolts, screws, and fasteners to ensure they are tight. Re-tighten as necessary.
• Check the foundation for any signs of shifting or settling. Address any issues promptly to maintain the shed's stability.
• The shed is made of galvanized steel, offering good weather resistance, strong oxidation resistance, good abrasion resistance, and excellent corrosion resistance.
• The reinforced structure improves the wind resistance of the roof and reduces the risk of deformation and overturning.

Figure 10: The shed's waterproof and rustproof galvanized steel construction.

Figure 11: The reinforced structure designed for improved wind resistance.

6.3 Door and Window Care

• Lubricate door hinges annually to ensure smooth operation.
• Keep the door tracks clear of dirt and debris.
• Inspect window seals for any signs of wear or damage and repair as needed to maintain weatherproofing.

7. Troubleshooting

This section addresses common issues you might encounter during assembly or use. For more complex problems, please contact customer support.

7.1 Missing or Damaged Parts

• Issue: Parts are missing from the package or arrived damaged.
• Solution: Before assembly, carefully check all parts against the packing list. If any parts are missing or damaged, do not proceed with assembly. Contact CHERY INDUSTRIAL customer support immediately with your purchase details and a description of the issue.

7.2 Assembly Difficulties

• Issue: Panels do not align, or holes do not match up.
• Solution:
  1. Ensure the foundation is perfectly level and square. An uneven base is the most common cause of alignment issues.
  2. Double-check that you are using the correct parts for each step as per the assembly manual.
  3. Do not fully tighten all fasteners until the entire section or structure is assembled and aligned. This allows for minor adjustments.
  4. Ensure you have sufficient assistance (2-3 people recommended) for handling large panels.

7.3 Water Leakage

• Issue: Water is entering the shed.
• Solution:
  1. Inspect all seams, joints, and around windows/doors for proper sealing. Apply additional sealant if necessary.
  2. Ensure the roof panels are correctly overlapped and secured, and that the sloped design is effectively shedding water.
  3. Check the ground around the shed for proper drainage. Water pooling around the base can lead to leaks.

8. Customer Support and Warranty

For any questions, concerns, or assistance with your CHERY INDUSTRIAL 8x12FT Outdoor Storage Shed, please contact our customer support team.

• Contact Information: Refer to the contact details provided in your product packaging or visit the official CHERY INDUSTRIAL website.
• Warranty Information: Specific warranty terms and conditions are typically included with your product documentation. Please retain your proof of purchase for warranty claims.

We are committed to providing high-quality products and excellent customer service.
