Budora WP2325483 Refrigerator Hinge Pin Instruction Manual

Product Overview

The Budora WP2325483 Hinge Pin is a replacement component designed for various refrigerator models. This pin is crucial for the proper functioning and alignment of your refrigerator door, allowing it to open and close smoothly.

Compatibility

This hinge pin is compatible with a wide range of refrigerators from brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore. Cross-reference part numbers include WP2325483, AP6007359, 2325483, 1408465, and PS11740473. For a comprehensive list of compatible models, please refer to the original product listing or your appliance's documentation.

Installation Instructions

Proper installation of the hinge pin ensures the refrigerator door operates correctly and prevents further damage. Follow these steps carefully.

Safety Precautions

• Always unplug the refrigerator from the power outlet before beginning any repair or maintenance.
• Wear appropriate safety gear, such as work gloves, to protect your hands.
• If the refrigerator door is heavy, consider having assistance to support it during removal and reinstallation.

Tools Required

• Screwdriver (Phillips or flathead, depending on your refrigerator model)
• Pliers (optional, for stubborn pins)
• Small pry tool or putty knife (optional)

Step-by-Step Installation

1. Prepare the Refrigerator: Unplug the refrigerator. Open the door that requires the hinge pin replacement. If replacing a bottom hinge pin, you may need to slightly lift the door. If replacing a top hinge pin, the door might need to be removed entirely.
2. Access the Hinge: Locate the hinge assembly where the pin needs to be replaced. This is typically at the top or bottom of the refrigerator door. You may need to remove a decorative cover or trim piece to access the hinge.
3. Remove the Old Hinge Pin (if applicable): Carefully remove the old hinge pin. This might involve unscrewing a retaining screw, prying it out with pliers, or lifting the door off the pin. Be cautious not to damage surrounding components.
4. Install the New Hinge Pin: Insert the new Budora WP2325483 Hinge Pin into the designated hole in the hinge bracket. Ensure it is seated firmly and correctly aligned.
5. Reassemble the Door: If the door was removed, carefully align it with the new hinge pin and lower it into place. Ensure the door swings freely and is properly aligned with the refrigerator frame. Reattach any covers or trim pieces.
6. Test Operation: Plug the refrigerator back into the power outlet. Open and close the door several times to ensure it operates smoothly and without obstruction. Check for any gaps or misalignment.

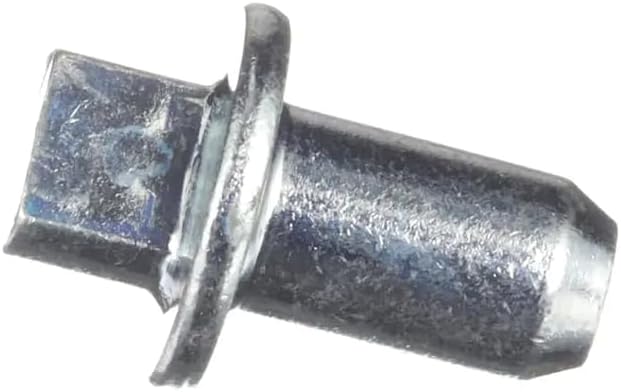

Image 1: Top-down view of the Budora WP2325483 Hinge Pin, showing its overall shape and design.

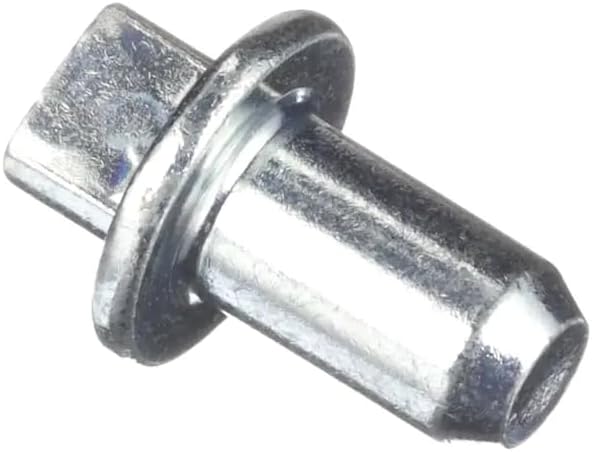

Image 2: Angled view of the hinge pin, highlighting the collar and shaft.

Operation and Function

The hinge pin serves as the pivot point for your refrigerator door. It allows the door to swing open and close smoothly while maintaining its alignment with the refrigerator cabinet. A properly functioning hinge pin ensures a tight seal, which is essential for energy efficiency and maintaining optimal internal temperatures.

Maintenance

To ensure the longevity and smooth operation of your refrigerator door, occasional maintenance of the hinge pin is recommended:

• Inspection: Periodically inspect the hinge pin for signs of wear, corrosion, or bending.
• Cleaning: If accessible, clean any dust or debris from around the hinge pin and bracket.
• Lubrication (if applicable): Some hinge designs may benefit from a small amount of food-grade lubricant applied to the pin to prevent squeaking and ensure smooth movement. Consult your refrigerator's specific manual for lubrication recommendations.

Troubleshooting

If you experience issues with your refrigerator door after hinge pin replacement, consider the following:

• Door Sagging or Not Closing Properly: Ensure the hinge pin is fully seated and not bent. Check if the door is properly aligned on both the top and bottom hinges.
• Squeaking Noise: A squeaking door often indicates friction in the hinge. Ensure the pin is clean and consider applying a small amount of appropriate lubricant if recommended by your appliance manufacturer.
• Difficulty Opening/Closing: Verify that no foreign objects are obstructing the hinge mechanism or the door's path. Recheck the installation steps to ensure the pin is correctly positioned.

Product Specifications

Warranty and Support

Warranty Information

This Budora WP2325483 Hinge Pin comes with a One Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For any questions regarding installation, compatibility, or warranty claims, please contact Budora customer support through the retailer where the product was purchased. Provide your product model number (PL-WP2325483) and purchase details for efficient assistance.
