YesParts 5304480641 Durable Microwave Cam

Introduction

This instruction manual provides essential information for the proper installation and understanding of the YesParts 5304480641 Durable Microwave Cam. This component is designed as a replacement part for specific microwave oven models, ensuring the correct operation of the door mechanism. Please read this manual thoroughly before attempting any installation.

Product Overview

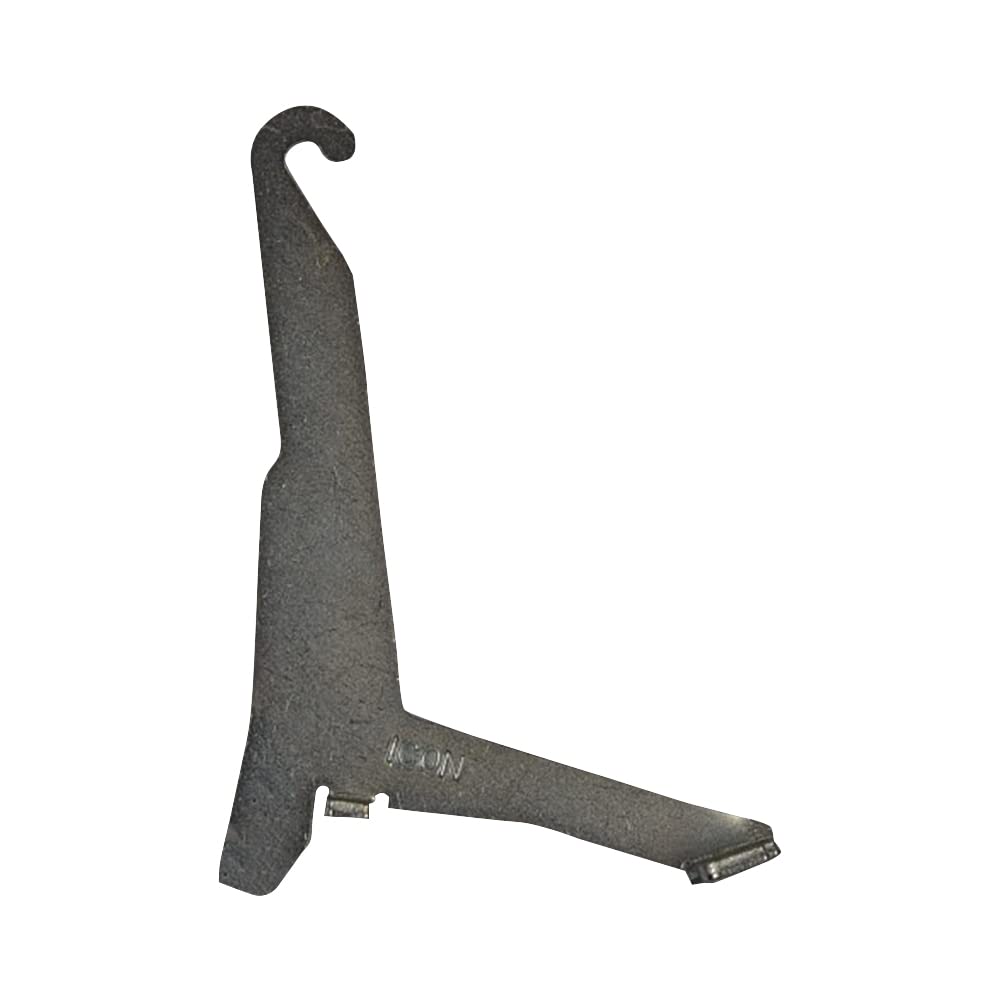

Figure 1: YesParts 5304480641 Durable Microwave Cam

The YesParts 5304480641 Durable Microwave Cam is a precision-engineered metal component critical for the proper functioning of your microwave oven's door latch system. This image displays the YesParts 5304480641 Durable Microwave Cam, a metal component designed for microwave oven door mechanisms. The cam features a hook-like top section and a flat, angled base with a small protrusion, indicating its role in engaging and disengaging the microwave door latch. It ensures that the microwave door opens and closes smoothly and securely, activating the necessary safety interlocks.

Compatibility

This microwave cam is compatible with a range of microwave oven models. Please verify your microwave's model number against the list below to ensure compatibility before installation. Using an incompatible part may lead to improper function or damage.

Compatible Models include:

• E30MC75JPS1
• E30MC75JPS2
• E30MC75JPS3
• E30MC75JSS1
• E30MC75JSS2
• E30MC75PPSB
• E30MC75PPSC
• E30MO75HPSB
• E30MO75HPSC
• EW27MC65PSB
• EW30MC65PSB
• EW30MC65PSC
• EW30MC65PSD
• EW30MC65PSE
• EW30SO60QSA
• EW30SO60QSB
• EW30SO60QSC
• EW30SO60QSDY

Installation (Setup)

Important Safety Notice: Before attempting any repair or installation on a microwave oven, ensure the appliance is completely disconnected from its power source. Microwave ovens contain high-voltage capacitors that can store a lethal electrical charge even after being unplugged. It is highly recommended that installation be performed by a qualified technician.

1. Disconnect Power: Unplug the microwave oven from the wall outlet. If hardwired, turn off the circuit breaker supplying power to the microwave.
2. Discharge Capacitor (Professional Recommended): If you are not a qualified technician, do not proceed. A qualified technician will safely discharge the high-voltage capacitor.
3. Access the Door Mechanism: Depending on your microwave model, you may need to remove the outer casing or specific panels to access the door latch assembly where the cam is located. Refer to your microwave's service manual for specific disassembly instructions.
4. Remove Old Cam: Carefully observe how the old cam is installed. Note its orientation and how it interacts with other components. Remove any retaining clips, screws, or pins holding the old cam in place.
5. Install New Cam: Position the new YesParts 5304480641 Microwave Cam in the exact same orientation as the old one. Secure it with the original retaining hardware. Ensure it moves freely and engages correctly with the door latch mechanism.
6. Reassemble Microwave: Carefully reassemble any panels or the outer casing that were removed. Ensure all screws and fasteners are tightened securely.
7. Test Functionality: Plug the microwave back into the power outlet or restore power at the circuit breaker. Test the door opening and closing several times to ensure the cam operates smoothly and the door latches securely. Verify that the microwave starts cooking only when the door is fully closed.

Operation

The YesParts 5304480641 Durable Microwave Cam is an internal component of your microwave oven's door mechanism. It does not have direct user-facing operational controls. Its function is integrated into the opening and closing of the microwave door, ensuring proper engagement of the door latch and activation of safety interlocks. Once correctly installed, the cam operates automatically as part of the microwave's design.

Maintenance

The YesParts 5304480641 Durable Microwave Cam is designed for long-lasting performance and typically requires no routine maintenance. However, to ensure its longevity and proper function:

• Avoid forcing the microwave door open or closed, as this can put undue stress on the cam and other door components.
• Keep the microwave door and surrounding areas clean to prevent debris from interfering with the door mechanism.
• If you notice any unusual resistance or noise when opening or closing the door, it may indicate an issue with the cam or other door components. Consult a qualified technician for inspection.

Troubleshooting

If you experience issues with your microwave door after installing the new cam, consider the following:

If troubleshooting steps do not resolve the issue, or if you are unsure about performing repairs, it is strongly advised to contact a qualified appliance repair technician.

Specifications

Warranty Information

This YesParts 5304480641 Durable Microwave Cam comes with a 1 Year Manufacturer Warranty. For details regarding warranty claims or coverage, please refer to the warranty documentation provided with your purchase or contact YesParts customer support.

Customer Support

For further assistance, technical support, or inquiries regarding the YesParts 5304480641 Durable Microwave Cam, please contact YesParts customer service. Refer to your purchase documentation or the YesParts official website for contact details.

Note: Always ensure to have your product model number (5304480641) and purchase details ready when contacting support.
