Shkalacar Trimmer Head Replacement Instruction Manual

1. Product Overview

The Shkalacar Trimmer Head is a high-quality replacement part designed for various Echo and Shindaiwa string trimmer models. Constructed from premium ABS material, this trimmer head offers enhanced durability and efficiency for all your trimming needs. Its design ensures a straightforward installation process, allowing you to quickly replace your old trimmer head and improve your trimmer's performance in tackling tough weeds and lawns.

This product replaces OEM part numbers 99944200907 and 99944200902.

2. Compatibility

This replacement trimmer head is specifically designed to fit the following models:

• Echo Speed Feed 400
• Echo SRM Series: SRM-230, SRM225, SRM-210, SRM2100
• Echo PAS Series (Weed Eater): PAS210, PAS211, PAS225, PAS230, PAS260
• Shindaiwa T Series: T195S, T220, T222, T2300, T231

3. Package Contents

Upon opening the package, you should find the following item:

• 1 x Shkalacar Trimmer Head

4. Setup and Installation

Replacing your old trimmer head with the Shkalacar Trimmer Head is a simple process. Follow these general steps:

1. Safety First: Ensure your string trimmer's engine is off and cool. Disconnect the spark plug wire to prevent accidental starting.
2. Remove Old Trimmer Head: Depending on your trimmer model, you may need a wrench or a pin to lock the shaft. Rotate the old trimmer head counter-clockwise to loosen and remove it. Some models may require clockwise rotation. Consult your trimmer's original manual if unsure.
3. Install New Trimmer Head: Align the new Shkalacar trimmer head with the shaft. Rotate it clockwise (or counter-clockwise if your old head was removed clockwise) until it is securely tightened. Ensure it is snug but do not overtighten.
4. Verify Installation: Gently tug on the trimmer head to ensure it is firmly attached and does not wobble.

This image displays a side-by-side comparison of an old trimmer head (left) and the new Shkalacar replacement trimmer head (right), illustrating the visual difference and fit for replacement.

5. Operating Instructions

Once the Shkalacar Trimmer Head is installed, operate your string trimmer according to its manufacturer's instructions. The Shkalacar Trimmer Head is designed to enhance cutting efficiency, allowing you to manage various outdoor tasks with ease.

• Always wear appropriate safety gear, including eye protection, gloves, and sturdy footwear.
• Maintain a firm grip on your trimmer and keep bystanders at a safe distance.
• Avoid hitting hard objects like rocks, fences, or concrete, as this can damage the trimmer line and head.
• For optimal performance, ensure the trimmer line is properly loaded and extended.

This image illustrates the Shkalacar trimmer head being used in different environments, including gardens, fences, lawns, and farms, highlighting its versatility for multiple trimming tasks.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Shkalacar Trimmer Head:

• Cleaning: After each use, clean the trimmer head to remove grass clippings, dirt, and debris. A stiff brush and damp cloth are usually sufficient.
• Line Replacement: Replace the trimmer line as needed. Refer to your trimmer's manual for recommended line type and diameter. The Shkalacar Trimmer Head is designed for easy line loading.
• Inspection: Periodically inspect the trimmer head for any signs of wear, cracks, or damage. Replace the head if significant damage is observed to prevent injury or further equipment damage.
• Storage: Store the trimmer head in a clean, dry place away from direct sunlight and extreme temperatures.

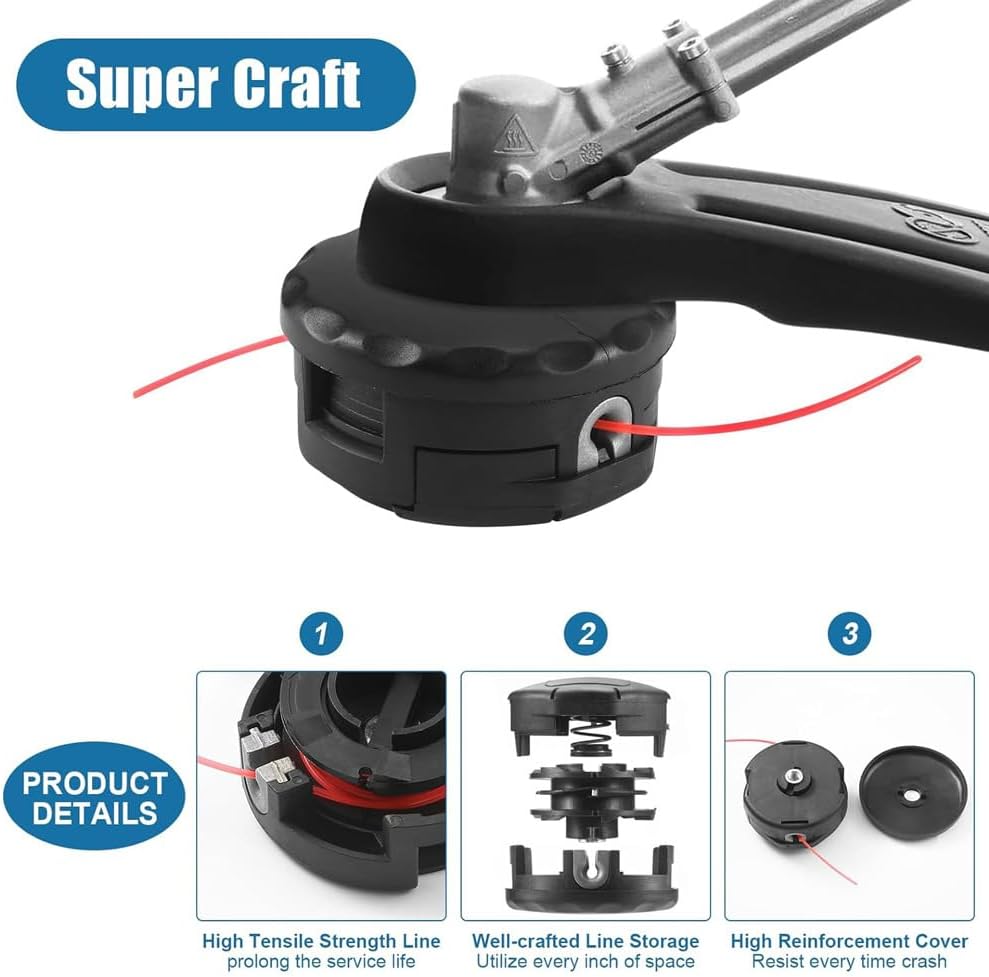

This image presents an exploded view of the Shkalacar trimmer head, detailing its internal components and construction. It emphasizes features like high tensile strength line, well-crafted line storage, and a high reinforcement cover, contributing to its durability and performance.

7. Troubleshooting

If you encounter issues with your Shkalacar Trimmer Head, consider the following:

• Trimmer Line Not Feeding: Ensure the line is not tangled inside the head. Check if the line is the correct diameter and type for your trimmer.
• Excessive Vibration: This could indicate an improperly installed head or an unbalanced line. Re-install the head and ensure the line is evenly distributed.
• Poor Cutting Performance: Replace old or worn trimmer line. Ensure the line is extended to the proper length.
• Head Not Attaching Securely: Verify that the thread size and type match your trimmer's shaft. Ensure no debris is obstructing the connection.

For persistent issues, consult your string trimmer's original manual or contact the seller for further assistance.

8. Specifications

This image provides a detailed view of the Shkalacar trimmer head, indicating its dimensions: a diameter of 4.1 inches, a height of 2.17 inches, and an M10 x 1.25mm thread size for proper fitment.

9. Warranty Information

Specific warranty details for this Shkalacar Trimmer Head are not provided within this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product listing on the retailer's website or contact the seller directly.

10. Support

If you require further assistance, have questions about installation, or need troubleshooting support beyond what is covered in this manual, please contact the seller or manufacturer through the platform where the product was purchased. Please have your order details and product model number (DCH7094634879575JJ) ready when contacting support.
