Hawkley Front Bumper Winch Plate for Toyota Tundra (2022-2026)

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Hawkley Front Bumper Winch Plate. This heavy-duty winch mounting bracket is designed to integrate seamlessly with the OEM front bumper of Toyota Tundra pickup trucks manufactured between 2022 and 2026. Please read all instructions carefully before proceeding with installation or use.

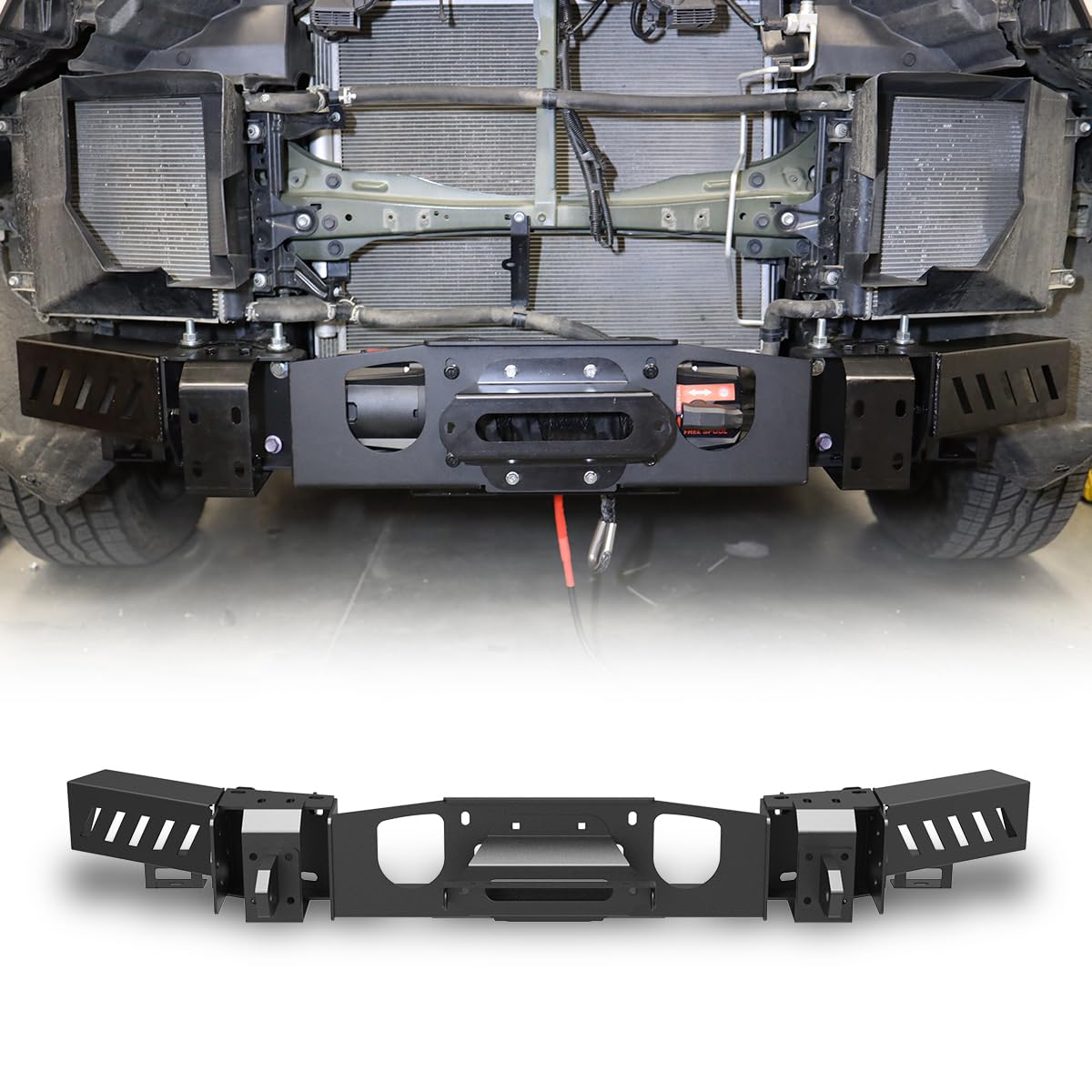

Figure 1: Hawkley Front Bumper Winch Plate

2. Product Features

• Compatibility: Specifically designed for Toyota Tundra 2022, 2023, 2024, 2025, and 2026 pickup trucks.
• Winch Capacity: Built-in winch plate supports winches up to 12,000 lbs (winch not included).
• Fitment: Compatible with factory OEM front bumpers and specific Hawkley front bumpers. Note: Not suitable for other modified front bumpers.
• Heavy-Duty Construction: Manufactured from strong, solid Q235A steel material for durability and protection.
• Corrosion Resistance: Features a powder-coated black textured finish for enhanced corrosion and rust resistance.

3. Components Overview

Familiarize yourself with the main components of the winch plate before installation.

Figure 2: Winch Plate Components

• Winch Mounting Screw Hole: Designated points for securing the winch.
• Shark Gill-Like Decorative Panels: Integrated design elements.
• Installation Point: Structural points for attaching the winch plate to the vehicle frame/bumper.
• Flip-Up License Plate Mounting Bracket: Allows for license plate relocation and access to the winch fairlead.

4. Setup and Installation

Professional installation is recommended. Ensure all necessary tools and safety equipment are available before beginning. This winch plate is designed to fit the factory OEM front bumper of your Toyota Tundra (2022-2026).

4.1 Winch Plate Dimensions and Capacity

Figure 3: Winch Plate Dimensions and Capacity

Refer to Figure 3 for critical dimensions to ensure compatibility with your chosen winch. The plate is engineered to support winches with a maximum capacity of 12,000 lbs.

4.2 Flip-Up License Plate Functionality

Figure 4: Flip-Up License Plate Operation

The integrated flip-up license plate bracket allows for easy access to the winch fairlead when needed, pivoting up to 90 degrees. Ensure the license plate is securely fastened to this bracket.

4.3 Material Construction

Figure 5: Premium Material Layers

The winch plate is constructed with a multi-layer process for maximum durability and corrosion resistance:

1. Carbon Steel Layer: Provides the core strength and structural integrity.
2. Electro-Galvanized "E-Coat" Layer: Offers an initial layer of corrosion protection.
3. Powder Coated Layer: A high-quality two-stage textured black powder coating provides superior rust and corrosion resistance, even if the outer layer is scratched.

4.4 Installation Overview

Figure 6: Winch Plate Installed with Winch

The winch plate is designed to be mounted behind the factory OEM front bumper. Secure the winch plate to the designated mounting points on the vehicle frame. Once the winch plate is installed, the winch can be mounted to the plate using the provided screw holes. Ensure all bolts are tightened to manufacturer specifications.

4.5 Visual Installation Effect

Figure 7: Before and After Installation

Figure 7 illustrates the aesthetic change to the vehicle's front profile after the winch plate is installed, providing a more robust and functional appearance.

5. Operating Instructions

The Hawkley Winch Plate itself does not require specific operational steps beyond its installation. Its function is to provide a secure mounting platform for an aftermarket winch. Once a winch is installed:

• Always refer to the winch manufacturer's instruction manual for proper operation, safety guidelines, and maintenance.
• Ensure the winch is securely fastened to the winch plate before each use.
• Utilize the flip-up license plate bracket to access the winch fairlead and cable as needed.
• Do not exceed the 12,000 lb maximum load capacity of the winch plate.

6. Maintenance

To ensure the longevity and performance of your Hawkley Front Bumper Winch Plate:

• Regular Inspection: Periodically check all mounting bolts for tightness, especially after off-road use.
• Cleaning: Clean the winch plate regularly with mild soap and water to remove dirt, mud, and road salt. Avoid abrasive cleaners that could damage the powder coating.
• Damage Check: Inspect the powder-coated finish for any chips or deep scratches. While the multi-layer coating offers good protection, touch up any significant damage to prevent rust.
• Structural Integrity: Check the steel structure for any signs of bending, cracking, or fatigue, particularly after heavy winching operations or impacts.

7. Troubleshooting

If you encounter issues with your Hawkley Front Bumper Winch Plate, consider the following:

• Improper Fitment: Double-check that the winch plate is correctly aligned with the OEM bumper and vehicle frame mounting points. Ensure no obstructions are preventing proper seating.
• Loose Fasteners: Verify that all bolts and nuts are securely tightened. Loose fasteners can lead to rattling or instability.
• Winch Installation Issues: If the winch itself is not functioning, consult the winch manufacturer's manual. Ensure the winch is properly seated and bolted to the Hawkley winch plate.
• Unusual Noises: Investigate any new noises coming from the front bumper area. This could indicate loose components or contact between parts.

For persistent issues, contact Hawkley customer support or a qualified automotive technician.

8. Specifications

9. What's in the Box

• 1x Hawkley Front Bumper Winch Plate

10. Warranty and Support

Warranty: Hawkley provides a 30-day return policy for items damaged upon opening or found to be defective. A 1-year warranty is provided by Hawkley for manufacturing defects.

Customer Support: For any questions, concerns, or warranty claims, please contact Rivacona Outdoor, the seller, or Hawkley directly. Refer to your purchase documentation for specific contact details.
