1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SWIMLINE HYDROTOOLS Sure-Flo 120 Sq Ft Inground Pool Cartridge Filter Tank. Please read all instructions carefully before beginning installation or operation.
The Hydrotools Sure-Flo cartridge filter system is designed to provide clear and clean water for your inground pool. It features a 120 square foot filter element with silver treatment for enhanced impurity removal and is constructed from durable, weather-resistant materials.

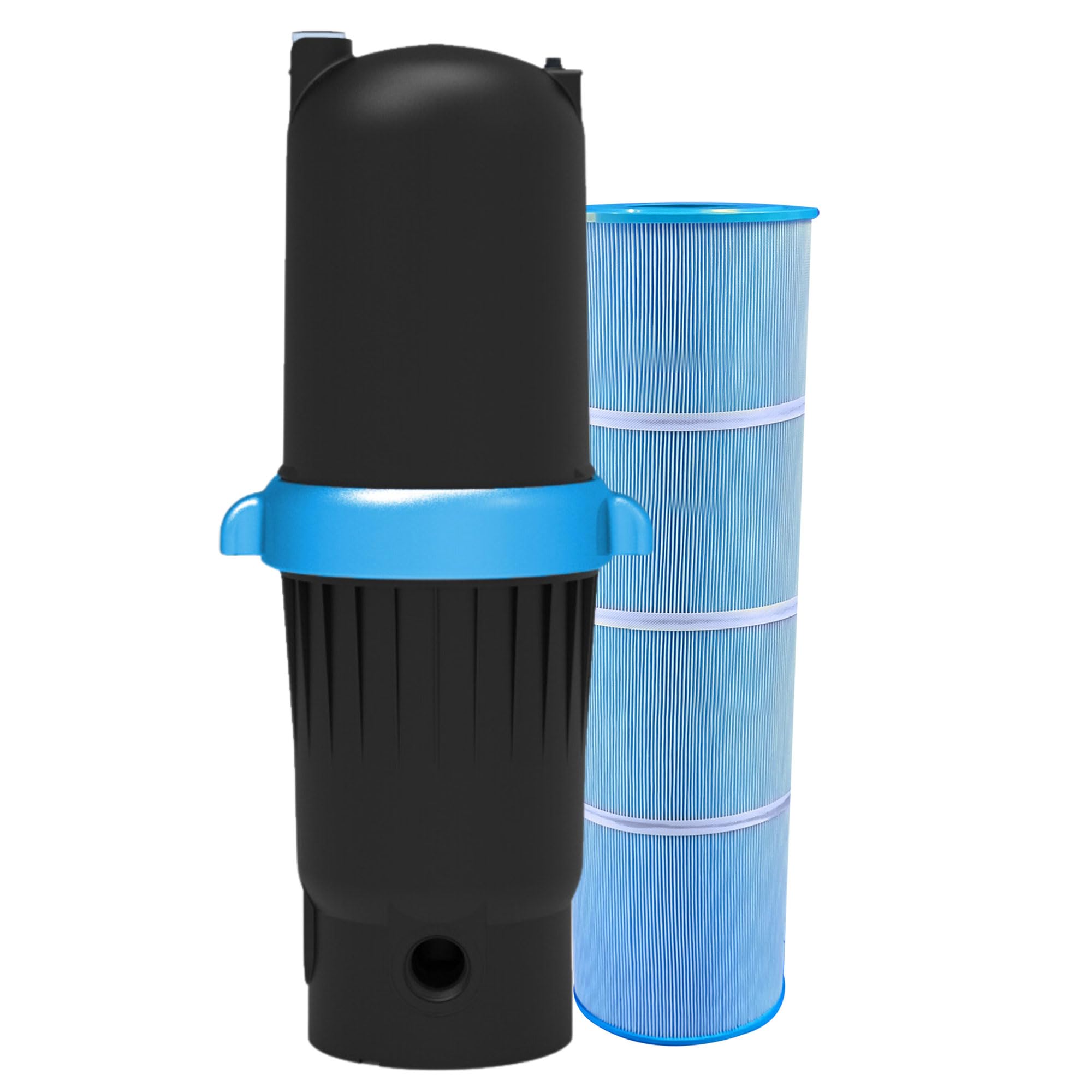

Image: The SWIMLINE HYDROTOOLS Sure-Flo 120 Sq Ft Inground Pool Cartridge Filter Tank.
2. Safety Information
Always observe basic safety precautions when installing and operating this product to reduce the risk of injury, fire, or electric shock.
- Read all instructions: Familiarize yourself with the entire manual before installation or use.
- Electrical Safety: Ensure all electrical connections are made by a qualified electrician and comply with local codes. Disconnect power before servicing.
- Pressure Safety: Do not operate the filter above the maximum recommended pressure (50 PSI / 3.5 BAR). Always relieve pressure before opening the filter tank.
- Chemical Handling: Use caution when handling pool chemicals. Follow manufacturer's instructions for safe use and storage.
- Children: Keep children away from pool equipment during operation and maintenance.
- Proper Installation: Install the filter on a level, solid surface capable of supporting its weight when filled with water.
3. Setup and Installation
The SWIMLINE HYDROTOOLS Sure-Flo filter tank is designed for inground pool applications. Proper installation is crucial for optimal performance and safety.
3.1 Components Included
- 120 Sq Ft Inground Pool Cartridge Filter Tank
- Anti-Microbial Filter Element (120 Sq Ft)
- Pressure Gauge
- Locking Ring System
- Air Relief Valve
- 2-inch Port In/Outlet Connectors
Image: Key components of the filter system, including the 2-inch ports, pressure gauge, locking ring, and filter element.
3.2 Installation Steps
- Positioning: Place the filter tank on a firm, level surface, preferably concrete, near your pool pump. Ensure adequate space for maintenance.
- Connect Plumbing: Connect the pool plumbing to the filter's inlet and outlet ports. The lower fitting is the output. Use appropriate PVC adapters and ensure all connections are watertight. Apply plumber's tape to threaded connections for a secure seal.
- Install Pressure Gauge: Carefully screw the pressure gauge into the designated port on the filter tank. Do not overtighten.
- Install Air Relief Valve: Screw the air relief valve into its port. Tighten only by hand to prevent damage.
- Insert Filter Element: Ensure the filter element is properly seated inside the tank.
- Secure Locking Ring: Place the top of the filter tank and secure it with the locking ring system. Ensure the O-ring is clean and properly lubricated with a silicone-based lubricant to prevent leaks. Tighten the locking ring firmly.
- Leak Check: After installation, turn on the pump and check all connections for leaks. Address any leaks immediately.
Image: A blue filter element being lowered into the black filter tank.
Image: Detail of the locking ring system on the filter tank.
4. Operating Instructions
Once installed, operating your Sure-Flo cartridge filter is straightforward.
- Priming the Pump: Ensure your pool pump is properly primed according to its manufacturer's instructions before starting.
- Starting the System: Open all necessary valves to allow water flow to and from the filter. Turn on your pool pump.
- Air Bleed: As the filter fills with water, open the air relief valve to allow trapped air to escape. Close the valve once a steady stream of water emerges.
- Monitor Pressure: Note the initial pressure reading on the pressure gauge. This is your clean filter operating pressure. As the filter collects debris, the pressure will gradually rise.
- Run Time: Operate your filter for a sufficient period each day to ensure proper water circulation and filtration. Consult your pool professional for recommended daily run times based on your pool size and usage.
Image: A pressure gauge indicating the system pressure.
5. Maintenance
Regular maintenance of your cartridge filter is essential for clear water and extended product life.
5.1 Cartridge Cleaning
The filter element should be cleaned when the pressure gauge reading is 8-10 PSI above the clean filter operating pressure, or when water flow to the pool noticeably decreases.
- Turn Off Pump: Always turn off the pool pump and close all valves to isolate the filter before performing any maintenance.
- Relieve Pressure: Open the air relief valve to release any trapped air and pressure from the system.
- Drain Water: If necessary, open the drain plug at the bottom of the tank to drain water.
- Remove Locking Ring: Loosen and remove the locking ring. Carefully lift the top of the filter tank.
- Remove Cartridge: Carefully lift the filter cartridge out of the tank.
- Clean Cartridge: Use a garden hose with a strong spray nozzle to thoroughly rinse debris from between the pleats of the cartridge. For stubborn dirt or oils, use a specialized cartridge filter cleaning solution.
- Inspect Cartridge: Check the cartridge for any tears, damage, or excessive wear. Replace if necessary.
- Reassemble: Place the clean cartridge back into the tank, ensuring it is properly seated. Replace the tank top and secure the locking ring. Ensure the O-ring is clean and lubricated.
- Restart System: Follow the operating instructions to restart your filter system.
Image: Illustration of the filtration process, highlighting the silver-treated element and easy cleaning.
5.2 O-Ring Maintenance
Periodically inspect the large O-ring on the filter tank for cracks or wear. Clean it and apply a silicone-based lubricant to ensure a proper seal and prevent leaks. Replace the O-ring if it shows signs of damage.
6. Troubleshooting
This section addresses common issues you might encounter with your filter system.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow / High Pressure | Clogged filter cartridge | Clean or replace the filter cartridge. |
| Low Water Flow / Low Pressure | Pump not primed, air leak in suction line, clogged skimmer/pump basket | Prime pump, check for air leaks, clean skimmer/pump baskets. |
| Water Leaking from Tank | Damaged or improperly seated O-ring, loose locking ring, cracked tank | Inspect, clean, and lubricate O-ring; tighten locking ring; inspect tank for damage. |
| Cloudy Pool Water | Dirty filter, improper chemical balance, insufficient run time | Clean filter, test and adjust pool chemicals, increase filter run time. |
| Air Relief Valve Leaking/Broken | Overtightening, material fatigue | Replace valve. Avoid overtightening during installation. |
7. Specifications
Detailed specifications for the SWIMLINE HYDROTOOLS Sure-Flo 120 Sq Ft Inground Pool Cartridge Filter Tank.
| Feature | Specification |
|---|---|
| Brand | Swimline |
| Model Number | 76122 |
| Filter Area | 120 Sq Ft |
| Maximum GPM (GPH) | 120 GPM / 7200 GPH |
| Max. Recommended Pool Size | Up to 57,600 Gallons |
| Maximum Pressure | 50 PSI / 3.5 BAR |
| Inlet / Outlet Port Compatibility | 2 Inches |
| Element Dimensions (Height x Diameter) | Inside: 28.19" x 3.98", Outside: 28.19" x 8.94" |
| Recommended Pump | 1 HP |
| Material | Plastic (Double Reinforced Glass Co-Polymer) |
| Color | Black / Blue |
| UPC | 723815964038 |
Image: Visual representation of the filter tank with key dimensions and specifications.
8. Warranty and Support
8.1 Manufacturer's Warranty
SWIMLINE HYDROTOOLS provides a 1-year guarantee against manufacturing defects for this product. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Swimline customer service. Our team is based in New York, USA, and is available to assist you.
Visit the official Swimline Store for more information and contact details.
