1. Introduction
Thank you for choosing the OmySalon Professional Multi-Purpose Treatment Chair, Model SBWP-BL. This chair is designed for versatility and comfort, suitable for various professional applications including tattooing, lash services, massage, facials, microblading, waxing, and physical therapy. This manual provides essential information for safe assembly, operation, and maintenance of your new treatment chair.
2. Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 440 lbs (200 kg). Exceeding this limit may result in injury or damage to the chair.
- Assembly: Ensure all components are securely fastened before use. If the product is delivered in multiple parts, ensure all parts are present and correctly installed.
- Stability: Always place the chair on a flat, stable, and non-slip surface.
- Adjustments: Exercise caution when making adjustments to prevent pinching or sudden movements. Ensure the client is safely positioned before adjusting the chair.
- Children and Pets: Keep children and pets away from the chair during operation and adjustment.
- Footrest Usage: Do not sit or stand on the footrest section of the chair.
3. Product Features
The OmySalon Professional Multi-Purpose Treatment Chair offers a range of features designed for optimal functionality and client comfort:
- Height Adjustment: Equipped with a hydraulic rotating mechanism, allowing for a 360° swivel with a locking mechanism. The height is adjustable within a 6-inch range, providing flexibility for various procedures.
- Adjustable Backrest and Footrest: The backrest can be adjusted up to 65°, and the footrest can be adjusted down to 45°, allowing the chair to lay completely flat.
- Split Leg Design: The leg pads can be adjusted independently at different angles, facilitating specialized procedures such as tattooing, massage, or manicures on one leg.
- Premium Material: Constructed with high-quality faux leather and high-elastic foam for softness, elasticity, comfort, and durability. The sturdy bottom frame supports a weight capacity of 440 lbs.
- Removable Components: Armrests and headrest can be easily assembled or removed for convenience and adaptability. The headrest features a face opening for prone positions.
- Wide Usage: Suitable for back massage, waxing, facials, eyebrow or threading, tattoo procedures, and other salon or spa needs.

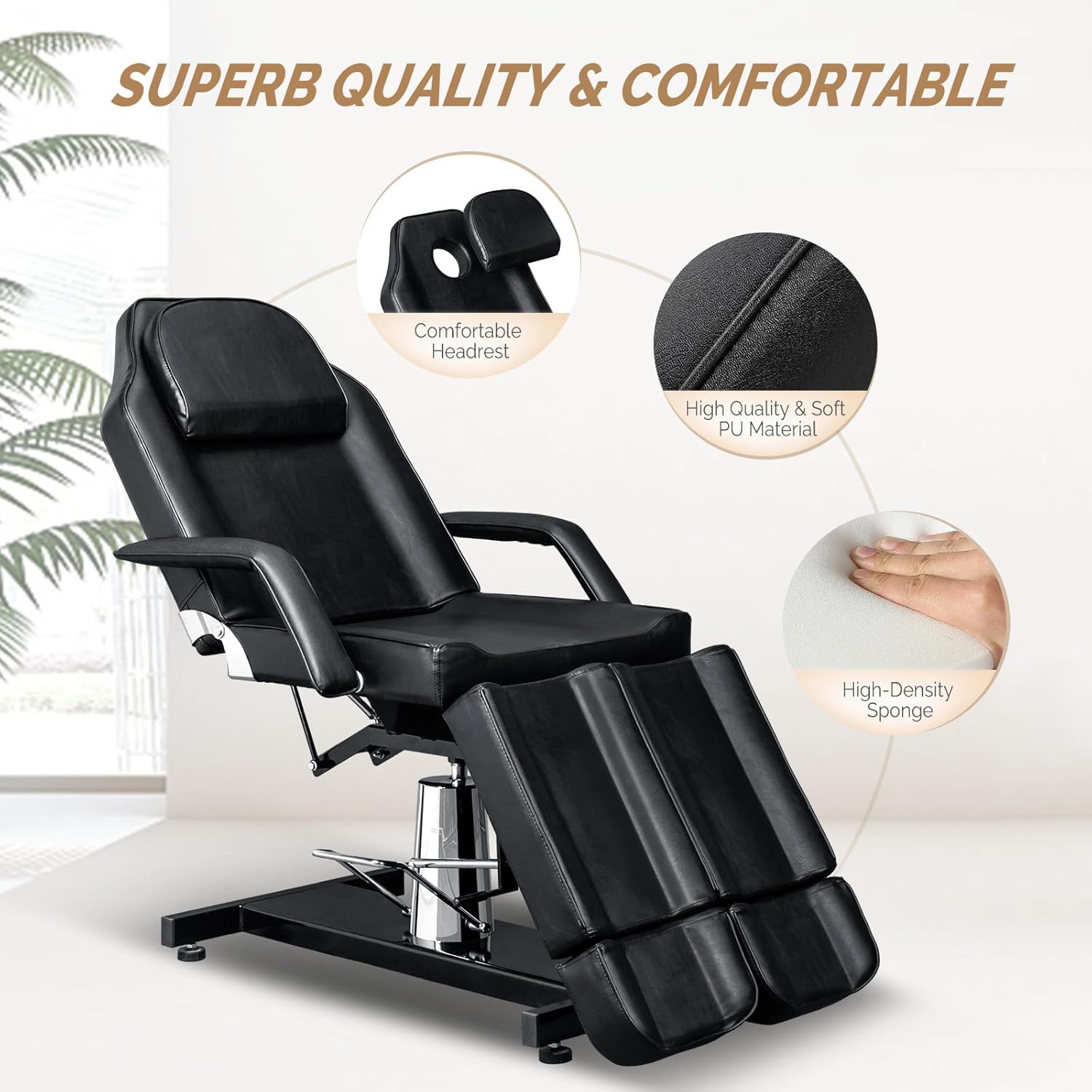

Figure 3.1: Quality and Comfort Features
4. Assembly Instructions
Assembly of the OmySalon Professional Multi-Purpose Treatment Chair is required. A detailed instruction manual with step-by-step guidance and diagrams is included in the product packaging. Please follow these instructions carefully to ensure correct and safe assembly.
- Unpack all components and verify against the parts list provided in the separate assembly manual.
- Follow the sequential steps for attaching the base, hydraulic pump, seat, backrest, armrests, and leg sections.
- Ensure all bolts and fasteners are tightened securely.
- If the chair was delivered in two separate parts, ensure both are installed correctly before use.
5. Operating Instructions
This section details how to adjust and operate your OmySalon treatment chair for various positions and uses.
5.1. Adjusting Height and Rotation

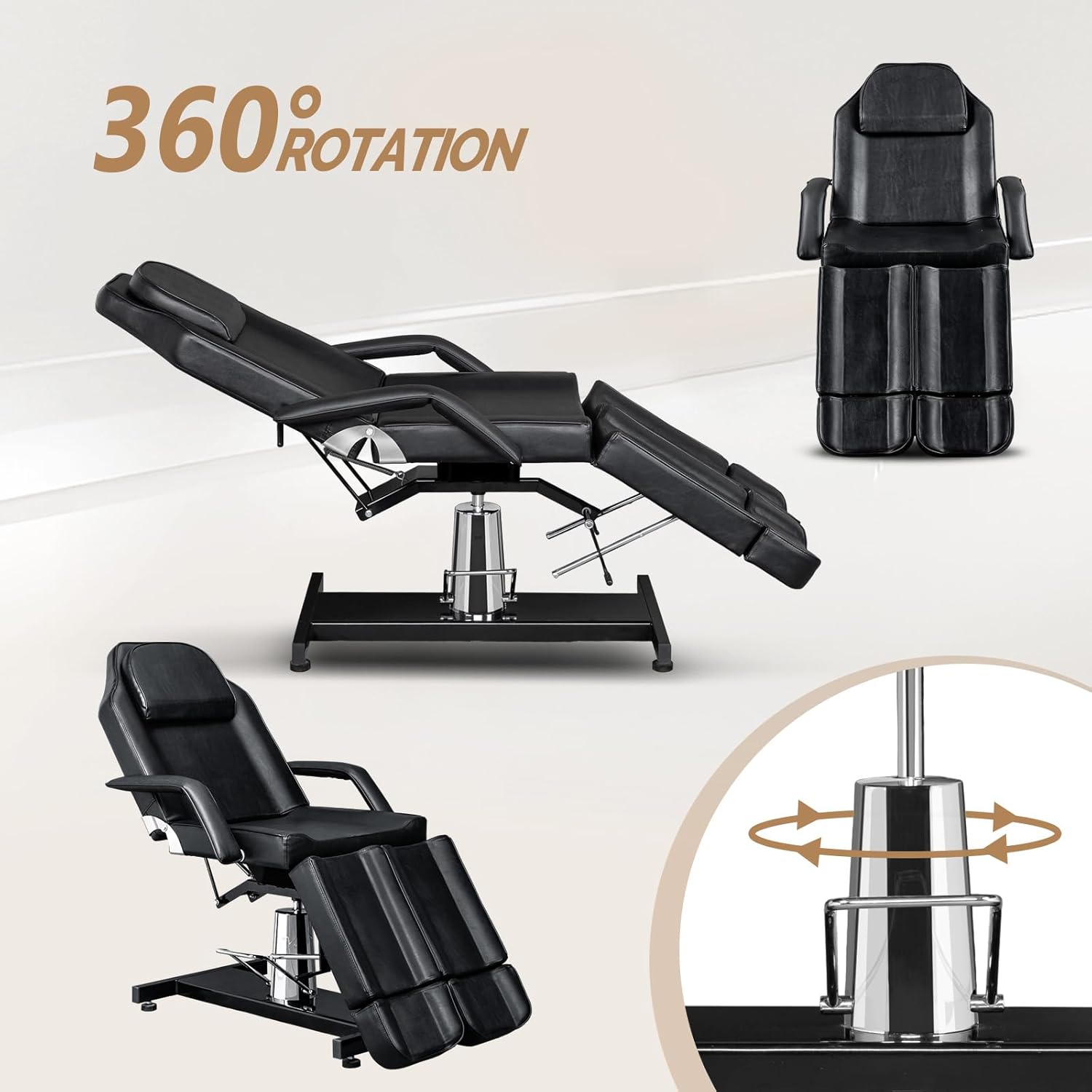

Figure 5.1: 360° Rotation and Height Adjustment
- Height Adjustment: Use the hydraulic foot pedal located at the base of the chair to raise or lower the seat to your desired working height.
- Rotation: The chair can rotate 360 degrees. To rotate, gently push the chair in the desired direction. A locking mechanism is integrated into the hydraulic system to secure the chair in place.
5.2. Adjusting Backrest and Footrest
Figure 5.2: Backrest and Footrest Adjustment
- Backrest: Utilize the lever on the side of the backrest to recline it from an upright position (0°) to a maximum of 65°.
- Footrest: Use the lever on the side of the footrest to adjust its angle, allowing it to lower up to 45° from a flat position. The chair can be positioned completely flat for full body treatments.
5.3. Utilizing Split Adjustable Legs
Figure 5.3: Split Adjustable Legs
- Each leg section can be adjusted independently using the dedicated levers. This feature is particularly useful for procedures requiring access to a single leg or for client comfort.
5.4. Chair Configurations for Various Treatments
Figure 5.4: Versatile Chair Configurations
- Form I (Lies Facing Down): Remove the headrest and adjust the backrest and footrest to create a flat surface for procedures like back tattoos.
- Form II (Sitting Position): Adjust the backrest to an upright position and the footrest downwards for clients requiring a sitting posture, such as for arm or palm tattoos.
- Form III (Lies Supine): Adjust the backrest and footrest to a flat or slightly reclined position for treatments like facials or facial tattoos.

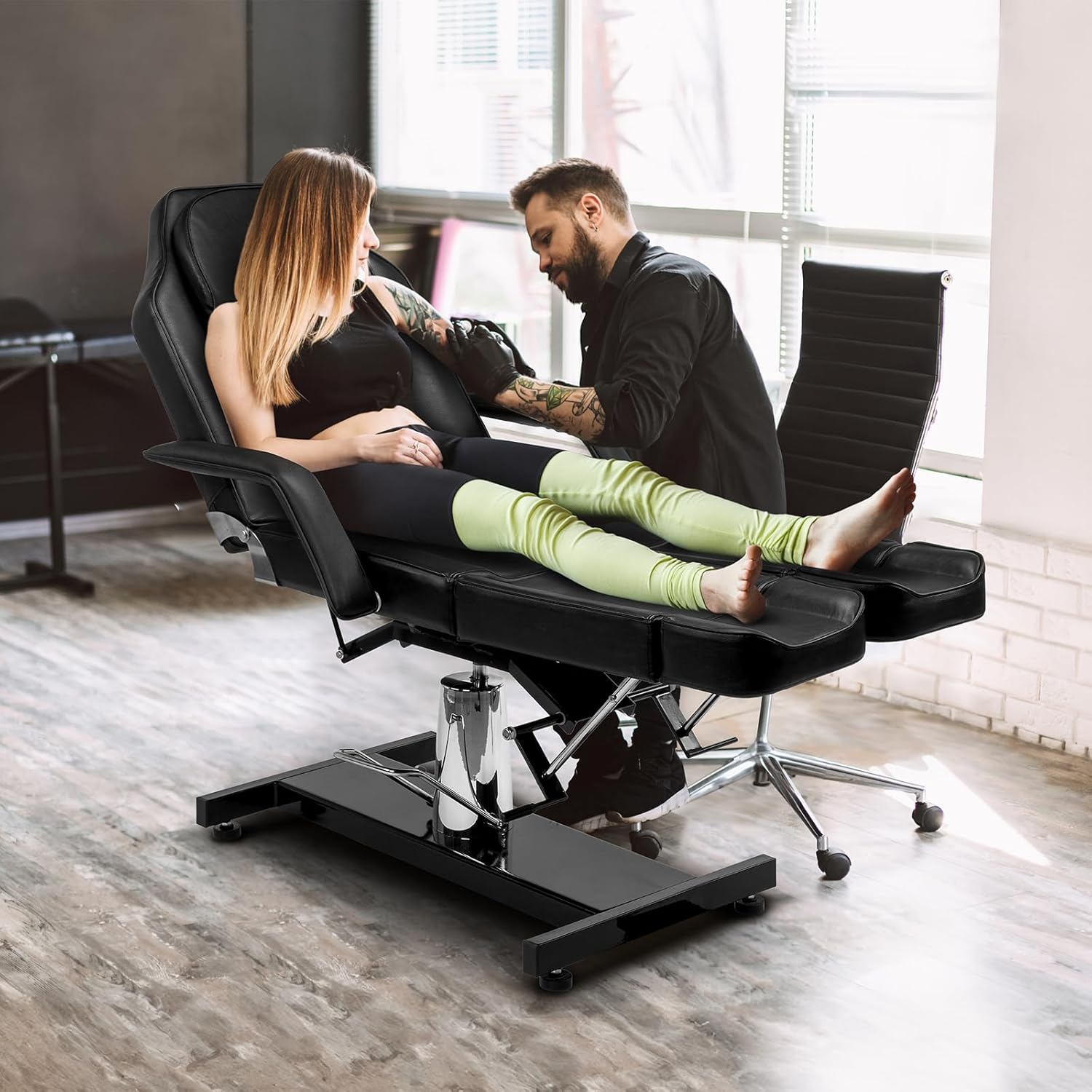

Figure 5.5: Chair in Use for Tattooing
6. Maintenance and Care
Proper maintenance ensures the longevity and hygiene of your OmySalon treatment chair.
- Cleaning: Wipe the faux leather surfaces with a dry cloth after each use. For deeper cleaning, use a mild, non-abrasive cleaner specifically designed for faux leather. Avoid harsh chemicals or solvents that may damage the material.
- Disinfection: For professional environments, disinfect surfaces with an appropriate disinfectant solution as per local health regulations. Always test the disinfectant on an inconspicuous area first.
- Moving the Chair: When moving the chair, lift it rather than dragging it to prevent damage to the base and flooring.
- Regular Checks: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten if necessary.
7. Troubleshooting
If you encounter any issues with your OmySalon Professional Multi-Purpose Treatment Chair, please refer to the following common solutions:
- Difficulty Adjusting Height: Ensure the hydraulic pedal is fully engaged or disengaged as required. Check for any obstructions around the hydraulic pump.
- Chair Wobbles: Verify that the chair is placed on a level surface. Check all assembly bolts and tighten any loose connections.
- Stiff Adjustments: If the backrest or footrest adjustments feel stiff, ensure no weight is applied during adjustment. A small amount of silicone-based lubricant can be applied to moving parts if necessary, avoiding contact with upholstery.
For persistent issues or problems not listed here, please contact OmySalon customer support for assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | OmySalon |
| Model Number | SBWP-BL |
| Color | Black W/ Split Legs |
| Material | Faux Leather |
| Item Weight | 94.8 pounds (43 kg) |
| Product Dimensions | 73 x 27.6 x 24 inches (185.4 x 70.1 x 61 cm) |
| Max Weight Capacity | 440 lbs (200 kg) |
| Backrest Adjustment | Up to 65° |
| Footrest Adjustment | Down to 45° |
| Height Adjustment Range | 6 inches (15.24 cm) |
| Rotation | 360° with locking mechanism |
Figure 8.1: Product Dimensions and Height Adjustment
9. Warranty and Support
For information regarding warranty coverage, returns, or technical support, please refer to the warranty card included with your product or visit the official OmySalon website. You may also contact OmySalon customer service directly for assistance with any product-related inquiries.
Contact Information: Please refer to your product packaging or the OmySalon official website for the most current customer support contact details.
