Doslnlya XF8 Professional Mixer User Manual

1. Product Overview

The Doslnlya XF8 Professional Mixer is an advanced 8-channel digital sound board console system designed for a wide range of audio applications, from live performances to studio recording and home entertainment. It integrates essential features such as USB and Bluetooth connectivity, MP3 input, 48V phantom power for condenser microphones, and a comprehensive built-in 99 DSP effects processor. This manual provides detailed instructions to help you set up, operate, and maintain your XF8 mixer for optimal performance.

Front view of the XF8 Professional Mixer, showcasing its 8 input channels, faders, knobs, and digital display.

2. Key Features

• USB/Bluetooth Functionality: Compatible with USB/flash card readers and MP3 devices for streaming music and recording. Bluetooth allows wireless audio streaming from smartphones and tablets.
• 99 DSP Effect Processor: Offers a wide range of digital sound effects to enhance audio for various scenarios, including stage performances and live shows.
• 7-Band Equalizer Control: Provides precise total volume adjustment and fine-tuning for accurate and clear sound quality.
• Mute and Group Settings: Each channel features an independent mute button. A unique custom grouping feature allows for individual adjustment and control of grouped channels.
• Multi-Function Use: Delivers crisp, true sound quality and is suitable for live mixing, podcasting, audio streaming, video editing, and home karaoke.

3. Component Identification

Familiarize yourself with the various controls and connection points on your XF8 mixer. Refer to the diagram below for a detailed layout.

A detailed diagram illustrating the various controls and interfaces on the XF8 mixer, including input jacks, gain controls, EQ knobs, effect send, faders, and output ports.

Key Controls:

• MIC/LINE Inputs (Channels 1-8): XLR and 1/4" TRS combo jacks for microphones or line-level instruments.
• GAIN Control: Adjusts the input sensitivity for each channel.
• EQ (High, Mid, Low): Three-band equalizer for tone shaping on each channel.
• AUX1/AUX2: Auxiliary sends for external effects or monitor mixes.
• FX (Effects Send): Controls the amount of signal sent to the internal DSP effects processor.
• PAN: Adjusts the stereo position of the channel signal.
• MUTE Button: Silences individual channels.
• CHANNEL FADERS: Controls the volume level of each channel.
• MAIN OUT (L/R): XLR and 1/4" TRS outputs for connecting to main speakers or amplifiers.
• PHONES: Headphone output with dedicated volume control.
• USB/MP3 Section: Controls for USB playback, recording, and Bluetooth functions.
• DSP Display & Knob: Selects and adjusts the 99 built-in digital effects.
• +48V PHANTOM Power: Activates phantom power for condenser microphones.

4. Setup Guide

Follow these steps to set up your XF8 Professional Mixer:

1. Unpacking: Carefully remove the mixer from its packaging and inspect for any damage. Retain the packaging for future transport or storage.
2. Power Connection: Connect the provided power adapter to the mixer's power input and then to a suitable electrical outlet. Ensure the mixer's power switch is in the OFF position before connecting.
3. Connecting Output Devices: Connect your main speakers, power amplifier, or recording interface to the MAIN OUT (L/R) jacks using appropriate cables (XLR or 1/4" TRS).
4. Connecting Input Devices:
   • Microphones: Connect microphones to the MIC/LINE inputs (XLR for condenser/dynamic, 1/4" TRS for dynamic). If using condenser microphones, activate the +48V PHANTOM power switch.
   • Instruments/Line Devices: Connect instruments (e.g., keyboards, guitars with DI boxes) or other line-level devices to the MIC/LINE inputs using 1/4" TRS cables.
   • External Audio Players: Use the MP3 input for direct connection of MP3 players or other audio sources.
5. Headphones: Connect your headphones to the PHONES jack for monitoring.
6. Initial Power On: Once all connections are secure, turn on the mixer's power switch.

The XF8 mixer shown connected to a guitar, wired microphone, wireless microphone system, computer, pull rod speaker, and pure post-power amplifier, demonstrating its broad compatibility.

5. Operation Guide

5.1. Audio Input and Gain Control

• Ensure all channel faders are at their lowest setting before starting.
• Connect your audio source to the desired MIC/LINE input.
• Slowly increase the GAIN knob for that channel until the signal peak indicator (PEAK LED) occasionally flashes. This indicates an optimal input level without clipping.
• Gradually raise the channel fader to bring the signal into the mix.

5.2. Equalization (EQ) Adjustment

Each channel features a 3-band EQ (High, Mid, Low) to shape the tone of your audio. The main output also has a 7-band graphic equalizer for overall mix adjustment.

Graphical representation of the high, mid, and low equalization curves, illustrating how each channel's tone can be independently adjusted.

• HIGH: Adjusts the treble frequencies (e.g., clarity of vocals, crispness of cymbals).
• MID: Controls the mid-range frequencies (e.g., presence of vocals, body of instruments).
• LOW: Modifies the bass frequencies (e.g., warmth of bass guitar, punch of kick drum).
• Use the 7-band graphic equalizer on the master section to fine-tune the overall frequency response of your mix.

5.3. DSP Effects Usage

The XF8 mixer includes 99 built-in digital signal processing (DSP) effects to add depth and character to your sound.

A visual display of the 99 built-in DSP effects, categorized into Reverb, Delay, Echo, Chorus/Flange, Tremolo, Wah-Wah, RadioVoice, PitchShifter, DisOdr, and Multi FX, with their corresponding number ranges.

• Use the PROGRAM (PUSH) knob in the DSP section to browse through the 99 effects. The digital display will show the effect number.
• Press the knob to select the desired effect.
• Adjust the FX knob on each channel to send the desired amount of that channel's signal to the effects processor.
• Use the master FX RETURN fader to control the overall volume of the effects in the main mix.

5.4. Mute and Grouping Functions

• Mute: Press the MUTE button on any channel to instantly silence its output without changing its fader position.
• Grouping: The XF8 allows for custom grouping of channels. Refer to the detailed diagram for specific grouping controls. Grouped channels can be adjusted and muted together, providing flexible control over multiple inputs.

5.5. USB and Bluetooth Connectivity (Playback & Recording)

The XF8 offers versatile digital audio capabilities.

An illustration highlighting the USB recording, USB flash drive playback, and OTG recording capabilities of the XF8 mixer, showing a USB drive connected.

• USB Playback: Insert a USB flash drive with MP3 files into the USB port. Use the controls in the USB/MP3 section (Play/Pause, Next/Previous, Mode) to navigate and play audio. The mixer supports Single Cycle, Loop Play, and Random Play modes.
• USB Recording: You can record your mix directly to a USB memory stick or to a computer via the USB connection. Ensure your USB drive has sufficient free space and is formatted correctly.
• OTG Recording: Supports On-The-Go (OTG) recording for compatible mobile devices.

The XF8 mixer demonstrating its wireless Bluetooth connectivity with a mobile phone, enabling audio streaming.

• Bluetooth Connectivity: Press the MODE switch in the USB/MP3 section to enter Bluetooth mode. The display will indicate Bluetooth pairing readiness. Search for "XF8" on your Bluetooth-enabled device (e.g., smartphone, tablet) and pair. Once connected, you can stream audio wirelessly to the mixer.

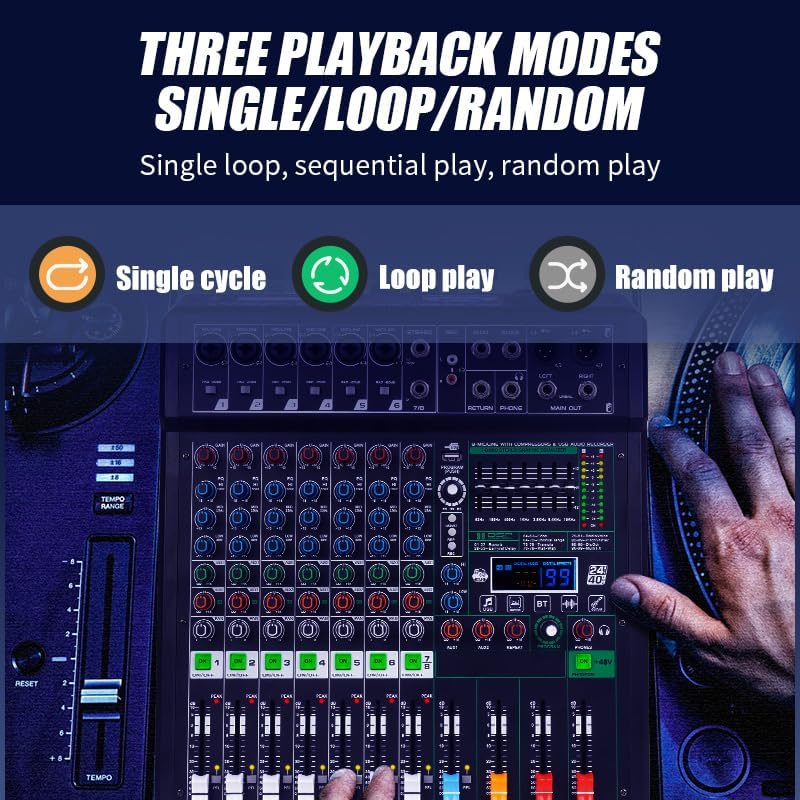

Icons representing the three playback modes for USB/MP3: Single Cycle, Loop Play, and Random Play.

6. Maintenance and Care

Proper maintenance ensures the longevity and optimal performance of your XF8 mixer.

• Cleaning: Use a soft, dry cloth to wipe down the mixer's surface. For stubborn dirt, a slightly damp cloth can be used, followed by a dry one. Avoid abrasive cleaners, solvents, or waxes.
• Dust Protection: When not in use, cover the mixer with a dust cover to prevent dust and debris from entering the controls and internal components.
• Environmental Conditions: Operate and store the mixer in a cool, dry environment, away from direct sunlight, excessive heat, humidity, and extreme temperature fluctuations.
• Cable Management: Ensure cables are neatly organized and not under strain to prevent damage to connectors and ports.
• Ventilation: Do not block the ventilation openings on the mixer to prevent overheating.

7. Troubleshooting

If you encounter issues with your XF8 mixer, refer to the following common problems and solutions:

8. Technical Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Doslnlya website. Keep your proof of purchase for any warranty claims.

If you require further assistance or have questions not covered in this manual, please contact Doslnlya customer support through their official channels.
