SLUNSE Exercise Bike Model 509C

1. Introduction

Thank you for choosing the SLUNSE Exercise Bike Model 509C. This manual provides essential information for the safe assembly, operation, and maintenance of your new exercise bike. Please read this manual thoroughly before initial use and retain it for future reference. Proper use and care will ensure optimal performance and longevity of your equipment.

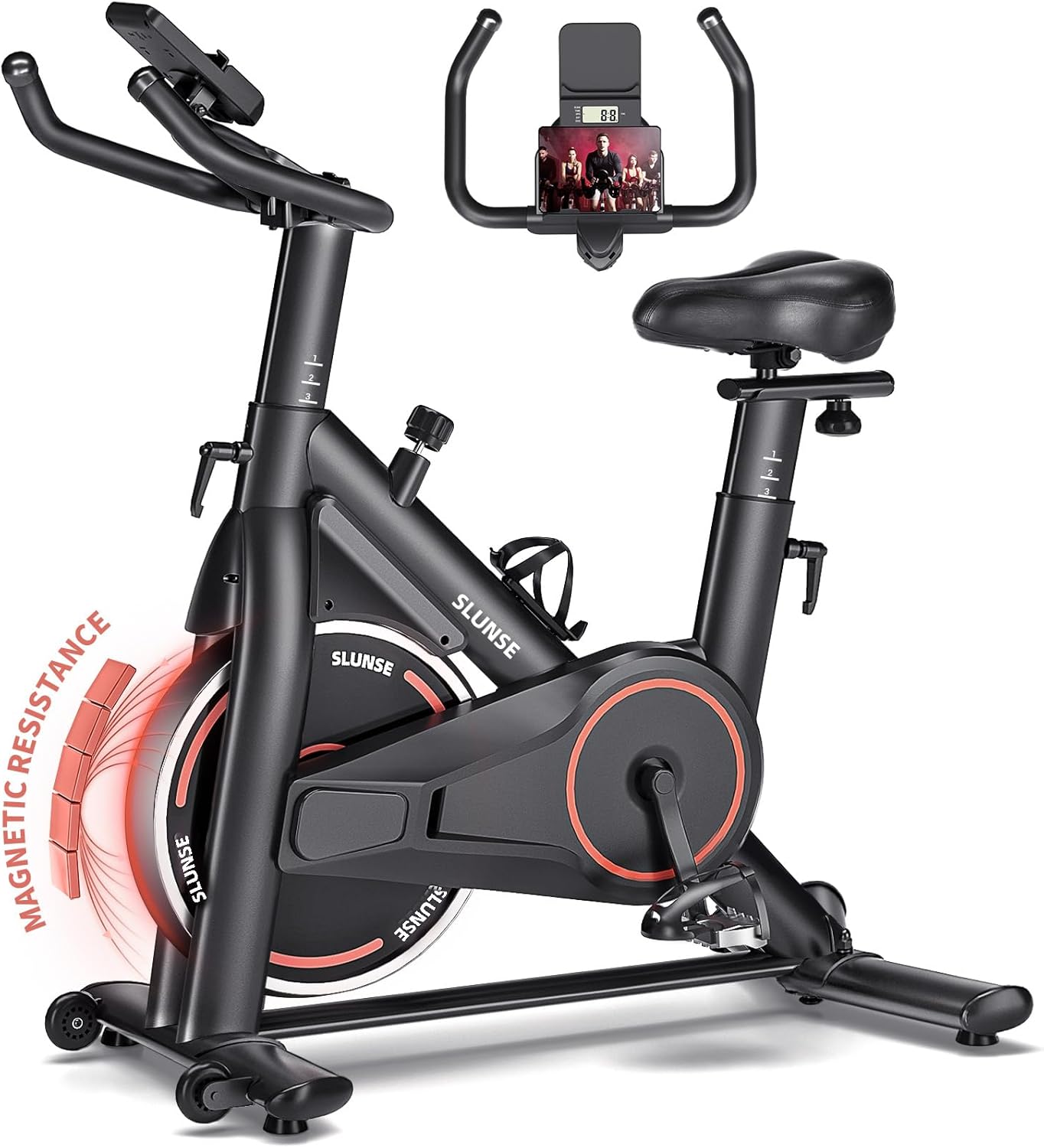

Image: The SLUNSE Exercise Bike Model 509C, showcasing its magnetic resistance system and digital monitor.

2. Important Safety Instructions

Before using the SLUNSE Exercise Bike, please observe the following safety precautions:

• Consult a physician before starting any exercise program.
• Keep children and pets away from the equipment during use.
• Place the exercise bike on a flat, stable surface. Ensure adequate space around the bike.
• Wear appropriate exercise clothing and athletic shoes. Avoid loose clothing that could get caught in moving parts.
• Inspect the bike for loose or damaged parts before each use. Do not use if any components are compromised.
• The maximum user weight capacity for this bike is 350 lbs (158 kg).
• Use the emergency brake function (red knob) to stop the flywheel quickly if needed.
• Do not attempt to modify the exercise bike.

Image: Illustration highlighting the stable triangular structure and sturdy steel frame of the SLUNSE Exercise Bike, designed for safety and a 350 lbs weight capacity.

3. Product Overview

The SLUNSE Exercise Bike Model 509C is designed for indoor cycling, offering a quiet and stable workout experience. Key features include:

• Magnetic Resistance System: Provides smooth, quiet, and precise resistance adjustments.
• Heavy-Duty Flywheel: A 35 lbs flywheel ensures stability during intense workouts.
• Adjustable Design: 2-way adjustable handlebar and 4-way adjustable cushioned seat to accommodate users from 4.8 to 6.4 feet tall.
• Multi-function LCD Monitor: Tracks time, speed, distance, and calories.
• Integrated Holders: Water bottle holder and rotatable phone/tablet holder for convenience.
• Belt Drive System: Maintenance-free for a smooth and quiet ride.
• Transport Wheels: For easy movement and storage.

4. Assembly and Setup

Your SLUNSE Exercise Bike is approximately 80% pre-assembled. The remaining assembly typically takes 20-25 minutes. All necessary installation tools are included.

4.1 Unpacking

1. Carefully remove all components from the packaging.
2. Verify that all parts listed in the assembly manual (included in the box) are present and undamaged.
3. Place the main frame on a clear, level surface.

4.2 Attaching Stabilizers

Attach the front and rear stabilizer bars to the main frame using the provided bolts and washers. Ensure they are securely tightened.

4.3 Installing Pedals

Identify the left (L) and right (R) pedals. Thread the left pedal counter-clockwise and the right pedal clockwise into their respective crank arms. Tighten firmly with a wrench.

4.4 Attaching Seat and Handlebar

Insert the seat post and handlebar post into their respective slots on the main frame. Adjust to your desired height and secure with the adjustment knobs.

4.5 Installing Monitor and Accessories

Mount the LCD monitor onto the handlebar post. Connect any necessary sensor wires. Attach the phone/tablet holder and water bottle holder as instructed in the assembly guide.

For detailed visual instructions, refer to the assembly video guides provided by SLUNSE.

5. Operating Instructions

5.1 Adjusting Seat and Handlebar

To ensure a comfortable and effective workout, adjust the seat and handlebar to your body dimensions.

• Seat Height: Loosen the knob on the vertical seat post. Adjust the seat up or down until your leg has a slight bend at the knee when the pedal is at its lowest point. Tighten the knob securely.
• Seat Forward/Backward: Loosen the knob under the seat. Slide the seat forward or backward to find a comfortable position relative to the handlebars. Tighten the knob.
• Handlebar Height: Loosen the knob on the handlebar post. Adjust the handlebar up or down to a comfortable height that allows for a relaxed upper body posture. Tighten the knob.

Image: Diagram illustrating the adjustable seat (4-way) and handlebar (2-way) positions, accommodating users between 4.8 and 6.4 feet in height.

5.2 Adjusting Magnetic Resistance

The SLUNSE Exercise Bike features a magnetic resistance system controlled by a red knob. This allows for precise adjustments and a quiet operation.

• Increase Resistance: Turn the red knob clockwise to increase the resistance level. There are 100 levels of resistance available.
• Decrease Resistance: Turn the red knob counter-clockwise to decrease the resistance level.
• Emergency Brake: Press the red knob down firmly to engage the emergency brake and quickly stop the flywheel.

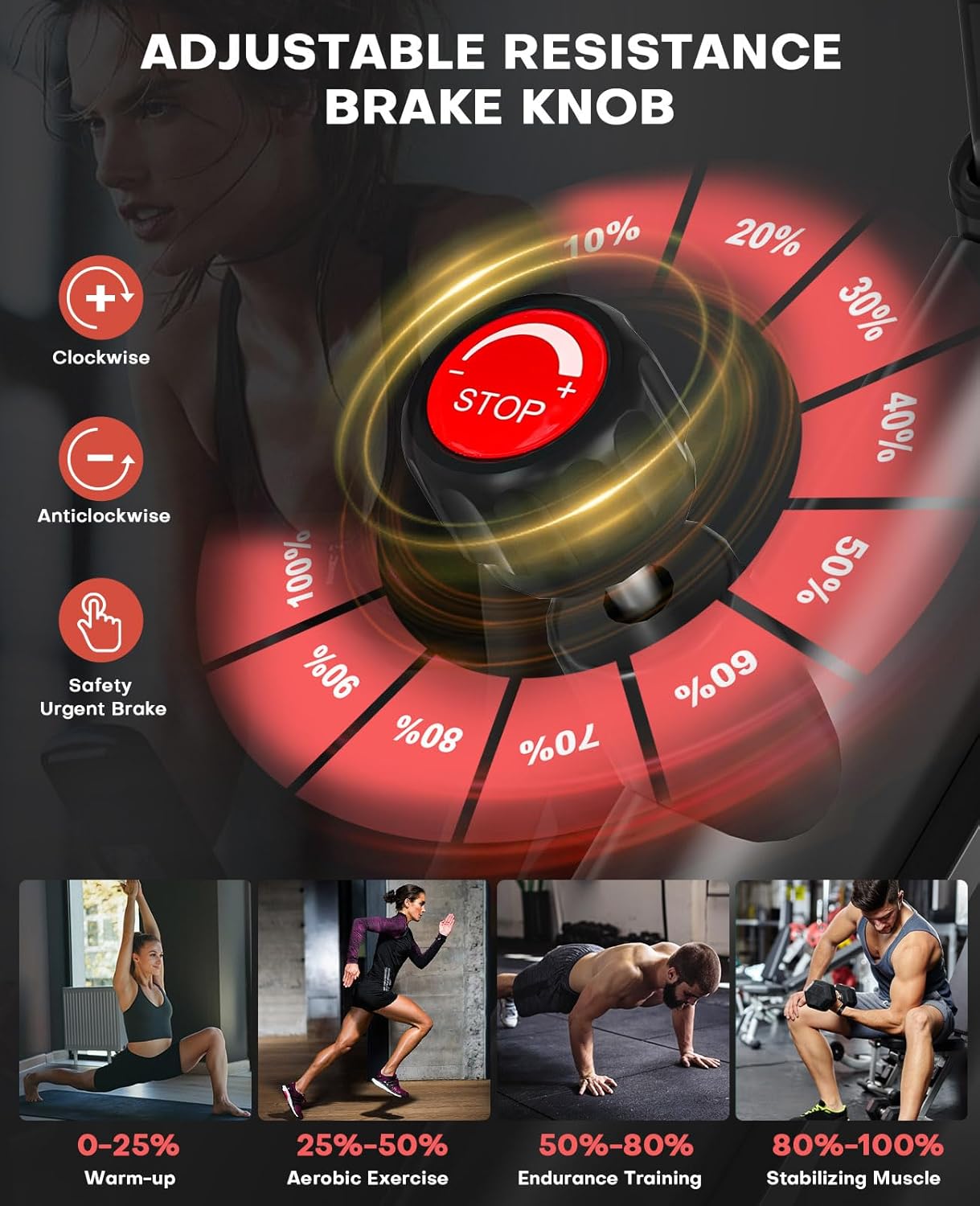

Image: Close-up of the red resistance knob, showing clockwise for increasing resistance, counter-clockwise for decreasing, and pressing down for the safety urgent brake. Different resistance levels are suggested for warm-up, aerobic exercise, endurance training, and stabilizing muscle workouts.

Image: Comparison illustrating the ultra-quiet magnetic resistance system of the SLUNSE bike versus a traditional felt brake system, highlighting reduced noise and smoother operation.

5.3 Using the Digital Monitor

The LCD monitor provides real-time feedback on your workout. It typically displays:

• TIME: Duration of your workout.
• SPEED: Current cycling speed.
• DISTANCE: Distance covered during the current workout.
• CALORIES: Estimated calories burned.
• SCAN: Cycles through all metrics automatically.

The monitor is battery-powered. Replace batteries when the display becomes dim or unresponsive.

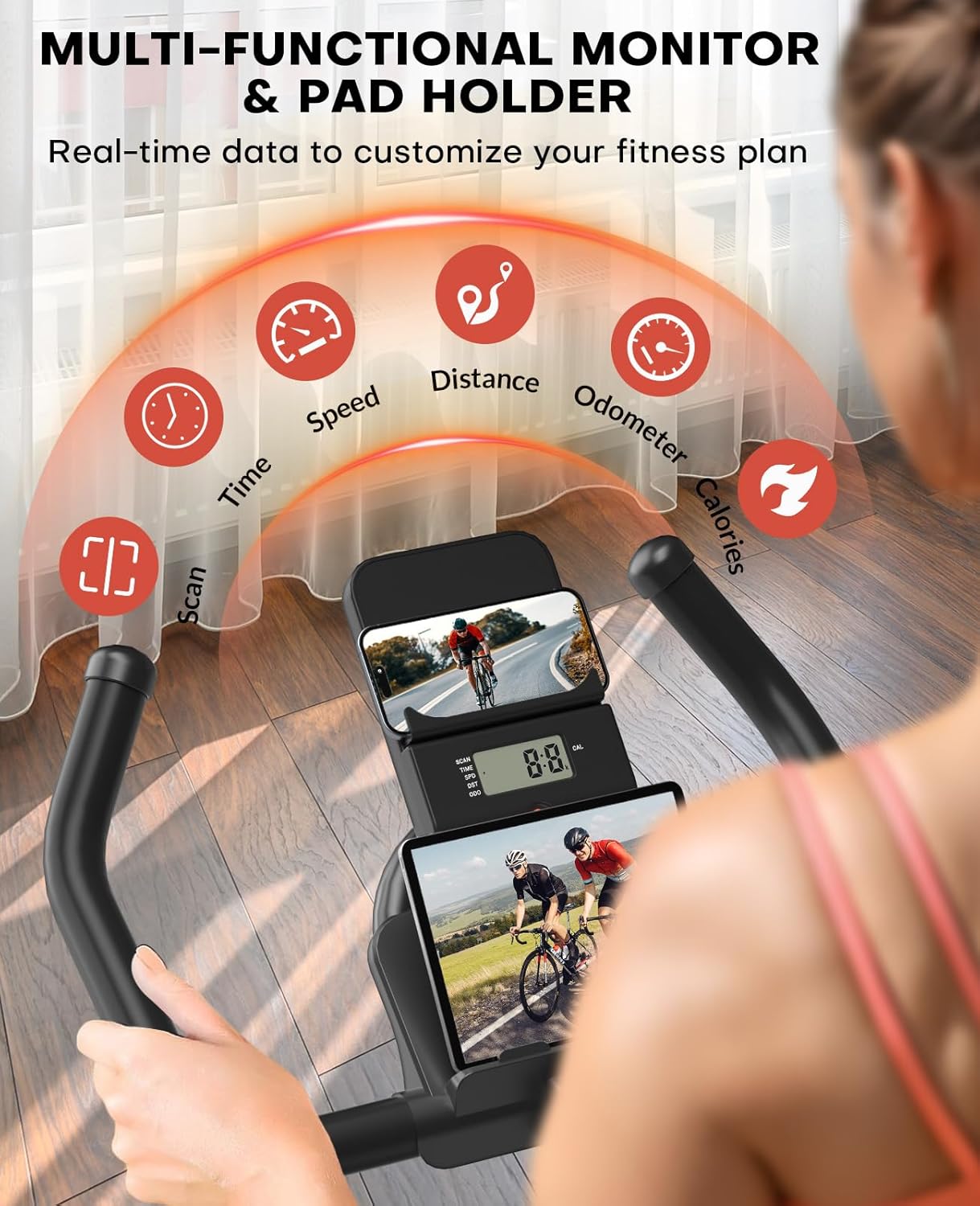

Image: View of the multi-function LCD monitor and integrated phone/tablet holder, displaying workout data such as time, speed, distance, odometer, and calories.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your exercise bike.

• Cleaning: Wipe down the bike with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Check Connections: Periodically check all bolts, nuts, and screws to ensure they are tight. Re-tighten if necessary.
• Belt Drive System: The belt drive system is designed to be maintenance-free and does not require lubrication.
• Storage: When not in use, store the bike in a dry, cool place away from direct sunlight and moisture. Use the transport wheels to move it easily.

Image: Illustration of the smooth and quiet belt drive system, emphasizing its silent operation (voices < 25dB) for a better riding experience.

Image: A user demonstrating the ease of moving the SLUNSE Exercise Bike using its integrated transport wheels, highlighting its compact footprint for convenient storage.

7. Troubleshooting

If you encounter any issues with your SLUNSE Exercise Bike, refer to the following common problems and solutions:

8. Product Specifications

9. Warranty and Customer Support

SLUNSE provides a 12-month parts warranty for your exercise bike, covering manufacturing defects and component failures under normal use.

For any questions, assistance with assembly, troubleshooting, or warranty claims, please contact our customer support team. We offer 24-hour customer support to ensure a worry-free experience.

Contact Information:

• Email: support@slunse.com (Example email, actual email not provided in input)
• Website: www.slunse.com (Example website, actual website not provided in input)

Please have your model number (509C) and purchase date ready when contacting support.
