NORTH EDGE EVOQUE 2 Solar Eco Drive Wristwatch User Manual
Model: EVOQUE 2
Introduction
The NORTH EDGE EVOQUE 2 is a military-grade solar eco-drive wristwatch designed for outdoor adventures. It features an all-metal dial, a Citizen imported gearbox for precise timekeeping, and a rotatable chronograph bezel. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your watch.

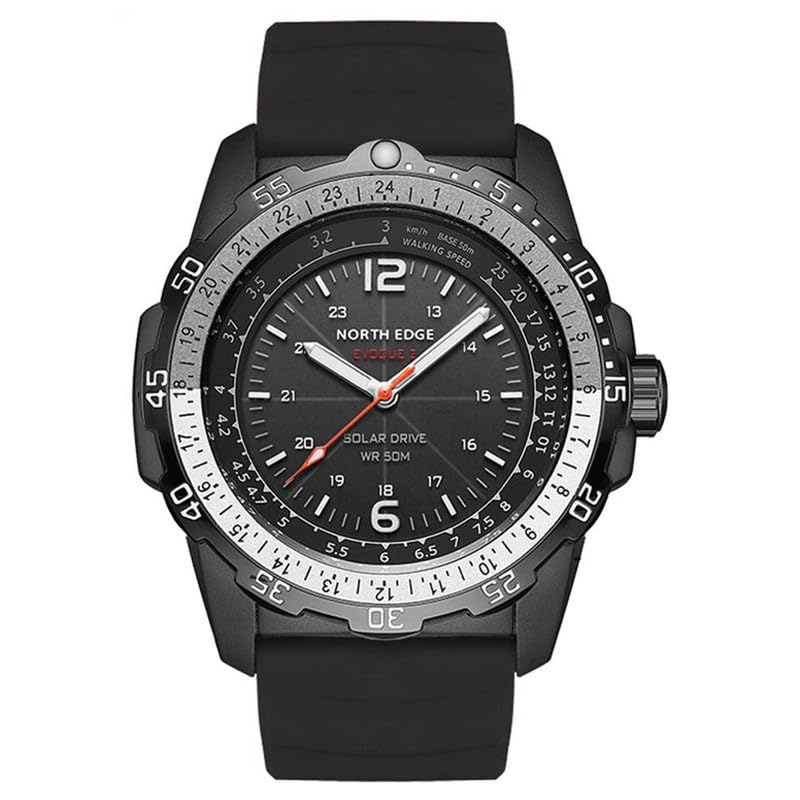

Image: Front view of the NORTH EDGE EVOQUE 2 black wristwatch, showcasing its robust design and clear dial.
Setup
Initial Charging (Solar-Drive Technology)
Your EVOQUE 2 watch utilizes Solar-Drive technology, converting any light source into energy to power the watch and store surplus in a power cell. No battery replacement is needed.
- First Use: Upon receiving your watch, expose it to a bright light source (natural sunlight or strong artificial light) for several hours to ensure it is fully charged.
- Regular Charging: For optimal performance, ensure the watch is regularly exposed to light. It is designed to charge from ordinary everyday light sources like indoor fluorescent lighting and desk lights.
- Power Reserve: On a full charge, the watch can run for up to 180 days even in darkness.

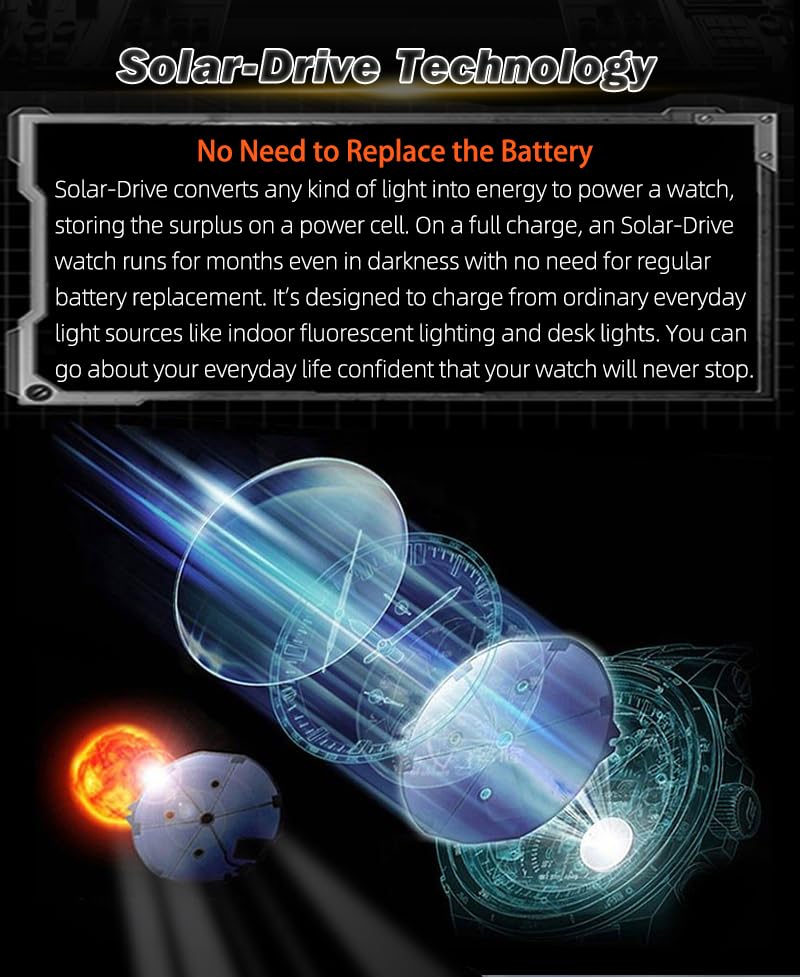

Image: Diagram illustrating the Solar-Drive Technology, showing how light is absorbed and converted into energy to power the watch.
Operating Instructions
Setting the Time
To set the time on your EVOQUE 2 wristwatch:
- Pull the crown (the knob on the side of the watch) out to the time-setting position.
- Rotate the crown to adjust the hour and minute hands to the correct time.
- Once set, push the crown back in to its normal position to start the watch.
Using the Rotatable Chronograph Bezel
The EVOQUE 2 features a rotatable chronograph bezel made of aluminium. This bezel can be used for basic timekeeping or elapsed time measurement.
- Elapsed Time Measurement: Rotate the bezel so that the zero mark aligns with the minute hand. As time passes, the minute hand will point to the elapsed time on the bezel.
- Second Time Zone: The bezel can also be used to mark a second time zone by aligning it with the current hour in another time zone.
Calculation Speed Function
The 3-hand design allows for the calculation of movement speed based on a 50-meter scale inside the dial.
- To calculate speed, start counting seconds from 0.
- If an object moves 50 meters and the second hand has passed 20 seconds, the corresponding speed is 9 km/h according to the dial's scale.
Image: Illustration demonstrating the calculation speed function, showing how to measure speed based on distance and elapsed time using the watch's dial.
Maintenance and Care
Water Resistance (50M)
Your EVOQUE 2 watch is water-resistant up to 50 meters (5 ATM).
- Suitable for: Swimming and general water exposure.
- Not Suitable for: Shower bathing, hot springs, or diving. Exposure to hot water or steam can compromise the watch's seals.
- Important: Do not operate the crown or push buttons when the watch is wet or submerged.
Image: A person's arm with the watch submerged in water, demonstrating its 50M water resistance. Note that it is suitable for swimming but not for hot springs or diving.
Cleaning
To maintain the appearance of your watch:
- Wipe the watch case and silicone strap with a soft, damp cloth.
- Avoid using harsh chemicals or abrasive materials, which can damage the finish.
Storage
When storing the watch for extended periods, ensure it is exposed to light periodically to maintain its charge. Avoid extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch stops or runs intermittently. | Insufficient charge. | Expose the watch to bright light (natural sunlight is best) for several hours to fully charge. Ensure regular light exposure. |
| Time is inaccurate (±30 seconds/month). | Normal operational variance for the movement. | This is within the specified accuracy of the Citizen imported gearbox. Adjust time manually if needed. |
| Condensation inside the crystal. | Exposure to extreme temperature changes or compromised water resistance. | Avoid hot showers or hot springs. If condensation persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | EVOQUE 2 |
| Movement Type | Solar-Drive (Citizen imported gearbox) |
| Dial Diameter | 46 MM |
| Dial Thickness | 14.2 MM |
| Weight | 105 g |
| Water Resistance | 50 Meters (5 ATM) |
| Case Material | Metal watchcase, 304 stainless steel cover |
| Strap Material | Silicone (honeycomb design) |
| Battery Life (Full Charge) | Up to 180 days in darkness |
| Time Accuracy | ±30 seconds per month |
| Features | Rotatable chronograph bezel, Phosphorescent coating for night visibility, Calculation speed function |

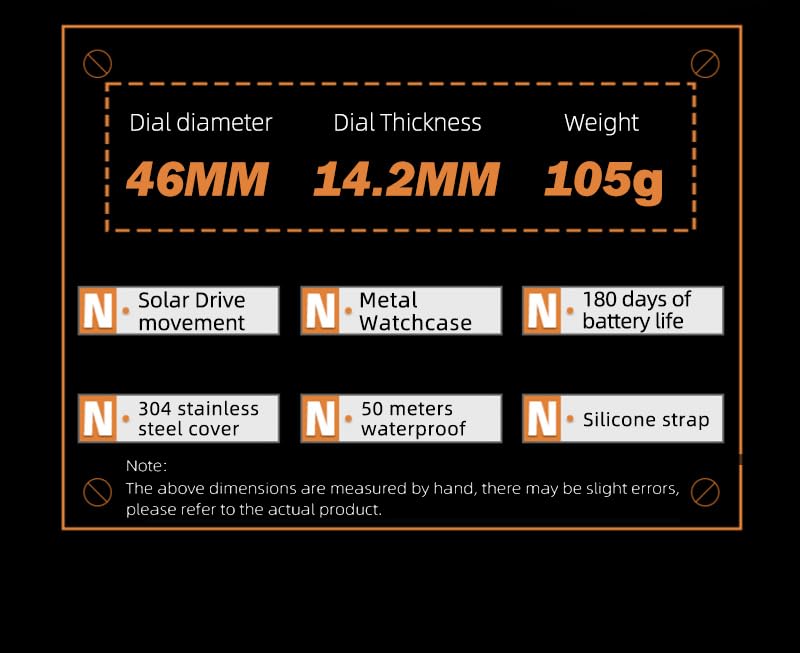

Image: Infographic summarizing key specifications including dial diameter (46MM), thickness (14.2MM), weight (105g), and features like Solar Drive movement and 50 meters waterproof rating.
Warranty and Support
For warranty claims, technical support, or any inquiries regarding your NORTH EDGE EVOQUE 2 wristwatch, please contact the manufacturer or authorized service center.
- Manufacturer: Xiamen North Edge Technology Co. Ltd
- Contact Email: lily@northedgewatch.com
- Please retain your proof of purchase for warranty purposes.
