Seesii KP-160B Cordless Tile Vibrator User Manual

Introduction

The Seesii KP-160B Cordless Tile Vibrator is designed for efficient and precise tile installation. This tool combines a powerful suction cup with high-frequency vibration to ensure optimal adhesion and alignment for various tile sizes, from 15x15 cm up to 120x120 cm. It helps eliminate air pockets in the mortar, resulting in a flatter, more secure, and professional finish. Equipped with two 2000 mAh batteries, it offers extended cordless operation for both indoor and outdoor projects.

Important Safety Instructions

Always read and understand all safety warnings and instructions before operating this tool. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Personal Safety: Always wear appropriate personal protective equipment, including eye protection, hearing protection, and non-slip safety footwear. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Do not use the power tool if the switch does not turn it on and off. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs. When the battery pack is not in use, keep it away from other metal objects.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Package Contents

Verify that all items are present upon unpacking:

• 1 x Seesii KP-160B Tile Vibrator
• 2 x 2000 mAh Batteries
• 1 x 0.8 A Charger
• 1 x User Manual
• 1 x Carrying Case

Product Overview

Component Identification

Familiarize yourself with the main components of your Seesii KP-160B Tile Vibrator:

Image: Close-up view of the tile vibrator's head, highlighting the digital display for speed settings, power buttons, and the robust suction cup base designed for stable, tile-safe vibration to prevent hollow spots.

Image: Detailed diagram of the 160mm suction cup, emphasizing its larger size for stronger grip and stability. The illustration shows a swirling pattern indicating powerful adsorption, capable of holding up to 350 lbs, crucial for handling large and heavy tiles.

Image: Close-up of the tool's control panel, featuring a digital LED display that shows the selected speed level (1-12). It also includes indicators for power supply and a prominent run switch, allowing for precise adjustment of vibration intensity for various tile types and mortar thicknesses.

Setup

Battery Installation and Charging

The Seesii KP-160B operates on 2000 mAh lithium-ion batteries. Ensure batteries are fully charged before use.

1. Install Battery: Align the battery pack with the battery slot on the tool handle and slide it in until it clicks securely into place.
2. Charge Battery: Connect the charger to a standard power outlet. Slide the battery pack onto the charger. The indicator light on the charger will show the charging status. A full charge typically takes a few hours.
3. Remove Battery: Press the battery release button and slide the battery pack out of the tool or charger.

Note: While the tool is compatible with Makita 18V batteries, the included charger is not compatible with Makita batteries, and Makita batteries cannot be charged with the Seesii charger.

Image: A battery pack connected to its charger, plugged into a wall outlet, illustrating the charging process. This setup provides all-day power with two 2.0Ah batteries, offering up to 10 hours of working time and 5000 charging cycles.

Operating Instructions

Basic Operation

The Seesii KP-160B is designed for straightforward tile installation. Follow these steps for optimal results:

Image: A visual guide demonstrating the simple 3-step setup for using the tile vibrator. Step 1: Attach the suction cup to the tile and lift. Step 2: Position the tile on the mortar and start the vibration. Step 3: Glide the tool across the tile surface to apply vibration evenly, ensuring full mortar contact.

1. Attach & Lift: Place the suction cup firmly onto the tile surface. Engage the suction mechanism (if applicable, by pressing down or activating a lever) to create a strong vacuum seal. Use the tool's handle to lift and maneuver the tile.
2. Position & Start: Carefully place the tile onto the prepared mortar bed. Once positioned, press the 'Run Switch' on the tool to activate the vibration.
3. Glide to Apply Vibration Evenly: Gently glide the vibrator across the entire surface of the tile. The high-frequency vibrations will help settle the tile into the mortar, eliminate air pockets, and ensure complete contact, preventing hollow spots.

Adjusting Vibration Levels

The tool features 12 adjustable speed levels to accommodate different tile types and mortar consistencies.

• Use the control buttons on the tool's panel to increase or decrease the vibration intensity.
• The digital LED display will show the current speed gear (1-12).
• Start with a lower setting for delicate tiles or thinner mortar, and increase as needed for larger, heavier tiles or thicker mortar.

Tile Laying Technique

For best results, ensure the mortar is evenly spread. After placing the tile and activating the vibrator, move the tool slowly and systematically across the tile surface. Pay attention to the edges and corners to ensure full contact. The integrated level bubble helps achieve perfect alignment.

Image: A worker demonstrating the use of the Seesii KP-160B tile vibrator for installing large format tiles on a wall. The tool is shown firmly attached to a tile, highlighting its capability as a large tile laying tool suitable for various tile sizes.

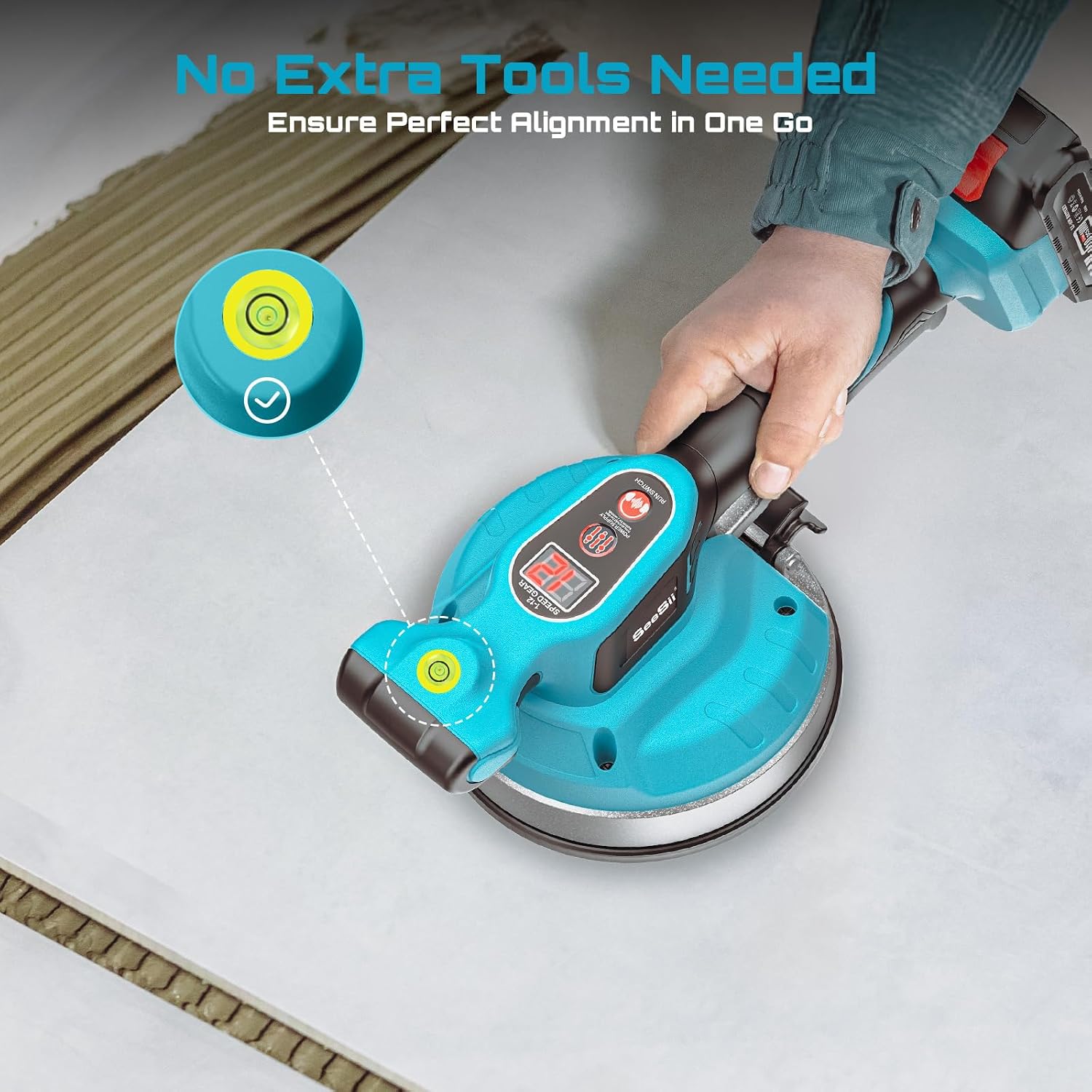

Image: A close-up view of the tile vibrator's handle, clearly showing the integrated level bubble. This feature allows users to ensure perfect tile alignment without needing additional tools, streamlining the installation process.

Suitable Tile Types and Surfaces

This versatile tool is suitable for a wide range of materials and applications:

Image: A layered diagram illustrating the compatibility of the tile vibrator with various surfaces and tile types. These include Marble, Cement Wall, Solid Wood Board, Plasterboard, and Ceramic Tile, demonstrating its versatility for different construction and renovation projects.

• Tile Materials: Ceramic, Porcelain, Marble, Textured, Matte, and Enameled tiles.
• Surfaces: Walls, floors, stairs, countertops, and outdoor areas.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your tile vibrator.

• Cleaning: After each use, wipe down the tool, especially the suction cup and vibration plate, with a damp cloth to remove any mortar residue or dust. Ensure the tool is dry before storage.
• Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Storage: Store the tile vibrator and its accessories in the provided carrying case in a dry, secure location, out of reach of children.
• Inspection: Periodically inspect the suction cup for any signs of wear or damage. Replace if necessary to maintain strong adhesion. Check all screws and fasteners for tightness.

Troubleshooting

If you encounter issues with your Seesii KP-160B, refer to the table below for common problems and solutions.

Technical Specifications

Key technical details for the Seesii KP-160B Tile Vibrator:

• Model Number: KP-160B
• Brand: Seesii
• Power Source: Battery Powered
• Battery Type: Lithium-ion (2 x 2000 mAh included)
• Suction Cup Diameter: 160 mm
• Vibration Levels: 12 adjustable speeds
• Product Dimensions (L x W x H): 17.78 x 22.86 x 15.24 cm
• Item Weight: 4.31 kg
• Included Components: Tile vibrator, 2 batteries, 0.8A charger, user manual, carrying case

Warranty and Support

For warranty information or technical support, please refer to the documentation included in your product packaging or contact Seesii customer service through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
