Electric Scooter with Seat User Manual

Introduction

Thank you for choosing the K Cloud Scooter X5-60 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and care of your new scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

Safety Information

Operating an electric scooter carries inherent risks. To minimize these risks, always adhere to the following safety guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads, gloves).
• Do not ride under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Avoid riding in wet conditions, heavy rain, or on slippery surfaces.
• Maintain a safe distance from other vehicles and pedestrians.
• Regularly inspect your scooter for any damage or loose parts before each ride.
• Ensure the battery is adequately charged before use.
• Do not exceed the maximum weight limit of 330 pounds.

Package Contents

Upon opening your package, please verify that all the following items are included:

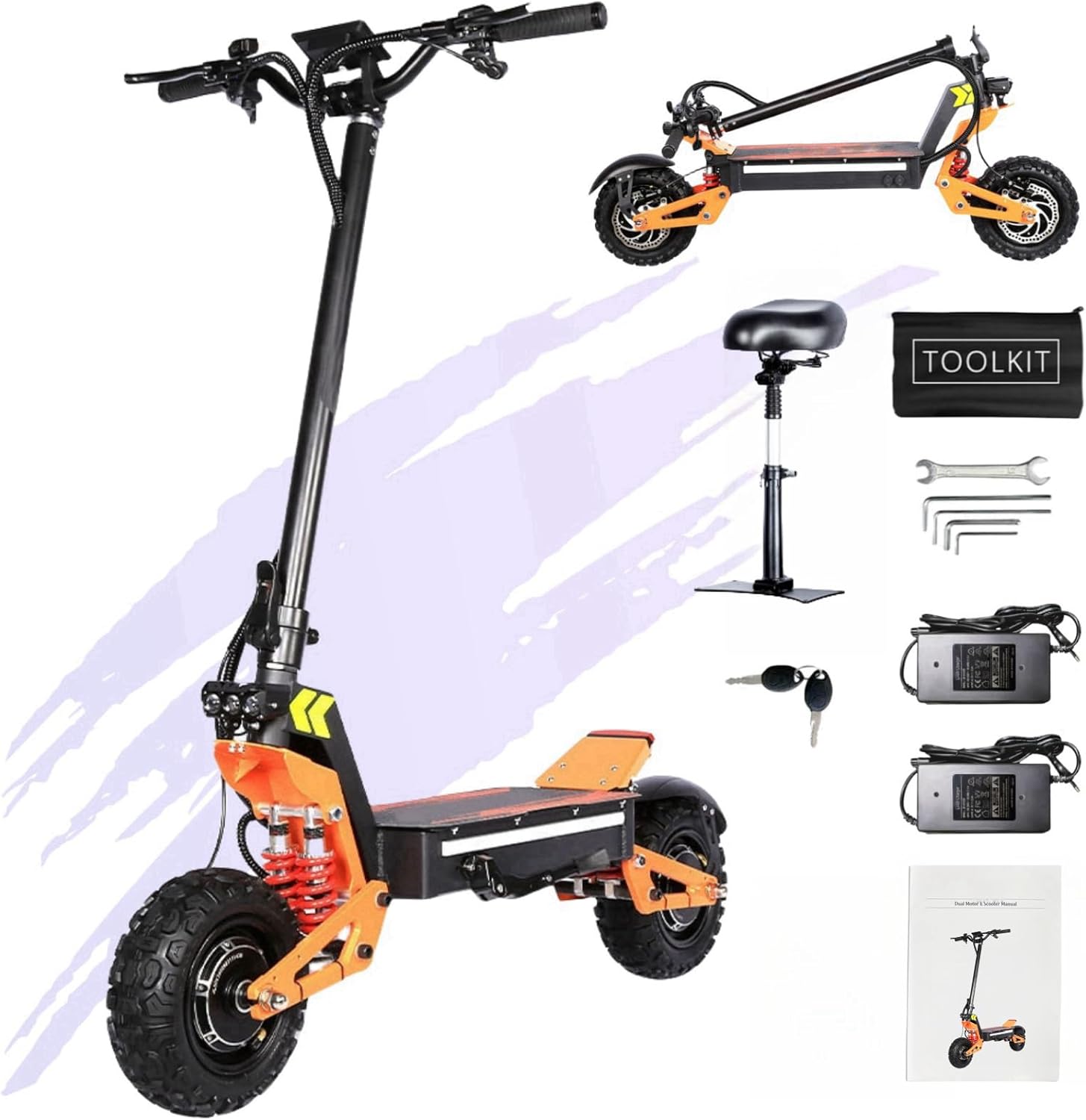

Image: The K Cloud Scooter X5-60 Electric Scooter shown with its included accessories: a toolkit, two chargers, two keys, and a removable seat.

• Electric Scooter (1 unit)
• Removable Seat (1 unit)
• Tool Kit (1 set)
• Chargers (2 units)
• Keys (2 units)
• Instruction Manual (1 unit)

Setup and Assembly

The K Cloud Scooter X5-60 features a convenient one-step folding system for portability. Initial setup primarily involves unfolding the scooter and attaching the removable seat if desired.

Unfolding the Scooter:

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism latch on the stem.
3. Release the latch and carefully raise the handlebar stem until it locks into the upright position. Ensure it is securely locked before use.
4. Adjust the handlebar height to your preference and secure it.

Attaching the Removable Seat:

1. Identify the seat mounting point on the scooter's deck.
2. Align the seat post with the mounting point and insert it.
3. Secure the seat using the provided fasteners from the tool kit. Ensure the seat is stable and does not wobble.

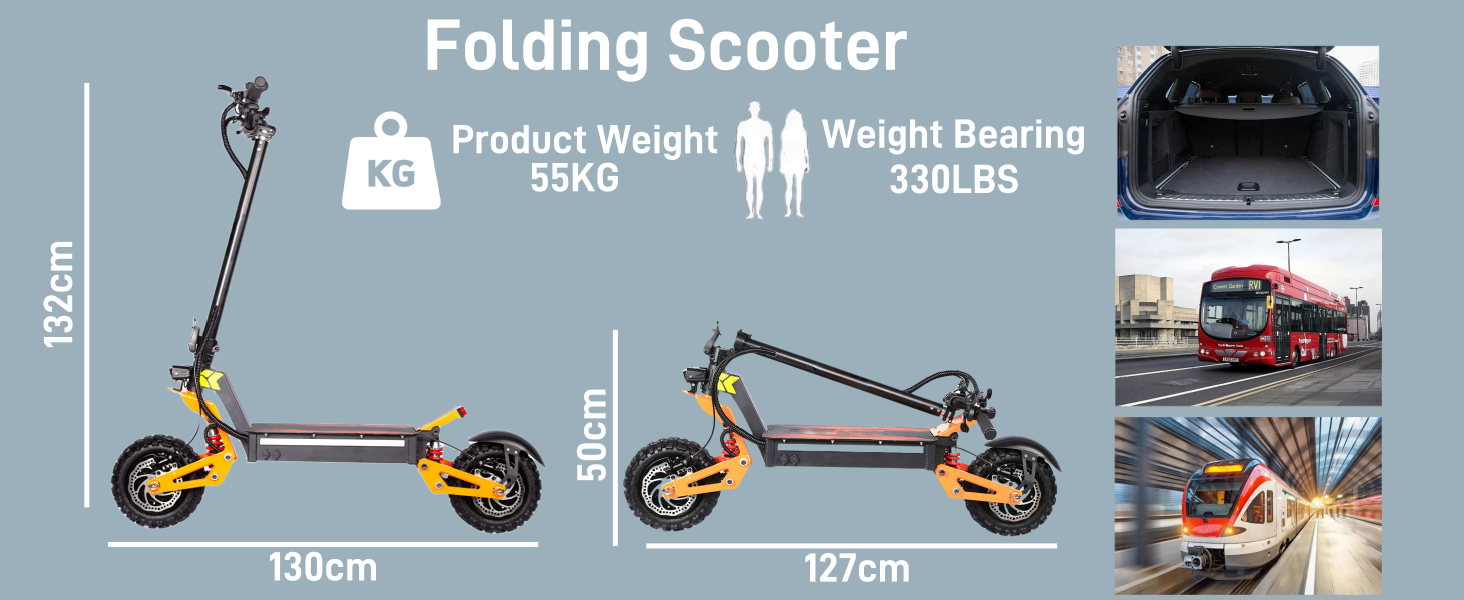

Image: Visual representation of the scooter in both folded and unfolded states, highlighting its compact dimensions for portability and storage.

Operating Instructions

Powering On/Off and NFC Unlocking:

The scooter is equipped with an NFC unlocking system for convenient startup.

1. To power on, simply touch your cell phone or the provided NFC card to the induction area on the scooter's display panel.
2. The digital display will illuminate, indicating the scooter is ready for operation.
3. To power off, repeat the NFC touch or use the designated power button if available (refer to display panel diagram).

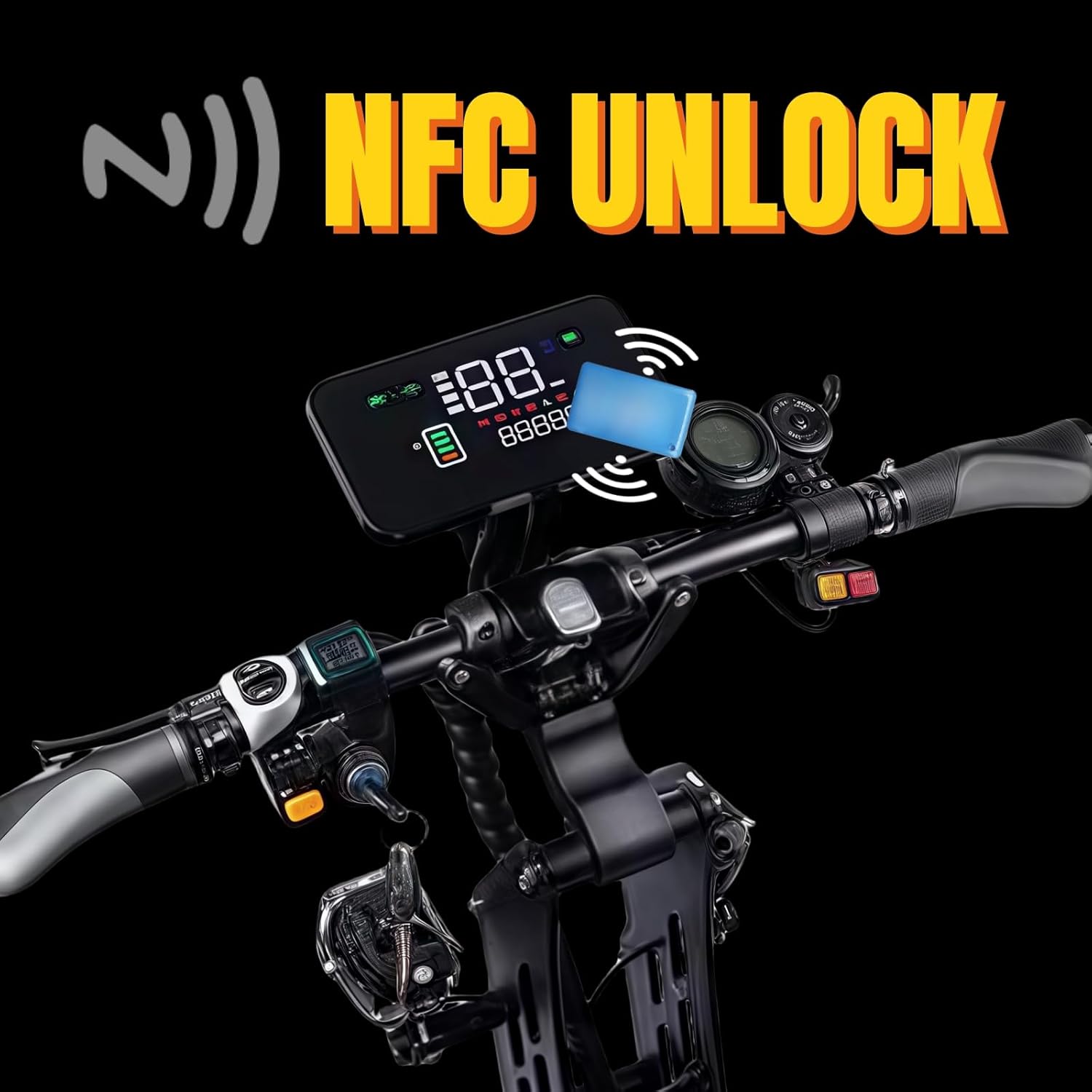

Image: Close-up of the scooter's handlebar and digital display, showing the NFC card being used to unlock the scooter.

Digital Display and Controls:

The digital display provides real-time information about your ride. Familiarize yourself with the controls before riding.

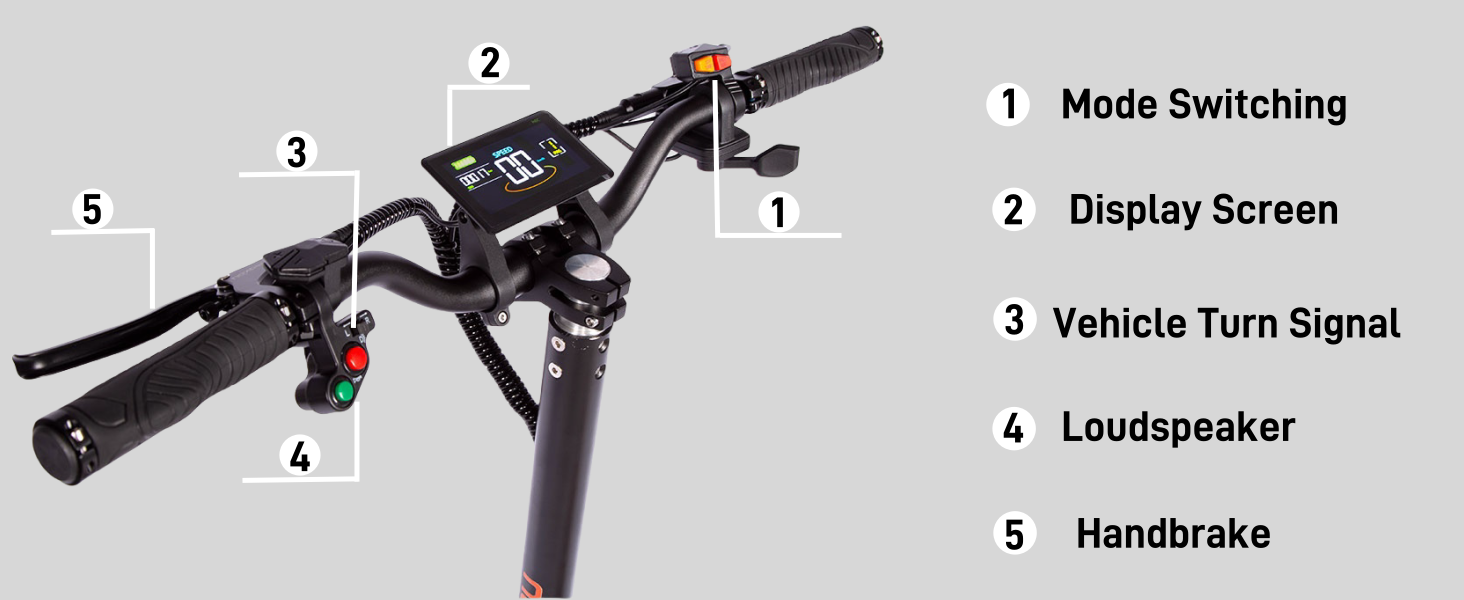

Image: Diagram illustrating the various controls on the handlebar, including mode switching, display screen, vehicle turn signal, loudspeaker, and handbrake.

• Battery Level: Indicates remaining battery charge.
• Current Speed: Shows your real-time speed.
• Speed Mode: Displays the currently selected riding mode.
• Mileage: Shows single trip and total accumulated mileage.
• Lighting System: Activate headlights and taillights for visibility, especially at night.

Riding Modes:

The scooter offers three distinct riding modes to adapt to different preferences and road conditions:

• Economy Mode: Ideal for maximizing range and casual city riding.
• Smooth Ride Mode: Provides a balanced performance for general commuting.
• Sport Mode: Unleashes the full power of the dual motors for maximum speed and acceleration, suitable for off-road or performance riding.

Switch between modes using the designated button on the handlebar (refer to the Digital Display and Controls diagram).

Braking System:

Your scooter is equipped with front and rear hydraulic disc brakes and an E-ABS electronic brake assist system for efficient and responsive stopping power.

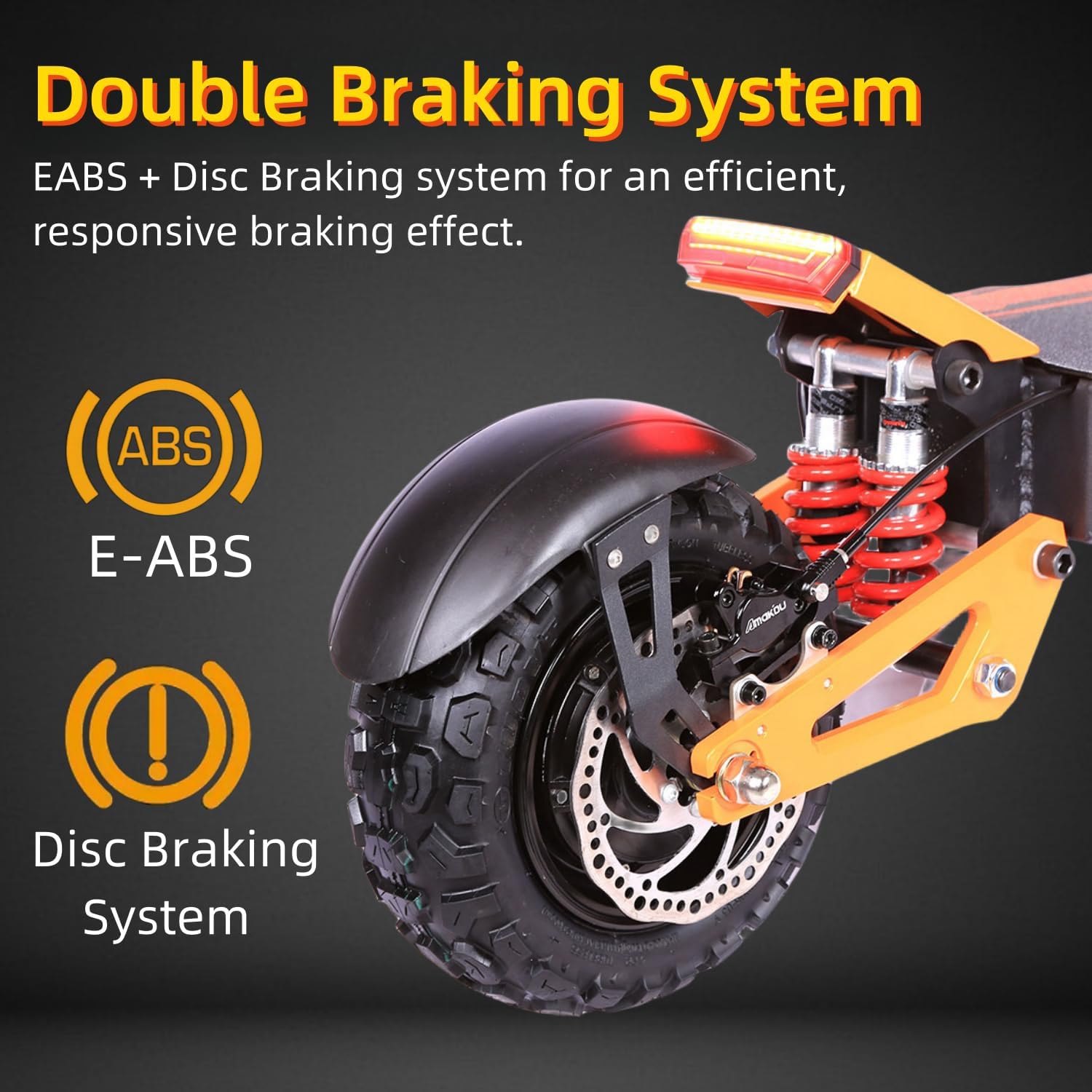

Image: Close-up view of the rear wheel and braking system, highlighting the E-ABS and disc brake components.

• Apply both front and rear brakes simultaneously for optimal stopping performance.
• Avoid sudden, harsh braking, especially at high speeds, to prevent loss of control.

Charging the Battery

The scooter is powered by a high-capacity 60V 38Ah battery. Proper charging practices ensure battery longevity and performance.

Image: Diagram showing the 60V 38Ah battery, indicating 6-8 hours for full charge, dual charging ports, and a maximum range of 120KM.

• Connect the chargers to the dual charging ports on the scooter.
• Plug the chargers into a standard power outlet.
• A full charge typically takes 6-8 hours. The charger indicator lights will change to signal a full charge.
• Do not overcharge the battery. Disconnect chargers once fully charged.
• Charge the battery in a well-ventilated area, away from flammable materials.

Maintenance

Regular maintenance is crucial for the safe and efficient operation of your scooter.

• Tires: The scooter features 11" heavy-duty vacuum road tires. Regularly check tire pressure and inspect for wear or damage. Maintain proper inflation for optimal performance and safety.
• Brakes: Periodically check the hydraulic disc brakes for proper function and wear on the brake pads. Adjust or replace as needed.
• Battery Care: Store the scooter in a cool, dry place. If storing for extended periods, ensure the battery is charged to approximately 50-70% and recharge every 1-2 months to prevent deep discharge.
• Cleaning: Clean the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Fasteners: Periodically check all bolts and fasteners to ensure they are tight.

Troubleshooting

This section addresses common issues you might encounter with your scooter.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.

Specifications

Image: Illustration highlighting the 6000W dual motors, 52 MPH max speed, and ability to climb 30-degree slopes.

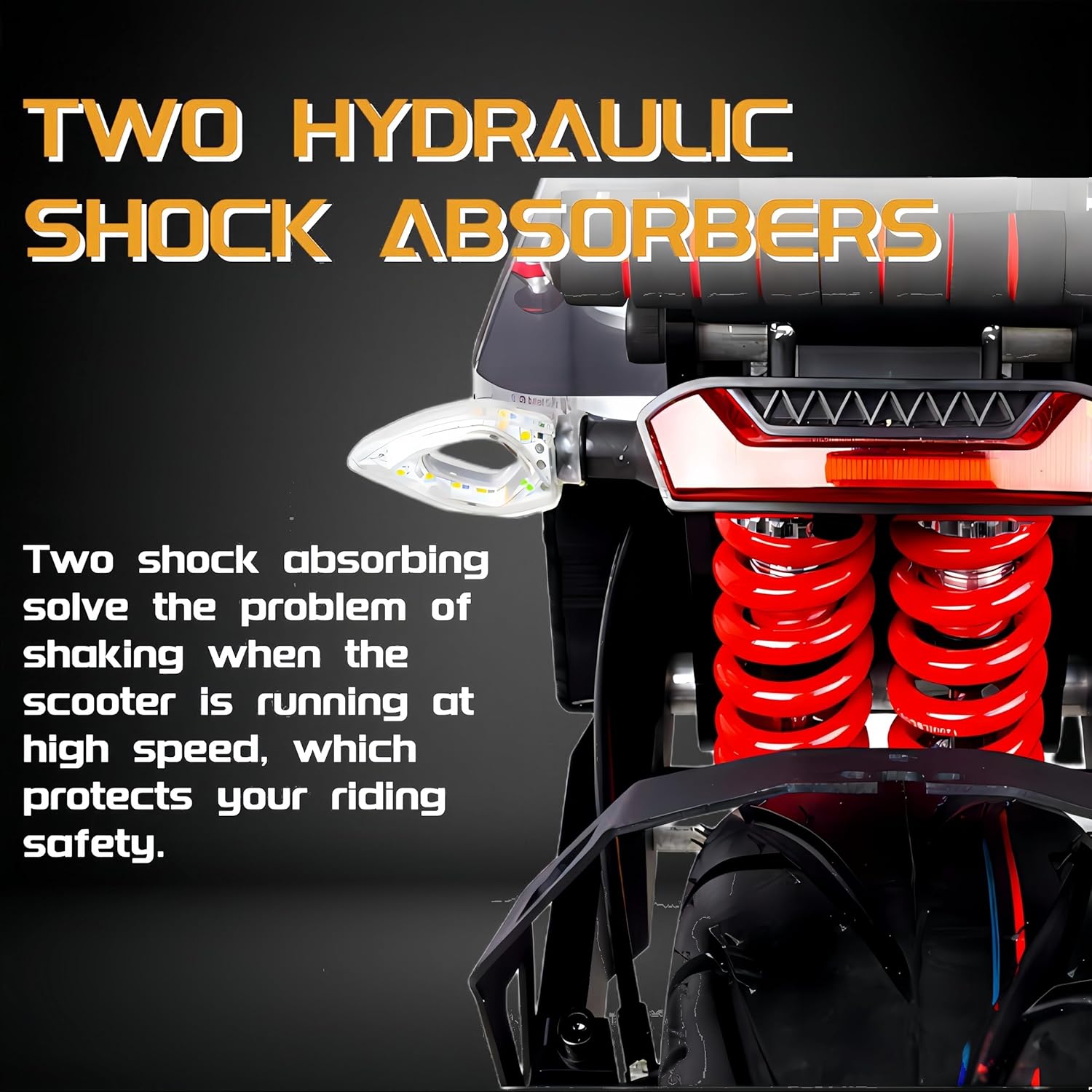

Image: Close-up of the scooter's rear suspension, showing the two hydraulic shock absorbers designed to reduce shaking at high speeds.

Image: View of the 11-inch tubeless tires, suitable for various terrains including road, gravel, and dirt paths.

Official Product Video

Watch the official product video for a visual guide on the K Cloud Scooter X5-60's features and capabilities.

Warranty Information

The K Cloud Scooter X5-60 is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

Customer Support

For any questions, technical assistance, or warranty claims, please contact K Cloud Scooter customer support. Refer to the contact information provided in your product packaging or on the official K Cloud Scooter website.

Manufacturer: Dongguan Zhuopuxin Energy Technology Co., Ltd
