Instruction Manual: Tooldaddy Carbon Brushes for Bauknecht Washing Machines

Product Overview

These carbon brushes are replacement parts designed for specific Bauknecht washing machine models. They are crucial components for the electric motor, ensuring proper function and preventing issues such as power loss, intermittent operation, excessive sparking, or unusual noise.

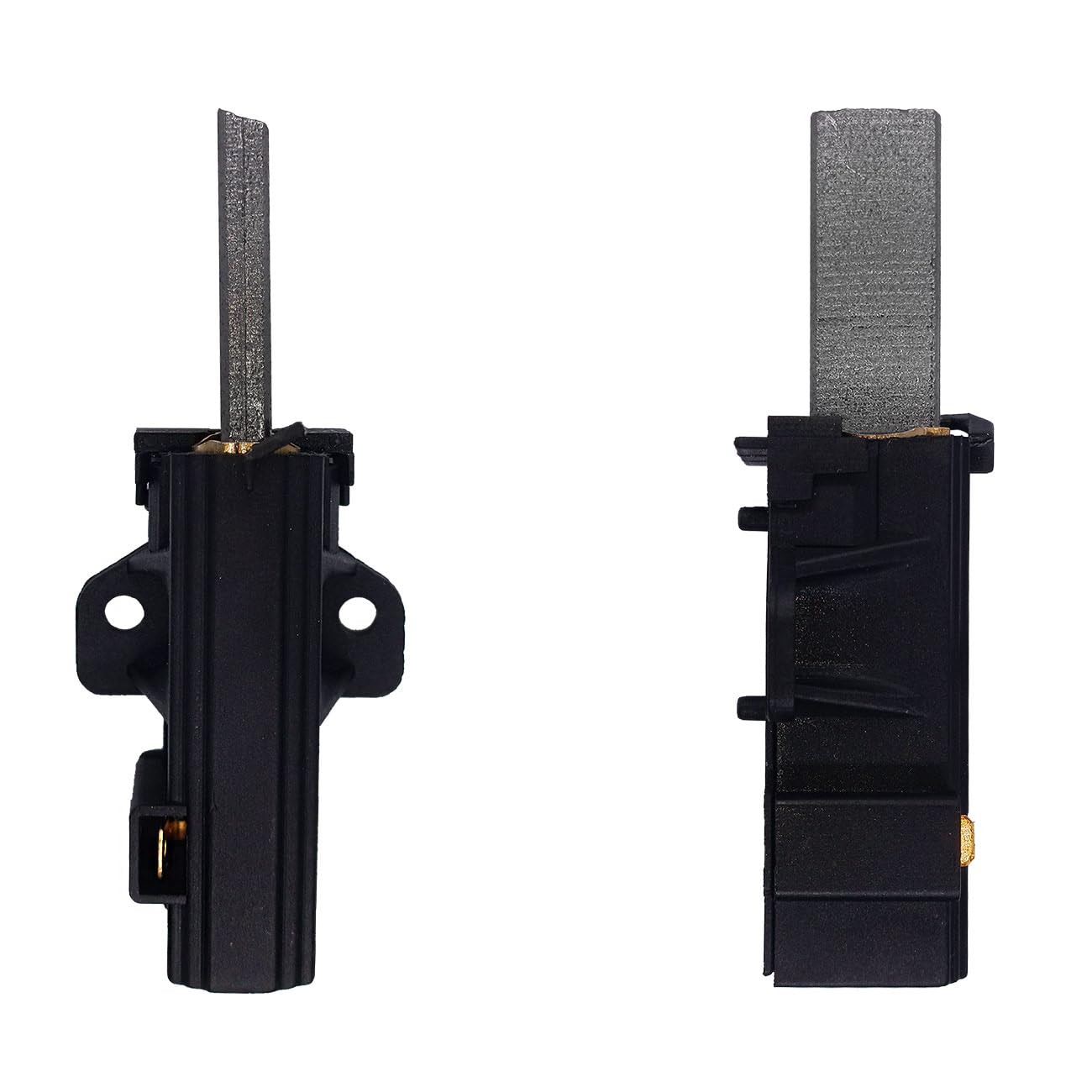

Image: A pair of Tooldaddy carbon brushes, showing their rectangular shape and attached wire with a connector.

Key Features:

• High Durability: Engineered for extended lifespan.
• Low Sparking: Ensures safe and efficient motor operation.
• Precise Fit: 100% accuracy for listed compatible models.
• Complete Set: Includes 2 pieces (1 pair) for replacement.

Specifications

Compatible Bauknecht Washing Machine Models:

• WA Pure XL 12 BW (Model Numbers: 855494903010, 855494903017, 858360603300, 858360603305, 858360603307)
• WA Pure XL 14 BW (Model Numbers: 858360703000, 858360703007, 858360903000)

Setup and Installation

Important Safety Information: Before attempting any installation or repair, ensure the washing machine is completely disconnected from the power supply. Failure to do so can result in electric shock or injury. If you are unsure about any step, consult a qualified technician.

1. Access the Motor: Depending on your specific Bauknecht washing machine model, you may need to remove the back panel or front panel to access the motor. Refer to your washing machine's service manual for precise instructions on accessing the motor compartment.
2. Locate Old Carbon Brushes: The carbon brushes are typically housed in plastic holders on either side of the motor commutator. They are usually held in place by screws or clips.
3. Remove Old Brushes: Carefully disconnect the electrical connector from the old carbon brush. Then, unfasten the screws or clips holding the brush holder and remove the old brush. Note the orientation of the old brush for correct installation of the new one.
4. Clean the Commutator (Optional but Recommended): Gently clean any carbon dust or residue from the motor's commutator (the copper segments where the brushes make contact) using a soft, dry cloth. Avoid using abrasive materials.
5. Install New Carbon Brushes: Insert the new Tooldaddy carbon brush into its holder, ensuring it slides smoothly. Reattach the holder with its screws or clips. Connect the electrical connector firmly to the new brush. Repeat for the second brush.
6. Verify Installation: Ensure both new carbon brushes are securely in place and their electrical connections are tight.
7. Reassemble the Washing Machine: Carefully reattach any panels or covers that were removed.
8. Test Operation: Reconnect the washing machine to the power supply and perform a short wash cycle to ensure proper operation and check for any unusual noises or sparking. Initial operation may produce a slight smell as the new brushes bed in, which is normal.

Operating Principles

Carbon brushes are consumable components that conduct electricity to the rotating part (armature) of a universal motor, commonly found in washing machines. As the motor operates, the carbon brushes wear down due to friction. When they become too short, they can no longer make proper contact with the commutator, leading to motor malfunction or failure. Replacing worn brushes restores the electrical connection, allowing the motor to operate efficiently and reliably.

Maintenance

Tooldaddy carbon brushes are designed for durability and minimal maintenance. As wear parts, they do not require regular maintenance. Their lifespan depends on the usage of the washing machine. It is recommended to inspect them if motor performance issues arise. Replace them as a pair when they show significant wear to ensure balanced motor operation.

Troubleshooting

Warranty and Support

Information regarding specific warranty terms for Tooldaddy carbon brushes is not provided in this manual. For warranty claims or technical support, please refer to the retailer where the product was purchased or contact Tooldaddy directly through their official channels. Always retain your proof of purchase.
