CHERISH-AUTO CRLI-GDLQP-10040208

User Manual for CHERISH-AUTO Door Lifter Button

Model: CRLI-GDLQP-10040208

Product Overview

This manual provides instructions for the installation, operation, and maintenance of the CHERISH-AUTO OEM 93580-2D000 Door Lifter Button. This component is designed for specific automotive applications to control window movement.

Front view of the CHERISH-AUTO OEM 93580-2D000 Door Lifter Button, showing the black button with an up/down arrow icon.

Figure 1: Front view of the CHERISH-AUTO OEM 93580-2D000 Door Lifter Button. The button is black with a white up/down arrow icon, indicating its function for window control. The unit is compact and designed for automotive integration.

Key Features:

OEM Part Number: 93580-2D000
High-quality components for stable characteristics and reliability.
Designed for front right (R) and rear right/left (R/L) door applications.
Durable black finish.

Compatibility and Verification

This door lifter button is an OEM replacement part. To ensure compatibility with your vehicle, it is crucial to verify the part number. The most accurate method is to compare the part number on your old component with the OEM part number 93580-2D000.

If you are uncertain about compatibility, please contact your automotive service provider or the manufacturer with your vehicle's 17-digit Vehicle Identification Number (VIN) for assistance.

Setup and Installation

Installation of automotive electrical components should ideally be performed by a qualified technician. Incorrect installation can lead to damage to the component or vehicle electrical system.

Safety Precautions:

Always disconnect the vehicle's battery before beginning any electrical work to prevent short circuits or electrical shock.
Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
Ensure the vehicle is turned off and the parking brake is engaged.

Installation Steps (General Guide):

Access the Existing Component: Carefully remove the door panel or trim that covers the existing door lifter button. Refer to your vehicle's specific service manual for detailed instructions on panel removal.
Disconnect Wiring: Once the old button is accessible, carefully disconnect the electrical connector(s) by pressing any release tabs.
Remove Old Button: Unclip or unscrew the old door lifter button from its mounting location.
Install New Button: Align the new CHERISH-AUTO 93580-2D000 button into the mounting slot. Ensure it clicks securely into place or is fastened with screws as per the original design.
Connect Wiring: Reconnect the electrical connector(s) to the new button. Ensure a firm and secure connection.
Test Functionality: Before reassembling the door panel, reconnect the vehicle's battery and test the operation of the window lifter button. Verify that the window moves up and down smoothly and responds correctly to button presses.
Reassemble: If the button functions correctly, carefully reattach the door panel and any removed trim pieces. Ensure all clips and screws are properly secured.

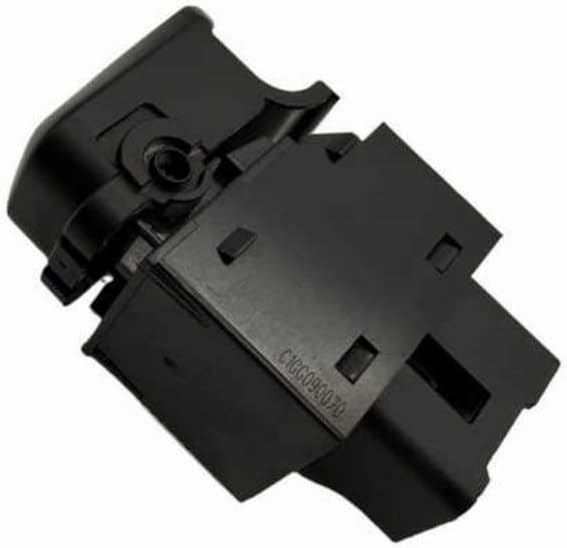

Side view of the CHERISH-AUTO OEM 93580-2D000 Door Lifter Button, showing the electrical connector port.

Figure 2: Side view of the door lifter button, highlighting the electrical connector port. This view is crucial for understanding how the button connects to the vehicle's wiring harness during installation.

Operating Instructions

The CHERISH-AUTO 93580-2D000 Door Lifter Button operates identically to the original equipment manufacturer (OEM) part it replaces.

To Lower the Window: Press the button down.
To Raise the Window: Pull the button up.

Some vehicles may feature an "auto" function, allowing a single press or pull to fully open or close the window. This functionality is dependent on the vehicle's wiring and control module, not the button itself.

Maintenance

The CHERISH-AUTO 93580-2D000 Door Lifter Button is a sealed unit and requires no specific user maintenance. To ensure its longevity:

Keep the button clean and free from dust or debris. Use a soft, dry cloth for cleaning.
Avoid spilling liquids directly onto the button or surrounding area.
Do not apply excessive force when operating the button.

Troubleshooting

If the door lifter button does not function correctly after installation, consider the following troubleshooting steps:

Problem	Possible Cause	Solution
Window does not move.	Loose electrical connection. Blown fuse in the vehicle's fuse box. Faulty window motor or regulator. Incorrect part installed.	Check that the electrical connector is securely attached to the button. Inspect the vehicle's fuse box and replace any blown fuses related to window operation. Consult a professional mechanic to diagnose issues with the window motor or regulator. Verify the OEM part number (93580-2D000) matches your vehicle's requirements.
Window moves intermittently.	Intermittent electrical connection. Wear in the window motor or regulator.	Ensure all connections are tight. Professional diagnosis may be required for motor/regulator issues.
Button feels loose or stuck.	Improper installation. Debris lodged in the button mechanism.	Re-check installation steps to ensure the button is properly seated. Carefully inspect for and remove any visible debris.

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified automotive technician.

Specifications

Attribute	Detail
Brand	CHERISH-AUTO
OEM Part Number	93580-2D000, 935802D000
Model Number	CRLI-GDLQP-10040208
Product Dimensions (L x W x H)	3.15 x 1.18 x 2.36 inches
Color	Black
Item Package Quantity	1
Included Components	ABS plastic housing
Batteries Required	No

Warranty and Support

The CHERISH-AUTO 93580-2D000 Door Lifter Button comes with a one-year quality guarantee from the date of purchase.

For any quality issues, compatibility questions, or technical assistance, please contact CHERISH-AUTO customer support. You may be asked to provide your vehicle's 17-digit VIN to help determine applicability.

Note: This warranty covers manufacturing defects and does not cover damage resulting from improper installation, misuse, or normal wear and tear.
