User Manual: A/C Control Relay

1. Introduction

This manual provides essential information regarding the AUTOVIP A/C Control Relay, designed for Ford F150 models manufactured between 2006 and 2008. It covers product overview, fitment, installation guidelines, operational principles, maintenance, troubleshooting, and specifications to ensure proper use and longevity of the component.

2. Product Overview

The A/C Control Relay is a critical electrical component in your vehicle's air conditioning system. Its primary function is to control the engagement and disengagement of the A/C compressor clutch, which is essential for the air conditioning system to cool the cabin. This specific relay is a 4-pin type, designed as a direct replacement for the original equipment in compatible Ford F150 vehicles.

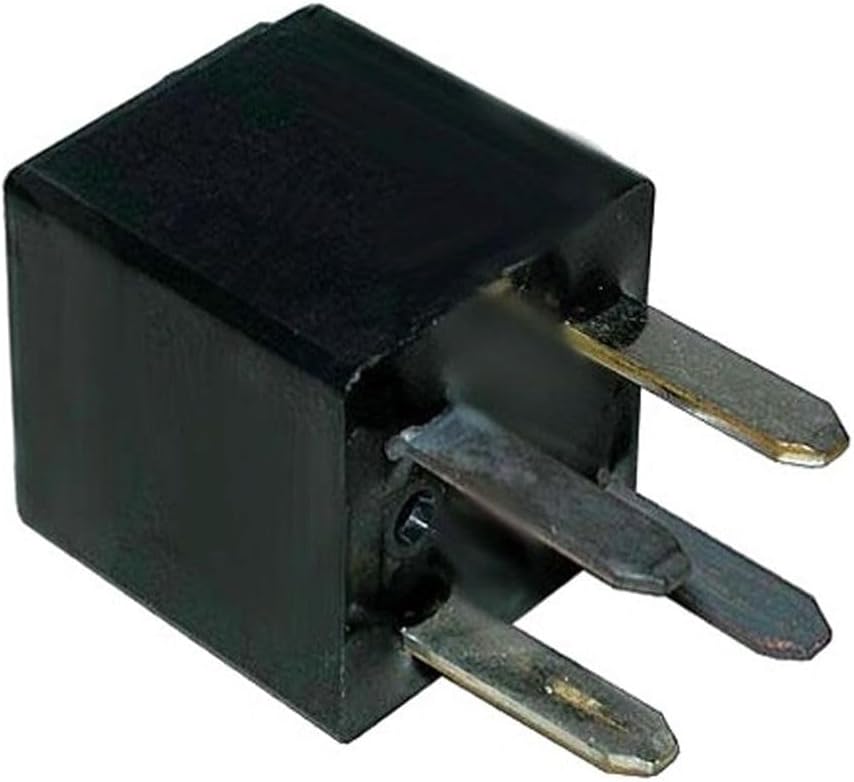

Figure 1: The AUTOVIP A/C Control Relay. This image displays the compact black rectangular relay with four metal pins extending from one side, indicating its electrical connection points.

3. Fitment Information

This A/C Control Relay (Part Number: 69231SQ, Model Number: OETA86010-69231SQ) is specifically designed for:

• Make: Ford
• Model: F150
• Years: 2006, 2007, 2008

It is crucial to verify compatibility with your specific vehicle model and year before installation. Consult your vehicle's owner's manual or a qualified automotive technician if you are unsure about the correct part for your application.

4. Installation Guidelines

The following steps provide general guidance for replacing an A/C control relay. Professional installation is recommended if you are not familiar with automotive electrical systems.

1. Safety First: Ensure the vehicle's ignition is off and disconnect the negative terminal of the battery to prevent electrical shorts or injury.
2. Locate the Relay: Refer to your vehicle's owner's manual or service diagram to locate the A/C compressor control relay. It is typically found in the under-hood fuse/relay box.
3. Identify the Old Relay: Confirm the correct relay by matching its position and part number (if visible) with the diagram.
4. Remove the Old Relay: Carefully pull the old relay straight up from its socket. Avoid wiggling excessively, which could damage the socket.
5. Install the New Relay: Align the pins of the new AUTOVIP A/C Control Relay with the corresponding holes in the socket. Press it firmly and straight down until it is fully seated.
6. Reconnect Battery: Reconnect the negative battery terminal.
7. Test Functionality: Start the vehicle and turn on the air conditioning system to verify that the compressor engages and the system operates correctly.

Note: Always handle electrical components with care. If you encounter resistance or difficulty, do not force the relay. Seek assistance from a qualified technician.

5. Operation

Once installed, the A/C Control Relay operates automatically as part of your vehicle's climate control system. When the A/C system is activated, the vehicle's computer sends a signal to the relay, which then closes an internal circuit to supply power to the A/C compressor clutch. This engages the compressor, allowing the refrigerant to circulate and cool the air. When the A/C is turned off or the desired temperature is reached, the relay opens the circuit, disengaging the compressor.

6. Maintenance

The AUTOVIP A/C Control Relay is designed to be a maintenance-free component. Regular inspection of the relay and its connections during routine vehicle servicing is recommended. Check for any signs of corrosion, melting, or loose connections. If any damage is observed, the relay should be replaced.

7. Troubleshooting

If your vehicle's A/C system is not functioning correctly, the relay may be a potential cause. Here are common symptoms and basic troubleshooting steps:

• Symptom: A/C compressor does not engage.

  Possible Cause: Faulty A/C control relay, blown fuse, wiring issue, or compressor clutch failure.

  Action: Check the A/C fuse in the fuse box. If the fuse is good, you can attempt to swap the A/C relay with another identical, non-critical relay (e.g., horn relay) from the same fuse box to see if the A/C then works. If it does, the original A/C relay is likely faulty.
• Symptom: A/C works intermittently or cycles on and off rapidly.

  Possible Cause: Intermittent relay failure, low refrigerant, or pressure switch issue.

  Action: While an intermittent relay can be difficult to diagnose, checking for proper refrigerant levels and inspecting the relay for signs of overheating or loose connections can help. Replacement of the relay may resolve intermittent issues.

For complex issues or if troubleshooting does not resolve the problem, it is advisable to consult a certified automotive technician.

8. Specifications

9. Warranty Information

This AUTOVIP A/C Control Relay comes with a 12 Month Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact the manufacturer or your point of purchase.

10. Support and Contact

For technical assistance, installation questions, or warranty inquiries, please refer to the contact information provided by AUTOVIP or the retailer from whom the product was purchased. Always ensure that any work on your vehicle's electrical system is performed by a qualified individual if you are not confident in your abilities.
