1. Introduction
This manual provides comprehensive instructions for assembling your Piececool 1:48 Scale Soviet T34 Tank 3D metal model kit. The T-34 tank, a medium tank designed before World War II, is renowned for its firepower, protection, and maneuverability. This model kit allows you to construct a detailed replica of this historic vehicle.
The assembly process is designed to be challenging and engaging, suitable for individuals aged 16 and above. Successful completion offers a strong sense of accomplishment and a unique display piece.

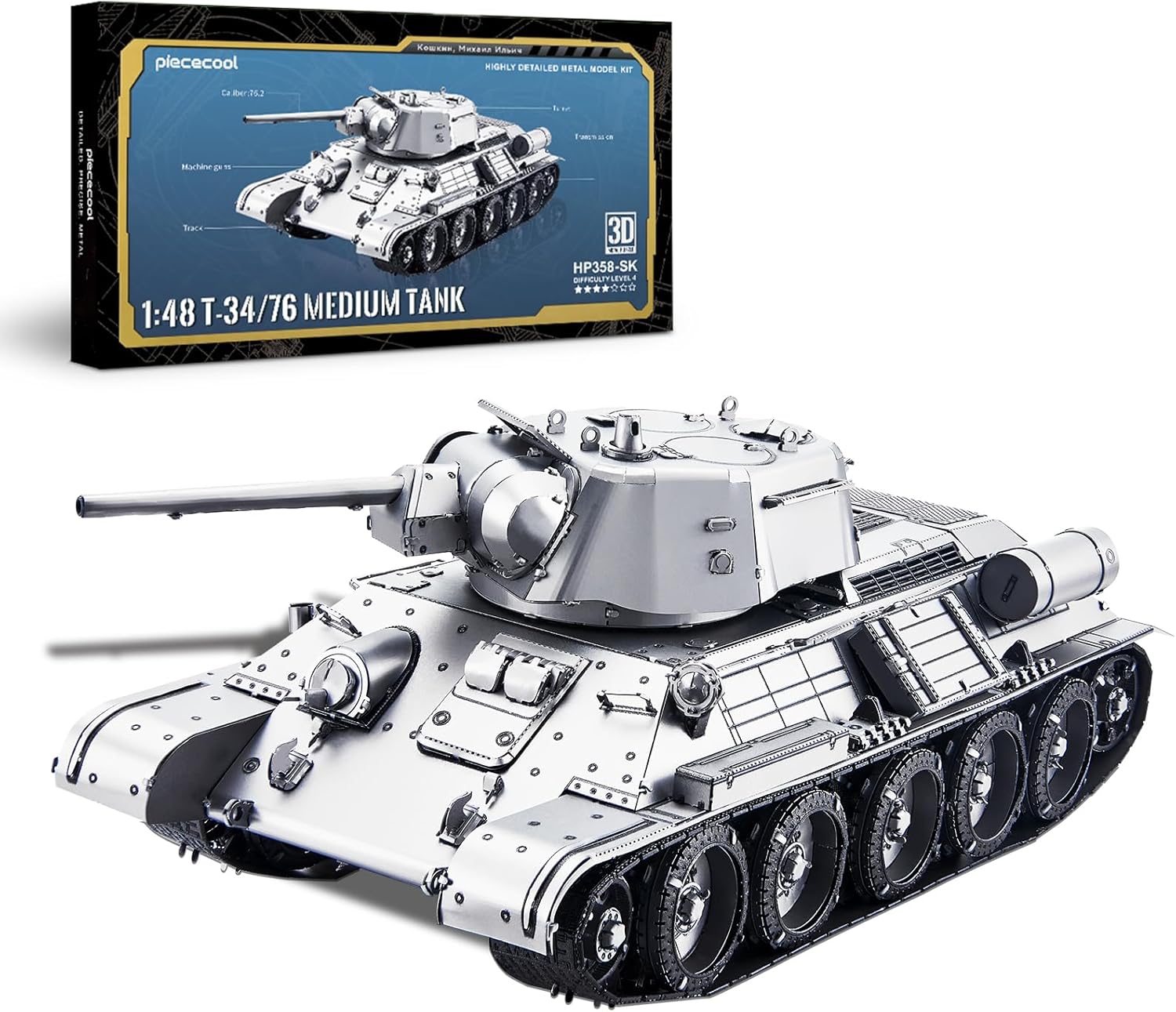

Image 1.1: The Piececool Soviet T34 Tank 3D metal model kit and the completed model.
Image 1.2: Model overview indicating difficulty, piece count, and recommended age.
2. Safety Information
WARNING: CHOKING HAZARD - Small Parts. This product contains small parts and is not suitable for children under 3 years of age. Keep all components out of reach of young children and pets.
- Handle metal sheets with care to avoid sharp edges.
- Use appropriate tools (pliers, clippers) to prevent injury and ensure precise assembly.
- Dispose of waste materials responsibly.
3. Package Contents
Your Piececool Soviet T34 Tank model kit includes the following:
- Multiple metal sheets containing all model components.
- Detailed instruction manual.
Note: Assembling tools are not included and must be purchased separately.
4. Tools Required
For optimal assembly and to prevent damage to components, the following tools are recommended:
- Clipper: For cleanly detaching parts from the metal sheets.
- Needle Nose Pliers: Essential for bending and twisting the connecting tabs accurately.
- Tweezers: Useful for handling small parts and precise adjustments.
Image 4.1: Overview of the assembly process, highlighting the need for tools and step-by-step instructions.
5. Assembly Instructions
Follow these steps carefully to assemble your Piececool T34 Tank model. Refer to the included detailed instruction manual for specific part identification and bending diagrams.
- Preparation: Lay out all metal sheets and the instruction manual on a clean, well-lit work surface. Ensure you have all recommended tools readily available.
- Part Identification: Familiarize yourself with the parts on each metal sheet and their corresponding numbers in the instruction manual.
- Detaching Parts: Carefully use clippers to detach each part from its metal sheet. Avoid bending or twisting parts while detaching.
- Bending and Connecting: Follow the step-by-step diagrams in the manual. Use needle nose pliers to bend tabs and connect corresponding slots. Ensure bends are precise for a secure fit. No glue or solder is required.
- Sequential Assembly: Assemble the model in the order specified in the manual. This typically involves building sub-assemblies (e.g., chassis, turret, tracks) before combining them.
- Attention to Detail: Pay close attention to the orientation of parts and the direction of bends. Small errors can affect the final fit and appearance.
Image 5.1: A builder following the detailed instructions to assemble the metal model.
6. Display and Features
Once assembled, your Piececool T34 Tank model is designed for display. The model features a 360-degree rotatable turret, adding to its realistic detail.
Image 6.1: The T34 tank model showcasing its rotatable turret.
Place your finished model on a stable surface, such as a desk, bookshelf, or display cabinet, to showcase your craftsmanship.
7. Maintenance
To maintain the appearance of your metal model:
- Cleaning: Gently dust the model with a soft, dry cloth or a soft brush. Avoid using abrasive cleaners or liquids, which may damage the metal finish.
- Storage: Store the model in a dry environment, away from direct sunlight or extreme temperatures, to prevent discoloration or material degradation.
- Handling: Handle the model carefully to avoid bending or breaking delicate parts.
8. Troubleshooting
If you encounter difficulties during assembly, consider the following:
- Parts Not Fitting: Double-check the part numbers and the bending angles against the instruction manual. Ensure tabs are fully inserted into slots.
- Bent Parts: If a part is accidentally bent, gently try to straighten it using needle nose pliers. Be cautious to avoid metal fatigue and breakage.
- Missing Parts: Carefully re-examine the metal sheets and your work area. If a part is genuinely missing, contact Piececool customer support.
- Difficulty with Small Parts: Use tweezers for better grip and control when working with very small components.
9. Specifications
| Brand | Piececool |
| Model Name | HP358-SK |
| Theme | Military (Soviet T34 Tank) |
| Material | Metal |
| Color | Silver |
| Recommended Age | 16 years and up |
| Number of Pieces | 348 (High-quality metal pieces) |
| Approximate Dimensions (L x W x H) | 15.3 cm x 7.3 cm x 6.2 cm (6 in x 2.9 in x 2.44 in) |
| Item Weight | 3.52 ounces |
Image 9.1: Dimensions of the assembled model.
10. Warranty and Support
For any questions regarding assembly, missing parts, or product support, please contact Piececool customer service. Refer to the product packaging or the official Piececool website for contact details.
Piececool products are designed for quality and satisfaction. If you encounter any issues, please reach out to us for assistance.
