Hoteche 65W Multifunction Tool Sharpener User Manual

1. Introduction

This user manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Hoteche 65W Multifunction Tool Sharpener. Please read this manual thoroughly before using the device to ensure optimal performance and safety.

The Hoteche 65W multifunction sharpener is a powerful and versatile tool designed for sharpening various implements such as knives, scissors, kitchen knives, HSS drill bits, and chisels. It operates at 220-240V, 50/60Hz, with a 65W motor and a no-load speed of 6700 RPM, featuring a 51mm grinding wheel.

2. Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions: Familiarize yourself with the sharpener's operation and limitations, as well as the specific potential hazards.
• Electrical Safety: Ensure the power supply matches the specifications (220-240V, 50/60Hz). Use a VDE-compliant plug. Do not operate in wet conditions.
• Personal Protective Equipment: Always wear safety glasses to protect your eyes from sparks and debris. Gloves are recommended for handling sharp objects.
• Work Area: Keep your work area clean and well-lit. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Tool Condition: Inspect the sharpener for damage before each use. Do not use if the power cord or plug is damaged.
• Secure the workpiece: Always ensure the item being sharpened is securely held in the appropriate guide.
• Avoid Overheating: Do not apply excessive pressure, which can cause the motor to overheat or damage the grinding wheel.
• Unplug When Not In Use: Disconnect the sharpener from the power source before making adjustments, changing accessories, or storing.
• Children and Bystanders: Keep children and bystanders away from the operating area.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged:

• Hoteche 65W Multifunction Tool Sharpener Main Unit
• Knife and Scissor Sharpening Module
• High-Speed Steel Drill Bit Sharpening Module
• Chisel and Plane Blade Sharpening Module
• User Manual (this document)

Figure 3.1: Main unit and sharpening modules.

This image displays the Hoteche 65W Multifunction Tool Sharpener's main body along with its three distinct sharpening attachments: one for high-speed steel drills, one for knives and scissors, and another for chisels and plane blades. Each module is clearly labeled.

4. Product Overview

The Hoteche Multifunction Tool Sharpener consists of a main power unit and interchangeable sharpening modules designed for specific tool types.

Figure 4.1: Hoteche Multifunction Tool Sharpener.

This image shows the Hoteche 65W Multifunction Tool Sharpener from a front-side perspective. The main yellow and black unit is visible, with a clear protective cover over the grinding area and a knob for adjustment. The Hoteche logo and "Ø3-13 mm" marking are visible on the drill sharpening module.

Key Components:

• Main Unit: Houses the 65W motor and grinding wheel. Features a power switch.
• Sharpening Modules:
  • Drill Bit Module: For sharpening HSS drill bits from 3mm to 13mm.
  • Knife/Scissor Module: For sharpening various knives and scissors.
  • Chisel/Plane Blade Module: For sharpening chisels and plane blades from 6mm to 51mm.
• Grinding Wheel: 51mm diameter, designed for efficient material removal.
• Power Switch: On/Off toggle switch located on the main unit.

5. Setup

Before operating the sharpener, ensure it is placed on a stable, flat surface and connected to a suitable power outlet.

1. Unpack: Carefully remove all components from the packaging.
2. Placement: Position the main sharpener unit on a sturdy workbench or table. Ensure there is adequate space around the unit for safe operation.
3. Module Installation: Select the appropriate sharpening module for the tool you intend to sharpen. Align the module with the corresponding slot on the main unit and firmly push it into place until it clicks securely.
4. Power Connection: Plug the VDE-compliant power cord into a standard 220-240V, 50/60Hz electrical outlet.
5. Safety Check: Before turning on, ensure no foreign objects are near the grinding wheel and that the selected module is correctly installed.

6. Operating Instructions

Always wear safety glasses during operation. Ensure the tool to be sharpened is clean and free of grease or debris.

6.1 Sharpening Knives and Scissors

1. Install the Knife and Scissor Sharpening Module onto the main unit.
2. Turn on the sharpener using the power switch.
3. For knives, carefully insert the blade into the appropriate slot, ensuring the blade edge rests against the grinding wheel. Apply light, even pressure and pull the knife slowly through the slot, maintaining a consistent angle. Repeat on the other side if necessary.
4. For scissors, open the scissors fully and insert one blade into the designated slot. Pull the blade through with light pressure. Repeat for the second blade.
5. After sharpening, carefully remove the tool and wipe off any metal dust.

Figure 6.1.1: Sharpening scissors.

This image demonstrates the process of sharpening scissors. A hand holds a pair of golden-handled scissors, with one blade inserted into the dedicated sharpening slot of the Hoteche sharpener. An inset circle shows a close-up of a fabric being cut by sharpened scissors, indicating the effectiveness.

Figure 6.1.2: Sharpening various tools.

This image provides a composite view of the Hoteche sharpener in action. The main image shows the sharpener with the knife/scissor module attached. Three circular insets highlight different sharpening applications: sharpening a straight-edge chisel, sharpening kitchen knives, and sharpening HSS drill bits, demonstrating the versatility of the tool.

6.2 Sharpening Drill Bits

1. Install the High-Speed Steel Drill Bit Sharpening Module.
2. Turn on the sharpener.
3. Insert the drill bit (3mm to 13mm) into the appropriate guide hole in the module. Ensure the drill bit is seated correctly.
4. Gently push the drill bit forward and rotate it slightly to ensure even sharpening of the cutting edges. Follow the module's internal guides for the correct angle.
5. Remove the drill bit and check its sharpness. Repeat if necessary.

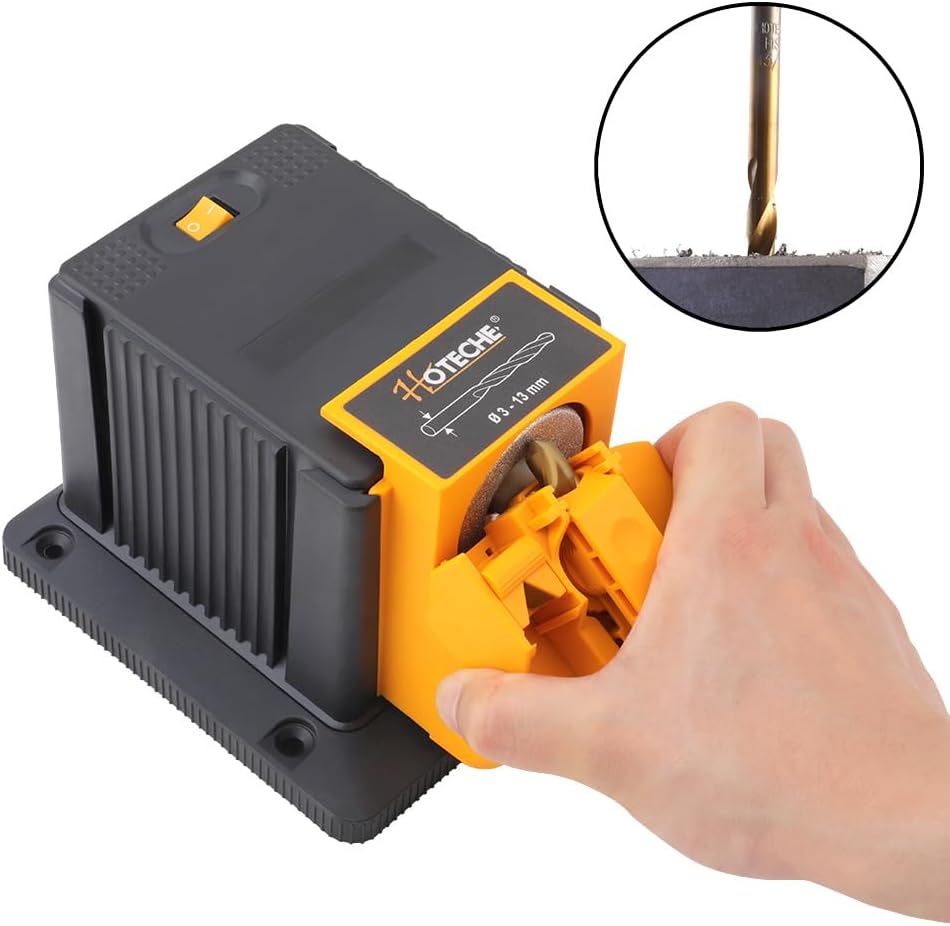

Figure 6.2.1: Sharpening drill bits.

This image illustrates the process of sharpening a drill bit. A hand is shown holding a drill bit, inserting it into the dedicated drill bit sharpening module of the Hoteche sharpener. An inset circle provides a close-up view of a sharpened drill bit, highlighting its precise tip.

6.3 Sharpening Chisels and Plane Blades

1. Install the Chisel and Plane Blade Sharpening Module.
2. Turn on the sharpener.
3. Insert the chisel or plane blade (6mm to 51mm) into the module's slot. Adjust the angle knob on the module to achieve the desired sharpening angle.
4. Gently push the blade against the grinding wheel, moving it back and forth evenly across the wheel's surface. Maintain consistent pressure.
5. Periodically check the edge for sharpness and burr formation.
6. Once sharpened, carefully remove the tool.

Figure 6.3.1: Sharpening chisels.

This image depicts the sharpening of a wood chisel. A hand holds the chisel, guiding its blade into the chisel sharpening module of the Hoteche sharpener. An inset circle shows a close-up of a hand using a sharpened chisel on a piece of wood, demonstrating its effectiveness.

Important: Do not apply excessive force. Let the sharpener do the work. Over-sharpening can damage the tool or the sharpener. Always ensure the tool is held firmly and guided correctly by the module.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Hoteche sharpener.

• Cleaning: After each use, unplug the sharpener and use a soft brush or cloth to remove metal dust and debris from the grinding wheel and sharpening modules. Do not use water or abrasive cleaners.
• Storage: Store the sharpener and its modules in a clean, dry place, away from direct sunlight and extreme temperatures. Keep out of reach of children.
• Grinding Wheel Inspection: Periodically inspect the grinding wheel for wear or damage. If the wheel appears worn or chipped, it may need replacement.
• Cord Inspection: Regularly check the power cord for any signs of damage, such as cuts or fraying. If damaged, do not use the sharpener and seek professional repair.

8. Troubleshooting

This section addresses common issues you might encounter with your sharpener.

9. Specifications

Technical specifications for the Hoteche 65W Multifunction Tool Sharpener:

10. Warranty and Support

Hoteche products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or contact your retailer. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Hoteche website or contact their customer service department.
