User Manual

1. Introduction

Thank you for choosing the Huhote Industrial TV Stand. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your new TV stand. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

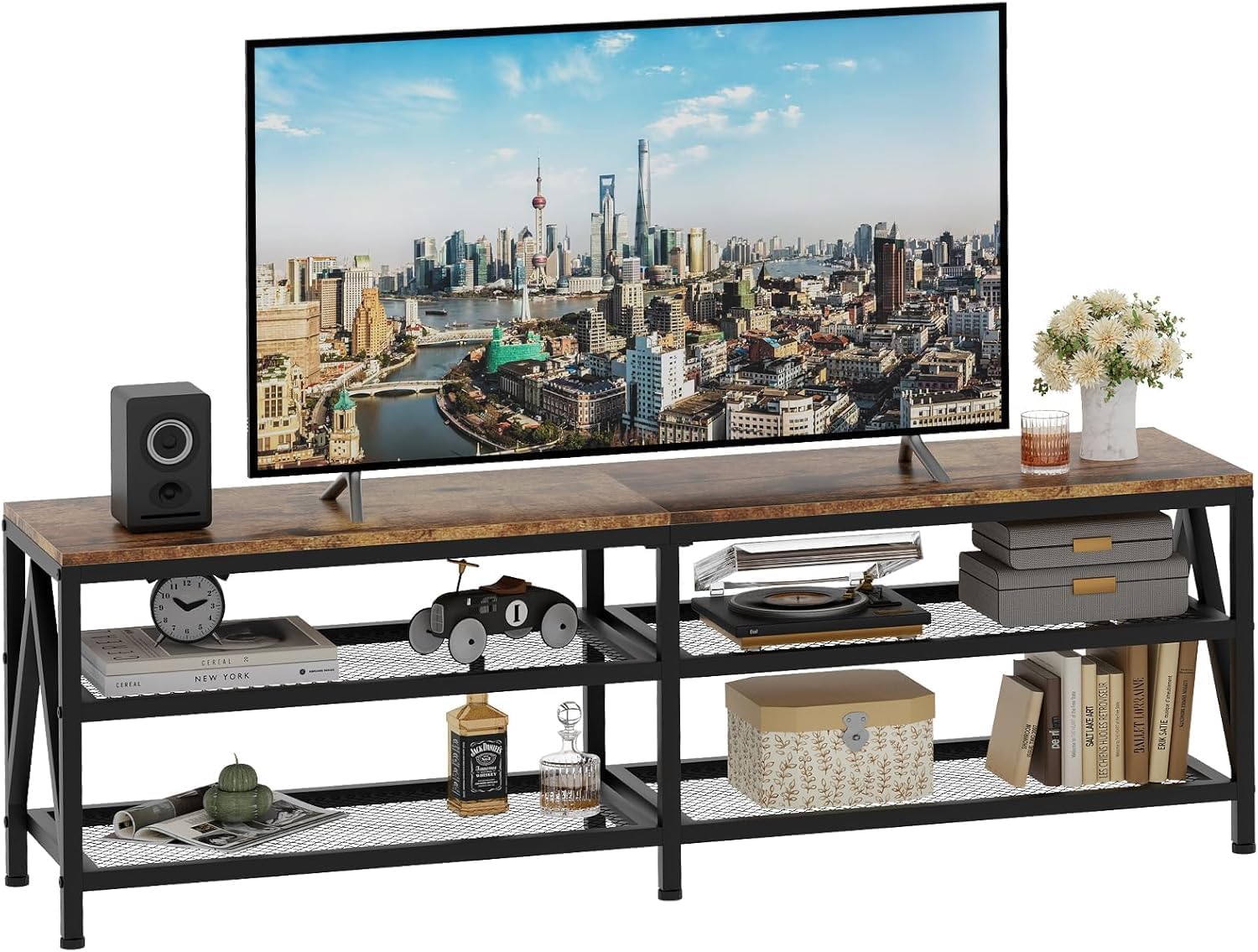

Image 1.1: Fully assembled Huhote Industrial TV Stand, showcasing its design and capacity for a large television and various media devices or decor.

2. Safety Information

To ensure safe use of this product, please observe the following precautions:

• Always assemble the TV stand on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum weight capacity of 68 kg (150 lbs) for the top surface and shelves.
• Place the TV stand on a level and stable surface to prevent tipping. Adjustable feet are provided for minor leveling adjustments.
• Keep small parts and packaging materials away from children and pets during assembly.
• Do not stand or climb on the TV stand.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

3. Package Contents

Before assembly, verify that all components and hardware are present. Refer to the parts list provided in your packaging. Typical components include:

• Top Panels (Particle Board)
• Steel Frame Components (Legs, Crossbars, V-shaped braces)
• Mesh Shelves
• Adjustable Feet
• Assembly Hardware (Screws, Allen Wrench)
• Instruction Manual

4. Setup and Assembly

Assembly typically requires two adults. Follow the numbered steps in your included assembly guide. A general overview of the process is provided below:

1. Prepare the Area: Clear a spacious, clean, and soft area for assembly to prevent damage to parts and flooring.
2. Identify Parts: Lay out all components and hardware, matching them with the parts list in your manual.
3. Assemble Frame Sections: Begin by attaching the V-shaped braces to the main steel frame legs using the provided screws. Ensure all connections are finger-tight at this stage.
4. Attach Crossbars and Shelves: Connect the horizontal crossbars and mesh shelves to the assembled frame sections.
5. Install Top Panels: Secure the particle board top panels to the completed steel frame.
6. Tighten All Fasteners: Once all components are in place, systematically tighten all screws with the provided Allen wrench. Do not overtighten.
7. Attach Adjustable Feet: Screw the adjustable feet into the bottom of the legs.
8. Level the Stand: Place the TV stand in its desired location. Adjust the feet as needed to ensure the stand is stable and level on uneven floors.

Image 4.1: Detail of the robust steel frame with V-shaped supports and an adjustable leveling foot, highlighting the stability features.

Image 4.2: A detailed view of a frame joint, illustrating the secure connection points for assembly.

5. Operating Instructions

The Huhote Industrial TV Stand is designed to accommodate televisions up to 70 inches and provide ample storage for media devices and accessories.

• TV Placement: Carefully place your television on the top surface. Ensure the TV's base is fully supported and centered on the stand.
• Weight Distribution: Distribute weight evenly across the top surface and shelves. Avoid placing heavy items on the edges or in a way that could cause the stand to become unbalanced.
• Cable Management: Utilize the open design for easy cable routing and management to keep your entertainment area tidy.
• Storage: The three open compartments and additional lower shelves are ideal for storing routers, DVD players, gaming consoles (e.g., PS5), books, magazines, and decorative items.

Image 5.1: The spacious open compartments of the TV stand, showcasing its utility for organizing media equipment and other items.

6. Maintenance

Proper care will extend the life and appearance of your TV stand:

• Cleaning: Wipe the surfaces with a dry, soft cloth. For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth. Avoid abrasive cleaners or harsh chemicals.
• Spills: Clean up spills immediately to prevent staining, especially on the particle board surfaces.
• Sunlight Exposure: Avoid prolonged direct sunlight exposure to prevent fading or damage to the wood-grain finish.
• Regular Checks: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.

Image 6.1: Detail of the particle board surface, illustrating the wood-grain texture that should be maintained with proper cleaning.

7. Troubleshooting

If you encounter issues with your TV stand, refer to the following common solutions:

8. Specifications

Key specifications for the Huhote Industrial TV Stand (Model DY2575):

• Model Number: DY2575
• Brand: Huhote
• Dimensions (L x W x H): 160 x 40 x 50 cm (62.99 x 15.75 x 19.69 inches)
• Weight: Approximately 11.2 kg (24.7 lbs)
• Material: Particle Board, Steel
• Color: Brown (Vintage)
• Max TV Size: Up to 70 inches
• Weight Capacity: Up to 68 kg (150 lbs) for the top surface.
• Assembly Required: Yes
• Style: Industrial

Image 8.1: Dimensional diagram of the TV stand, indicating its overall size and suitability for various television sizes, including up to 70 inches.

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact Huhote directly through their official website or the retailer where the product was purchased.

Manufacturer: Huhote

UPC: 763055261085

ASIN: B0D3CBYNGJ
