ROYAL KRAFT PT8500WE Professional Gasoline Generator User Manual

1. Safety Instructions

Read and understand all safety warnings and instructions before operating this generator. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

• Carbon Monoxide Hazard: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents. Never operate indoors or in partially enclosed spaces.
• Fire Hazard: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator. Store fuel in approved containers.
• Electrical Shock Hazard: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and dry. Use only grounded extension cords.
• Hot Surfaces: The generator engine and muffler become very hot during operation and remain hot for a period after shutdown. Avoid contact with hot surfaces.
• Moving Parts: Keep hands, feet, hair, and clothing away from moving parts.
• Children and Pets: Keep children and pets away from the generator at all times.

2. Product Overview

The ROYAL KRAFT PT8500WE is a professional-grade gasoline generator designed to provide reliable power for various applications. It features a 4-stroke engine and a recoil start system.

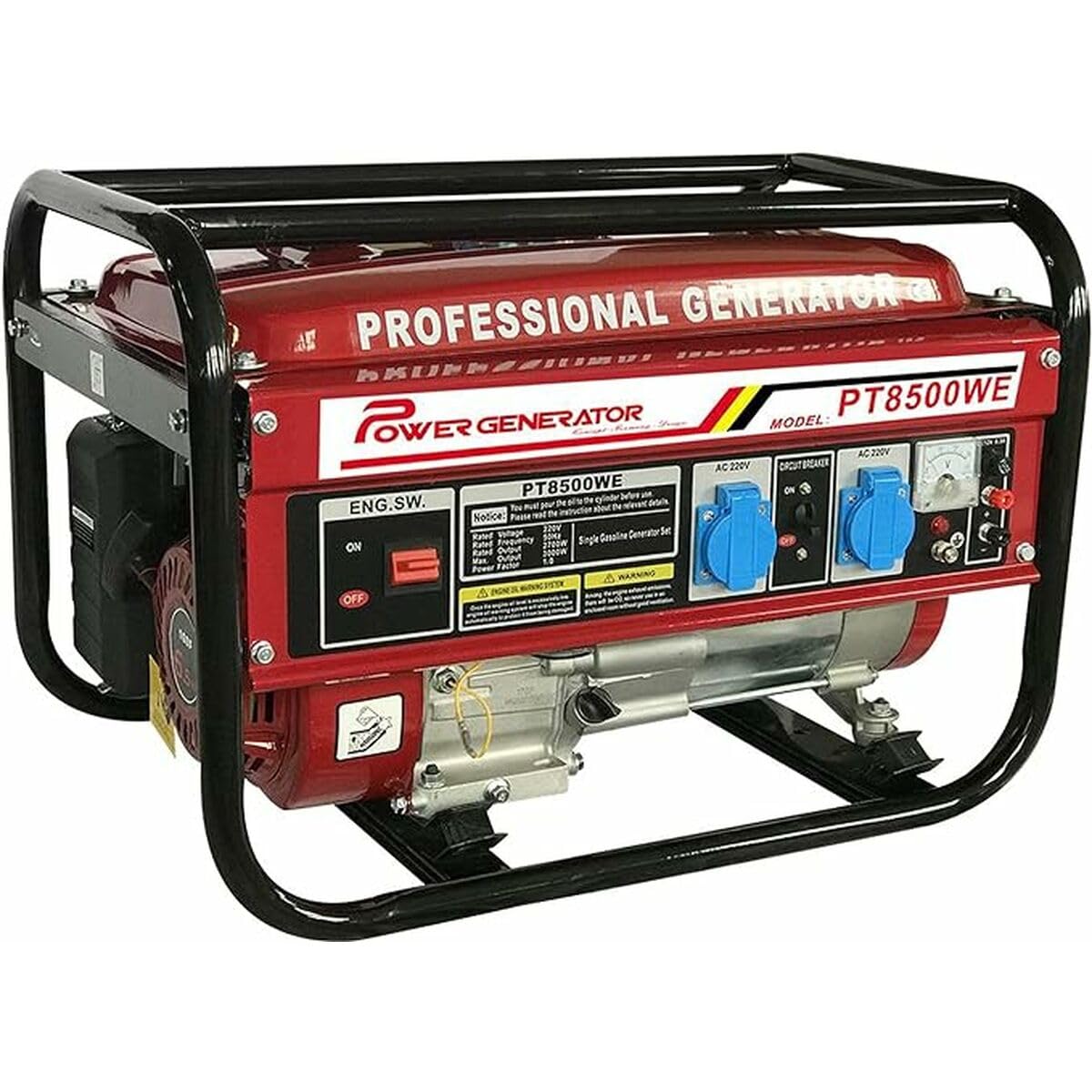

This image displays the ROYAL KRAFT PT8500WE Professional Gasoline Generator, showing its main components such as the engine, fuel tank, control panel, and sturdy frame. The generator is designed for portability and ease of use.

Familiarize yourself with the generator's components before operation, including the fuel tank, engine, control panel (outlets, switches), and recoil starter.

3. Setup

1. Unpacking: Carefully remove the generator from its packaging. Inspect for any shipping damage.
2. Placement: Place the generator on a firm, level surface outdoors, in a well-ventilated area, away from combustible materials and at least 1 meter (3 feet) from any building or other equipment.
3. Add Engine Oil: This generator requires engine oil for operation. Locate the oil fill cap/dipstick. Add the recommended type and amount of engine oil (refer to specifications for oil type) until it reaches the upper mark on the dipstick. Do not overfill.
4. Add Fuel: Ensure the engine is off and cool. Open the fuel tank cap and carefully fill with fresh, unleaded gasoline. Do not overfill; leave space for fuel expansion. Securely close the fuel cap.
5. Grounding: For safety, ensure the generator is properly grounded. Consult local electrical codes for proper grounding procedures.

4. Operating Instructions

Starting the Engine (Recoil Start)

1. Ensure the generator is on a level surface and all connections are secure.
2. Turn the fuel valve to the 'ON' position.
3. Move the choke lever to the 'CHOKE' position (if the engine is cold).
4. Turn the engine switch to the 'ON' position.
5. Grasp the recoil starter handle firmly and pull it slowly until resistance is felt, then pull quickly and smoothly to start the engine. Repeat if necessary.
6. Once the engine starts, gradually move the choke lever to the 'RUN' position.
7. Allow the engine to warm up for a few minutes before connecting electrical loads.

Connecting Electrical Loads

• Ensure the generator is running stably.
• Plug your appliances or extension cords into the appropriate outlets on the control panel.
• Do not overload the generator. The total wattage of all connected appliances must not exceed the generator's rated output.

Stopping the Engine

1. Disconnect all electrical loads from the generator.
2. Allow the engine to run for a few minutes without load to cool down.
3. Turn the engine switch to the 'OFF' position.
4. Turn the fuel valve to the 'OFF' position.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your generator. Always perform maintenance with the engine off and cool, and disconnect the spark plug wire to prevent accidental starting.

• Check Engine Oil: Check oil level before each use. Change oil after the first 20 hours of operation, then every 50-100 hours or annually.
• Clean Air Filter: Inspect the air filter every 50 hours or more frequently in dusty conditions. Clean or replace as needed.
• Check Spark Plug: Inspect the spark plug every 100 hours. Clean or replace if fouled or worn.
• Fuel System: Drain the fuel tank and carburetor if storing the generator for more than 30 days to prevent fuel degradation.
• General Cleaning: Keep the generator clean and free of debris. Use a dry cloth to wipe down surfaces.

6. Troubleshooting

If problems persist after attempting these solutions, contact qualified service personnel.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or to inquire about replacement parts, please contact ROYAL KRAFT customer service through your point of purchase or the official ROYAL KRAFT website. Keep your purchase receipt as proof of purchase.
