Instruction Manual: .405" Diameter Gauge Glass Float Balls

1. Introduction

These .405" diameter red gauge glass float balls are designed to enhance the visibility of liquid levels within high-pressure, standard-wall gauge glass. Each pack contains six float balls, providing a clear and accurate indication of fluid levels in various industrial applications.

The vibrant red color of the float balls significantly improves visibility, making it easier to monitor and maintain optimal liquid levels in systems such as boilers and tanks. Constructed from durable polyethylene, these float balls ensure reliable performance in demanding environments.

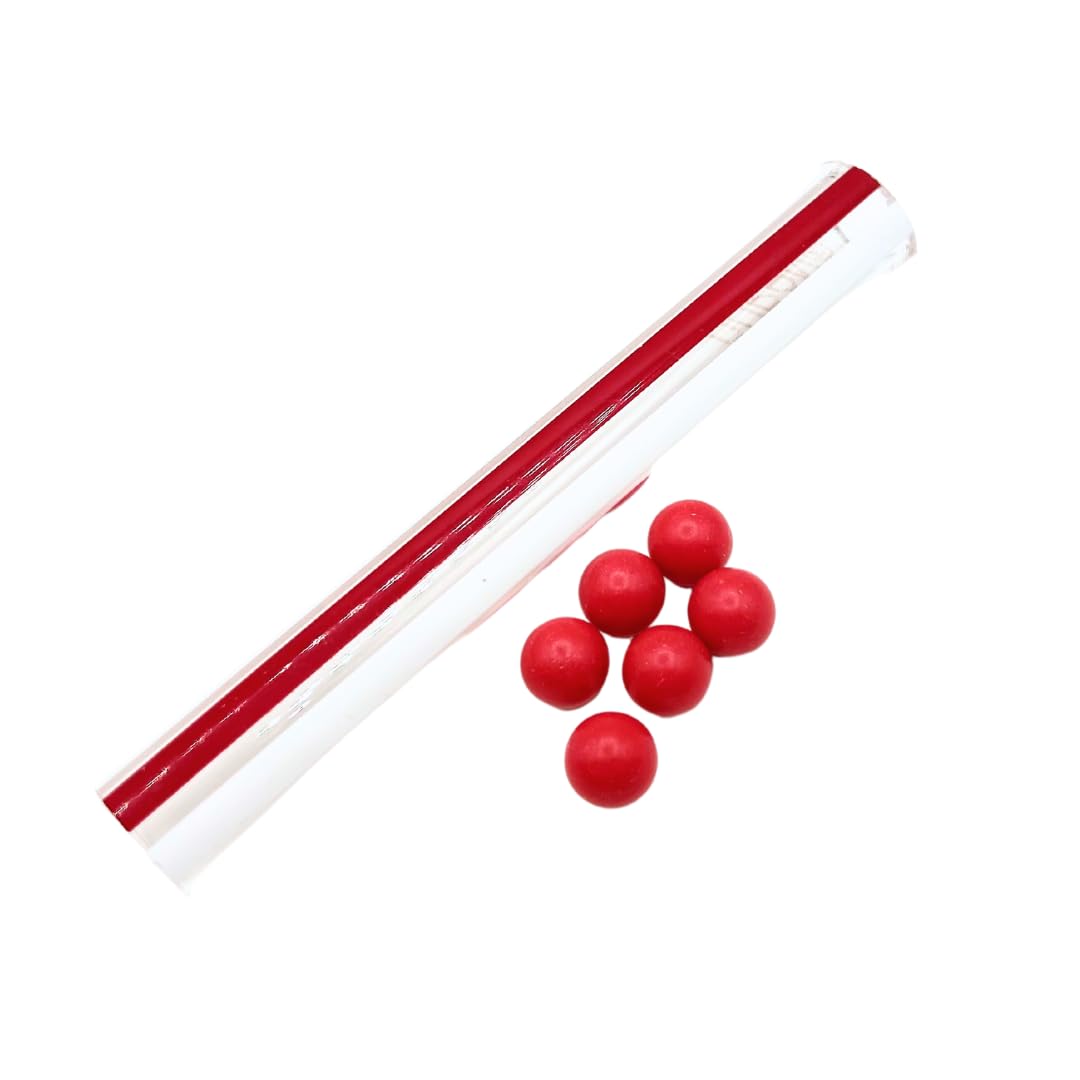

This image displays the six red gauge glass float balls included in the pack, positioned beside a clear gauge glass tube, illustrating their intended use.

2. Setup and Compatibility

The .405" diameter float balls are specifically designed for use with high-pressure, standard-wall gauge glass. It is crucial to ensure that your gauge glass has one of the following outer diameters (OD) for proper fit and function:

• 3/4" OD
• 1" OD
• 1-1/4" OD
• 7/8" OD
• 1-1/8" OD
• 1-1/2" OD

Important Note: These float balls will not fit any heavy-wall gauge glass. The gauge glass itself and any liquid-level gauges are not included with this product.

This visual shows a red float ball within a gauge glass, accompanied by a diagram that specifies the compatible outer diameters for standard wall gauge glass, such as 3/4", 1", and 1-1/4".

A detailed close-up of the red float ball as it rests inside a clear gauge glass, demonstrating how it indicates the liquid level.

3. Operating Principles

Once properly installed within a compatible gauge glass, the float ball will rise and fall with the liquid level inside the system. Its bright red color provides a clear visual indicator against the transparent gauge glass, allowing for quick and accurate readings of the fluid level.

The float ball's movement directly corresponds to the liquid level, making it an effective tool for continuous monitoring in boilers, tanks, and other industrial equipment where precise level management is critical for operational efficiency and safety.

This image illustrates the float ball's function in a gauge glass, emphasizing its vibrant red color for improved liquid level visibility in various industrial applications like boilers and tanks. It also notes the polyethylene construction for durability.

This image provides an alternative close-up view of the red float ball, showcasing its snug fit and movement within the gauge glass.

4. Maintenance

These polyethylene float balls require minimal maintenance. To ensure continued clear visibility and accurate readings, periodically inspect the float balls for any accumulation of debris or residue from the liquid. If cleaning is necessary:

1. Carefully remove the float ball from the gauge glass, following proper safety procedures for your specific system.
2. Clean the float ball with a mild detergent and water. Avoid abrasive cleaners or harsh chemicals that could damage the polyethylene material.
3. Rinse thoroughly with clean water and allow to air dry completely before reinserting into the gauge glass.

Regular inspection of the gauge glass itself for clarity and integrity is also recommended, as a dirty or damaged glass can impede the visibility of the float ball.

5. Troubleshooting

Float Ball Not Moving Freely or Incorrect Reading

• Issue: The float ball is stuck or does not move smoothly with the liquid level.
• Possible Cause: The gauge glass outer diameter is not compatible with the .405" float ball, leading to a tight fit.
• Solution: Verify that your gauge glass is a high-pressure, standard-wall type with one of the specified outer diameters (3/4", 1", 1-1/4", 7/8", 1-1/8", or 1-1/2" OD). These float balls are not suitable for heavy-wall gauge glass.
• Possible Cause: Accumulation of residue or debris on the float ball or inside the gauge glass.
• Solution: Remove and clean the float ball and the interior of the gauge glass as described in the Maintenance section.

Poor Visibility of Float Ball

• Issue: The red float ball is difficult to see.
• Possible Cause: The gauge glass is dirty or clouded.
• Solution: Clean the gauge glass thoroughly. If the glass is permanently stained or etched, it may need replacement.
• Possible Cause: Lighting conditions are poor.
• Solution: Ensure adequate lighting around the gauge for optimal visibility.

This image demonstrates the precise .405 inch diameter of the float ball, as measured by a digital caliper, highlighting its exact sizing for compatibility.

6. Specifications

7. Warranty Information

Specific warranty details for this product are not provided in the available information. For any warranty-related inquiries, please contact Boiler Supplies.com directly.

8. Support

For further assistance, technical support, or to inquire about other boiler supplies, please visit the official Boiler Supplies.com store or contact their customer service. Boiler Supplies.com is a family-owned company committed to providing essential boiler parts and minimizing downtime for industry professionals.

You can find more information and contact details at the Boiler Supplies.com Store on Amazon.
