Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your new OEM replacement side handle for the HILTI TE500-X (GEN 3) rotary hammer. Please read this manual thoroughly before installation and use to ensure safe and effective operation.
Important Safety Information
Always observe general safety precautions when working with power tools. Ensure the power tool is disconnected from the power source before attempting any installation or maintenance. Use appropriate personal protective equipment (PPE) such as safety glasses and gloves. This handle is designed specifically for the HILTI TE500-X (GEN 3) model only. Using it with other models may result in improper fit or damage.
Product Overview
The OEM replacement side handle provides improved grip and control for your HILTI TE500-X (GEN 3) rotary hammer. It is constructed from durable plastic and alloy steel components, designed for easy installation.

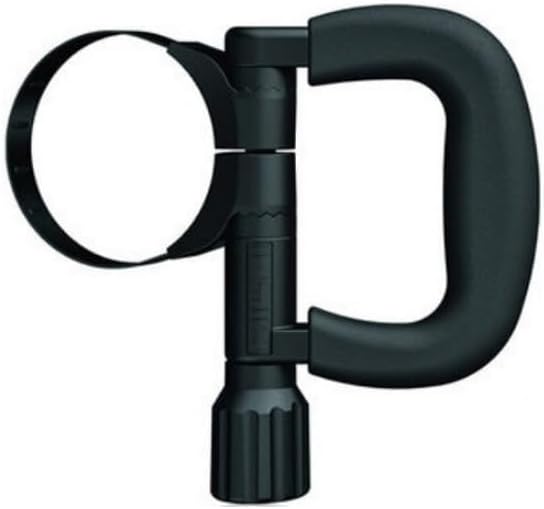

Figure 1: The OEM replacement side handle for HILTI TE500-X (GEN 3).
Setup and Installation
This side handle is designed for easy installation. Ensure your HILTI TE500-X (GEN 3) tool is unplugged and powered off before proceeding.
- Prepare the Tool: Ensure the HILTI TE500-X (GEN 3) rotary hammer is clean and free of debris around the handle mounting area.
- Remove Old Handle (if applicable): If replacing an existing handle, loosen the clamping mechanism and slide the old handle off the tool's barrel.
- Position the New Handle: Slide the new OEM side handle onto the barrel of your HILTI TE500-X (GEN 3) tool. Ensure the handle is oriented correctly for comfortable use.
- Secure the Handle: Tighten the clamping mechanism on the side handle until it is firmly secured to the tool. Do not overtighten, but ensure there is no rotational play.
- Verify Fit: Gently attempt to rotate the handle to confirm it is securely fastened and does not slip.
Important Note: This handle is specifically designed for the HILTI TE500-X GEN 3 model. It will not fit other generations or models of HILTI tools.
Operating Instructions
Once installed, the side handle provides an additional point of contact for better control and stability during operation of your HILTI TE500-X (GEN 3) rotary hammer. Always maintain a firm grip on both the main handle of the tool and the side handle during use.
- Adjust the handle position as needed for optimal balance and comfort for the task at hand.
- Ensure the handle remains securely tightened throughout operation. Periodically check its tightness.
- Use the handle to apply steady, controlled pressure to the workpiece, enhancing drilling or chiseling accuracy.
Maintenance
The OEM side handle requires minimal maintenance.
- Cleaning: Wipe the handle clean with a damp cloth as needed. Avoid using harsh chemicals or solvents that could damage the plastic or finish.
- Inspection: Periodically inspect the handle for any signs of wear, cracks, or damage. Ensure the clamping mechanism is functioning correctly.
- Storage: Store the handle in a dry, clean environment when not in use, preferably attached to the tool or in a tool case.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle is loose or slips. | Clamping mechanism not tightened sufficiently. | Ensure the clamping mechanism is fully tightened. |
| Handle does not fit the tool. | Incorrect tool model or generation. | Verify that your tool is a HILTI TE500-X GEN 3. This handle is not compatible with other models. |
| Handle appears damaged. | Physical impact or excessive force. | Discontinue use immediately. Contact customer support for replacement options. |
Specifications
- Model: 2289477 (Compatible with HILTI TE500-X GEN 3)
- Material: Plastic, Alloy Steel
- Color: Aluminum (Note: Product image shows black finish)
- Special Feature: Easy to Install
- Manufacturer: OSGLOBAL
- Country of Origin: China
Warranty Information
Specific warranty details for this OEM replacement part may vary. Please retain your proof of purchase. For warranty claims or inquiries, contact the seller or manufacturer directly. General return policy is 30 days from purchase.
Customer Support
For further assistance, technical support, or questions regarding this product, please contact the seller, OSGLOBAL, through the platform where the purchase was made. Provide your order number and product details for faster service.
Manufacturer: OSGLOBAL
